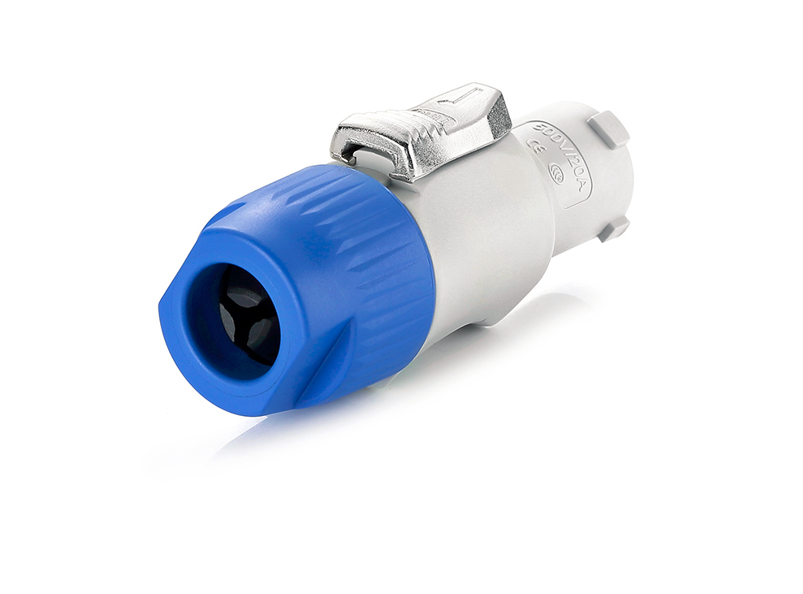

Brand: Cnlinko
Model: YF-24-J03PE-02-001
Type: Powercon connector
Description: CNLINKO's YF-24 series connectors have a unique connection system that is easy to operate and maintain. Color coding of the input/output connectors precludes incorrect connection. They are widely used in audio-video equipment, LED lighting, solar energy devices and power systems.
Technical characteristics:
Contact tip: pin
Connector Type: Powercon Connector
Number of Pins: 3 Pin
Connection mode: solder/screw lock
Rated current: 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <3mΩ
Cable diameter range: Ø9.00mm ≈ Ø 14mm
Wire gauge: 2.5mm²≈ 4mm²/12-14AWG
Degree of protection: IP67
Durability: ≥500 cycles of insertion and removal
Dimensions: 86.6mm x 32.8mm
Weight: 0.040 kg
Application: Audio-visual equipment, LED lighting, solar energy devices and power systems
