Brand: CNLINKO
Model: LP-24-C03SX-01-001

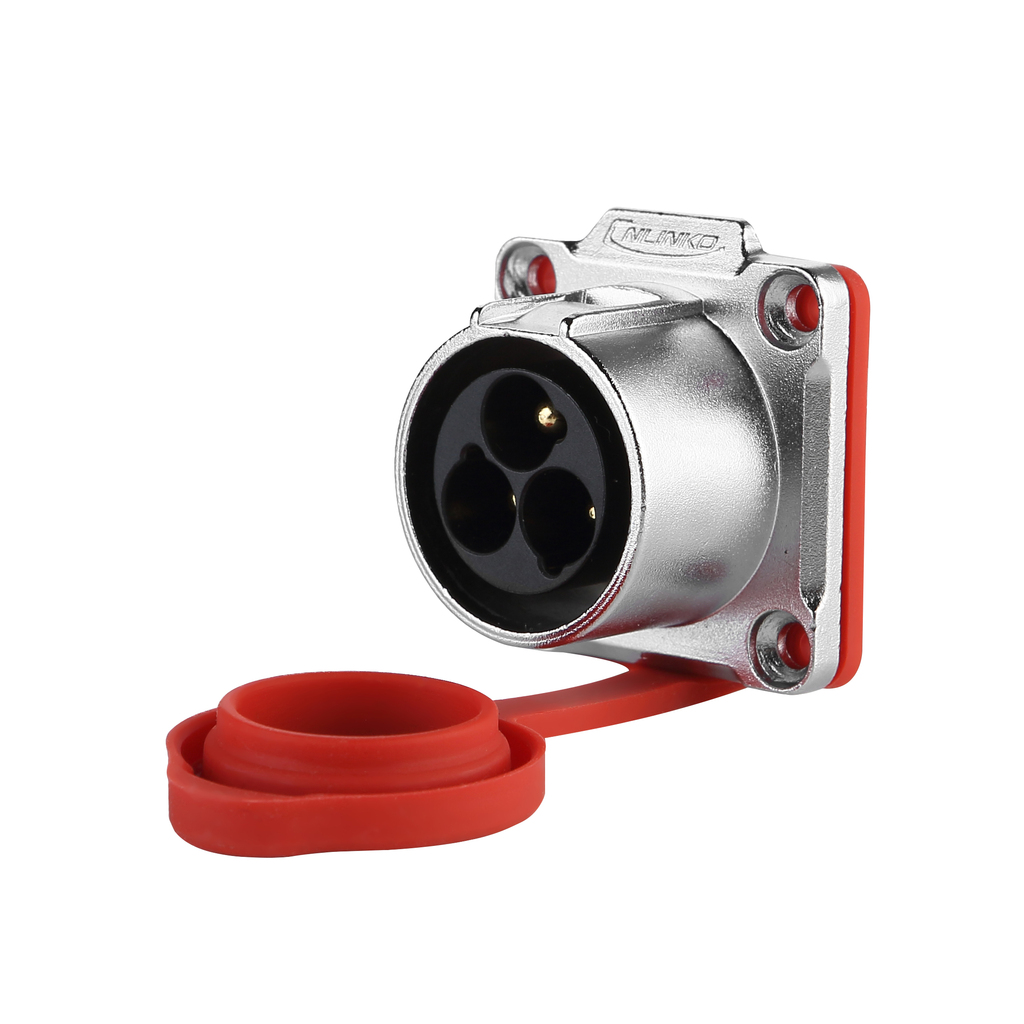

Type: Optical power supply waterproof 3-pin connector - male plug
Note: The male box is not included in the price!
Description:
The LP series is one of the best-selling series of products made with high-performance plastics. Fast plug-in design allows one-time on / off. There are different sizes from M12 to M24 to support all kinds of connection types such as: * male jack + female jack * female jack + male jack etc
Technical Characteristics:
Protection level: IP65 / IP68
Cable specification: 2.5 mm2 ~ 4 mm2 / 14 ~ 12 AWG
Diameter range: Φ8mm ~ Φ12mm
Diameter of socket × Quantity: Φ3,0 × 3
Input current (A): 25A
Operating voltage (AC.V.rms): 500V
Peak Voltage (AC.V) 1min: 2500V
Contact resistance: <1mΩ
Insulation resistance:> 500MΩ
Resistance: ≥500 mating and removal cycles
Temperature: -40 ° C ~ 80 ° C
Cable connection method: solder
Prevention of combustion level: UL94-V0
Temperature rise:
20A at 30° C
25A at 40° C
30A for contact at 50° C
Type of production: connectors
Material:
Sewing and insulated parts: High-performance engineering plastics
Metal housing: zinc alloy (pearl hard chrome)
Copper pins: copper alloy (gold-plated 4u)
Water-resistant coating: Silica gel
Main characteristics:
- Resistance to vibration, impact resistance, tensile strength
- With one hand, you can quickly insert or pull
Application: LED Screens, Medical Equipment, Solar Equipment, Ship Equipment, Power Equipment, Vehicle Equipment, Communication Equipment - Heavy Machinery
