Brand: CNLINKO
Model: YM-24-CO3PE-02-001
Type: Power connector IP67
Description: CNLINKO's new series of waterproof connectors YM (M20, M24) uses the characteristics of polybutylene terephthalate (PBT) as a die-casting material and as a component raw material for the multi-core product design improving corrosion resistance and safety. The entire body of the connector adopts a unique spring type of rotating locking connection. The precise internal construction and the strong structure ensure a safe and stable connection, as well as transmission performance guaranteeing the stability of the electric power. This series of connectors meets the needs of companies supplying power and signaling equipment.
- Different plastic waterproof connector
- IP67 excellent water protection
- Five-point thread locking system (bayonet lock)
- Lightweight and durable, strong compression and anti-explosion
- Protective protection, flexible application
Technical characteristics:
Product series: YM
Compatible with connector: YM-24-J03SX-02-101 contact / socket type
Connector gender: male
Material: polybutylene terephthalate (PBT)
Installation method: bayonet connection
Number of pins: 3 pcs
Rated current: 25A
Diameter range: Ф9mm - Ф13mm
Wire specification: 2.5mm - 4mm / 14-12AWG
Diameter of the contact by quantity: Ф3 × 3
Operating voltage: 500V
Withstand voltage: 2000V
Contact resistance: <1mΩ
Impact resistance: 294m / s²
Durability: ≥500 coupling and subtraction cycles
Operating temperature: -40 ° C ~ 80 ° C
Test results with salt spray against corrosion: PH5-7.2, NaCL, 5% 48H
Certificates: Complies with IEC61984 and UL1977 / 2238 certification standards

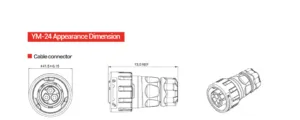

Size: 70.6 mm x 35.6 mm
Weight: 0.045 kg
Application: LED lighting, solar systems, robots, medical equipment, drones, external docking systems, etc.
