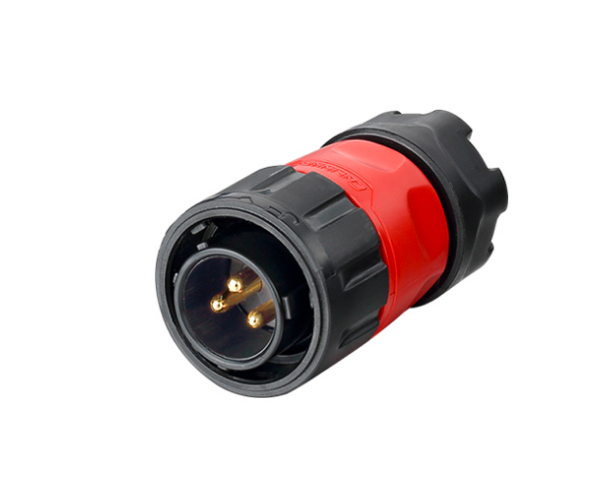

Brand: CNLINKO
Model: YM-20-CO3PE-02-001
Type: Power connector IP67
Description: CNLINKO's new series of waterproof connectors YM (M20, M24) uses the characteristics of polybutylene terephthalate (PBT) as a die-casting material and as a component raw material for the multi-core product design improving corrosion resistance and safety. The entire body of the connector adopts a unique spring type of rotating locking connection. The precise internal construction and the strong structure ensure a safe and stable connection, as well as transmission performance guaranteeing the stability of the electric power. This series of connectors meets the needs of companies supplying power and signaling equipment.
- Different plastic waterproof connector
- IP67 excellent water protection

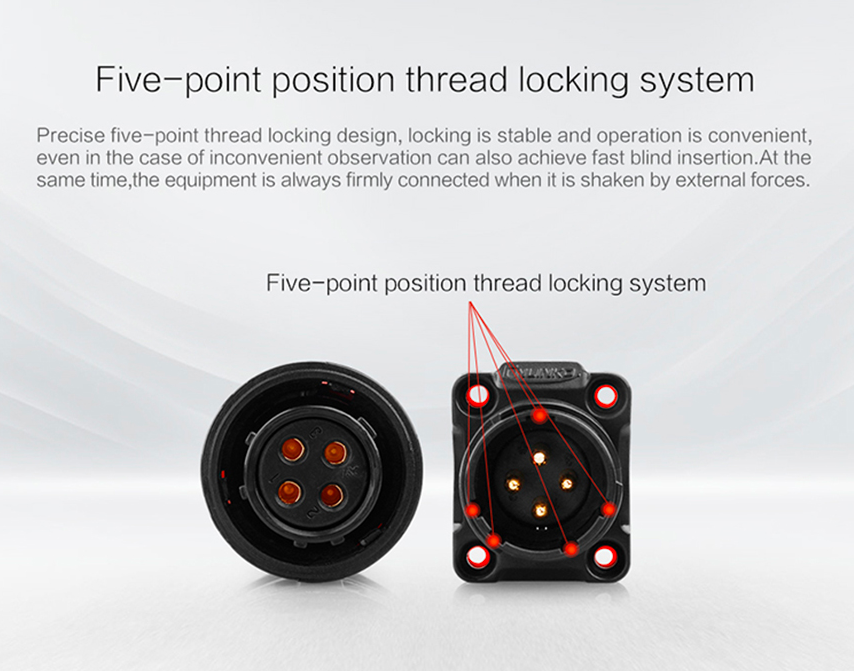

- Five-point thread locking system (bayonet lock)
- Lightweight and durable, strong compression and anti-explosion
- Protective protection, flexible application
Technical characteristics:
Product series: YM

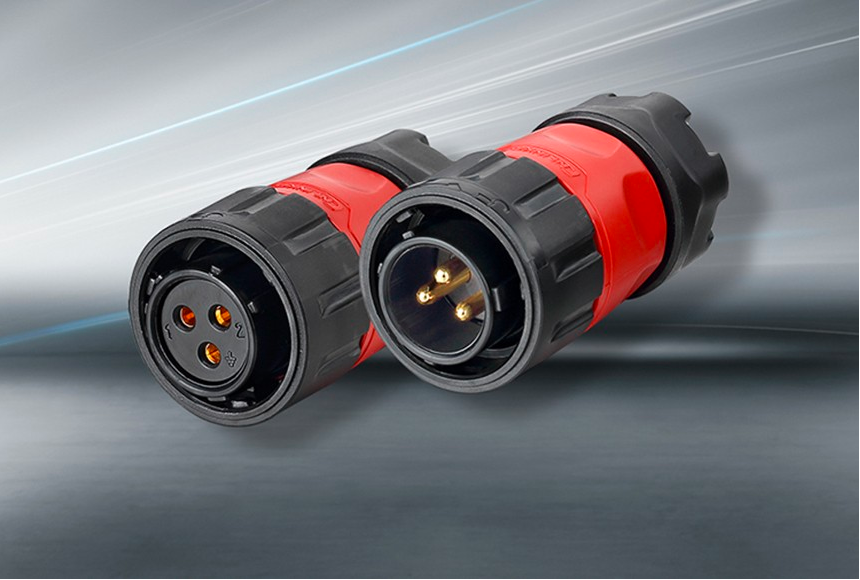

Compatible with connector: YM-20-JO3SX-02-401 contact type
Material: polybutylene terephthalate (PBT)

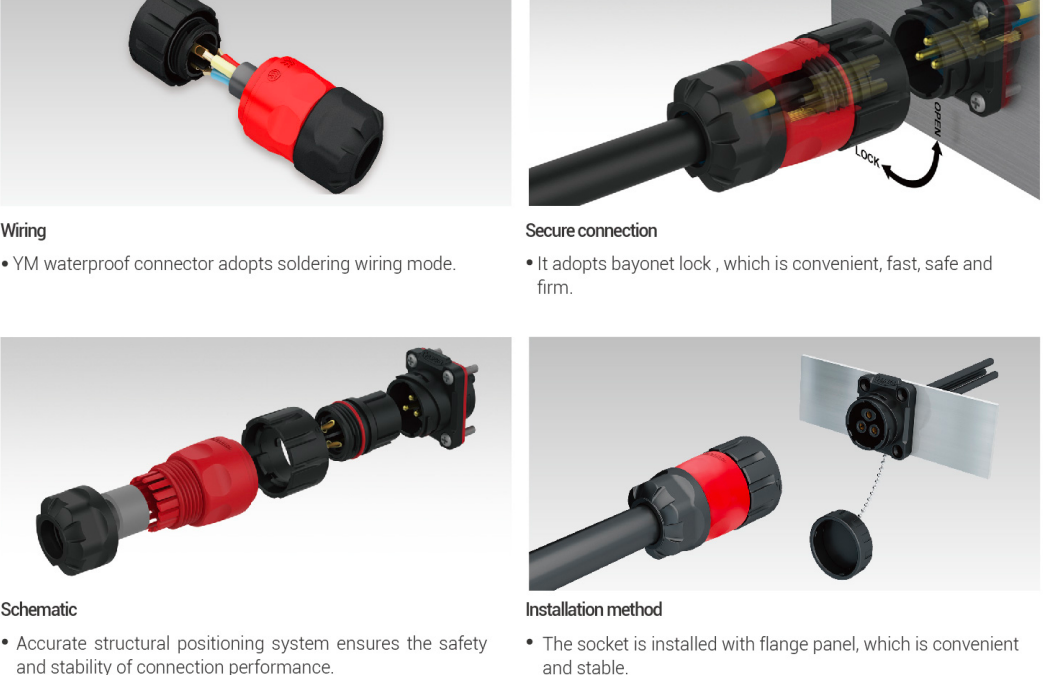

Installation method: plug
Number of pins: 3 pcs
Rated current: 20A
Diameter range: Ф9mm - Ф13mm
Wire specification: 2.5 mm - 4 mm
Diameter of the contact by quantity: Ф3 × 3
Operating voltage: 500V
Withstand voltage: 2000V
Contact resistance: <1mΩ
Impact resistance: 294m / s²
Temperature rise: 20A contact temperature below 30 ° C, 25A below 40 ° C, 30A below 50 ° C
Durability: ≥500 coupling and subtraction cycles
Screw torque: 42- 53 (N.m)
Operating temperature: -40 ° C ~ 80 ° C
Test results with anti-corrosion salt spray: PH5-7.2, NaCL, 5% 48H
Certificates: TUV and UL
Size: 56.6mm x 28.7mm
Weight: 0.034g

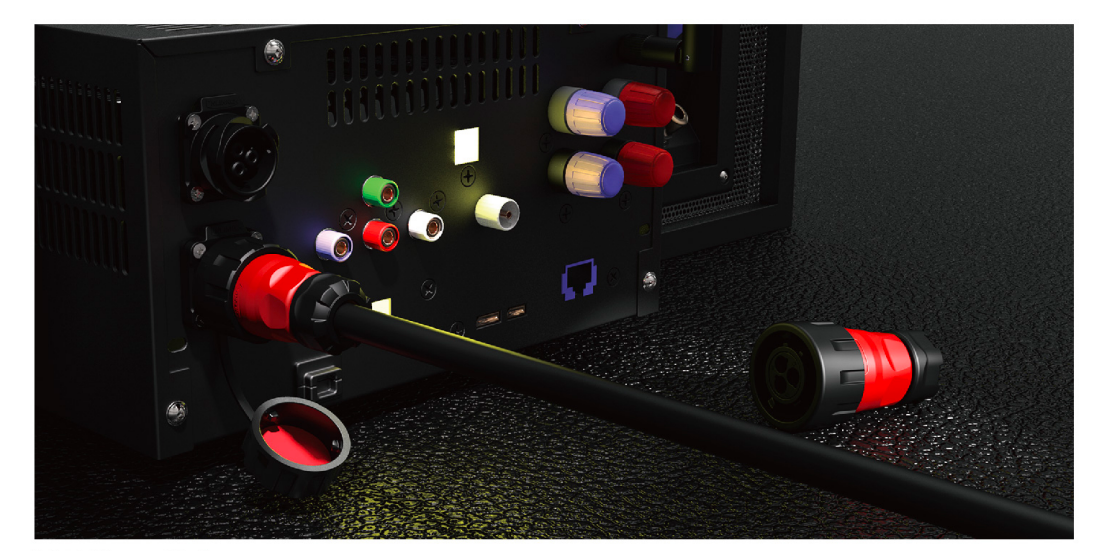

Application: LED lighting, solar systems, robots, medical equipment, drones, external docking systems, etc.
