Brand: CNLINKO
Model:BD-24-J03SX-23-201A

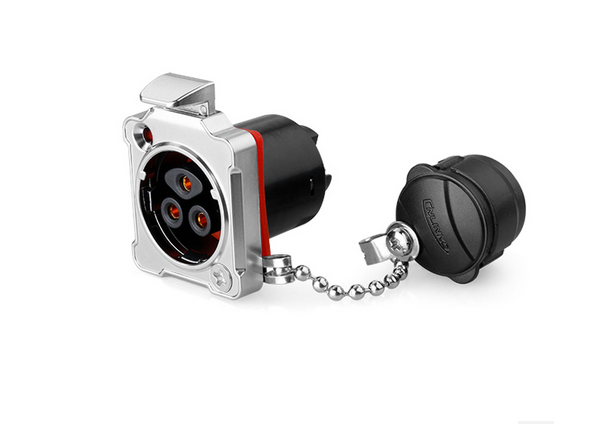

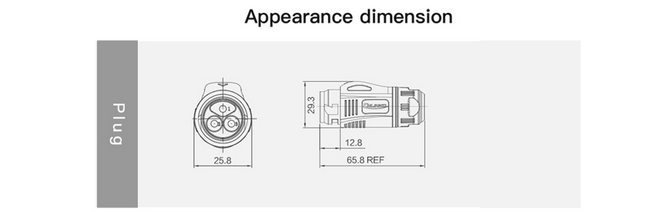

Type:3 pin power connector

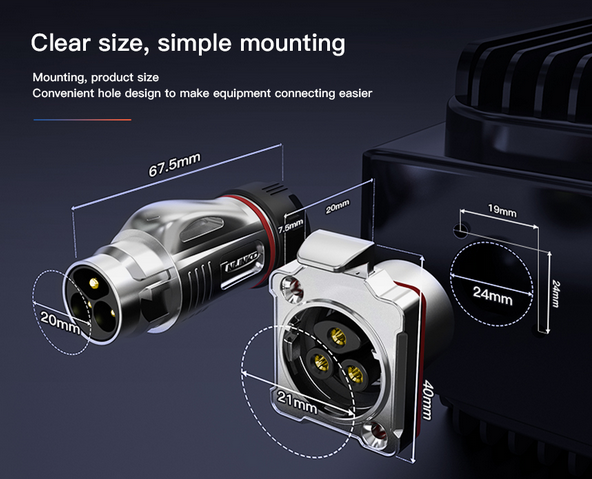

Description: Spring-pressed design, tightly docked, safe and secure. The humanized design is strongly oriented for perfect connection between the two parts of the connector, even blind connection is possible in the true sense.3 main locking screws, additional connection, for full compatibility with external installation work. Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in current-induced temperature rise. Thermoplastic plastic housing, high temperature resistant, stable electrical performance, high strength, high temperature resistance and corrosion resistance.Unique docking design, solid extension of the line length. Stable and flawless installation with single hole and thread, suitable for industrial installation with round opening.
Technical characteristics:
Connection method: Connection with locking lock
Connector type (plug / socket / connector): socket
Compatible with connector: BD-24-C03PE-23-001A
Rated current (A): 25A
Operating voltage (AC.V.rms): 500V
Peak voltage (Dialectric endurance test (AC.V) 1min): 2500V
Degree of protection: according to IP65 standard on request IP67 / 68
Cable range: Ø10≈Ø13mm
Contact type: female
Contact diameter x number: Ф3.0x3
Cable specification: 2.5-4mm² /12-14AWG
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Durability: ≥500 coupling and subtraction cycles
Vibration: Frequency 5-200Hz, Amplitude - 5mm, speed 10m / sec, 0.10us no instantaneous circuit break
Test results with anti-corrosion salt spray: PH 6.5-7.2, NaCL, 5% 48H
Operating temperature: -20 ° C ~ 85 ° C

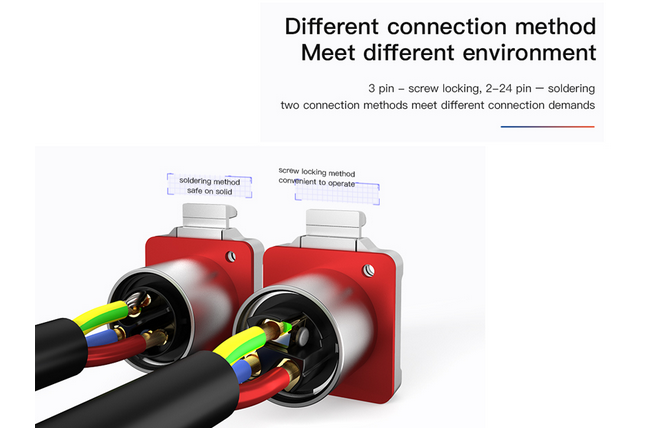

Cable connection method:Solder
Combustion level prevention/flammability rating: UL94-V0
Certificates: IEC 61984 and UL1977/2238

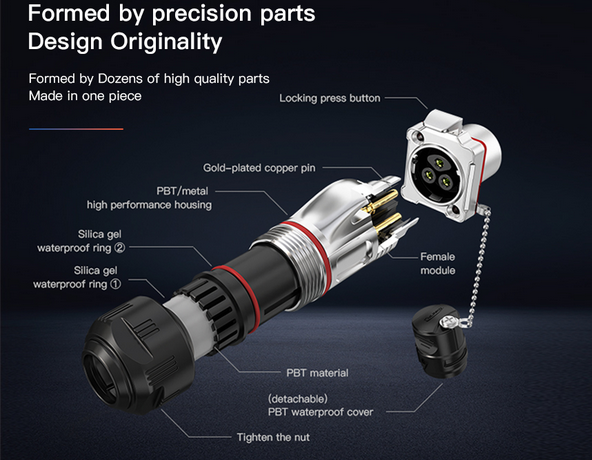

Material:
Insulated parts: High-performance engineering plastic
Metal part: zinc alloy (pearl hard chrome)
Contact pin: Copper alloy
Waterproof ring: Silicon gel
Application:
Stage equipment - The smart grid
Medical Equipment - Server
Solar energy equipment - Ship equipment
Electrical equipment - Vehicle equipment
Communication equipment - Heavy machinery
