Brand: CNLINKO
Model: BD-24-C03PE-23-001A

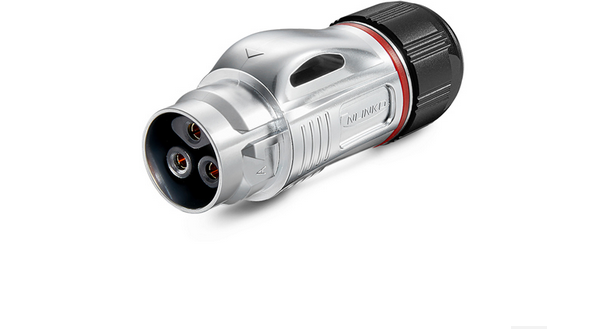

Type: 3 pin power connector
Description

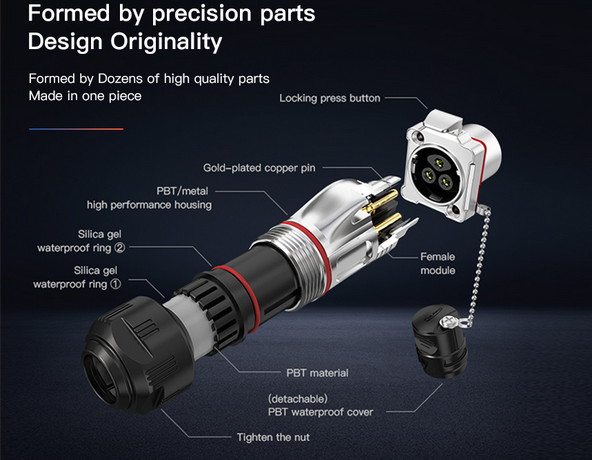

- Spring-pressed design, tightly docked, safe and secure.

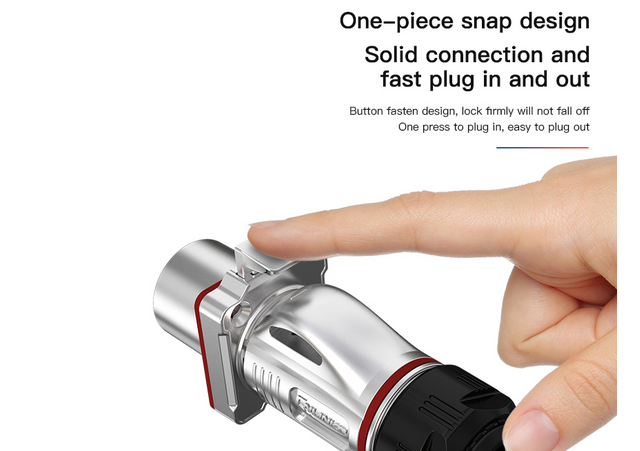

- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
- 3 core lock screws optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
- Stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

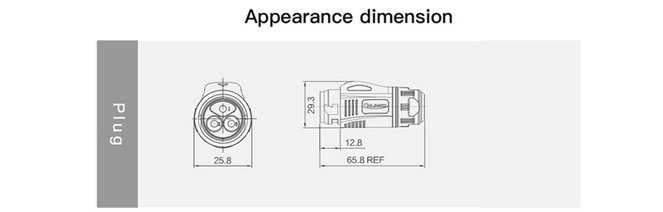

Technical characteristics:
Connection method: Connection with locking lock
Compatible with connector: BD-24-J03SX-23-201A
Connector type (plug / socket / connector): aviation plug
Rated current (A): 25A
Operating voltage (AC.V.rms): 500V
Peak voltage (Dialectric endurance test (AC.V) 1min): 2500V
Degree of protection: according to IP65 standard on request IP67 / 68
Cable range: Ø10≈Ø13mm
Socket type: plug
Contact diameter x number: Ф3.0x3
Wire specification: 2.5-4mm² / 12-14AWG
Contact resistance: <1mΩ
Contact type: male
Insulation resistance: > 500MΩ
Durability: ≥500 coupling and subtraction cycles
Vibration: Frequency 5-200Hz, Amplitude - 5mm, speed 10m / sec, 0.10us no instantaneous circuit break
Test results with anti-corrosion salt spray: PH 6.5-7.2, NaCL, 5% 48H
Operating temperature: -20 ° C ~ 85 ° C
Cable connection method: Solder
Combustion level prevention / flammability rating: UL94-V0
Certificates: IEC 61984 and UL1977 / 2238
Material:
Insulated parts: High-performance engineering plastic
Metal part: zinc alloy (pearl hard chrome)
Contact pin: Copper alloy
Waterproof ring: Silicon gel
Application:
Stage equipment - The smart grid
Medical Equipment - Server
Solar energy equipment - Ship equipment
Electrical equipment - Vehicle equipment
Communication equipment - Heavy machinery
