Brand: Pioneer DJ

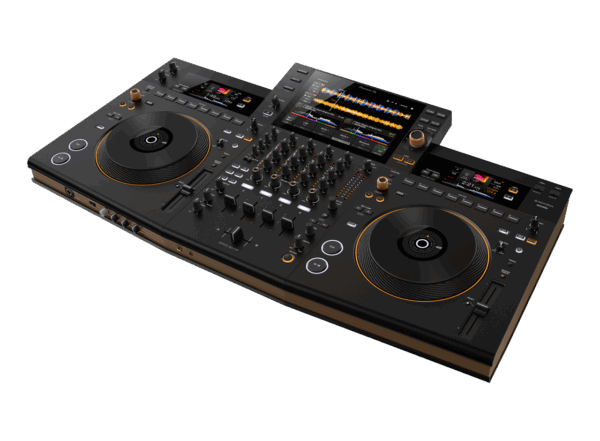

Model: Opus-Quad
Type: DJ controller
Description:

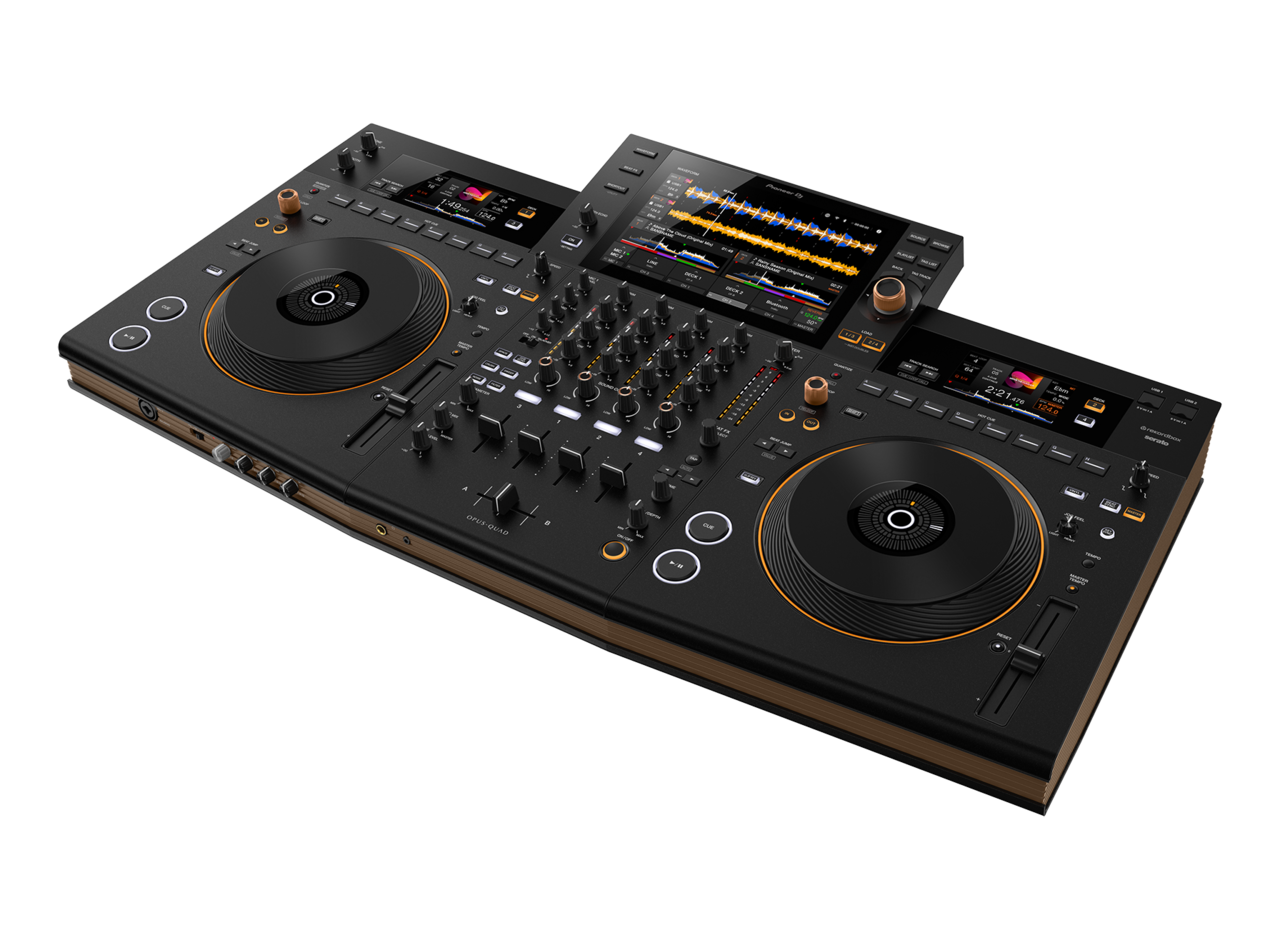

The Art of Music - This new professional all-in-one DJ system lets you control the music like an orchestra conductor. Creating harmony between a brand new beautiful design and music playback capability OPUS-QUAD introduces a completely new approach to DJ equipment that harmonizes design and music playback, it includes new and advanced features such as 4-deck stand-alone playback. This combines to provide a spectacular DJ experience that you can use to inspire releases in any space or location.

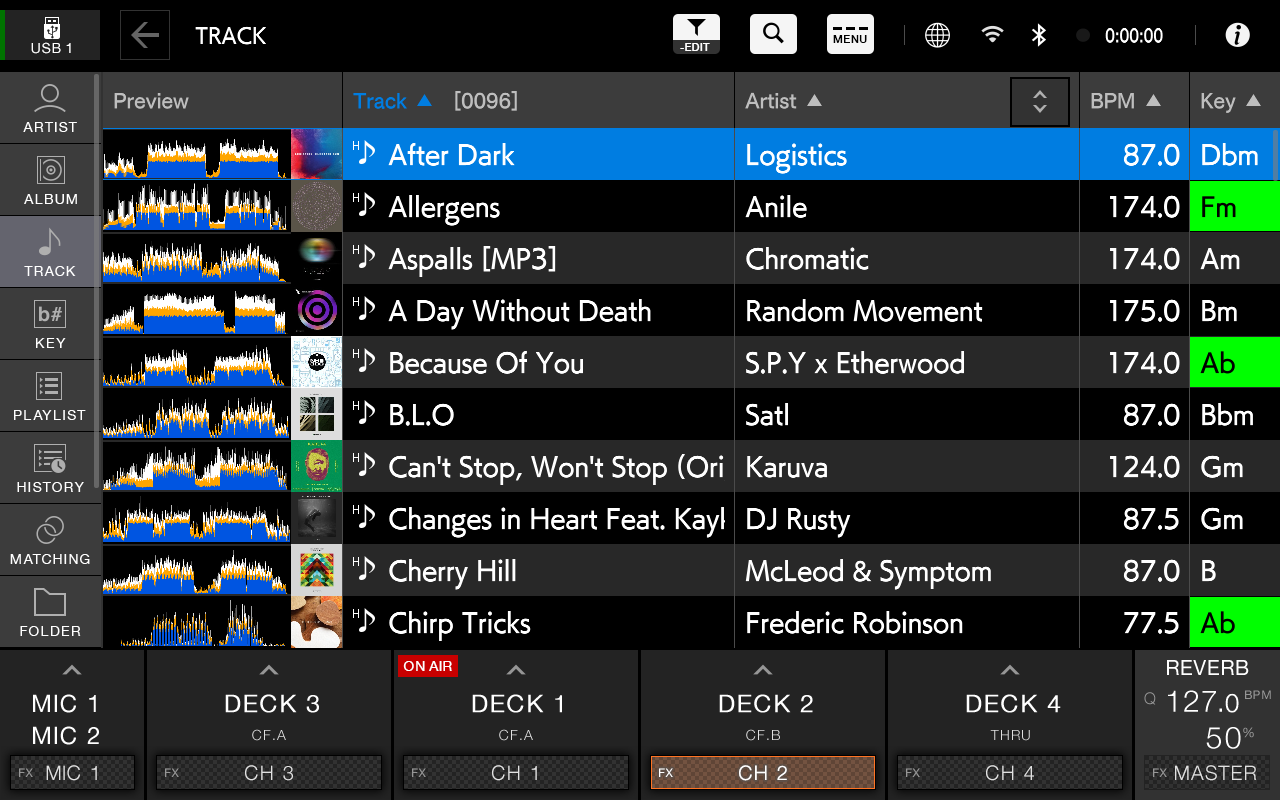

Fast and accurate song searches – even from the largest collections. Find your tracks faster and more accurately than any with a newly designed user interface with an electrostatic touch module. No matter how big your music library is, you can use the 10.1-inch touchscreen to quickly search for songs via a keyboard or use Playlist Bank to quickly navigate between playlists. With Touch Preview, you can even preview songs while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, spin and push controls. And the other browsing controls are neatly defined around the selector, so you can browse your music collection and browse and load songs without moving your hand.
Key features:
Compatible DJ software:
rekordbox for Mac/Windows
rekordbox for iOS
Serato DJ Pro
Software system requirements:
Visit serato.com for its specifications.
Visit rekordbox.com for its specifications.
What's in the box:
OPUS-QUAD
Power cable
Quick Start Guide
Precautions for use
Warranty
Technical characteristics:
Width: 92.56 mm
Height: 14.20 mm
Depth: 49.96mm
Weight: 13.20 kg
Outline drawing with dimensions here
Sampling Rate: 44.1 kHz
Frequency range: 20 - 20000 Hz
Signal to noise ratio: 110 dB
Power supply: AC 100-240 V, 50 Hz / 60 Hz
Power consumption: 60 W
MASTER DA converter: 32 bits
A/D converter: 24 bits
Signal to Noise Ratio:
USB: 114dB
LINE: 96 dB
PHONO: 85dB
MIC: 79dB
Distortion:
USB: 0.003%
LINE: 0.005 %
Acceptable Formats:
MP3
AAC
WAV
AIFF
Apple Lossless
FLAC
USB memory stick support:
FAT16
FAT32
exFAT
HFS+
Performance control:
Channels: 4
Deck Control: 4 / Double

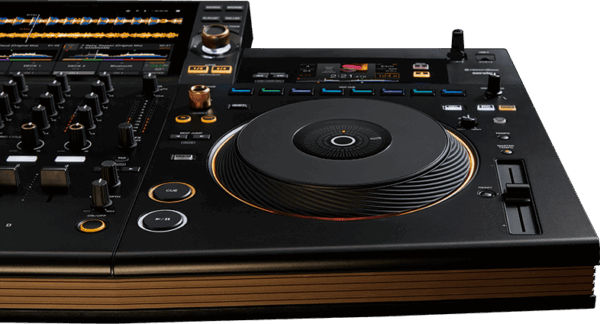

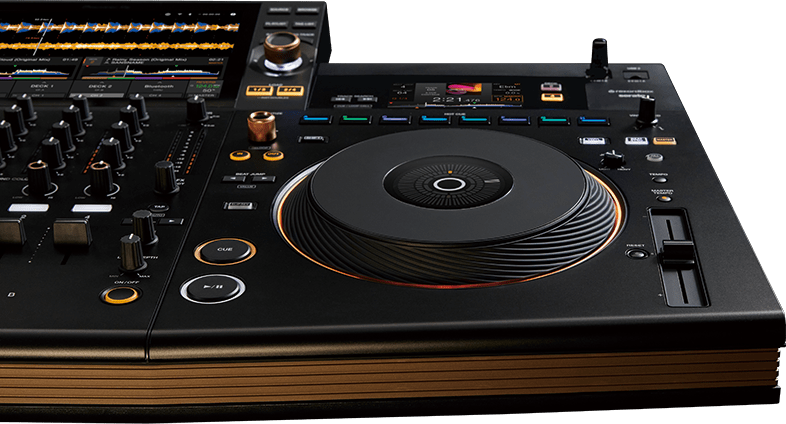

Jog wheel: 206 mm
Hot Replicas: 8 per deck
- Jog feeling
- MIDI control
- USB recording
- Plug and Play
- Automatic standby mode
- Beat Loop
- Auto Beat Loop
- Beat Sync
- Quantize

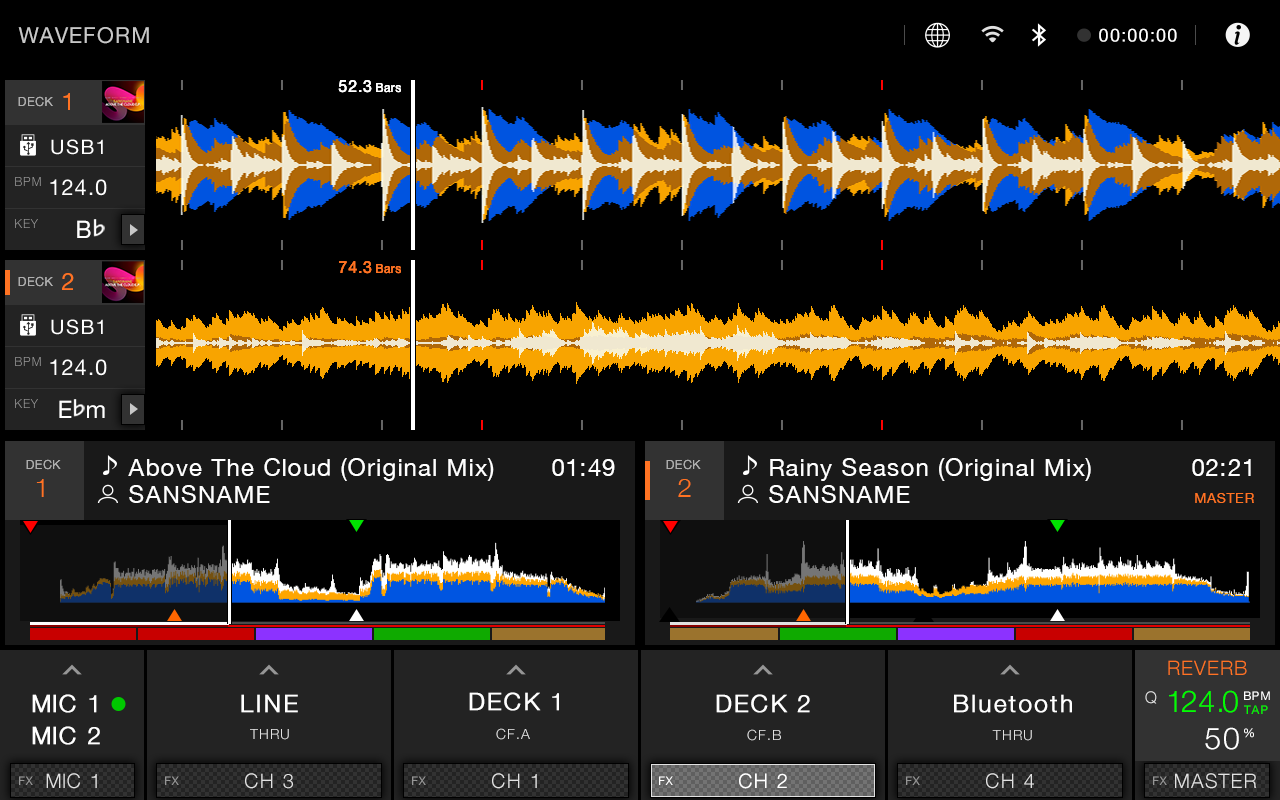

- WaveZoom
- Manual cycle
- Trim button
- EQ isolator
Beat FX
- A delay
- Echo
- Ping pong
- Spiral
- Reverberation
- trans
- Filter
- Flanger
- Phaser
- A step
- Slip Roll
- Roll
- Vinyl brake
- Spiral
Sound Color FX
- Space
- Dub Echo
- Crush
- A step
- Noise
- Filter

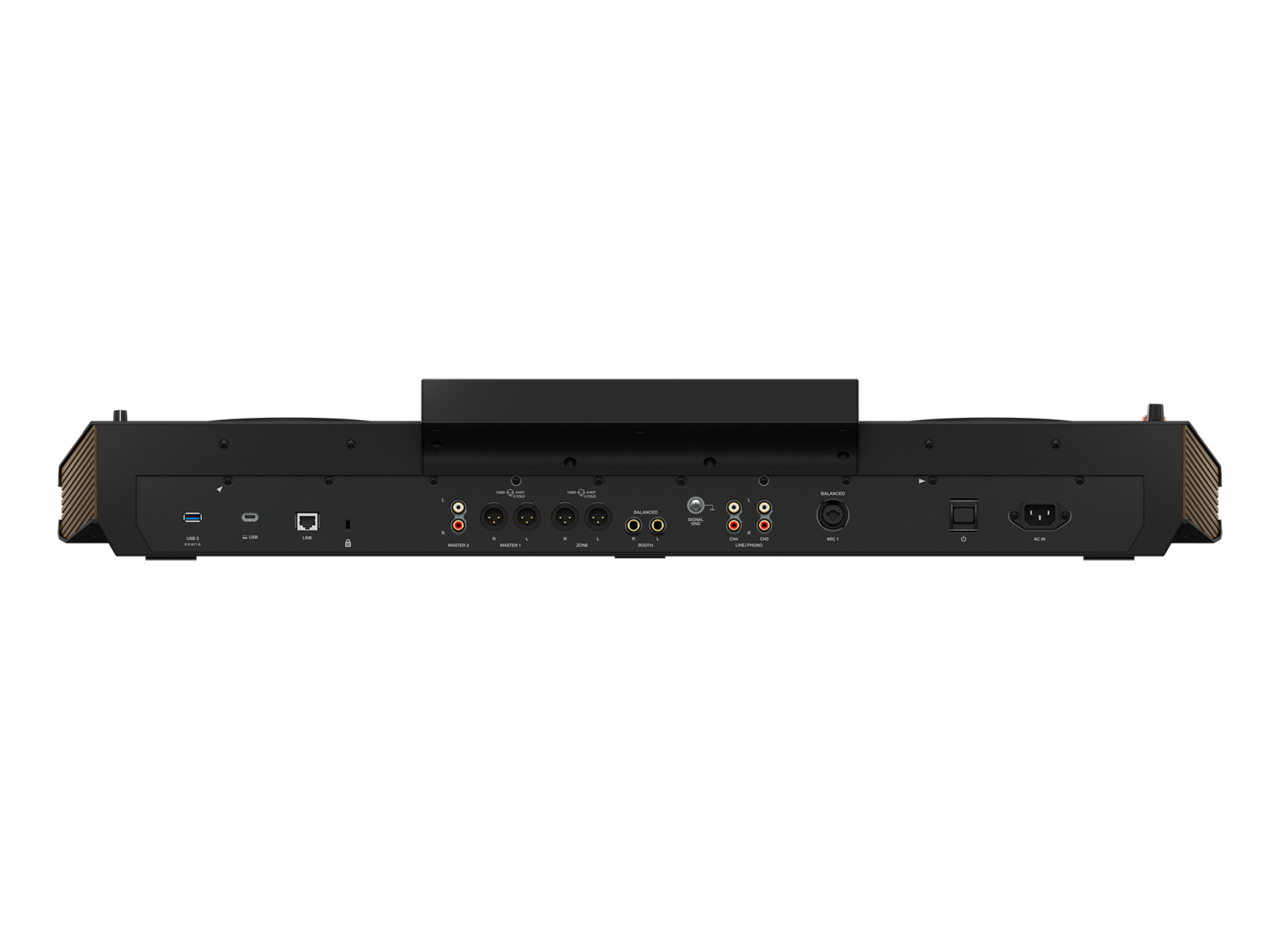

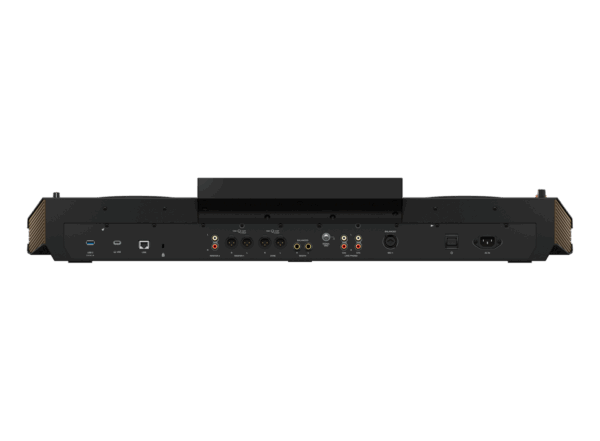

Terminals:
Microphone:
XLR connector and 1/4 inch TRS jack
Mic EQ: 3
MIC OFF/ON/TALK OVER sliding SW
Inputs:
2 LINE (RCA)
2 PHONO (RCA)
2 MIC (XLR connector and 1/4 inch TRS jack)

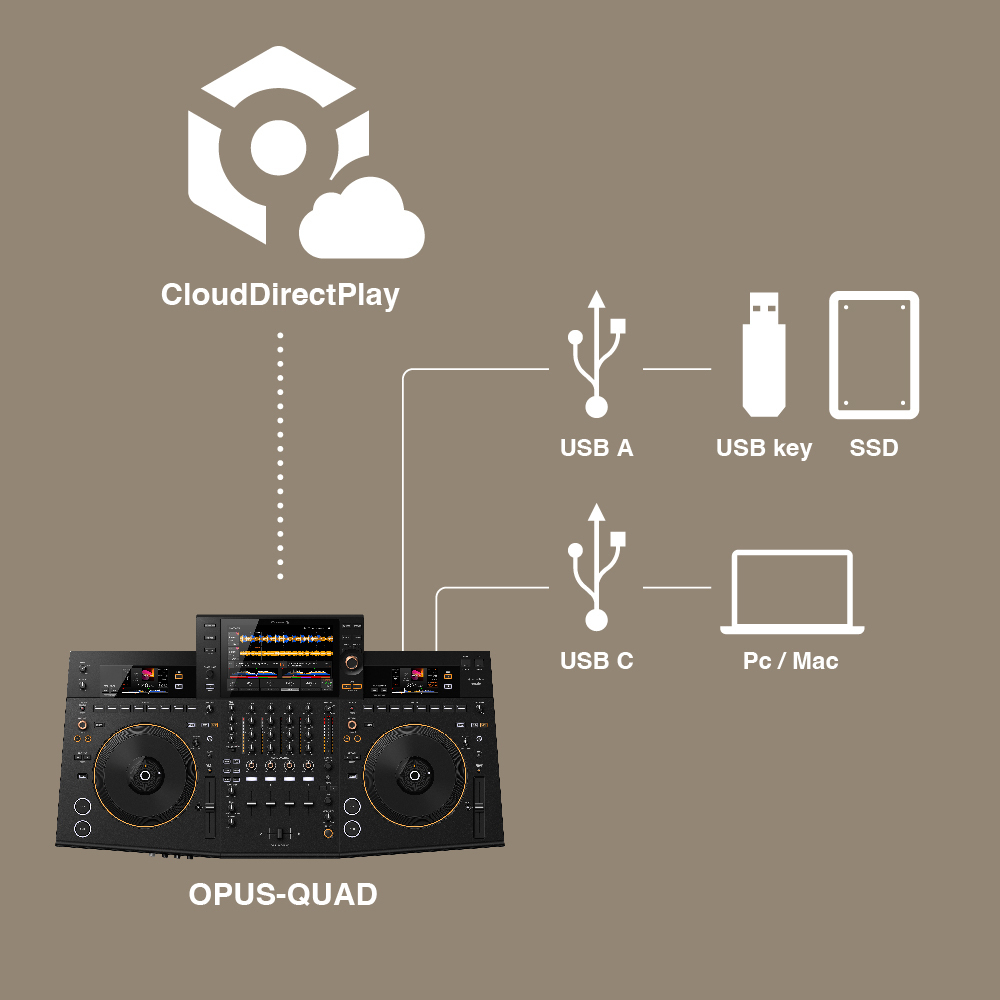

3 USB A ports
1 USB C port
Outputs:
1 MASTER (XLR)
1 MASTER (RCA)

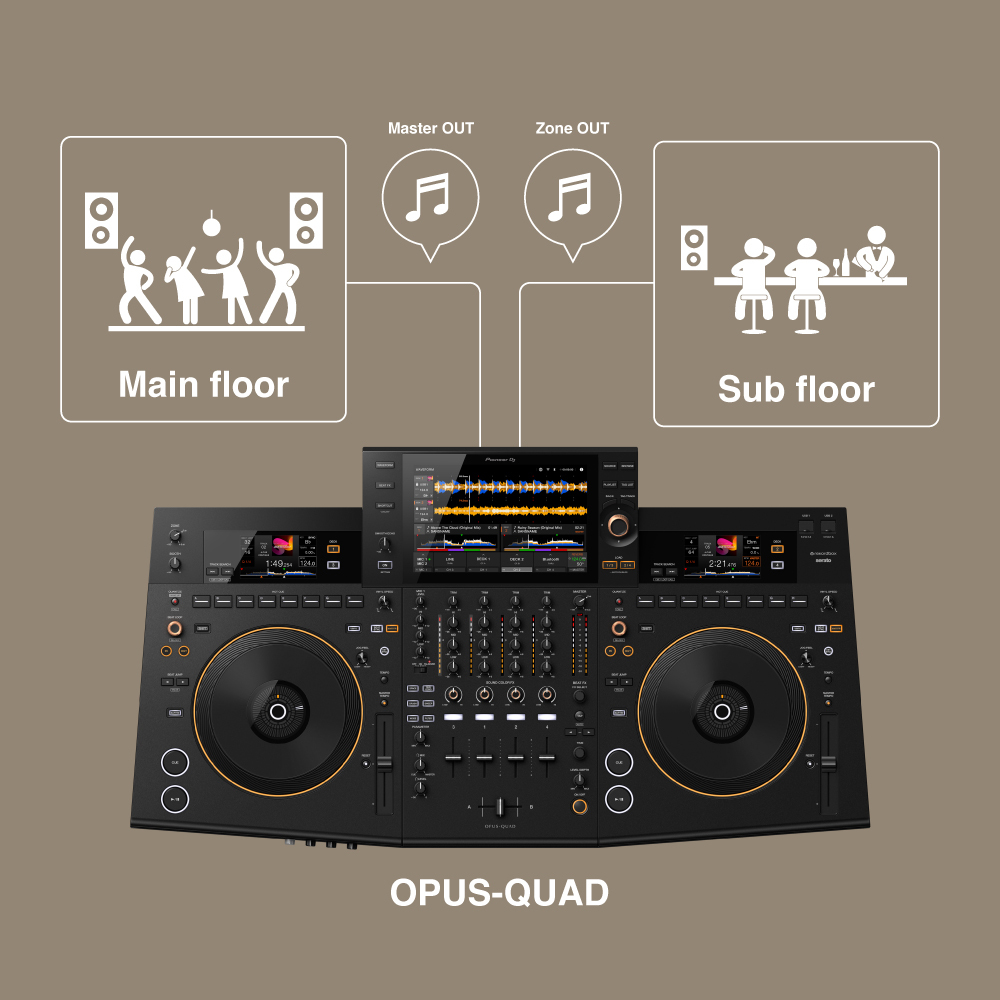

1 ZONE (XLR)
1 CAB (1/4 inch TRS jack)
1 PHONE (1/4 inch stereo phone jack)
1 PHONE (3.5mm stereo mini jack)
Wireless LAN:
IEEE 802.11 a / b / g / n / ac
2.4 GHz / 5 GHz
Bluetooth:
Bluetooth version 4.2
SBC or AAC
Application: Professional and mobile DJs.
