Brand: Pioneer
Model: DJM-V10-LF
Type: DJ Mixer

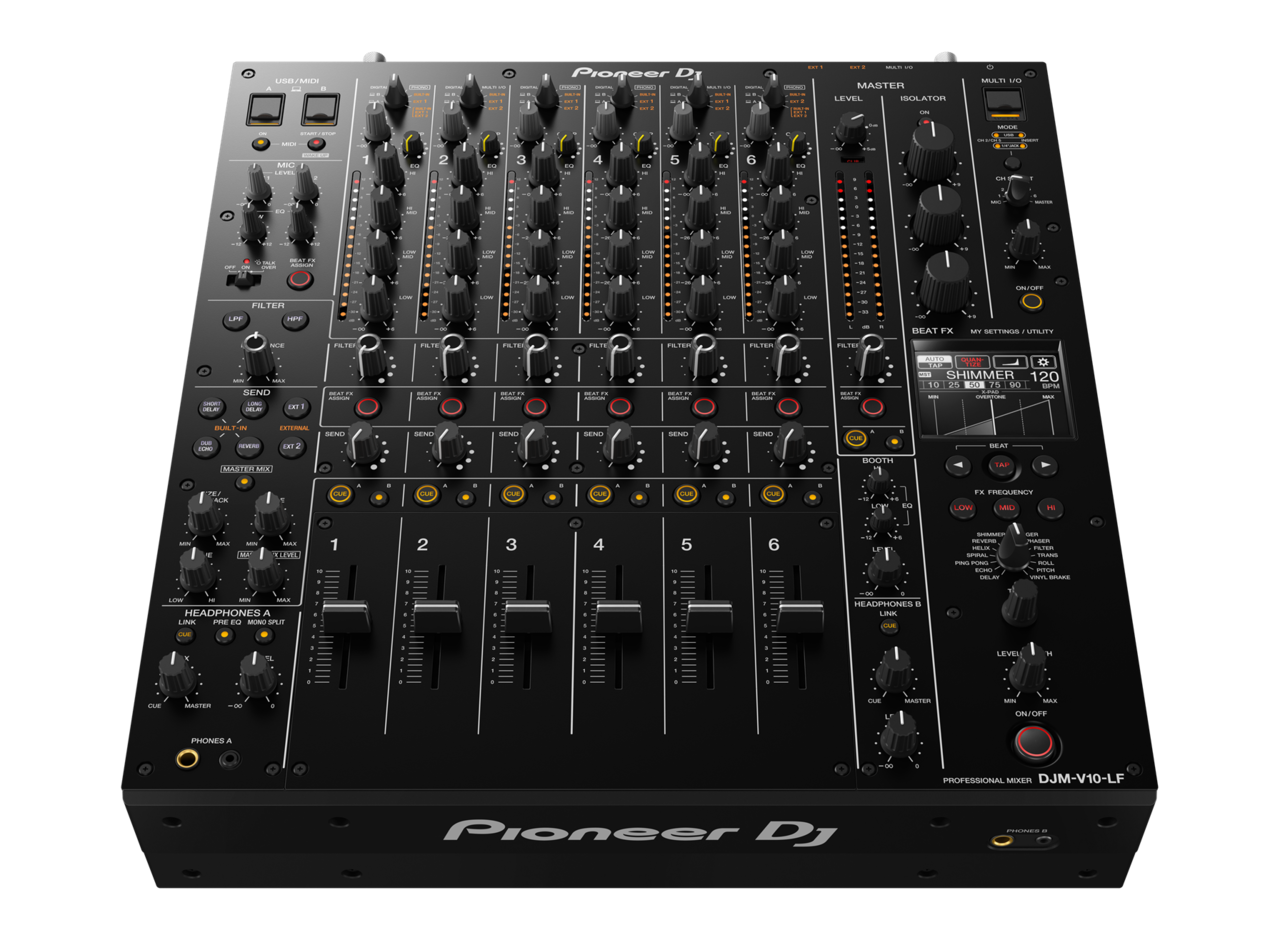

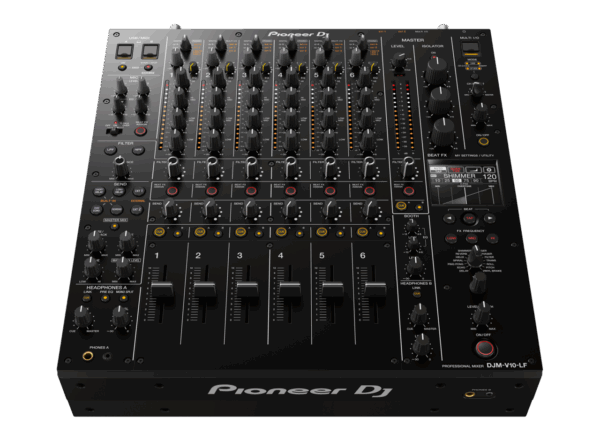

Description:
Create Your Sound - The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed pre-requisite curve to allow you to perform smooth and accurate mixes. The 60mm sliding shaft faders allow you to control the precise volume of the audio source from each channel.

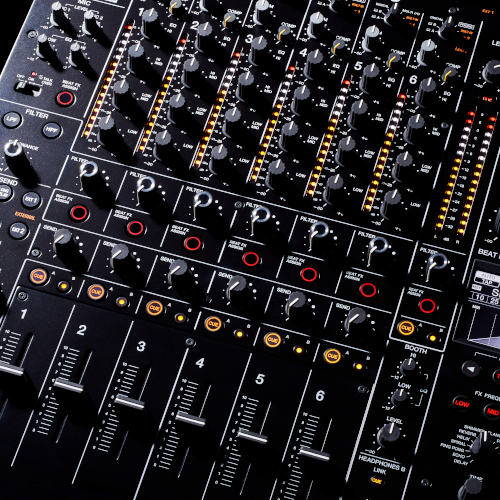

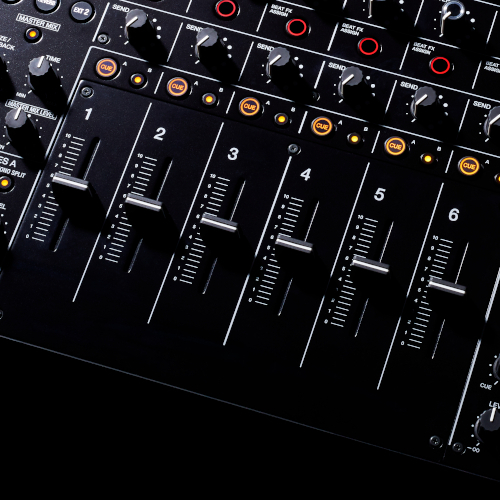

60mm sliding faders:
If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand new 60mm sliding faders have replaced the 45mm ones on the channels.
Unique fader curve:
The unit features two classic smooth curves from its predecessor – optimized to make the most of the extra length – plus an all-new curve preset that lets you make the final volume adjustments on each channel and precisely control the output sound.
Elite sound quality:
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock chain and many other components work to produce a full low-end, lively mids and precise highs.
4-BAND EQ and Compressor:
Take full control of your mix with newly developed 4-band EQs. The built-in compressor allows for further volume control of your tracks.
Мain features:
DVS control:
rekordbox
Serato DJ Pro
TRACTOR PRO 3
What's in the box:
DJM-V10-LF
Power cable
Warranty (for some regions)
Quick Start Guide
Precautions for use
Specifications:
Frequency range: 20 - 40000 Hz
Refresh rate: 96 kHz
Width: 437.6 mm
Height: 107.9 mm
Depth: 467 mm
Weight: 11.9 kg
A/D converter: 32 bits
D/A converter: 32 bits
Line to S/N ratio: 105 dB
Phono S/N ratio: 88 dB
S/N ratio Micr: 79 dB
Distortion: 0.005% (LINE)
Channels:
EQ/ISO: 4 band
EQ/ISO range: [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
Performance Control:
Channels: 6
Filter:
- HPF
- LPF
SEND:
- Short delay
- Long delay
- Dub Echo
- Reverberation
- 2 external (1/4-inch TS jack)
MULTIPLE I/O:
- 1/4-inch jack
- USB (type A)
Beat FX:
- A delay
- Echo
- Ping pong
- Spiral
- Spiral
- Reverberation
- Shimmer
- Flanger
- Phaser
- Filter
- Trans
- Roll
- Pitch
- Vinyl Brake
Microphone:
XLR / 1/4-inch combo jack
Talkover: 3 position switch

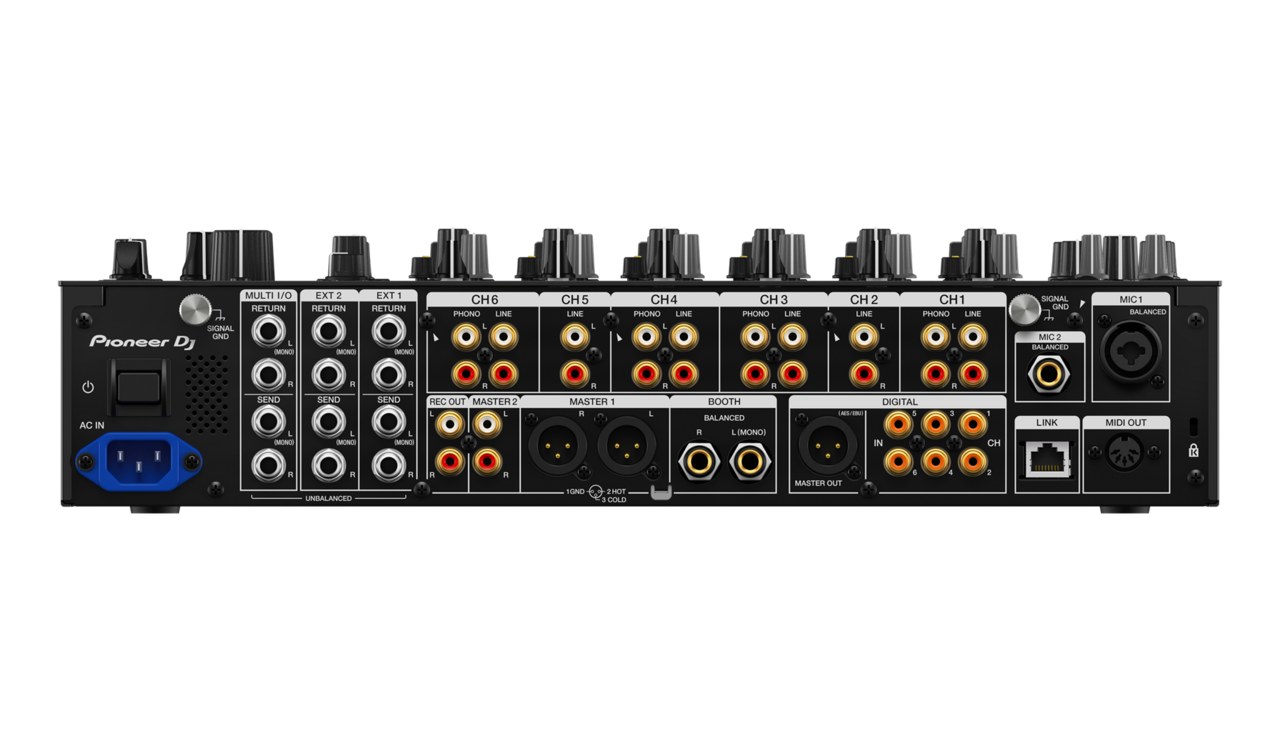

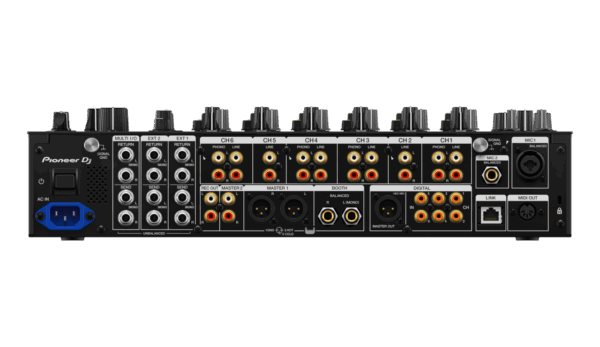

Terminals:
Inputs:
6 DIGITAL (coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return:
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN: 1
Outputs:
2 MASTER (XLR, RCA)
1 CAB (1/4 inch TRS jack)
4 HEADPHONE MONITORS (1/4 inch jack, mini jack)
1 recording output (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
USB:
2 USB B ports
1 USB A port
Application: Professional and mobile DJs
