Brand: LED SPEKTAR
Model: P10
Type: Sports Perimeter LED screen
Description: Sports series LED perimeter screens are mainly used on stadiums, basketball, football, volleyball matches (matches with high advertising value). Help promote your brand.

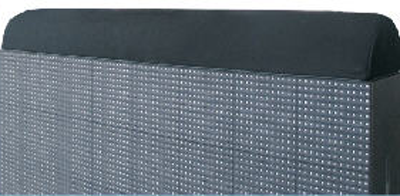

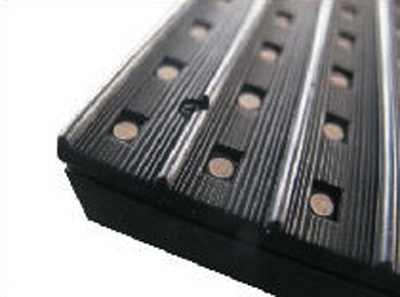

Shock Protection: front masks are made of soft rubber, and also the top cover is made so as to avoid injuries on the screen or the players themselves.

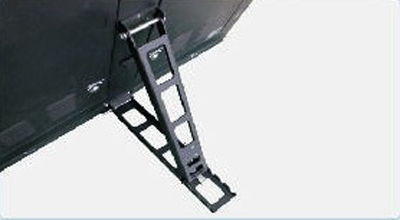

Adjustable holder: The cabinet has an adjustable bracket which control the slope of a possible angle of 75 ° to 90 ° depending on requirements.
Double backup system of control: An LED display is controlled by two computers when one of the computers problem arises settings automatically transferred to the other thus ensuring the normal operation of LED screen.
High refresh rate: The higher the refresh rate is, the better the picture is transmitted or photographs of the match, thus will avoid flickering.
With high refresh rate to match the requirements of each customer. The high frequency prevents flickering during operation of the screen.
High level of protection: IP65, even if it rains, the cabinet can work normally.
Convenient to transport thanks to folding metal holder.
Characteristics:
Pixel Pitch: P10.16mm
Size of cabinet: 1220mm x 976mm
Size modules: 244x244mm
Brightness (cd / m²): 4000
Pixel density (points / m ²): 9675
Pixel configuration: 1R1G1B
Display resolution: 24h24 points
Minimum viewing distance: 10m
Viewing angle: 160 ° / 120 °
Average power consumption: 362w / m²
The method of administration: ¼ scan Constant Driver
Frequency of change of frames: ≥60
Refresh rate: ≥960 (Hz / sec)
Operating temperature: -10 ° ~ + 50 ° C
Operating humidity: 0 ~ 95%
Weight: 50 kg
Gray scale: ≥ 16.7 million colors (synchronized)
Average lifetime of LEDs: > 100,000 hours

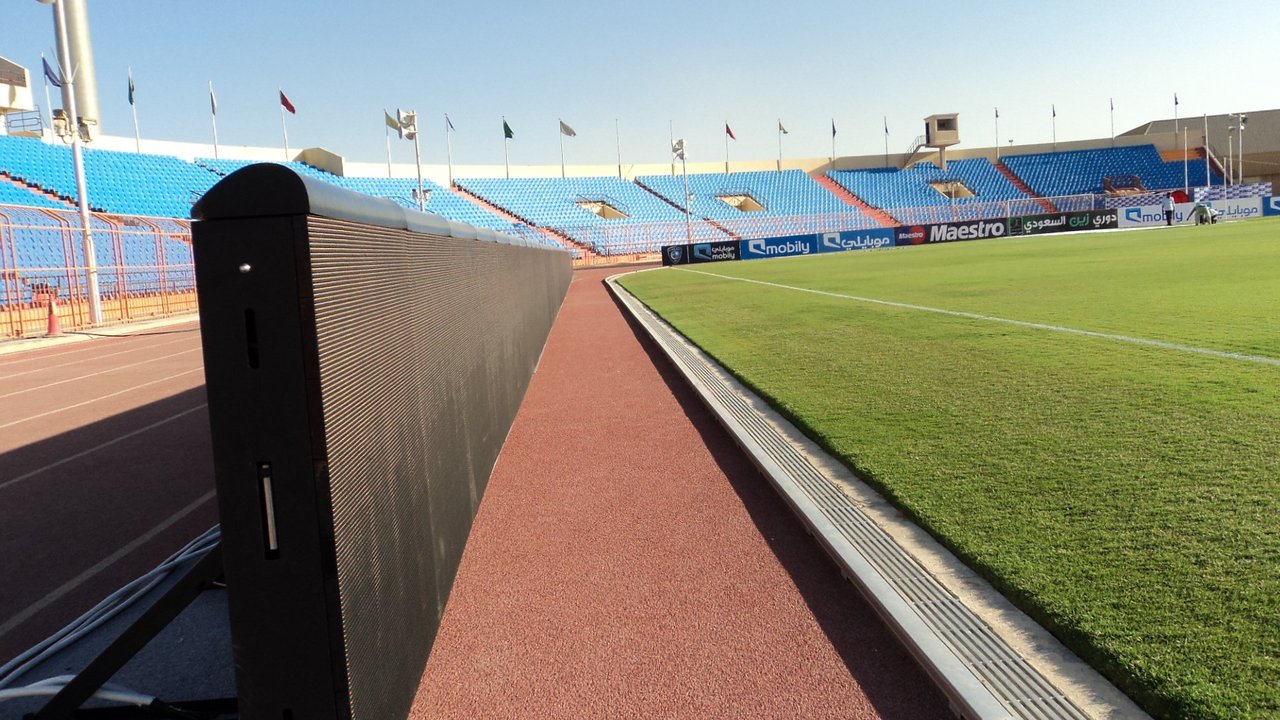

Application: Stadiums, gymnasiums and other sports facilities.
