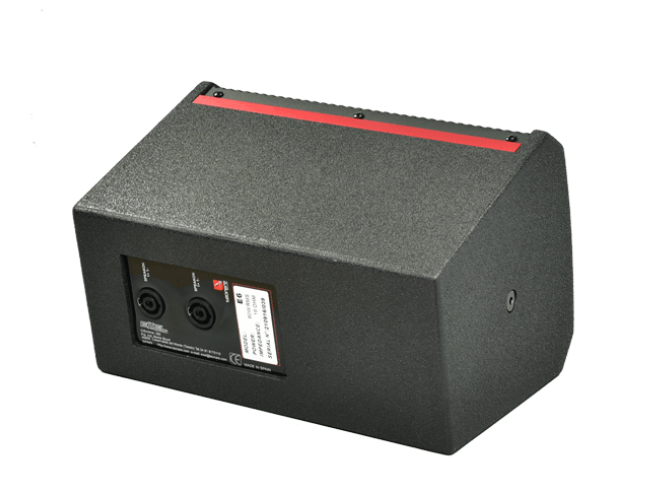

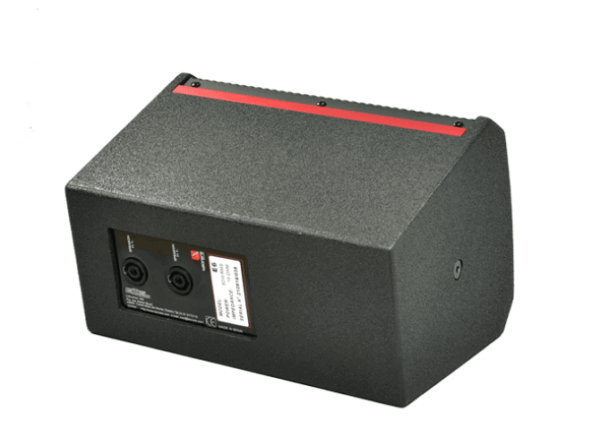

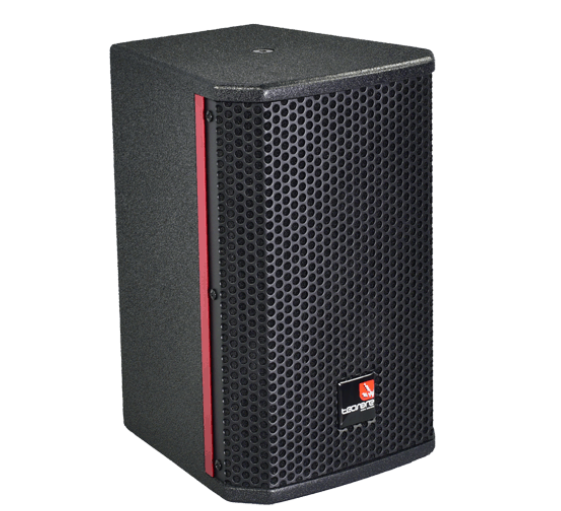

Brand: Tecnare
Model: E8
Type: Passive speaker with 8 inch driver
Description:
Tecnare introduces the new E Series affordable loudspeakers that provide excellent performance and are designed for use in a variety of applications. These highly versatile installation loudspeakers maintain their remarkable sonic signatur even at high output levels.All models are equipped with multiple M6, M8 and M10 attachment points and additional installation–friendly features and utilize a rugged grille design and system appearance suitable for nearly all indoor environments.The line will include optionaly U-brackets, ceilling brackets and a wall mount bracket accessory for all full-range models.These new low-cost systems are a perfect choice for projects including bars, restaurants, clubs, lounges, worship facilities, gymnasiums, retail spaces, and education facilities. Their compact size provides opportunities for system designers to satisfy most architectural requirements.
Technical characteristics:
Operating power: 120 W AES / 240 W continuous
Frequency response: 80 Hz - 18 kHz ± 3dB, measured in axes
Components: 1 x 8-inch LF driver and 1 x 1HF-inch tweeter
Directionality: 130ºH x 130ºV / 6dB point
Impedance: 8 Ohm
Axial sensitivity: 90dB (1w / 1m)
Calculated sensitivity (SPL): 110 dB continuous / 116 peak
Construction: 16 mm birch plywood. Finished with black paint; Grid: powder coated perforated steel with acoustically transparent sielate foam
Dimensions (HxWxD) (millimeters / inch): 381 x 249 x 269 (mm) / 15″x 9.80″ x 10.59″
Net weight (kg / pound): 7.1kg./15.65 lbs.
Accessories:
BR-E8 U-bracket
HG-1 single bracket
Ceiling bracket HG-2
Installation guide can be downloaded here:
Application: bars, restaurants, clubs, shops, educational halls.
