Passive two-way speaker E10 Tecnare

554,37 / 1.084,25 лв.

Free delivery over 250 EUR (NOT APPLICABLE TO SOUNDPROOFING)
Warranty included!
Експертна консултация

Passive speaker 10 inches of Tecnare is perfect for bars, restaurants, clubs, funeral and gyms, shops and educational facilities.

  • 1 x 10-inch LF, Bass
  • 1 x 1-inch CD horn
  • 240 W AES / 480 W
SKU: Л2593 Category:

Brand: Tecnare

Model: E10

Type: Passive speaker with 10 inch driver

Description:

E10 is a compact 2-way full-range loudspeaker system comprised of one 10-inch low frequency driver and one 1-inch exit/35 mm, 1.75 in (44mm) voice-coil compression driver. Its CD Horn provides 120° by 100° coverage in vertical cabinet orientation. The internal passive crossovers custom network minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M8 threaded suspension points and Speakon® NL4 connectors. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction.

E10 is part of Tecnare’s E Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

It has been designed for use as stand-alone full-range speaker or together with a passive sub-woofer (e.g. the ESW115).

Tecnare introduces the new E Series affordable loudspeakers that provide excellent performance and are designed for use in a variety of applications. These highly versatile installation loudspeakers maintain their remarkable sonic signatur even at high output levels.All models are equipped with multiple M6, M8 and M10 attachment points and additional installation–friendly features and utilize a rugged grille design and system appearance suitable for nearly all indoor environments.The line will include optionaly U-brackets, ceilling brackets and a wall mount bracket accessory for all full-range models.These new low-cost systems are a perfect choice for projects including bars, restaurants, clubs, lounges, worship facilities, gymnasiums, retail spaces, and education facilities. Their compact size provides opportunities for system designers to satisfy most architectural requirements.

Technical characteristics:

Operating power: 240 W AES / 480 W continuous

Frequency response: 50 Hz - 20 kHz ± 3dB, measured in axes

Components: 1 x 10-inch LF driver and 1 x 1HF-inch CD horn

Directionality: 120ºH x 100ºV / 6dB point

Impedance: 8 Ohm

Axial sensitivity: 91dB (1w / 1m)

Calculated sensitivity (SPL): 114 dB continuous / 120dB peak

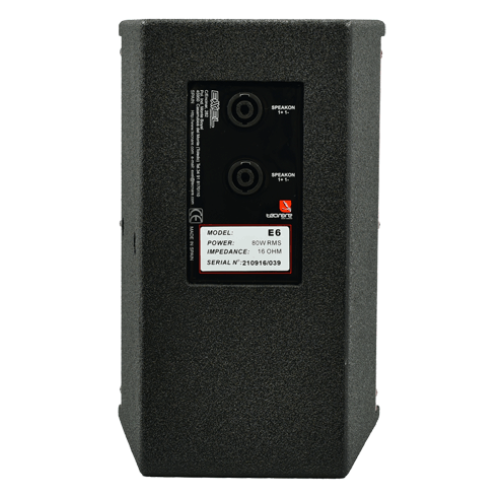

Connectors: 2 pcs NLT 4 (Neutrik Speakon)

Construction: 16 mm birch plywood. Finished with black paint; Grid: powder coated perforated steel with acoustically transparent sielate foam

Dimensions (HxWxD) (millimeters / inch): 550 x 298 x 342 (mm) / 21.65 ″ x 11.73 ″ x 13.46 ″

Net weight (kg / pound): 13.6 kg. / 29.98 lbs.

Accessories:

BR-E10 U-bracket

HG-1 single bracket

Ceiling bracket HG-2

TSC-350

A manual can be downloaded here:

Application: bars, restaurants, clubs, shops, educational halls, multimedia, museums, etc.



Weight 13,60 kg
oldid
oldid2
Гаранция

24

Приложение
Честотна характеристика
Конектори

NL4: 2 x Speakon +1/-1

Насоченост

120ºH x 100ºV /6dB точка

Ниво на звуково налягане

114 dB -120 dB пик

Номинален импеданс

8 Om
