Brand: Tecnare
Model: ESW110
Type: Passive subwoofer 10-inch
Description:

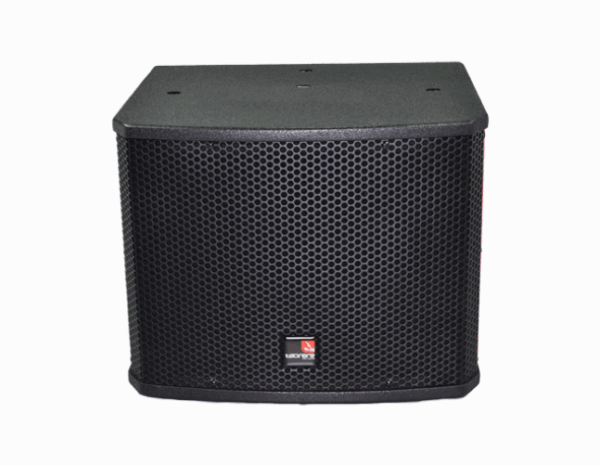

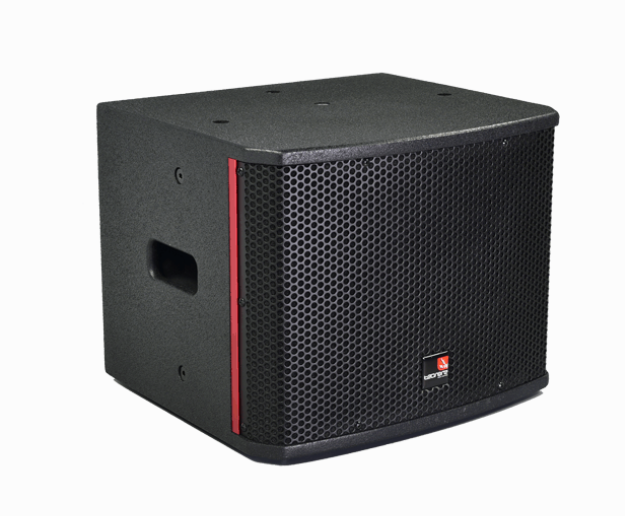

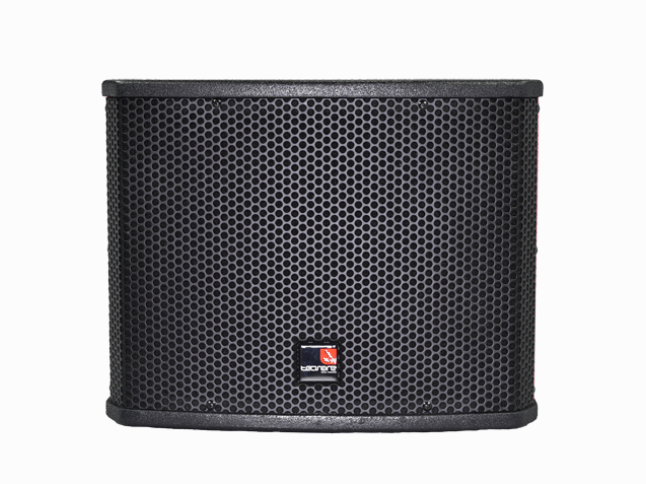

The ESW110 is a ultra-compact subwoofer system comprised of one 10-inch low frequency driver in a vented, front-loaded configuration for extended bandwidth. It has been designed for small sound reinforcements, where box size matters.The rectangular cabinet has been made with the latest techniques ensuring a perfect and rigid construction and is fitted with M10 threaded suspension points for ultimate flexibility.As a part of Tecnare’s E Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, ESW110 provides a natural low-frequency sound quality.
Tecnare introduces the new E Series affordable loudspeakers that provide excellent performance and are designed for use in a variety of applications. These highly versatile installation loudspeakers maintain their remarkable sonic signatur even at high output levels.All models are equipped with multiple M6, M8 and M10 attachment points and additional installation–friendly features and utilize a rugged grille design and system appearance suitable for nearly all indoor environments.The line will include optionaly U-brackets, ceilling brackets and a wall mount bracket accessory for all full-range models.These new low-cost systems are a perfect choice for projects including bars, restaurants, clubs, lounges, worship facilities, gymnasiums, retail spaces, and education facilities. Their compact size provides opportunities for system designers to satisfy most architectural requirements.
Technical characteristics:
Operating power: 250 W AES / 500 W continuous
Frequency response: 45 Hz - 500Hz ± 3dB, measured in axes
Components: 1 x 10-inch LF driver
Direction: 360º
Impedance: 8 Ohm
Axial sensitivity: 94dB (1w / 1m)
Calculated sensitivity (SPL): 115 dB continuous / 121dB peak

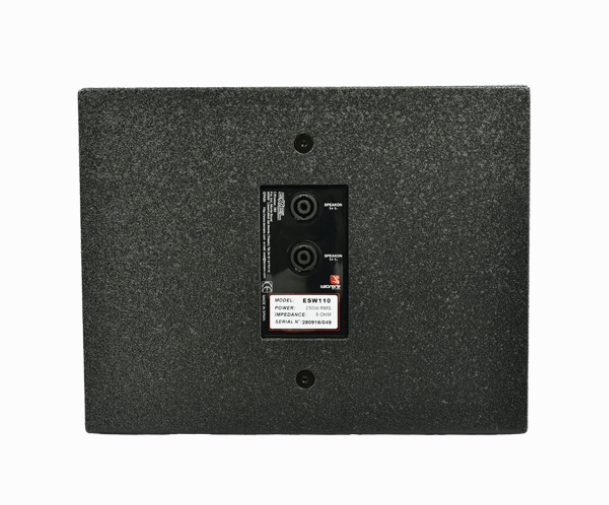

Connectors: 2 pcs NLT 4 (Neutrik Speakon)
Construction: 16 mm birch plywood. Finished with black paint; Grid: powder coated perforated steel with acoustically transparent sielate foam
Dimensions (HxWxD) (millimeters / inch): 310 x 398 x 350 (mm) / 12.20 ″ x 15.70 ″ x 13.78 ″
Net weight (kg / pound): 9.6 kg. / 21.16 lbs.
Accessories: eye bolt
A manual can be downloaded here:
Application: bars, restaurants, clubs, shops, educational halls, multimedia, museums, etc.
