Brand: EPISTAR

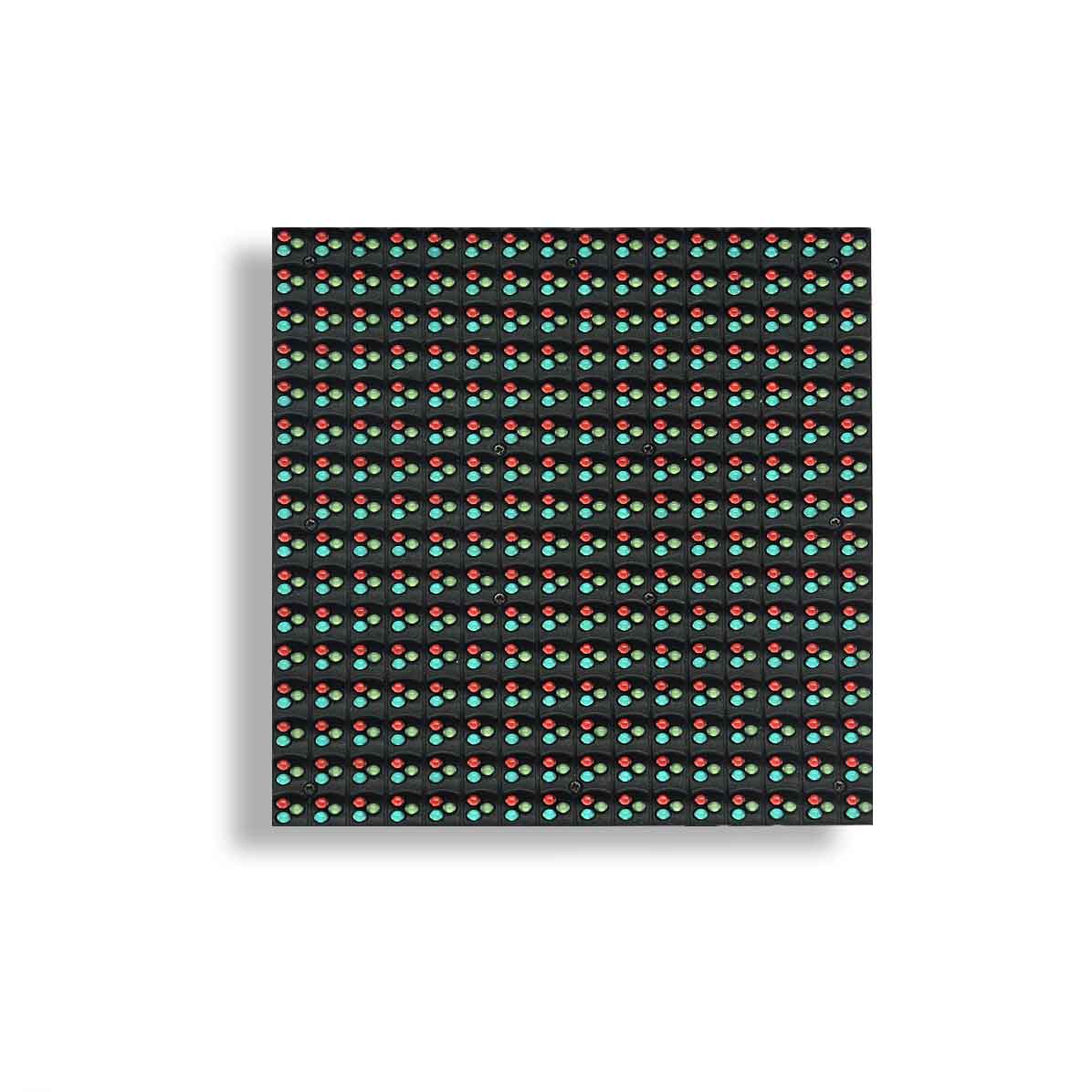

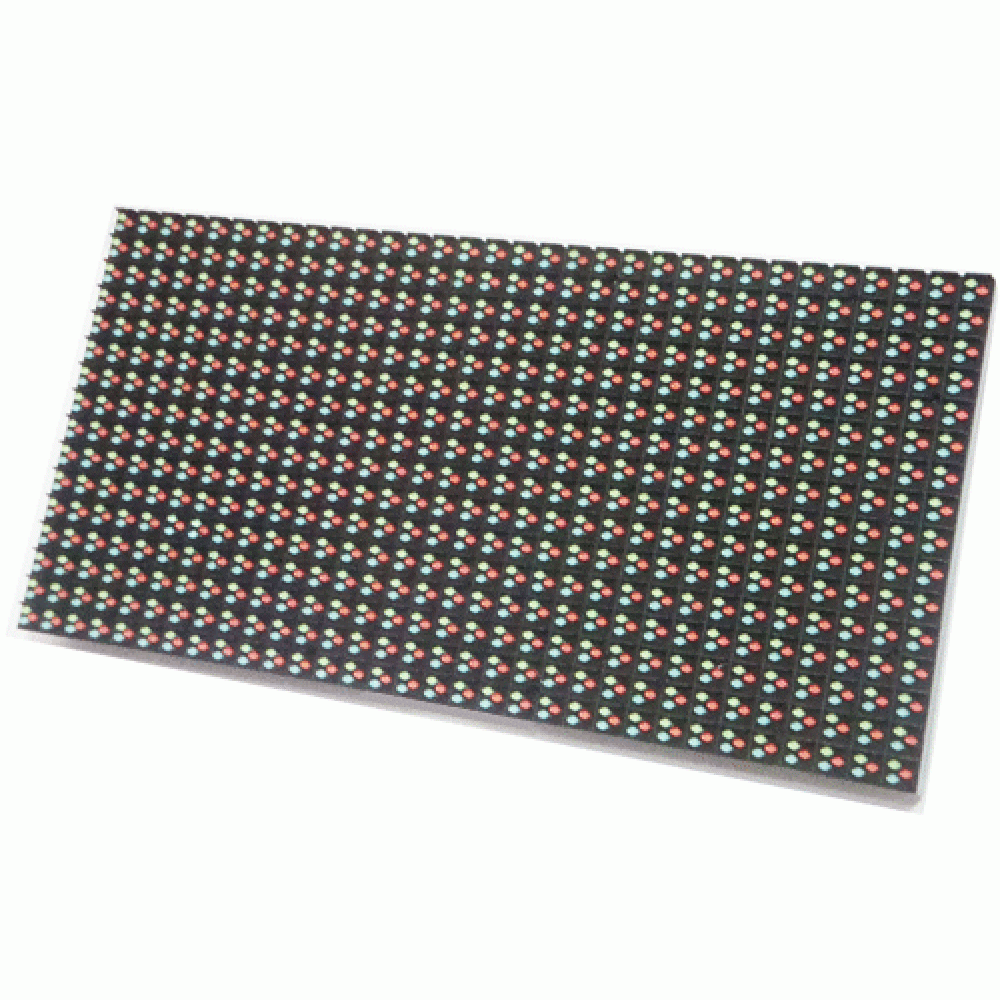

Model: P10 outdoor DIP full color LED module
Type: Outdoor LED Module
Specifications:
Pixel pitch: 10 mm
Pixel density: 10,000 points/m²
LED shape: DIP346
IC:5020
Data port:HUB 08
LED configuration: 1R1G1B
Color: full color
Brightness: ≥ 7000cd / m²
Module resolution: 32 * 16 points
Size modules: 320 mm 160 mm *
Drive mode: 1/2 scan
Max. Power consumption: 30W
Average power consumption: 14W
Оperating power source: DC 5V± 5%
Weight: 850 gr
Application: outdoor LED screens, scoreboards of railway stations, highways, shopping malls and stadiums.
