Brand: LED Spektar
Model: LED SMD Outdoor P5.33

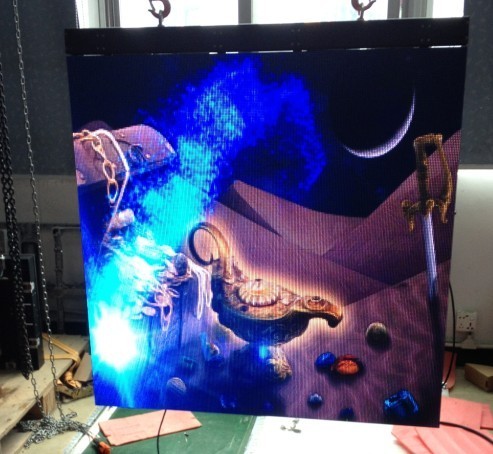

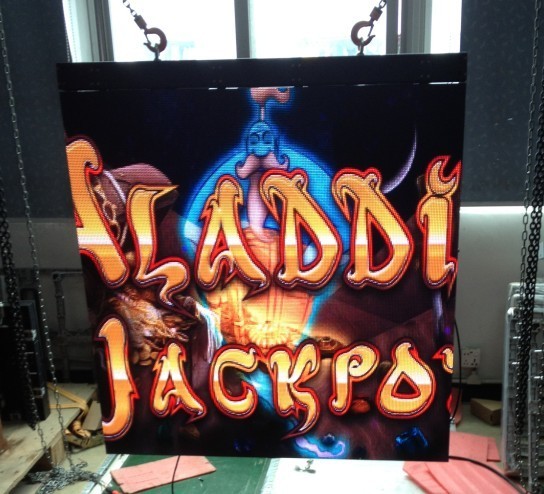

Type: Outdoor LED SMD Display for fixed and rental instalation
Description:The company LED SPEKTAR LTD uses for its external and internal LED Display installations cabinets with cast aluminum housing which are super thin and light with bilateral degree of protection IP65. With Fastlock for quick, easy and cost saving installation. With support of all media formats. The new design allows direct tuning and calibration of brightness for high quality picture even directly faced to the sun. Ideal for shopping malls, supermarkets, hospitals, banks, exhibitions, hotels, airports, sports facilities, TV formats and other multi-functional spaces.
Light Intensity:
800-900mcd (Red, Silan) / Wavelength: 620-630nm
1600-1900mcd (Green, Epistar) / Wavelength: 520-535nm
300-320mcd (Blue, Epistar) / Wavelength: 465-475nm
Specifications of Module:
Power Module: 68W
Operating Voltage: DC 4.5V
Pixel pitch: 5.33mm
Type of LED: 1R1G1B (3in1)
Pixel LED: SMD 2828
Resolution of module: 60dots X 60dots
Number of pixels in module: 3600dots
Module size: 320mm X 320mm x 21mm
Weight unit: 1.15 KG

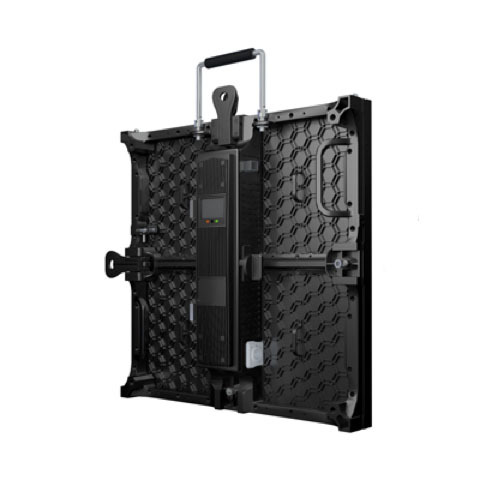

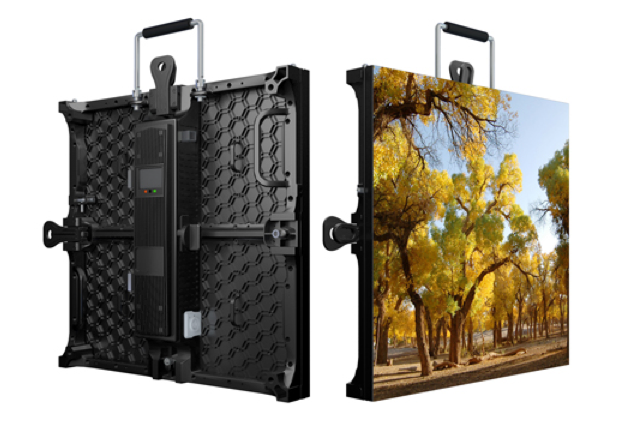

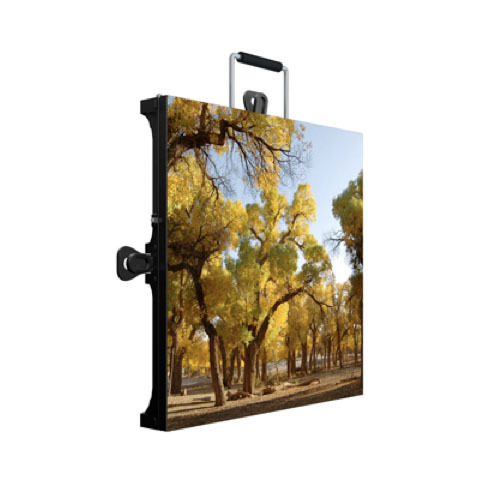

Specifications of Cabinet:
Brightness: ≥6500mcd / ㎡
Color temperature: 6500-8000K
Viewing angle: 140º-140º
Optimal viewing distance: 6m-70 m
Gray grade: 12bit
Frequency of range: ≥1920Hz
Frame rates: 50 - 60Hz
Input voltage: AC220V / 50Hz or AC110V / 60Hz
Probability of a default: ≤0.00001
The method of administration of the chip: JXI5020GP-B
Size: 640mm x 640mm x 140mm
Resolution of the Cabinet: 120dots X 120dots
Number of modules: 4
Number of pixels in the cabinet: 14,400dots
Pixel density: 35156 dots / m2
Average power consumption: 300W / m2
Maximum power consumption: 780W / m2
Material: Cast aluminum
Cabinet weight: 14 kg
Degree of protection: IP65 front panel, IP65 rear panel
Operating temperature: -40 ℃ ~ + 60 ℃
Operating humidity: 10% ~ 95%
Power supply: Meanwell UL
Scanning method: 1/6
Control: Novastar/Linsn
Operating systems: Windows98 / me / 2000 / NT / XP
The price per square meter.
Application: Casinos, shopping centers, cinemas, TV formats, entertainment venues, airports, banks, advertising vehicles and other functional spaces.
