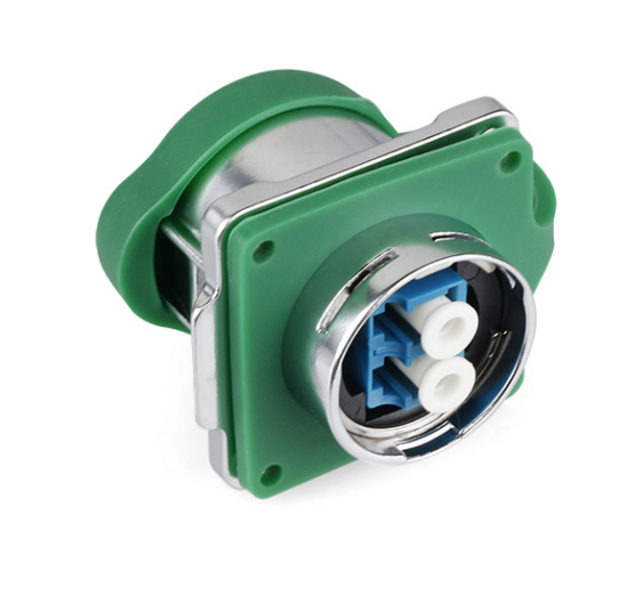

Optical connector series LC, socket type, IP67, DH-24-J/LC/213/SX-43-401 - CNLINKO

9,54 / 18,66 лв.

Free delivery over 250 EUR (NOT APPLICABLE TO SOUNDPROOFING)
Warranty included!
Експертна консултация

Waterproof optical connector, LC series, socket type with wire diameter 26-24 AWG, compatible with the optical connector type plug DH24-F0-LC-LC-3M-001.

  • Optical adapter type: LC
  • Corrosion resistant
  • wire diameter: 26 ~ 24AWG
SKU: Л2721 Category:

Brand: CNLINKO

Model: DH-24-J / LC / 213 / SX-43-401

Type: Optical waterproof socket type connector

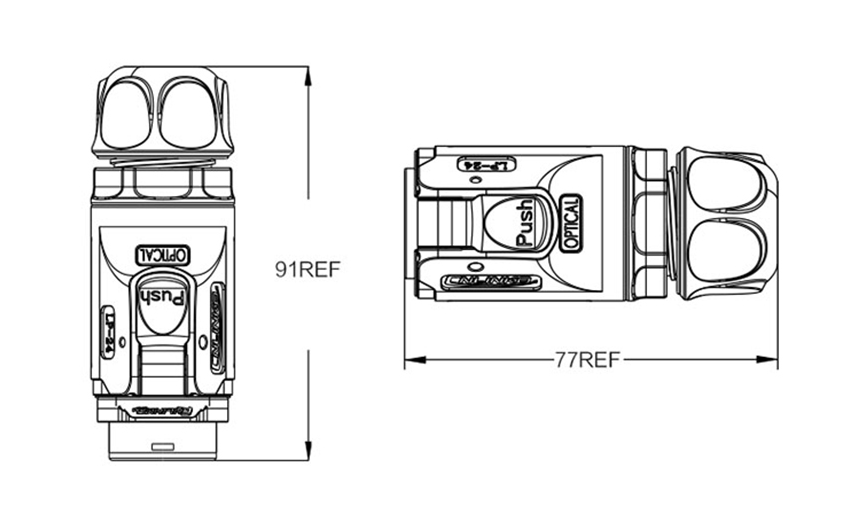

Description: The high-efficiency connector is designed for secure transmission of the signal via optical cable. The waterproof LC duplex connector has a corrosion-resistant metal housing in the DH series with size 24. The precise connector for optical cable is for fast and secure data transmission in industrial environments with a length of 78 mm. The DH series uses the unique spring design, standard slot made of alloy material, continuous fixing method in the outer seal and new appearance that meets the requirements for high quality application. The optical connector is waterproof and dustproof according to protection class IP67. The bayonet connection provides a secure connection and protects against data and signal interruptions. The optical cable connectors have a color coding system for quick identification of the cable. The connectors are resistant to temperature and pressure.

Technical characteristics:

Series: DH series

Version (plug/sosket): socket version

Optical adapter type: Single mode LC

Degree of protection: IP65/IP67

Type: female

Wire specification: 0.15mm2 ~ 0.2mm2/26 ~ 24AWG

Cable range: Φ5.5mm ~ Φ7mm

Contact diameter × number: Ф2.0

Number of contacts: 2

Connector housing color: Alu - Green

Insulation resistance: >500MΩ

Operating temperature: -40 ° C ~ 80 ° C

Cable connection method: Solder

Durability: ≥500 mating and splitting cycles

Material: Metal

Insulated parts: Highly efficient engineering plastic

Metal part: zinc alloy (pearl hard chrome)

Contact pin: Copper gold-plated alloy

Spring: Stainless steel

Sealing: Silicon gel

Classification of flammability of plastics: UL94-V0

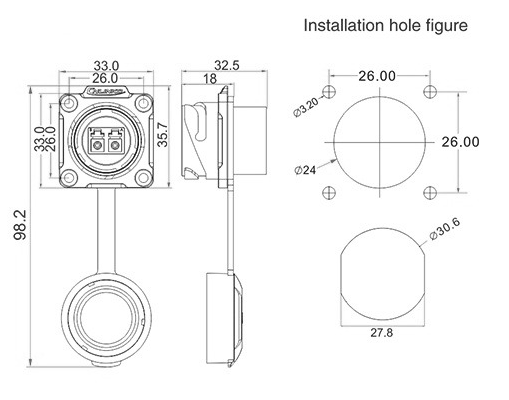

Dimensions (without cap): 35.7 mm Height x 33 mm Width x 32.5 mm Depth

Weight:0.50g

Application:Stage equipment, Communication equipment Industrial equipment, Control communication data box, Data transfer, Industrial equipment, Medical technologies, Mechanical engineering, Device design, Multimedia installation, System integrator, video technician, sound engineer, lighting technician and others.

Weight 0,05 kg
oldid
oldid2
Гаранция

12

Приложение
Работна температура
Защита

IP65/67

Сертификат

CE, RoHS, TUV и UL

Цвят
Материал на корпуса

Steel

Обхват на кабела

Φ5.5мм ~Φ7мм
