Brand: RCF

Model: F

Type: 12-channel Mixer

Description:

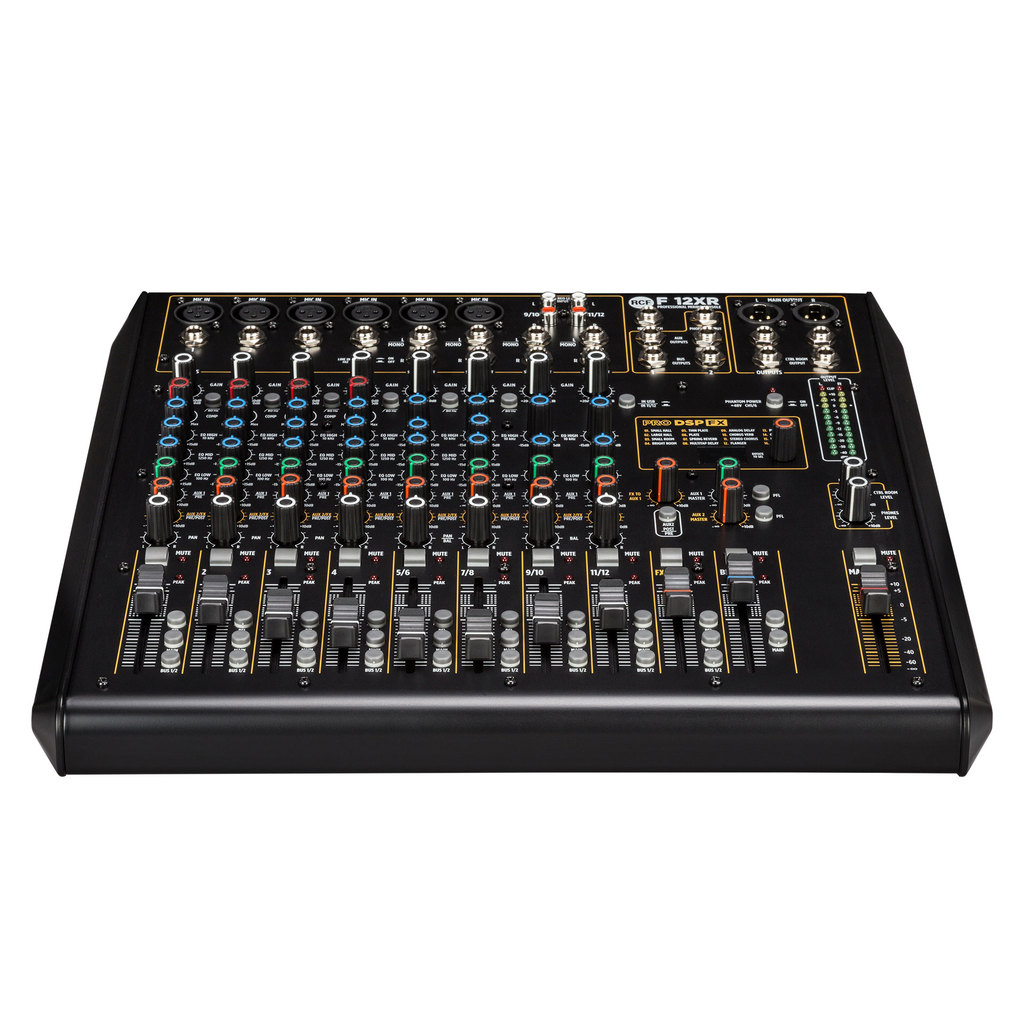

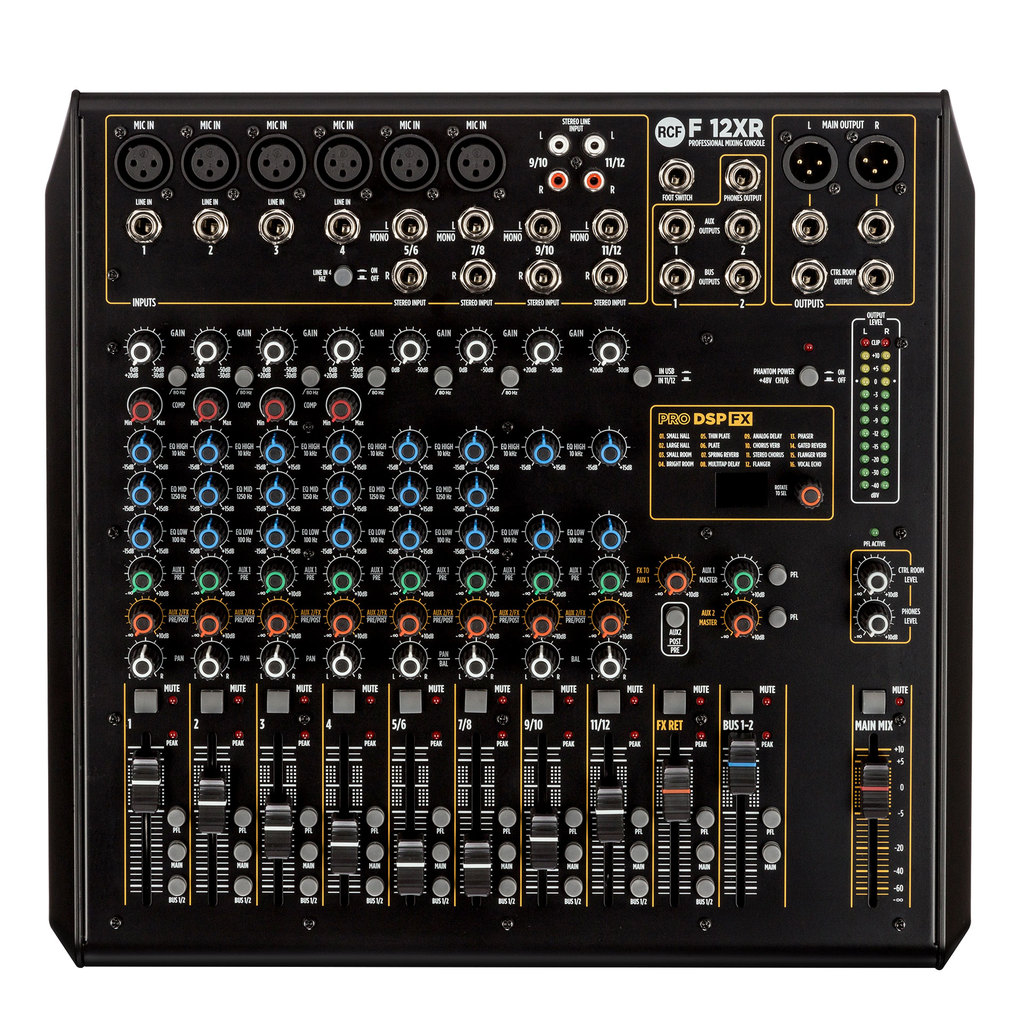

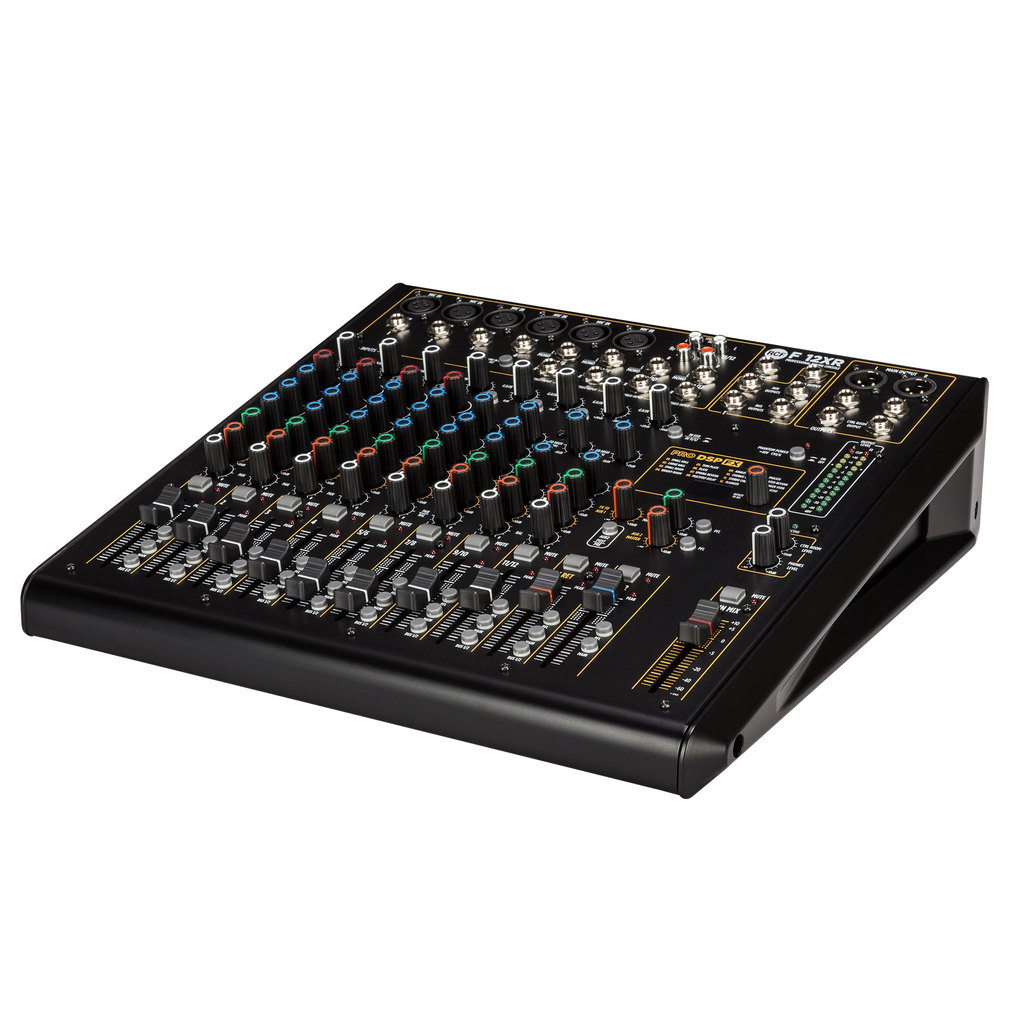

The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.

Features:

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 4 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• Internal Universal Power Supply

ENHANCED ANALOG MIXING FLEXIBILITY

Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors* to limit signal peaks and a modern sounding EQ.

STATE OF THE ART EQ

State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.

HIGH QUALITY PREAMPLIFIERS

High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket. The channel 4 features Hi-Z input level for musical instruments such as acoustic instruments with piezo transducers, electric bass and guitars or stompboxes

Technical Parameters:

Electrical specifications

FREQUENCY RESPONSE: 20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): <0,02% A-Weighted

POWER SUPPLY: Internal

VOLTAGE REQUIREMENTS: 100 V - 240 V

POWER CONSUMPTION (W): 24 W

Inputs

GAIN RANGE: 0 dB ÷ -50 dB

GAIN SELECTION: 20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS: 1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM): 14 kohm

LINE: 4

LINE INPUT IMPEDANCE (KOHM): 21 kohm

LOW CUT: 80 Hz

MIC: 6

PHANTOM POWER +48V: Yes

STEREO LINE: 4

STEREO LINE GAIN SELECTION: 20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE: 15 kohm

Outputs

MAIN MIX: 1

CONTROL ROOM: Yes

FX SEND: 1

AUX SEND: 1

AUX OUTPUT: 2

GROUP OUT: 1

PHONES: 1

Outputs specifications

MAIN OUT LEVEL (DBU): 28 dBu

AUX OUT LEVEL (DBU): 28 dBu

GROUP OUT LEVEL (DBU): 28 dBu

PHONES OUT IMPEDANCE (OHM): 150 ohm

Compressors

RCF COMPRESSORS:
n° 4 Single Control Compressors on Channels 1 to 4

EQ

INPUT CHANNELS EQ:
2 Shelving / 1 Generic

DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

AUX: 1 PRE/POST

FX POST: 1

 SEND EFFECTS:1

USB audio

TYPE: B

PLAY TRK: 2

REC TRK: 2

SUPPORTED SAMPLE RATE (KHZ): 44.1, 48.0 kHz

Other features

FOOTSWITCH: Yes

Standard compliance

CE MARKING: Yes

Physical specifications

CABINET/CASE MATERIAL: Metal

COLOR: Black

Size/Weight

DEPTH: 355 mm / 13.98 inches

HEIGHT: 97 mm / 3.82 inches

WEIGHT: 4.5 kg / 9.92 lbs

WIDTH: 373 mm / 14.69 inches

Shipping informations

PACKAGE DEPTH: 425 mm / 16.73 inches

PACKAGE HEIGHT: 140 mm / 5.51 inches

PACKAGE WEIGHT: 5.5 kg / 12.13 lbs

PACKAGE WIDTH: 400 mm / 15.75 inches

Application: DJs, Theaters, Show Events, etc.
