Brand: Guil
Model: ULK800
Type: Lifting Tower
Description: Lifting Tower, designed for lifting loads up to 300 kg to a maximum height of 8 meters. Lifting towers developed for loading heavy loads at great heights. Easy to use with a compact design and great durability, make the ULK Lift an ideal addition to any type of event.
Technical characteristics:
Maximum height: 8 m
Maximum load: 300 kg
Safety systems: ASB system (automatic safety interlock system)
IPB (internal pendulum brake) system + MSU system
Brake winch: AL-KO OPTIMA 901 (900 Kg )

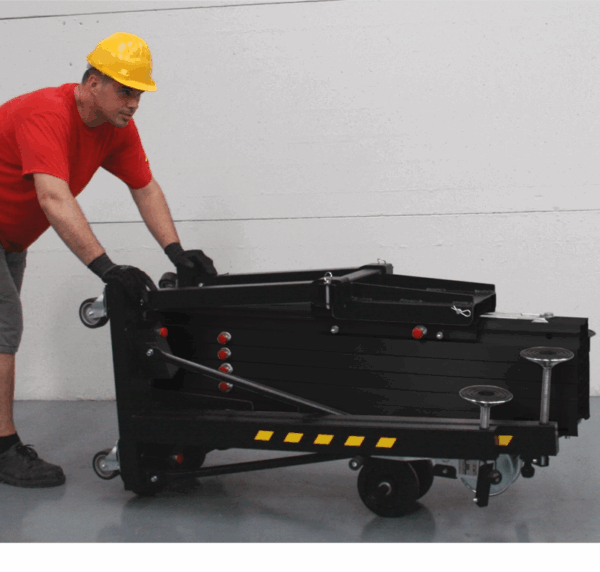

Height when folded: 1.99 m
Horizontal transport included: (4 x Ø 150 mm wheels, 2 of them with 3 positions)
Wheels: Attached to the base with 4 fixing points
Leveling screw jacks: Trapezoidal thread TR24x5. Greater endurance and speed
Material: Aluminum (alloy EN AW 6082-T6) and steel. Black color
Complies with standards: DGUV 17 and 18, DGUV rule 115-002 (formerly BGV-C1)
DIN EN 17206 (replaces DIN 56950-1), 2006/42/CE
Net weight: 207 kg
Sections: 5 sections - Profile dimensions (width): 181mm

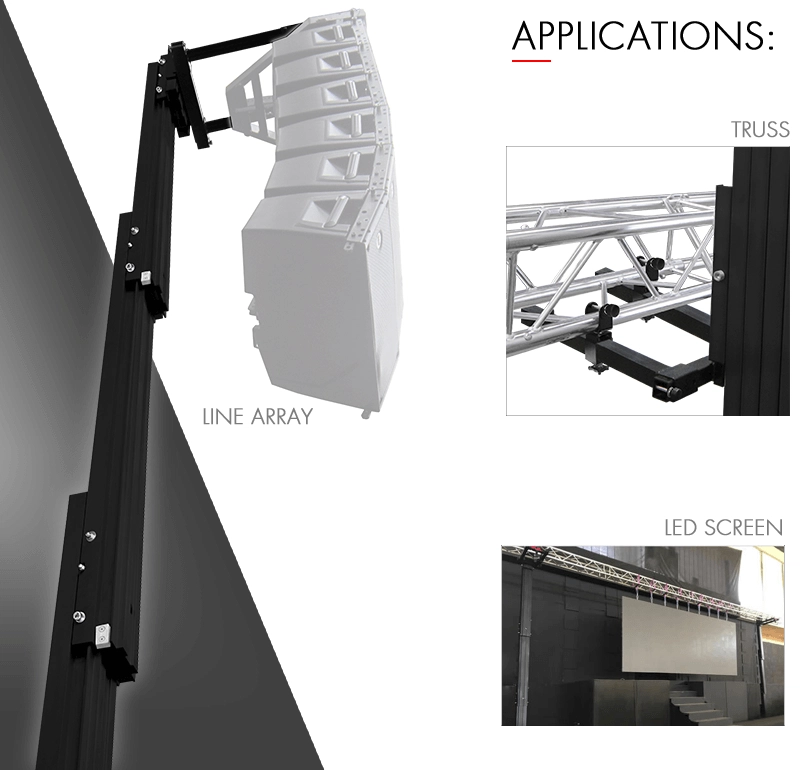

Application: For front lifting of Line Array and trusses.
