Brand: China
Model: P3 Module
Type: Outdodor
Description: The P3 outdoor LED module is a display panel consisting of a PCB circuit board, hundreds of bright SMD RGB LEDs, some electronic components, and soft waterproof rubber. With up to 111,111 pixels/㎡ LED matrix, over 160° large viewing angle, and over 5,500 nits brightness, the P3 LED panel has a better advantage for providing high-definition high contrast dynamic images as well as video media, especially in outdoor areas.

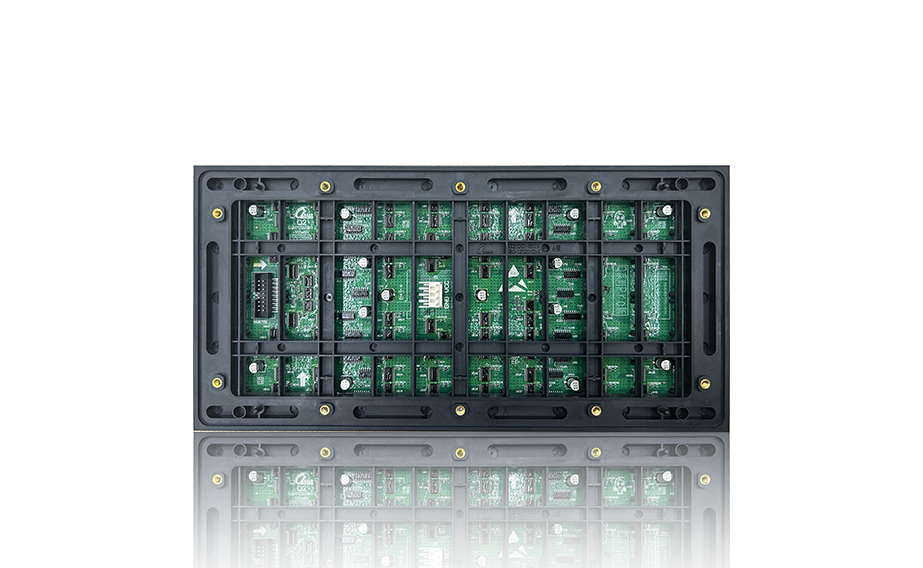

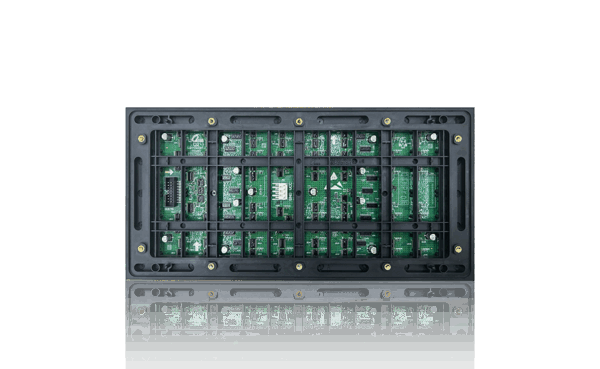

P3 Outdoor LED Module, also named outdoor P3mm LED matrix, is a square panel with a measurement of 192mm*192mm, it has a 3mm distance between the center of two adjacent pixels and 4,096 ultra-bright RGB LED arranged on the front at a 64×64 grid matrix. At the back, IDC connectors and 16-bit latches are build-in the PCB board to transform data and enable you to operate the module at a constant current 1: 16 scan. In addition, the P3 is designed with full-color technology that allows you to change any color you want to offer a variety of colorful visual effects.
The outdoor P3 LED display panel is the perfect fit for any application that requires a large, high-resolution, more close viewing, wide-angle view matrix. Because of the same dimensions, this P3mm LED panel is very much like our 6mm 32×32 RGB LED display panel, but the LEDs on this panel are a little closer together (3mm pitch), half the distance of the 6mm matrix, so you don’t have to go as far to have a good look at it. If you need a module that can be viewed from a further distance, check out our other modules such as p4mm, P5mm, P8mm, P10mm, etc.
Technical parameters:
Pixel pitch: 3mm
Scan method: 1/13
Module size: 320*160mm
Module resolution: 104*52 dots
Pixel density: 105,625 pixels/sq.
Power consumption: Class 1
Supply voltage: >4.5V
Brightness: >5000cd/m2
Color temperature: 6500 - 18000 (adjustable)
Contrast: >5000:1
Driving IC: PMW-SS Energy saving with high refresh rate.
Grayscale: 13-14 adjustable.
High refresh rate: >7680Hz
Maximum power consumption: <786W
Average power consumption: <262W
Application: For outdoor advertising video screens and information boards of casinos, retail chains, hotels, gyms, gas stations and others.
