Brand: LED Spektar

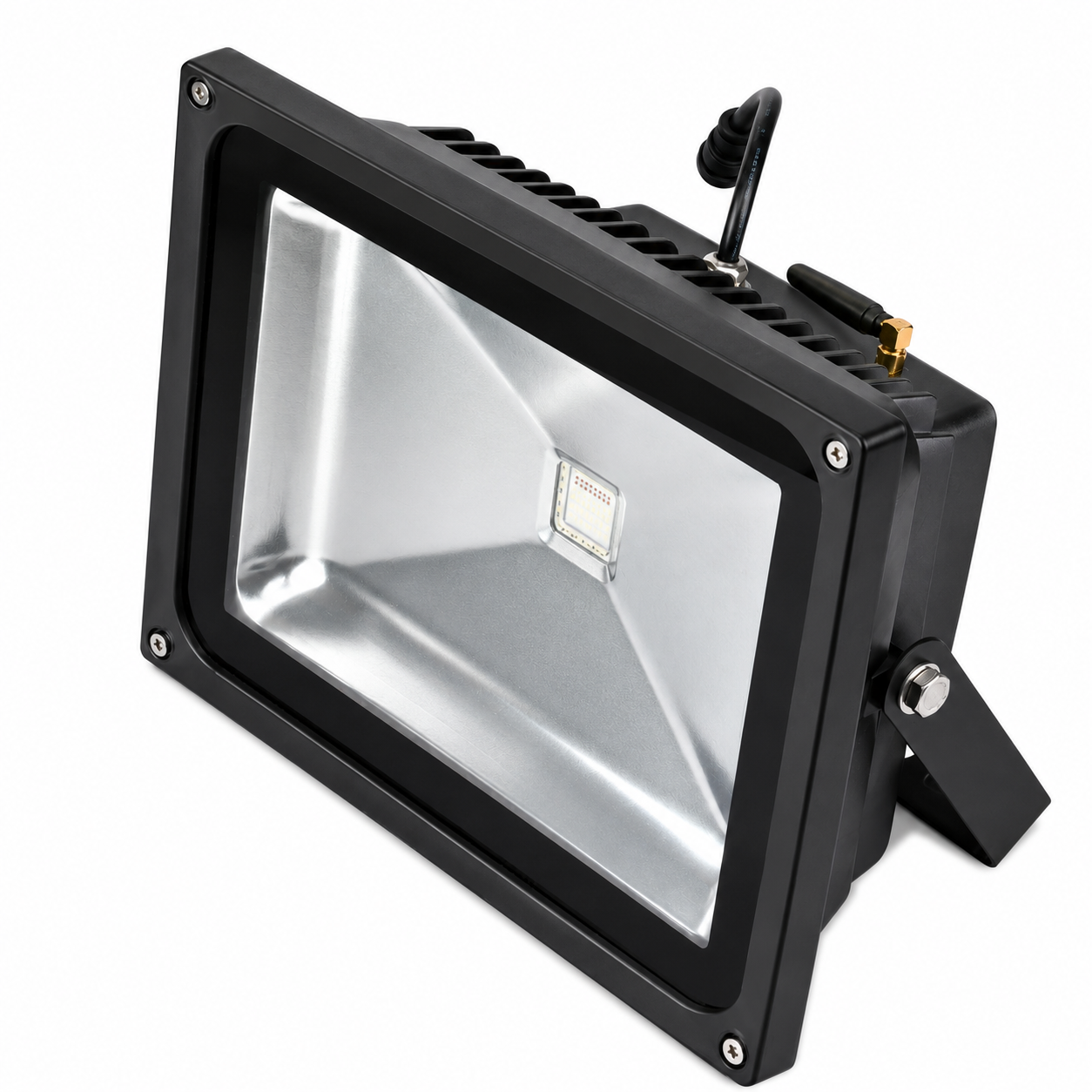

Model: LED RGB DMX outdoor floodlight 50W
Type: External spotlight
Description:
Powerful 50W LED Spotlight
1) Powerful 50W LED Spotlight
2) 1pc 50W Edison LED
3) Size: 290 * 240 * 180 mm
4) RGB
5) AC85-265v
Powerful 50W LED Spotlight
Power: 50W
Voltage: AC85-265V
Lens: PMMA
Beam angle: 120 °
Protection: IP65
Size: 290 * 240 * 180 mm
Luminous flux: Lumen / LED: R / Y - 45lm B-25lm G / W - 60lm
Technical parameters:
Product type: RGB
Light source: 50W LED MOULD
LED quantity: R16G16B16
Input voltage: DC24VAC100-240V 50 / 60Hz
Maximum power: 57W
Tok: 350mA
Angle of illumination: 120 °
Projection distance: 10-20m
Control mode: standard DMX512 / local control
Color: 16777216 true colors
RF: 315MHz 30-50M (optional)
Ambient temperature: -20 ° C ~ 45 °
Protection: IP65
Life:> = 35,000 hours
Weight: 3.3 kg
Size: 290x240x150mm
Control:
DMX control
Login - two male pin waterproof connectors, 300mm, 2x1mm2.
DMX signal, waterproof three-pin male connector, 300 mm, 3x0.5mm2 DMX signal, three-pin female waterproof connector, 300 mm, 3x0.5mm2
DMX
1 GND (SHIELD)
2 DMX - (BROWN)
3 DMX + (BLUE)
POWER
1 GND (BLACK)
2 24V (RED)
ADAPTER
1 VCC (RED)
2 GND (GREEN)
3 DMX (BLUE)
4 DMX + (YELLOW)
RF devices (optional)
1. Effect up
2. Effect down
3. Brightness (increase) (1-10 levels) mode only 1-10
Speed (1-10 levels) mode only 1-10
4. Brightness (decrease) (1-10 levels) mode only 1-10
Speed (1-10 levels) mode only 1-10
5. Reset (mode = F11, Speed = 4, Brightness = 10)
6. LAMP OFF
F01: STATIC RED
F03: STATIC ORANGE
F04: STATIC COLD WHITE
F05: STATIC YELLOW
F06: STATIC PINK
F07: STATIC GREEN
F08: STATIC PURPLE
F09: STATIC CYAN
F10: STATIC BLUE
F11: RGB GRADUAL
F12: RGB CHAN
F13: RGB FLASH
Color / angle lighting
Red:
λd / CCT: 625 nm
Typical lumens: 640-800 lm
Voltage: 16-18 V
Current Current: 700mA
Green:
λd / CCT: 525 nm
Typical lumens: 1100-1250 lm
Voltage: 26-28 V
Current Current: 700mA
Blue:
λd / CCT: 460 nm
Typical lumens: 300-400 lm
Voltage: 26-28 V
Current Current: 700mA
Notes:
a) products must meet appropriate environmental requirements.
b) when applied DMX, each projector needs three addresses that can be set with buttons or our special devices.
c) If your desire is to group lights have the same effect, the group lights must be set to the same address.
d) The largest lighting control points can not be more than 510.
e) associated with a group of lights is only one master (working lights in master mode, controller or console).
f) More than one connection of lights should chart link products.
g) the controller or signal splitter to connect the rear end of the light can not be lower than the maximum length of 30 meters.
h) In order to ensure reliable transmission of the DMX signal, if the connection of the lamp is over 100 m, should be added to the transmission signal amplifier DMX signal line for signal amplification.
Inputs and outputs must meet the requirements, otherwise
may follow light damage. Male XLR input and female XLR for the exit.
Application:
1. the trade sites, airports, metro stations, crossroads, architectural objects.
2. Color: RGB color (synchronous gradual color change)
3. Body made of aluminum alloy suitable for mounting
4. 50W high power LED (Edison), energy saving, environmental protection, no UV radiation, etc.
