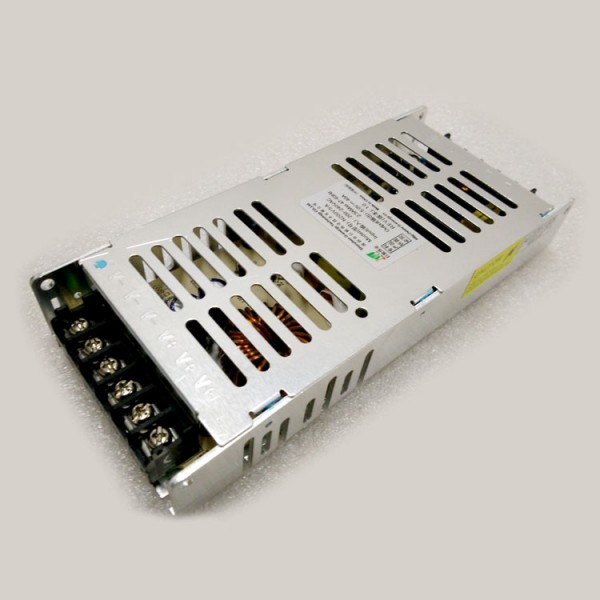

Brand: G-energy
Type: LED POWER SUPPLY
Model: Ultra-thin (30mm)
Technical parameters:
3CM Thickness support 220V AC Input Voltage.
Input voltage:200-240VAC,47-63Hz
Output power:200W Max
Power factor:0.50@230Vac
Insulation voltage:I/P-O/P:3.0KVac
I/P-FG:1.5KVac;O/P-FG:0.5KVac
Leakage current:0.30mA@230Vac
Protection:undervoltage,Overload,Short circuit
Working temperature:-30~+60℃
Storage temperature:-40~+100℃
Safety standards:GB4943,EN60950
Dissipate heat:Air cooling
Size:195×110×30mm
Application: LED boards, digital strips, products operating at 5V.
