Brand:DSFG
Model: IMIRA
Type:LED video poster
Description:Easy future upgrade to smaller pixel pitch to prolong your investment.
No PC required, thus saves on cost, increases reliability and makes operations simpler.
Content can be updated via network or via USB drive and the content is stored on the unit itself.
5GB of built-in storage capable of supporting almost all video and image formats.
Slim profile (< 35mm depth) and lightweight (< 35kg/panel).
High refresh rate (> 1000 Hertz) and 128 steps of gradation control.

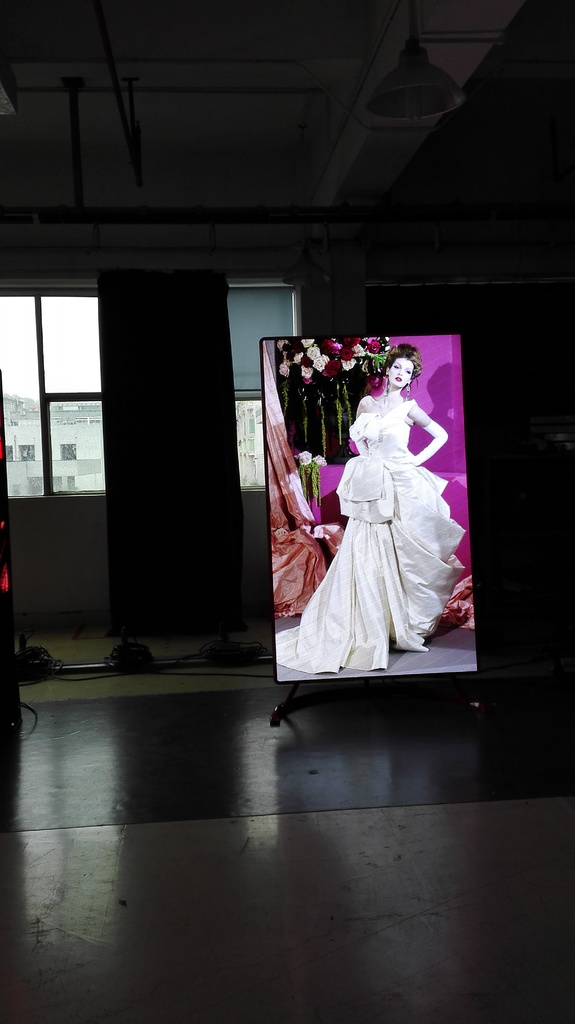

iMira has been engineered with latest technologies to give it a smoother, slimmer profile. It’s crafted in beautiful anodized lightweight yet durable aluminum, to make the entire poster frame weigh less than 35kg, making it more portable and easier to install.
Technical specification:
LED Specification:
Brightness: 1200cd/m²
Viewing Angle: 140°(V) / 140°(H)
Type of LED: SMD2020
Drive IC: Standard
Specification of the module:
Pixel pitch: P2.571mm
Density: 151284 pixels/ sqm
Number of pixels in one module: 112x84
LED type:1R 1G 1B (3 in 1)
Drive Mode:1/28 constant scan
Size modules:288x216mm
LED display Specification:
Display dimension: 1.152m*1.944m=2.2394 sqm
Screen Resolution: 448x756=338,688 pixels
Module quantity: 4*9=36 pcs
Cabinet Size: 1.152m*1.944m*0.35m(W*H*T)
Cabinet quantity: 1pc
Cabinet Material: AL Frame
Weight: 50kg
Mechanical ratings
Surface flatness: GAP< 1mm
Optical Ratings
Gray Scale: 16bit
Display Color: 4.4Trillion
Brightness Adjustment: 100 Levels
Power Supply:
Operation Power: AC110/220V, 50-60HZ
Max Power Consumption: 500W/sqm
Average Power Consumption: 210W/sqm
Control system:
Display Mode: Synchronous/ Asynchronous system
Frame Update Frequency: 60- 85Hz
Screen Refresh Frequency: > 1000 Hz
Gamma Correction: 16 bits
Signal Output: HDMI
Control Mode: Ethernet/WIFI//USB
Support VGA Mode: 1024x768, 1280x1024, 1600x1200, 1920x1280
Brightness Correction: Pixel by pixel calibration
Operating Temperature: - 20° ~+ 50° Celsius degree
Operating Life (50% Brightness) 100,000hours
Application: Shopping centers, grocery chains,hotels, information centers, shops for fashion, optics, watches, cosmetics and others
