Brand: OEM
Model: 7 x 40W RGBW LED Par
Type: LED Outdoor Par
Description:

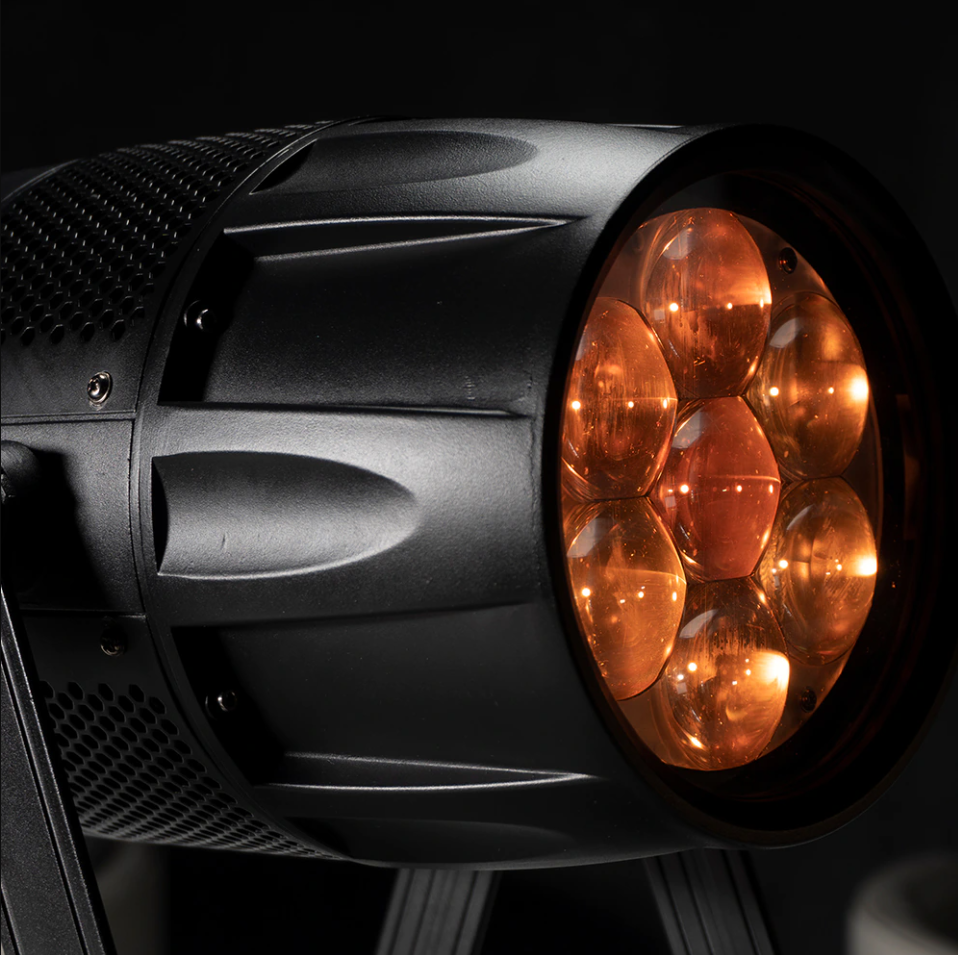

This powerful пар for outdoor use is equipped with 7 RGBW LEDs with even color mixing, each 40W LED and with a motorized zoom range of 5° – 45°.

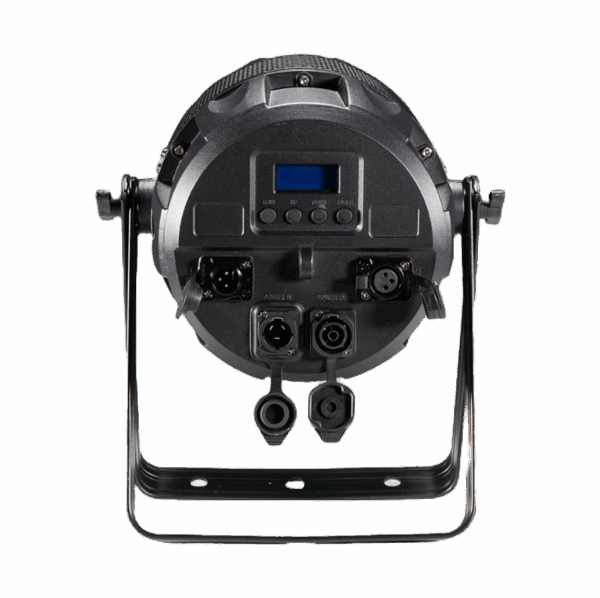

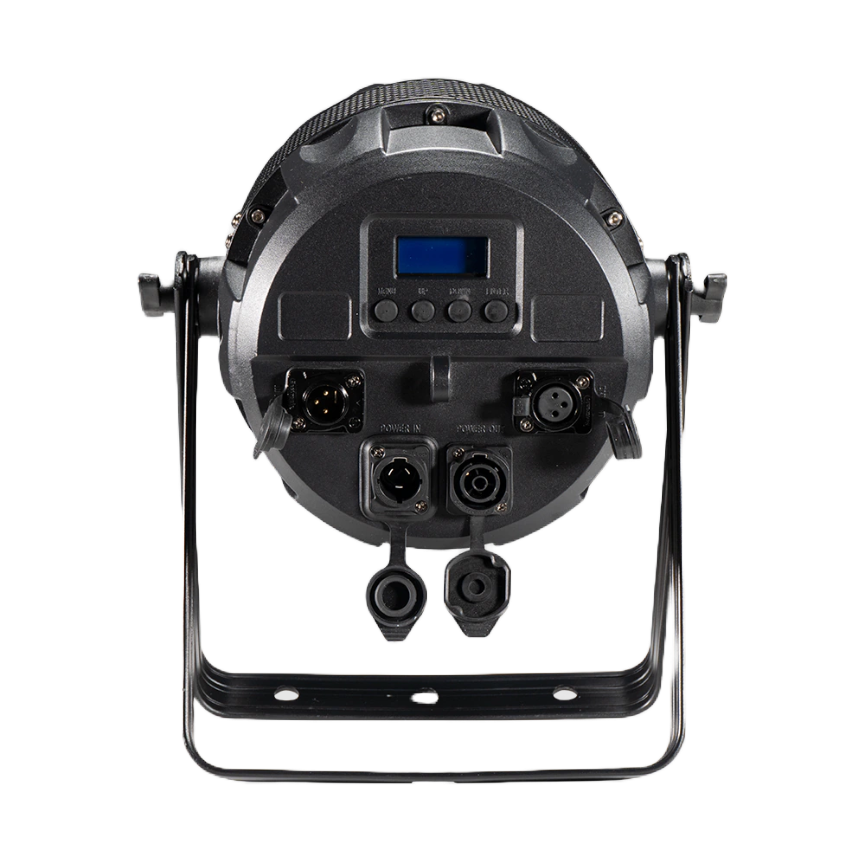

The unit comes with IP-rated PowerCon input and output connectors, double clamp, die-cast aluminum housing and a user-friendly LCD display.
Main Features:
7 x 40W RGBW 4-in-1 LEDs
High performance optical lens
Strong beam effect, flat and nice wash effect
5° - 45° motorized zoom range
User-friendly LCD display
IP rated PowerCon input and output connectors
Die-cast aluminum housing, compact design
Double console, mounted on the floor or truss
Rated IP 65, outdoor use
Detailed Features:
Physical:
Length: 296 mm (11.6 in)
Width: 220 mm (8.7 inches)
Height: 436 mm (17.2 in)
Net Weight: 6.8 kg (15 lb.)
Dynamic Effects:
Color Mixing: RGBW
Zoom: motorized zoom
Electronic Dimming: 0 – 100%
Strobe and Pulse Effects: Variable speed and action, random flash
Control and programming:
Control options: DMX, Auto, Sound, masterslave
DMX channels: 5/9
DMX address setting: Control panel with LCD display
DMX Compatibility: USITT DMX512-A
Optics:
Light source: 7 x 40W Osram LED
Zoom: 5° - 45° motorized zoom
LED life: 50,000 hours avg*
* LED life may vary depending on several factors including but not limited to: environmental conditions, power/voltage,
Usage patterns (on-off cycling), control and dimming
Construction:
Body: Die-cast aluminium
Color: Black
Environment: IP65 for outdoor use
Installation:
Mounting: Adjustable bracket, surface or truss mounting
Location: Indoor or outdoor use
Orientation: Any
Links:
AC input, via: IP-rated PowerCon input and output
DMX input/data pass-through: 3-pin XLR input and output
Electrical:
AC power: 100–240 V nominal, 50/60 Hz
Power Unit: Auto Range Power Unit
Typical power and current: 230 V, 50 Hz: 230 W
Measurements were taken at nominal voltage with all LEDs at full intensity. Allow +/- 10% deviation.
Thermal:
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Parts included:
IP rated PowerCon cable
Safety cable
Possible Parts:
clamp
Application: Theaters, school stages, shows, etc.
