Brand: LED SPEKTAR
Model: LED SMD 3in1 external display PH 10
Type: LED outdoor display RENTAL
Description: The outdoors LED displays offered by LED SPEKTAR have high brightness and frequency, which ensures crystal clear picture of the picture. The use of first-class LED chips from SILAN brand and ensures long life of LED display and clarity even in direct sunlight. The return on investment is fast due to their widespread use.
Technical characteristics: PH 10 5050 SMD 3 in 1
Pixel Pitch: 10 mm
Pixel density: 10000pix / m2
Type of LED: SMD5050 3 in 1
Wavelength of the LEDs: R: 622-627 / G: 522-525 / B: 463-465
Luminous intensity of the LEDs: R: 650-740 / G: 1560-1820 / B: 290-366
Viewing Angle: H 120 °, V120 °
Brightness: ≥5500cd / m2
Control method: 1/2 scan
Management IC: MBI5024
Colour Depth: 4096
Refresh rate (Hz): ≥900
Frame Rate (Hz): ≥60
Adjusting the brightness manually, automatically, SPC

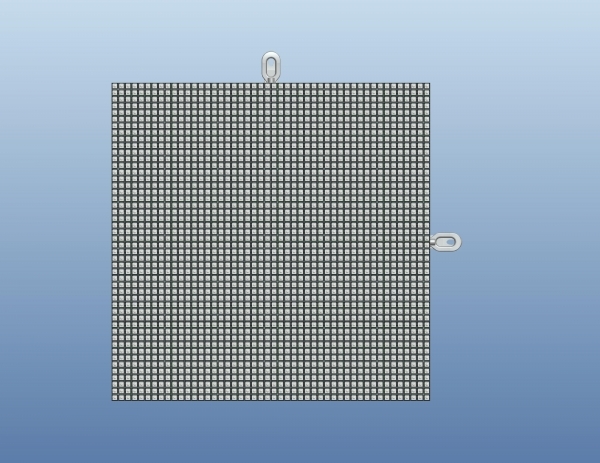

Module Size (mm): 160x160x25
Module Resolution (pixel): 16x16
Size of cabinet (mm): 640x640x100
Display Resolution of the Cabinet (pixel): 64x64
Most good viewing distance: 10- 40 meters (depending on the screen size)
Material of cabinet: cast aluminum
Cabinet Weight (kg): 18 kg.
Power: 5V, 40A
Voltage (V): AC 86 - 264V
Max. Power consumption: 900W / m2
Medium (normal) Power consumption: 530W / m2
IP degree: front IP65, rear IP54
Temperature / humidity operation: -20º ~ 50º, 10 ~ 90% RH
Storage temperature / humidity: -40º ~ 60º, 10 ~ 90% RH
Life (Normal Temp):50000h
Control: Linsn/Novastar
Connecting cables: 120 m (CAT5E); 500m- 10km (optichnen cable)
Supported devices: DVI, DVD, HDVD, video camera
Compatible standards: CCC, CE
Applicable places: Annuity events, mobile media, outdoor advertising, stadiums, banks, shopping centers, airports, train stations, information centers.
