Brand: PR LIGHTING
Model: XLED 336
Type: LED Moving head

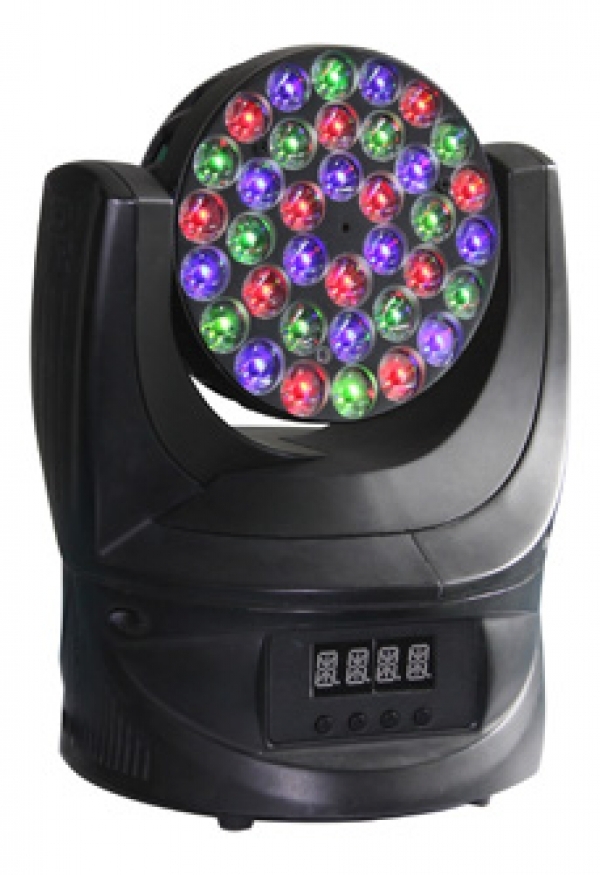

Description: XLED 336 is one of the hits of the exhibition in Frankfurt. Compact and elegant design, it is fast moving head and a bright radiating light. It consists of 36 units x 3w Osram Oslon LED (12 red, 12 green, 12 blue). There is an angle of dispersion 18,15 ° and an angle of the lens 8 °. Power consumption is only 140W of output or approximately 250V. Pan and tilt are as follows The PAN 540 ° / TILT270 ° with automatic correction of position and invert function. XLED 336 offers 12 channel DMX (16 channels in extended mode), plus electronic dimmer and strobe. With its compact size, long life of LEDs and its attractive price this new product is a must in every intriora comprehensive resource nightclub.
Key Features:
Key Features: WASH
Moving Chapter 12 or 16 channels DMX 512
Panorama 540 ° / tilt: 270 °
RGB color mixing
Beam angle: 17 °
Angle Lens: 8 °
strobe effect: 0-20 / sec
dimer: (0 ~ 100%)
Menu: LED display
Variation Pan and tilt:
View: 540 °, 360 °, 180 °
Tilt: 270 °, 180 °, 90 °
Technical data:
Power supply: 120V / 230 V / AC, 50/60 Hz
Power: 50W / 220V
LED: 36X3W
Control and programming: automatic, on music, Master / slave, DMX 512 (5 or 13 channels)
Insulation: (IP20)
Dimensions: 263x224x204 mm (HWD)
Weight: 4.2 kg
Warranty: 1 year
Applicable places: discos, nightclubs, shops, karaoke clubs and piano.
