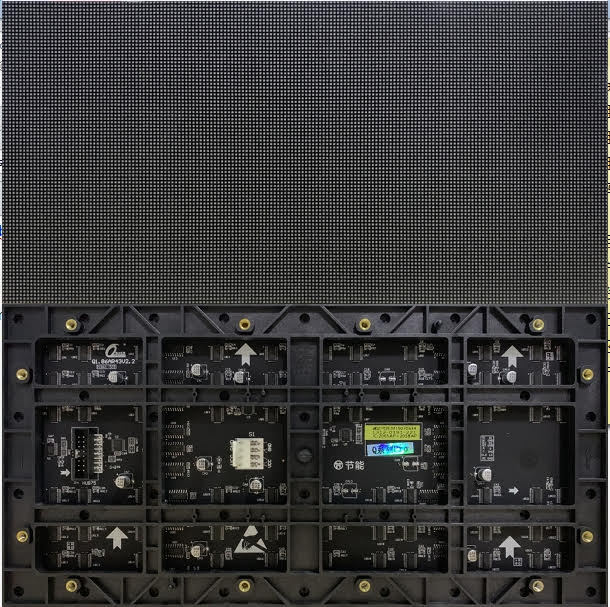

Brand: ОЕМ
Model: P1.66
Type: LED Indoor Module
Features:
Reliable, stable and guaranteed with gold wire tube.
Using PMW driver chip, 4k refresh rate. Taking pictures of waterless ripples.
PMW-SS dual energy-saving driver IC supports 4v low-voltage startup, double energy saving and more power saving.
With Mago box, free DIY, separate installation, complete pre-maintenance
Complete product model, standard universal size of 320*160 mm
Viewing angle ≥ 140° Multi-directional viewing is always the same.
High-end products, more widely used.
Technical parameters:
Pixel Pitch(mm): 1.66
Scanning Mode: 1/32
Module resolution: 192*96 px
Module Size: 320 *160 mm
Pixel Density: 360 000 px/²
Brightness(cd/m²): ≥600
Module Weight(kg): 0.47kg
Max Current(A): ≤5.5А
Screen Power Consumption (W/m²): ≤580W/m²
LED Encapsulation: SMD1010/SMD1212
Driving IC: PWM-SS Driving IC
Refresh Rate(Hz): ≥3840Hz
Attenuation ( Working 3 years): ≤ 15%
MTBF: ≥ 10 000 Hours
Defective rate:0,00003
Viewing Angle: H160º / V160º
Gray Scale (bits): 14-15bits
Application: Usualy used in conference video centers, information centers, demonstration centers and studios, indoor halls, TV studios, exhibition halls, theater, government departments, conference rooms, entertainment venues, schools, hospitals, performing art centers, etc
