Brand: OEM
Model: P1.53mm

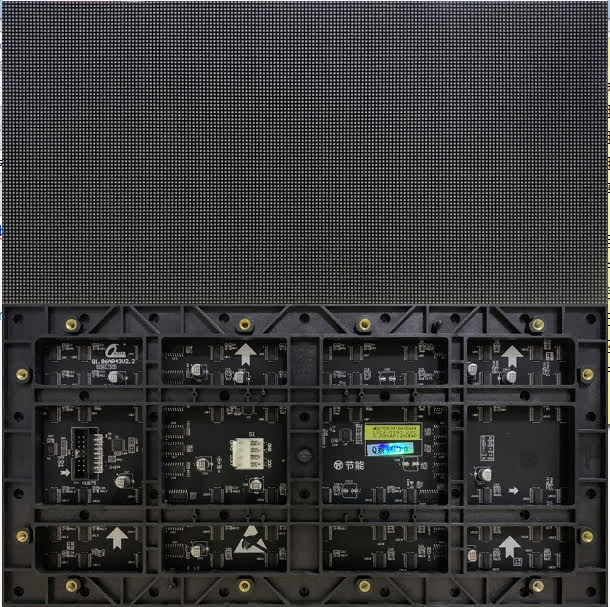

Type: LED Module
Features:
Reliable, stable and guaranteed with gold wire tube.
Using PMW driver chip, 4k refresh rate. Taking pictures of waterless ripples.
PMW-SS dual energy-saving driver IC supports 4v low-voltage startup, double energy saving and more power saving.
With Mago box, free DIY, separate installation, complete pre-maintenance
Complete product model, standard universal size of 320*160 mm
Viewing angle ≥ 140° Multi-directional viewing is always the same.
High-end products, more widely used.
Technical parameters:
Pixel Pitch(mm): 1.53
Scanning Mode: 1/26
Module resolution: 208*104 px
Module Size: 320 *160 mm
Pixel Density: 422 500 px/m²
Brightness(cd/m²): ≤600
Module Weight(kg): 0.47
Max Current(A): ≤6.6A
Screen Power Consumption (W/m²): ≤580
LED Encapsulation: SMD1010/SMD1212
Driving IC: PWM-SS Driving IC
Refresh Rate(Hz): ≥3840 Hz
Attenuation ( Working 3 years): ≤15 %
MTBF: ≥10 000 Hours
Defective rate: <0.0003
Viewing Angle: H160º / V160º
Gray Scale (bits): 14-16 bit
