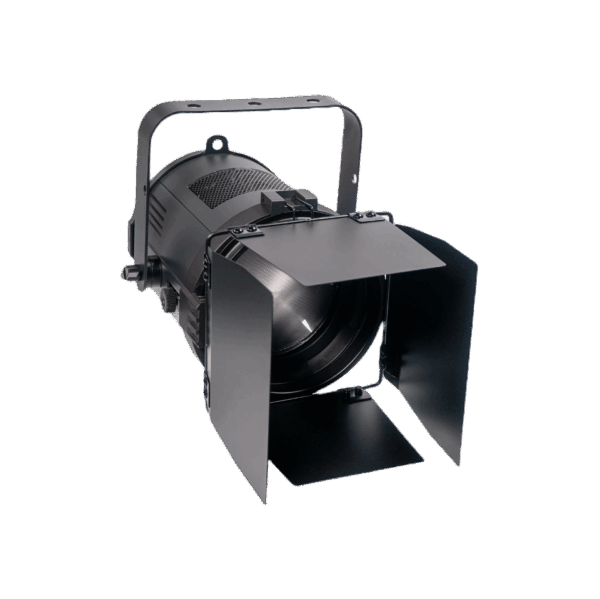

Brand: OEM
Model: 100W WW/CW

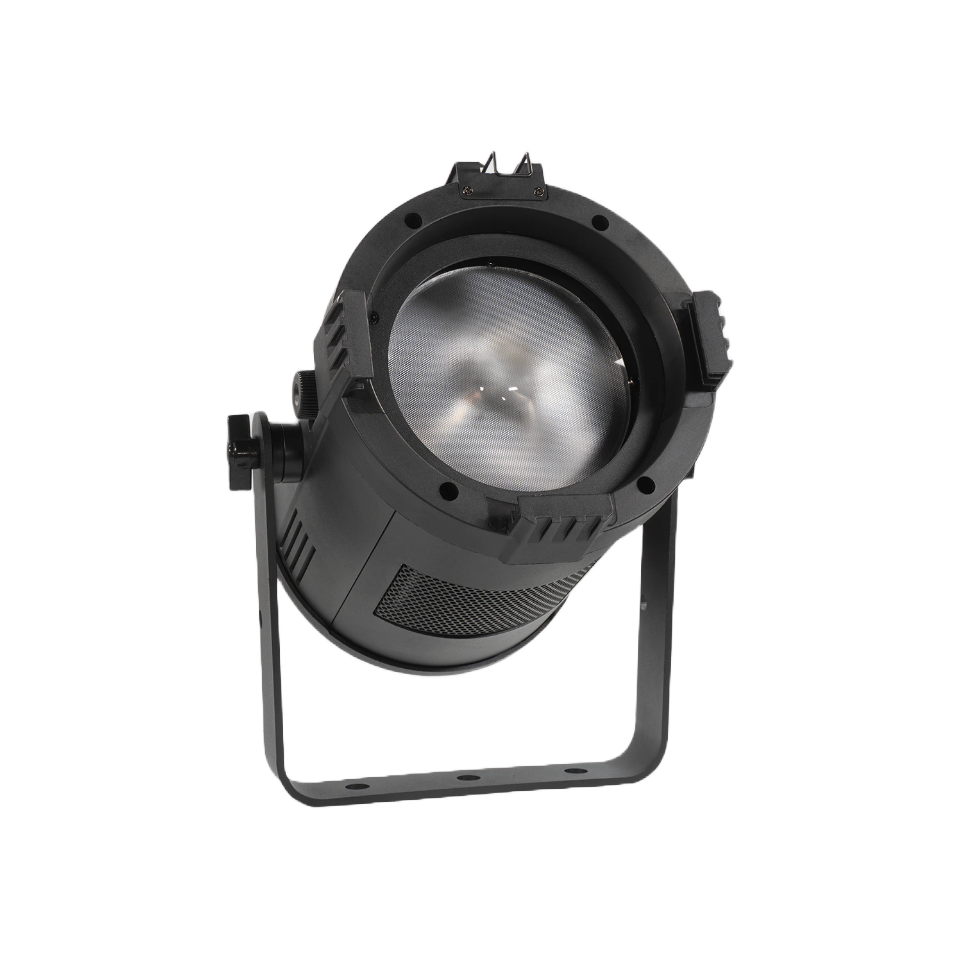

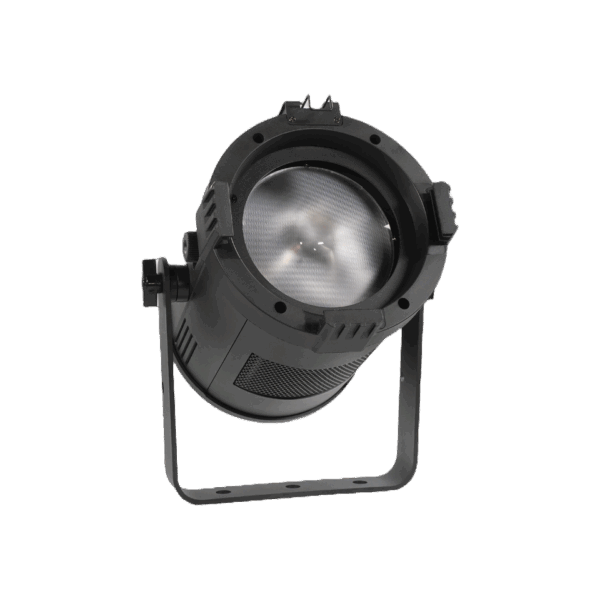

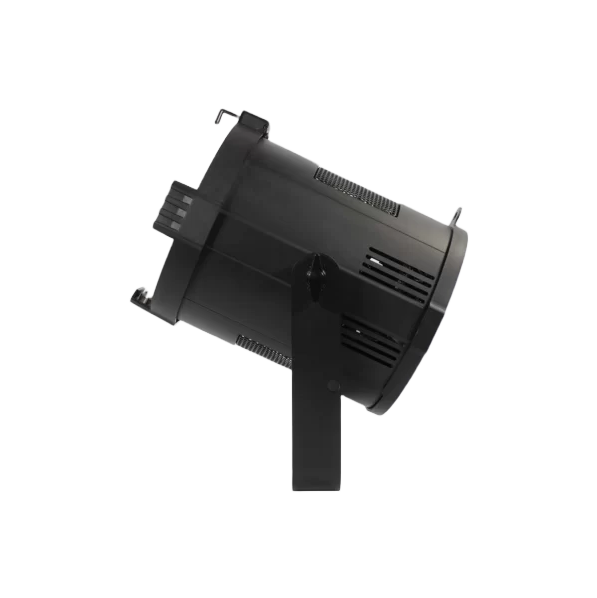

Type: Theatrical LED Fresnel Spotlight
Description:
This spotlight features a 100 watt Warm White + 100 watt Cool White LED fresnel light with manual zoom function.
RDM-DMX compatibility, manual zoom from 25 – 65 degrees, along with a superb 95 CRI make this unit a good replacement for other fresnels.
Adjustable color temperature from 2700k to 6000K. Power remains this when CCT is adjusted. Shutters available to control the shape of the light.
It is designed as a cost-effective Fresnel fixture for events.
Key features:
100W WW + 100W CW COB white LED
2700K - 6000K color temperature adjustable
Average CRI 95, TLCI 97
Soft and even "Washing" effect.
25° - 65° manual zoom
Smooth dimming, no flicker
Selectable dimer curves
Electronic shutter effect: Instant opening and dimming
Electronic Dimming: 0 – 100%
Silent operation for studio and theater
Detailed Features:
Optics:
Light source: 100Wram white + 100Watt cold white LED
Color temperature: 2700K – 6000K optional
Minimum LED life: 50,000 hours
Machining range: 25° – 65° manual zoom

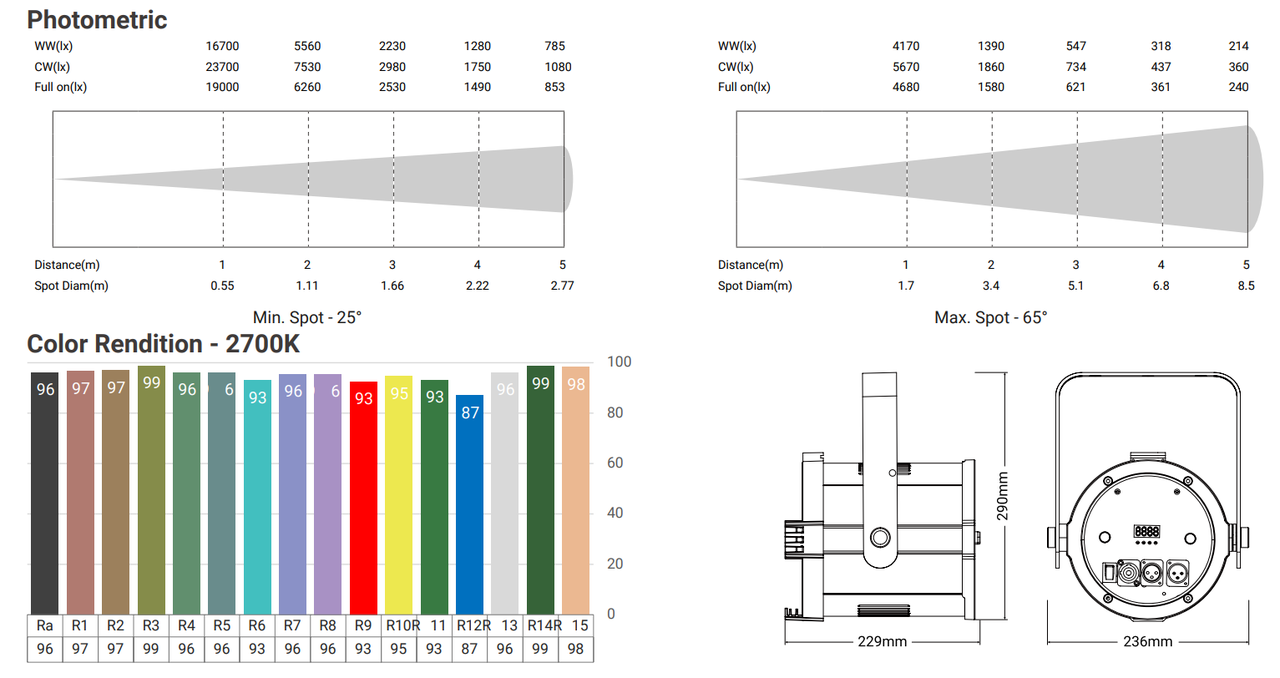

Photometric data:

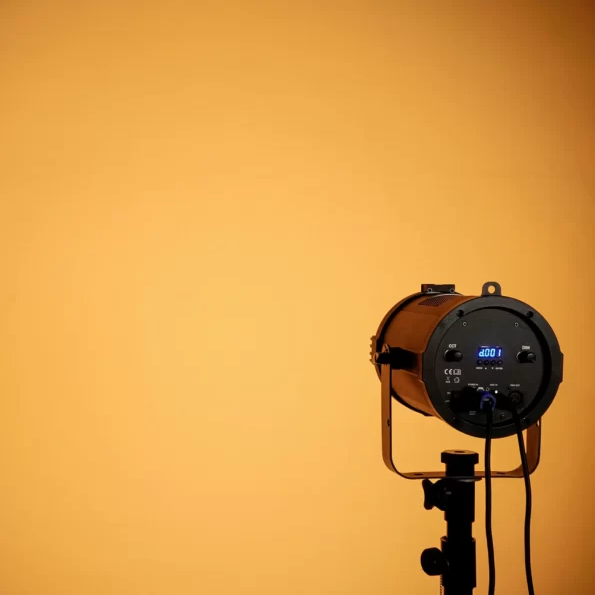

Warm white 785lux @5m 25°

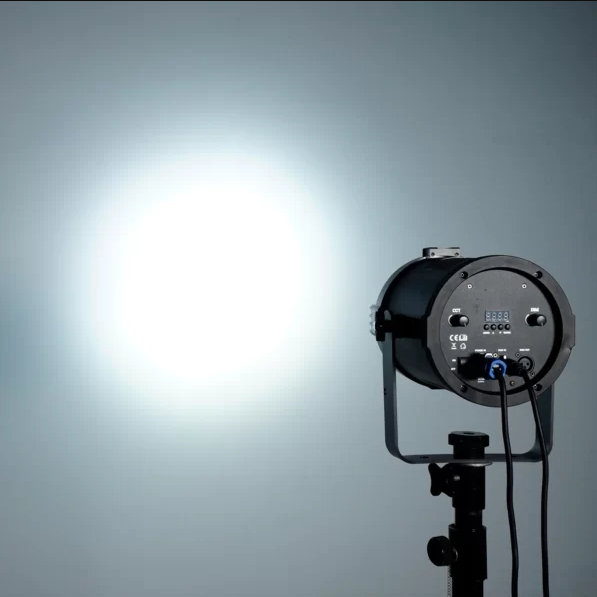

Cool white 1080lux @5m 25°
For more information, see the photos
Physical:
Length: 229 mm (9.0 in)
Width: 236 mm (9.3 in)
Height: 290 mm (11.4 inches)
Net Weight: 3.6 kg (7.9 lb.) Includes bar
Dynamic Effects:
Electronic shutter effect: Instant opening and dimming
Electronic Dimming: 0 – 100%
Strobe and pulse effects: variable speed and action, produced flash
Control and programming:
Control options: DMX, RDM, standalone
DMX channels: 1/2/3/5
Dimmer frequency: 1.2 – 24.0 KHz
DMX address setting: Control panel with LED display or via RDM
DMX Compatibility: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings
Construction:
Body: Extensible aluminum, flame retardant engineering plastic
Black color
Installation:
Mounting: Adjustable clamp
Environment: IP20 indoor use
Orientation: Any
Minimum distance to flammable materials: 0.2 m (0.7 ft)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft)
Electrical:
AC power: 100–240 V nominal, 50/60 Hz
Power Unit: Auto Range Power Unit
Typical power and current
230 V, 50 Hz: 1.2 A, 100 W, PF 0.96

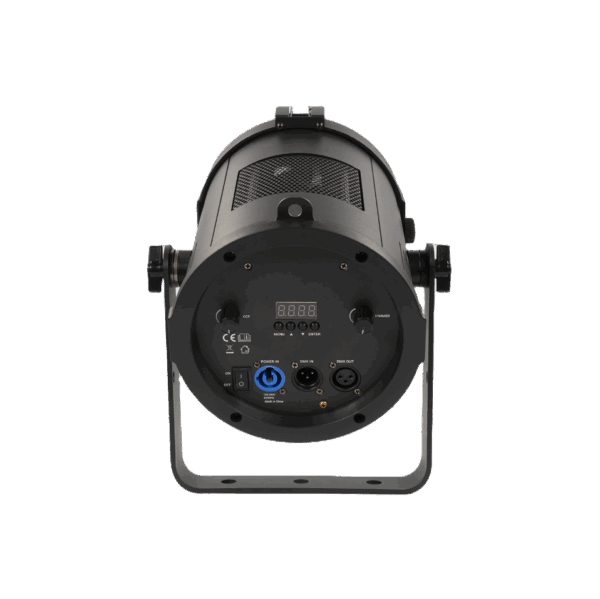

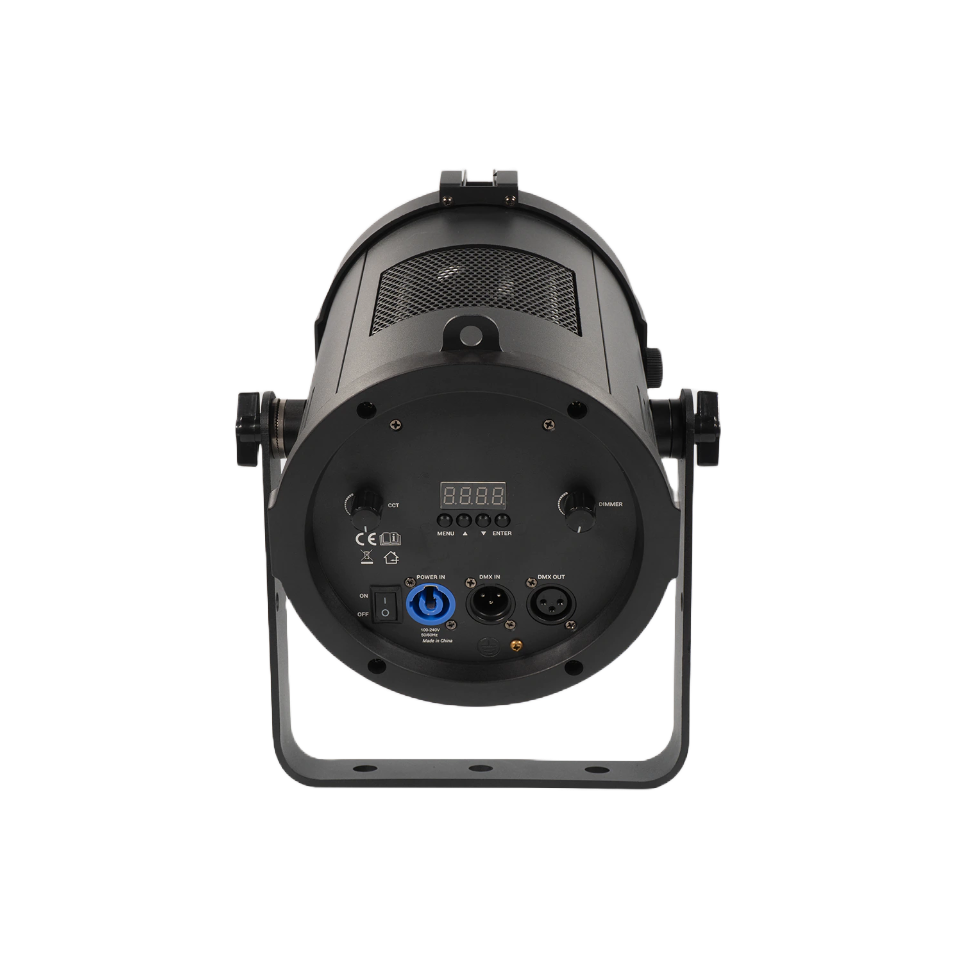

AC power through: PowerCon in
DMX & RDM data in/thru: 3-pin XLR input and output (5-pin optional)
Thermal:
Cooling: forced air (temperature controlled, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)
Approvals:
Safety in the EU: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008
Parts Included:

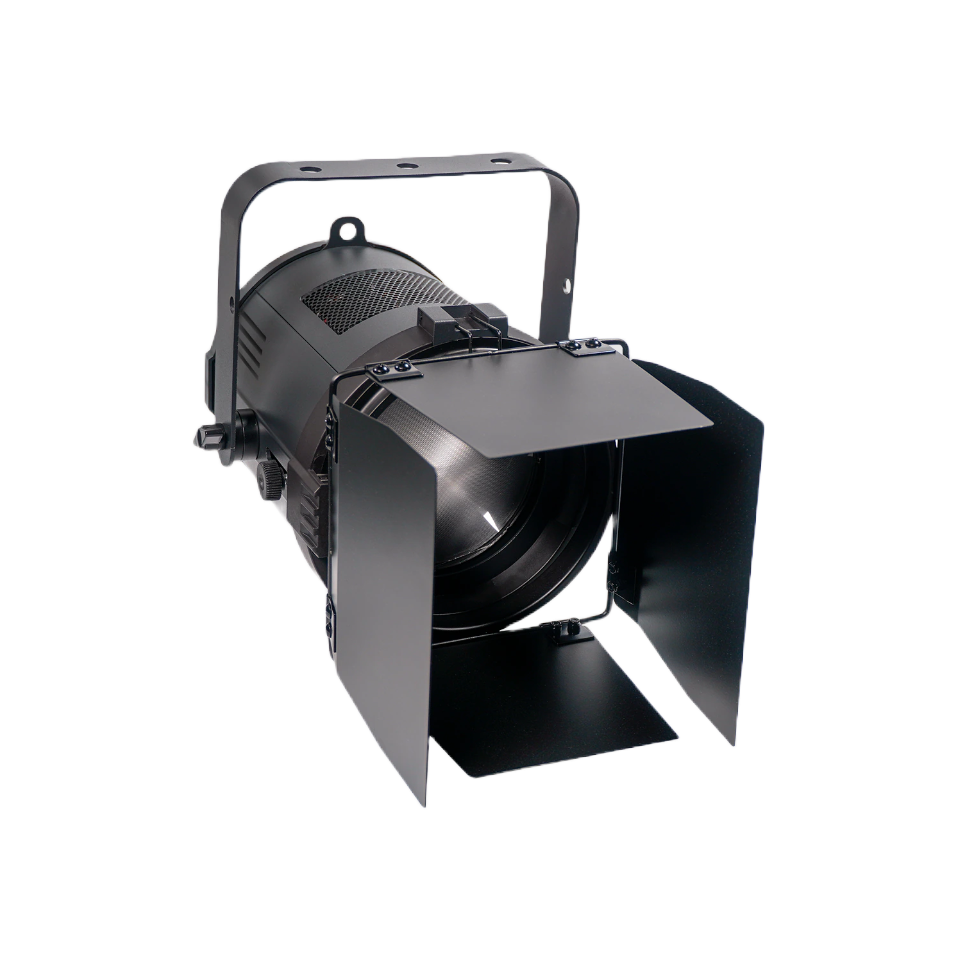

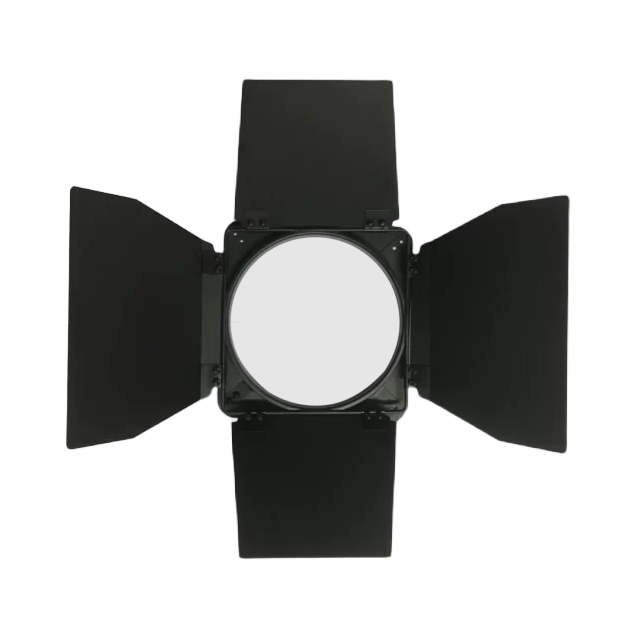

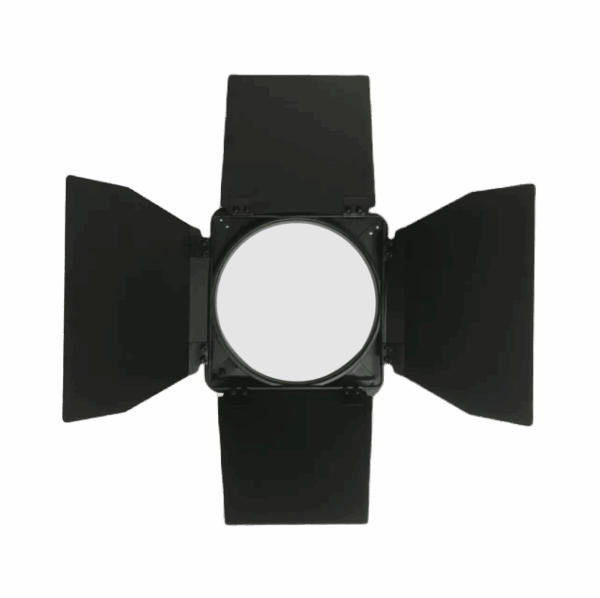

A revolving door
Color frame
User manual
Safety cable
Optional parts
Mounting bracket
Application: Theaters, school stages, shows, etc.
