Brand: LED SPEKTAR
Model: LS144SMD5050RGB

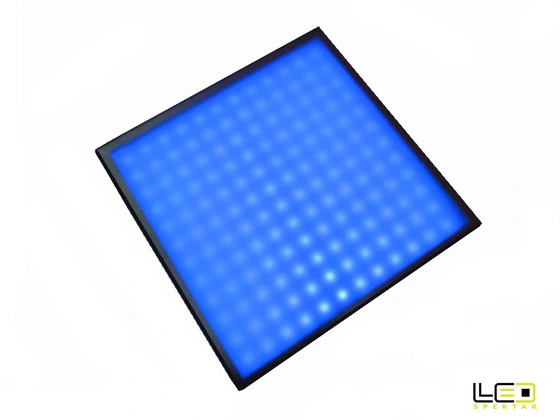

Type: LED panel
Description:
DMX LED RGB panel activated by DMX 512 protocol.
High brightness of LED chips SMD 5050, clear and pleasant light beam, bright and glare.
With DMX 512 controller can achieve effects such as color fading, skip, scan, chasing, video and many other combinations.
DMX signal is in parallel connection, avoiding all the lights affected by the failure of a light in the serial link.
After installation, DMX addresses can be set automatically for solving problems down the DMX address and save time.
Easy connection and installation.
Specifications:
Size: 600 * 600MM
LED: SMD RGB 5050
LED quantity: 144br
Number of pixels: 144br
Pixel Pitch: P45
Voltage: DC 5V
Power: 45W
Control: DMX 512
Setting the address: Automatic / Manual
PCB color: White with options for other colors
Standard panel PCB: FR4
Life of LEDs: 50,000 hours
Operating temperature: -20 ° to 50 ° C
Operating humidity: 0-95%
IP Protection: IP 20
Application: LED Background, video display, clubs, bar decoration, stage lighting, video wall, etc
