Brand: LED SPEKTAR

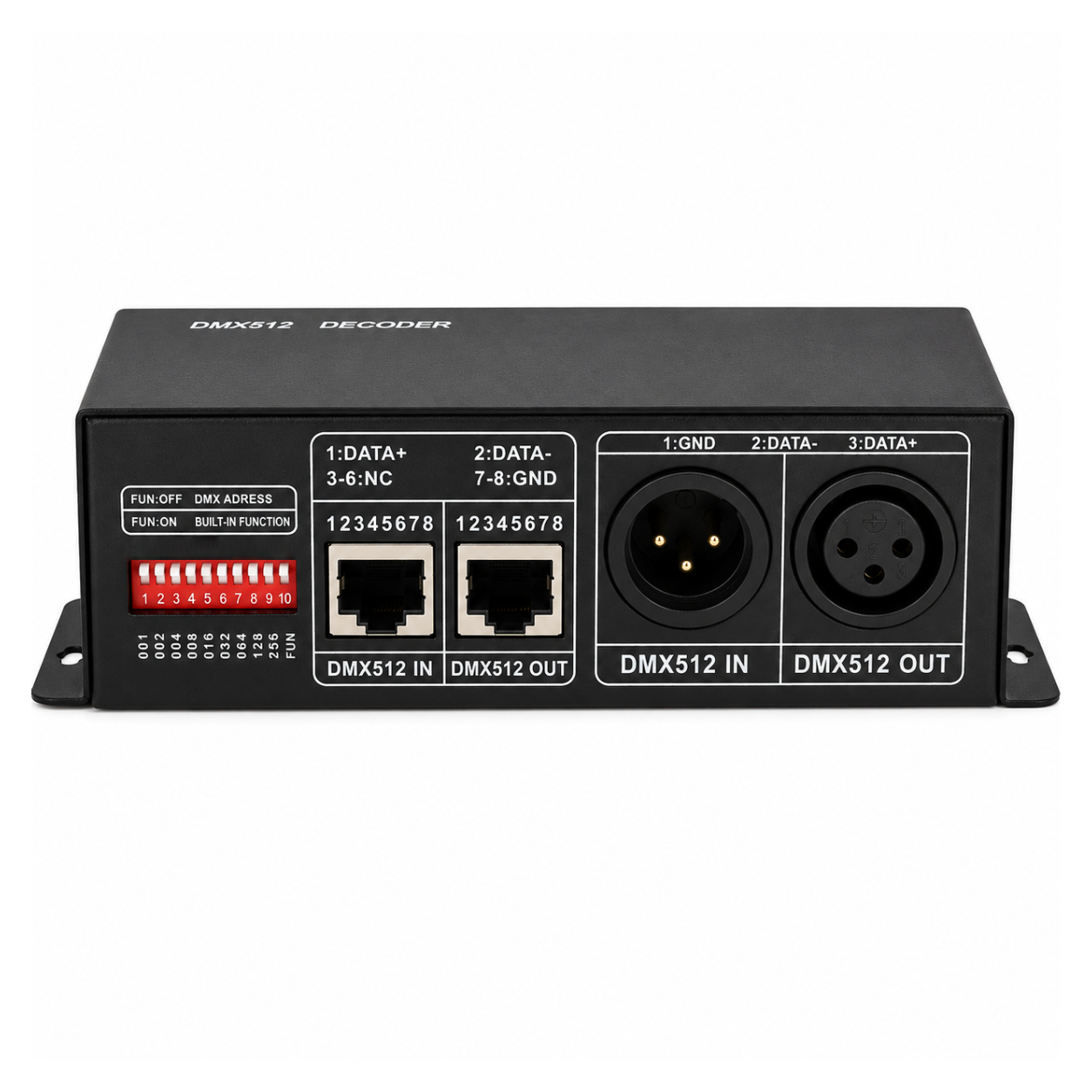

Model: LED DMX RGB 3-channel decoder
Type: LED decoder
Description: DMX decoder receiving a standard DMX-512 digital control signal, which is transformed into a PWM signal to control the LEDs. You can connect DMX decoder with DMX digital console to achieve the effect of dimming or various changes in the management of the LEDs.
Specifications:
Operating temperature: -20-60 `C
Supply voltage: 5V ~ 24VDC
Output: 3 channels
Size: L165 x W68 x H40 (mm)
Package size: L180 x W95 x H60 (mm)
Weight: 0320 g
Gross weight: 0.355 g
Power consumption:
Output current: each channel 4A
Power Output: 5V
Application: LED light design of discos, clubs, bars and more.
