Brand: LED SPEKTAR

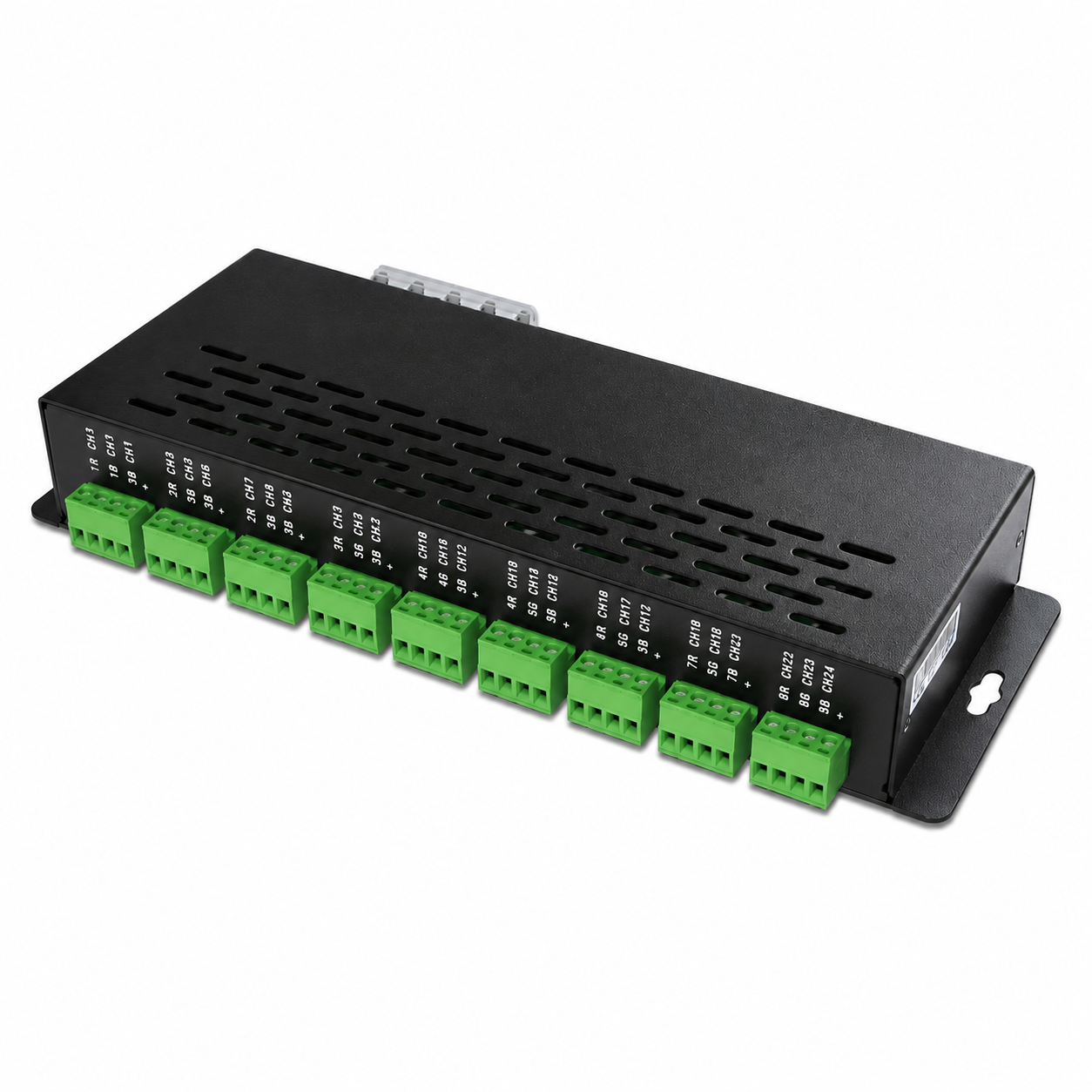

Model: LED DMX channel 24 DEKODER-
Type: LED decoder:Description: DMX512 decoder can control the LED products with PWM output signal.The user can choose 1-24 output channels, each of which may be control of 256 levels.DMX address can be set by DIP switch on the decoder. Can manage monochrome, bi-color, RGB LED products.
Technical specification:
Input voltage: DC12V ~ DC24V
Max. Load: 3A / CHx24 72a Max
Maximum output power: 860W / 1720W (12V / 24V)
Scale at baseline: 256
Input signal: DMX512 / 1990
DMX output channels: 24K
Operating temperature: -30 C-65 ° C
Dimensions: L260xW120xH40mm
Package size: L290xW130xH46mm package
Weight (G.W): 0.860 kg
Application: LED Products
