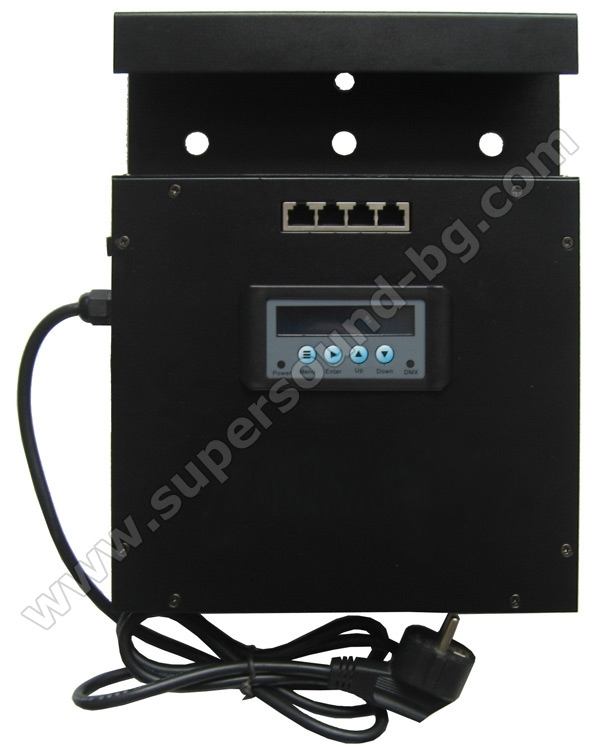

Brand: LED SPEKTAR
Model: SS-MR16-S002
Type: LED DMX controller
Description:
Technical specification:
Control: Auto, Sound, DMX 512/1990, 16 built-fixed programs 3 DMX channel modes: 60CH, 16CH, 7CH, 60 channels of DMX, LED lamp is used as a pixel point. New software can be updated via DMX port. 16.7 million kinds of colors can be produced by mixing red, green and blue LED.
Power supply: AC90-260V
Power Output: 4 ports, each port consumes 36W at full intensity.
Total power consumption: 60W max at full intensity
Maximum number of lamps port: 12pcs LED lights port
Maximum cable length: 50 meters port
Maximum number of control pixels, 60 pixels
LED DRIVER: DC
Dimmer: 0-100%
Strobe: 1-30 fps
LCD display: blue
Memory blackouts
Max drive current: 350mA per port
Power consumption: Max. 5W (at full power)
Interface: DMX 512 (1990): 3-pin XLR or 5-pin XLR connectors
Housing: Metal housing in black
Conforms to CE safety standards
Dimensions (mm): L284 x W220 x H48
Net weight: 1.8 kg
Application: TV studio
