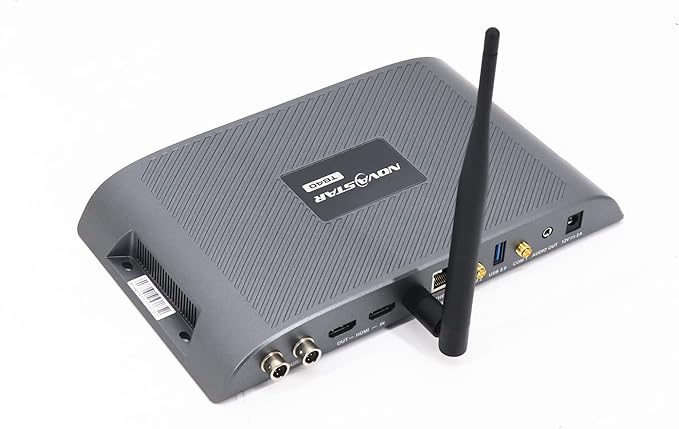

LED Controller/Multimedia Player NovaStar TB40

Brand: NovaStar

Model: Taurus 40

Type: LED Controller / Media Player

Description:

NovaStar TB40 is the latest generation of multimedia players specially designed for full-color LED displays. This innovative device seamlessly integrates playback and transmission functions, allowing users to publish content and manage displays via various terminals, including computers, smartphones and tablets. With its ability to connect to cloud publishing and monitoring platforms, TB40 simplifies the management of display networks in different locations.

The TB40 supports both synchronous and asynchronous playback modes, meeting a wide range of display requirements. Its robust and user-friendly design ensures reliability and ease of use, making it an ideal choice for a variety of applications in the LED retail display sector and smart city initiatives. Whether it is fixed installations, street displays, chain store screens, advertising kiosks, retail displays or shelf mounting, the TB40 is a versatile solution that improves operational efficiency and visual impact.

Technical Parameters:

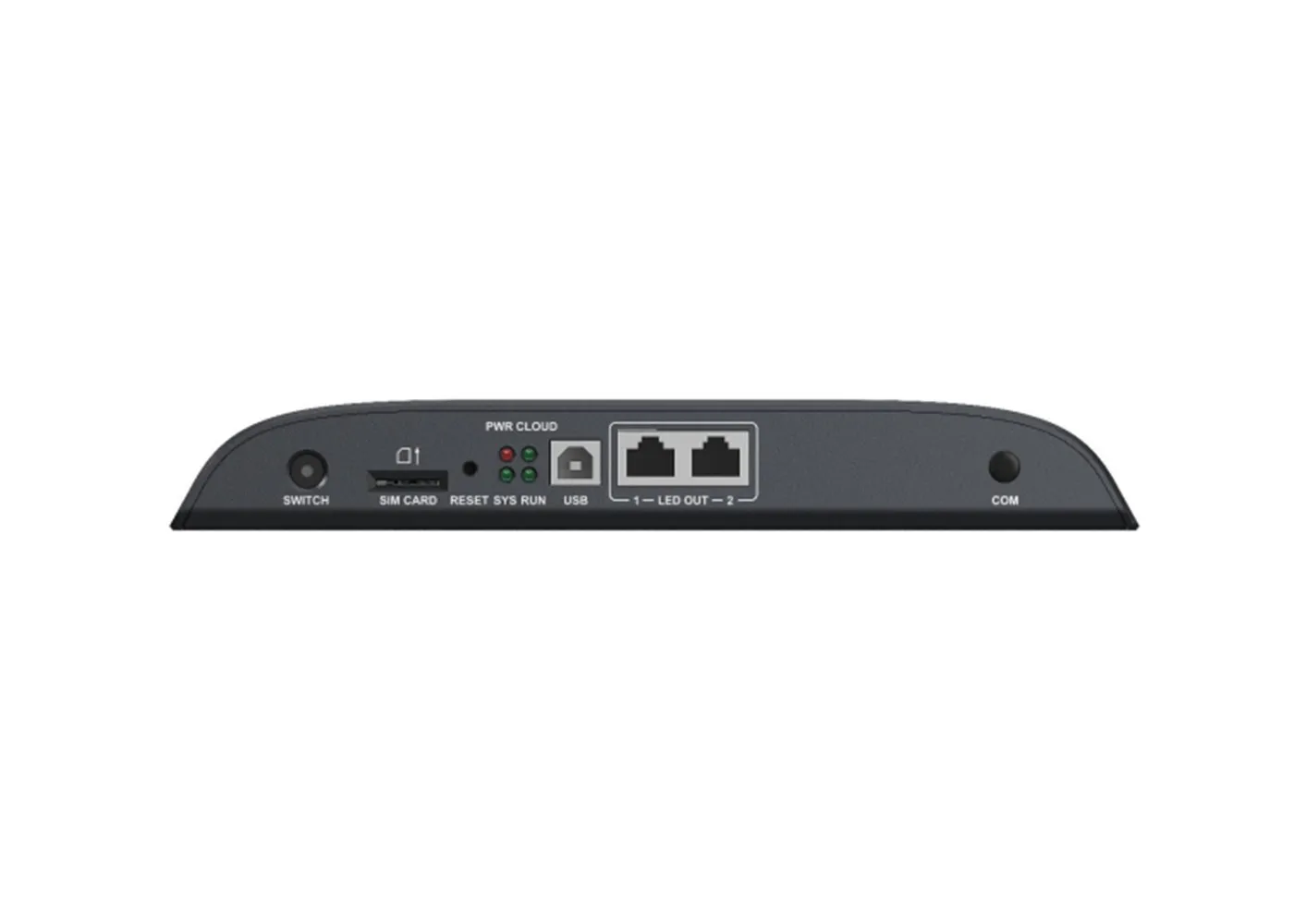

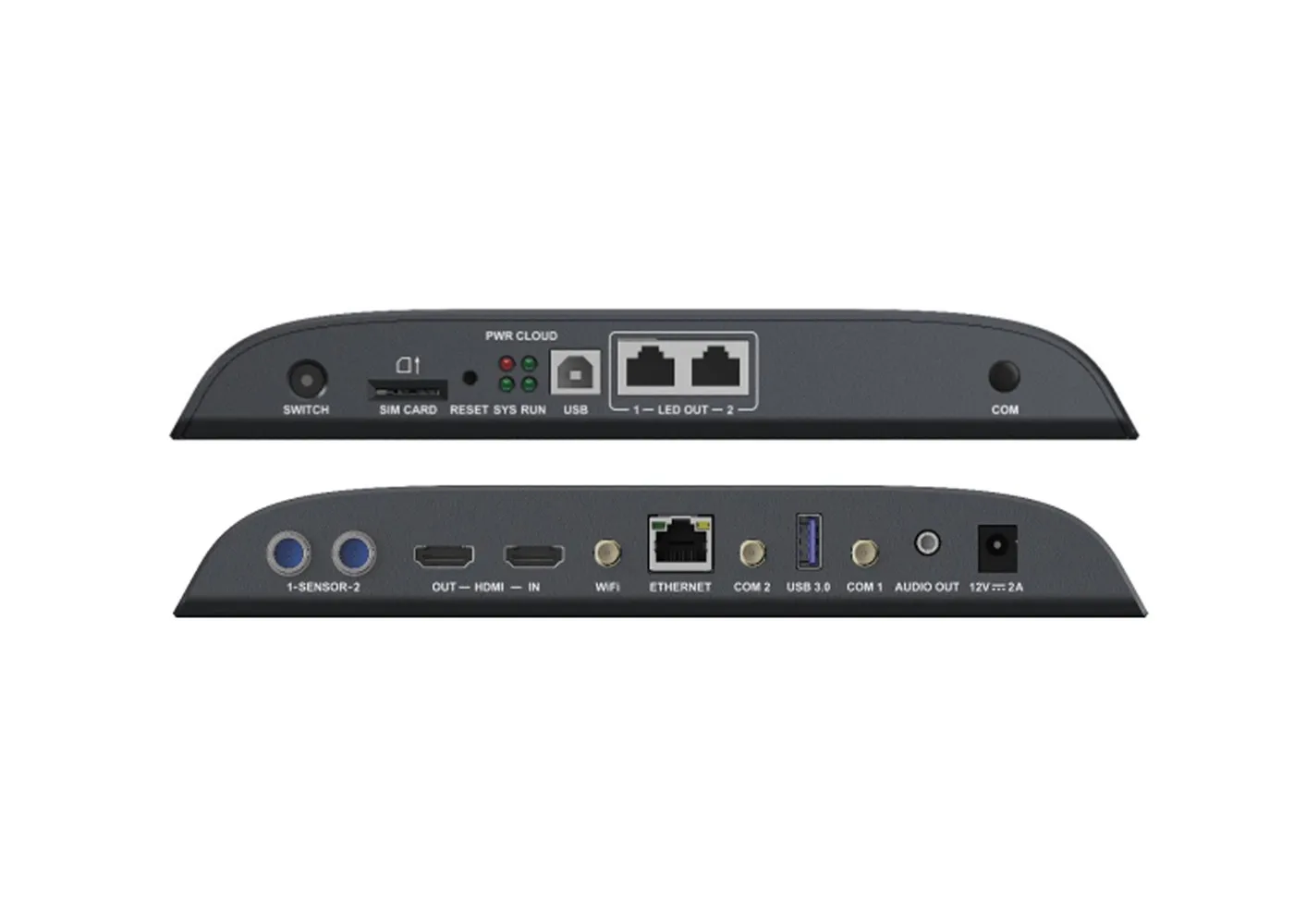

Outputs:

Loading capacity: Up to 1,300,000 pixels; Maximum width: 4096 pixels, Maximum height: 4096 pixels; Custom resolutions in asynchronous/synchronous modes; Pixel frequency ≤ 153 MHz.
Ethernet ports: 2x Gigabit Ethernet ports; Default: both as primary; One can be set as primary, the other as backup.
Audio connector: 1x Stereo audio connector; Fixed sampling rate 48 kHz; Requires 48 kHz audio for the NovaStar multi-function card.
HDMI connector: 1x HDMI 1.3 connector; Maximum output: 1920×1200@60Hz; Supports HDMI loopback.

Inputs:

HDMI input: 1x HDMI 1.3 connector; In synchronous mode, inputs are automatically scaled to fit the entire screen.
Sensor Connectors: 2x Sensor Connectors; Connect to brightness or temperature/humidity sensors.

CONTROL:

USB 3.0 Port: 1x USB 3.0 (Type A) port; Supports USB playback, firmware upgrades, and memory expansion.

USB Port: 1x USB (Type B) port; Connects to a control computer for content publishing and screen control.

Gigabit Ethernet Port: 1x Gigabit Ethernet port; Connects to a control computer, LAN or public network for publishing and management.

PERFORMANCE:

Processing capacity: Quad-core ARM A55 processor with a frequency of 1.8 GHz; Supports H.264/H.265 4K decoding at 60Hz; 1 GB RAM; 32 GB internal memory.
Playback: Supports playback of 1x 4K, 2x 1080p, 4x 720p, 4x 480p or 6x 360p videos.

1. Features
1.1 Comprehensive Management Solutions
TB40 allows users to publish content and manage screens via PC, smartphone or tablet, providing the flexibility to manage displays from almost anywhere at any time. In addition, it supports remote monitoring of screens, improving operational oversight and efficiency.

1.2 Switching Wi-Fi Mode
Taurus TB40 offers the ability to switch between Wi-Fi AP and Wi-Fi STA modes. In AP mode, user devices connect to the TB40’s built-in access point, identified by the default SSID “AP+Last 8 digits of SN”, with the password provided on the product label. In STA mode, both the user device and TB40 connect to the router’s Wi-Fi access point.

1.3 Playback Modes
TB40 supports both synchronous and asynchronous playback modes. In asynchronous mode, the device operates using its internal video source, while in synchronous mode, it uses video input from the HDMI connector, ensuring flexibility in content delivery.

1.4 Synchronous playback on multiple screens
With synchronous playback enabled, the TB40 can halve the number of videos played simultaneously based on its decoding capabilities. It features NTP, GPS (with the required 4G module) and RF time synchronization (with the specified RF module), allowing for precise time synchronization across multiple displays.

1.5 4G/5G Module Support
Nova TB40 does not include a 4G/5G module by default; users need to purchase them separately if they wish. The device prioritizes network connections in the following order: wired network >Wi-Fi network> 4G/5G network (for firmware versions earlier than V4.5.0). With firmware V4.5.0 or later, these networks can coexist, providing additional flexibility for connection options.

Input power: DC 12 V, 2 A
Maximum power consumption: 18 W
Recommended power supply: 25 W
RAM memory: 1 GB
Internal memory: 32 GB
Operating temperature: -20ºC to +60ºC
Humidity: 0% RH to 80% RH, non-condensing
Dimensions: 238.8 mm × 140.5 mm × 32.0 mm
Net weight: 430.0 g
Gross weight: 860.8 g
Dimensions: 385.0 mm × 280.0 mm × 75.0 mm
Accessories: 1x Wi-Fi omnidirectional antenna 1x Power adapter 1x Quick start guide 1x Certificate of approval
IP rating: IP20 Please protect the product from water penetration and do not wet or wash it. System software: Android 11.0 operating system software, Android terminal application software, FPGA program. Note: Third-party applications are not supported.

Application: Fixed installations, street displays, chain store screens, advertising kiosks, retail displays or shelf mounting, etc.
