Brand:

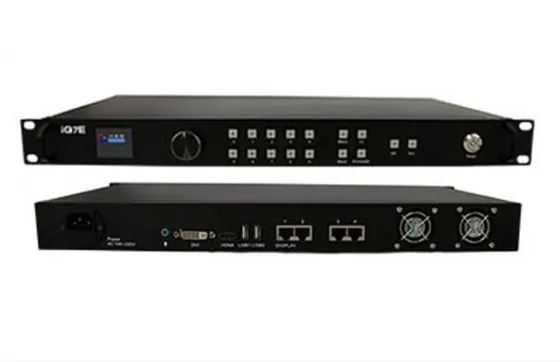

Model: iQ7E
Type: Sender Box
Description:
iQ7E UHD sender is specially designed for high-end LED display. It has the strongest receiving capability of 4K, can receive signal with 4096*2160 pixels in maximum.
It has 4 gigabit Ethernet outputs to support supper large screen.
Its LCD can show the real-time information about screen status and the control panel supports quick setting of LED display without need of computer.
Features:
Maximum load capacity:2621440pixels @4096*2160 pixel
Quick setting of screen without computer by use of control panel
LCD shows real-time information of screen status
Support one key to lock and one key to black screen
One key switching from DVI to HDMI
Support HDMI and DVI signal input
Support external audio input
Support high level video input: 12bit/10bit/8bit
4 gigabit Ethernet outputs support screen arbitrary splicing
Dual USB2.0 for high speed configuration and easy cascading
Support systematic time encryption
Internal testing program, support offline testing
Brightness adjustment in 256 levels by knobs
Preset startup picture of display
Compatible with all receiver series, like 5A, i5A
Technical parameters:
Video Scource Interfaces
Interface type: DVI*1; HDMI*1
Input resolution: 4096*2160 pixels in maximum
Auto-adjust resolution: support
Video source frame rate: 60Hz, support auto-adjustment
Receive area: Can be set freely
Input color: 12/10/8bit
Output
Net port number: 4 gigabit net ports
Control area by port: 2621440pixels@60Hz, each port: 1280*512（or the same area）
Transmission distance: CAT5≤140M；CAT6≤170M；NO limitation on optical fiber
Cascading: Support arbitrary cascading between net ports
Transmission mode: Frame mode, CRC check in addition
Connected Equipment
Receiver card: 5A series, i5A series, customization cards, etc
Peripherals: Multifunction card, optical fiber transceiver, gigabit switcher
Specification
Size: 1U standard box
Input voltage: AC 100~240V
Rated power consumption: 10W
Weight: 2kg
External Interfaces
LCD: Show real-time information of screen, help to make quick setting of screen
Control panel: Rich bottom for quick setting o the screen without the need of computer
Configuration interface: USB 2.0*2
Applcation:Performance stage display, Super large display.
