Brand: Made in Spain
Model:System in front of a wall siding
Type: in front of a wall siding
Note: The price is for all wall insulation materials per m². Minimum quantity to order from a quadrature of at least 12 m². The installation is not included in the price.

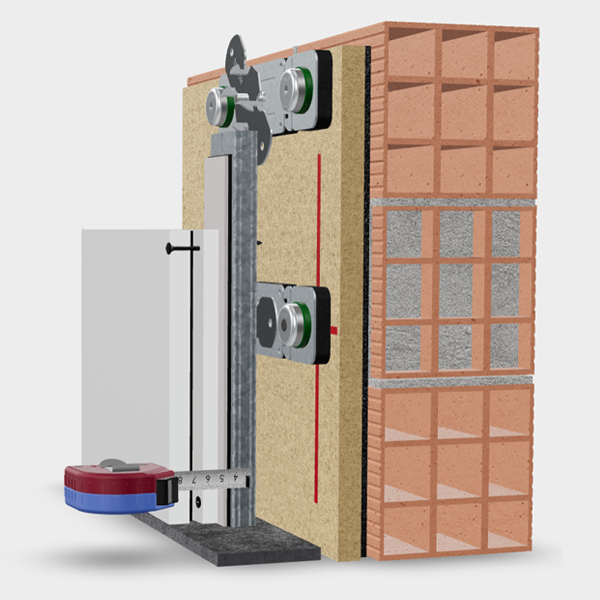

Description: This is the perfect soundproofing system against airborne and impact noise with a sound index reduction of 60 to 65dB. It is used when there is not enough distance from the wall to the final plasterboard. The maximum distance is 7.5-8 cm. The system includes.
- FTD NIVILADOR in front of a wall siding - 1,5 m² of Spanish manufacturer Senor.
- profile T47 (steel) of the Spanish manufacturer PLADUR
- polyester wadding - CHOVA NAPA 600 by the Spanish manufacturer Chova
- two layers of 12.5mm gypsum board - Knauf manufacturer
- membrane (depending on requirements - VISCOLAM65 or U85) - manufacturer Chova
- the TAV 500 vibrator pad of the Spanish manufacturer SENOR - placed in 80 cm - by the Spanish manufacturer Senor.
- Elastic insulating tape 50 of the Portuguese manufacturer Amorim
- UD profile - Knauf
Important metrics:
Airborne noise attenuation index (Rw; dB): 64dB
Impact damping index ΔLw (dB): 53dB
Distance between wall and finishing plasterboard: 8cm
For detailed description please follow the link:
https://www.supersound-bg.com/%D1%81%D1%82%D0%B5%D0%BD%D0%B5%D0%BD-%D0%BE%D0%BA%D0%B0%D1%87%D0%B2%D0%B0%D1%87-ftd-nivelador-4717
Application: Sound insulation of apartment walls, office buildings and others.
