Brand: GUIL
Model: GF-03
Type: Clamps
Description:
- Designed to be used on tubes with an external diameter of 30 to 70 mm.

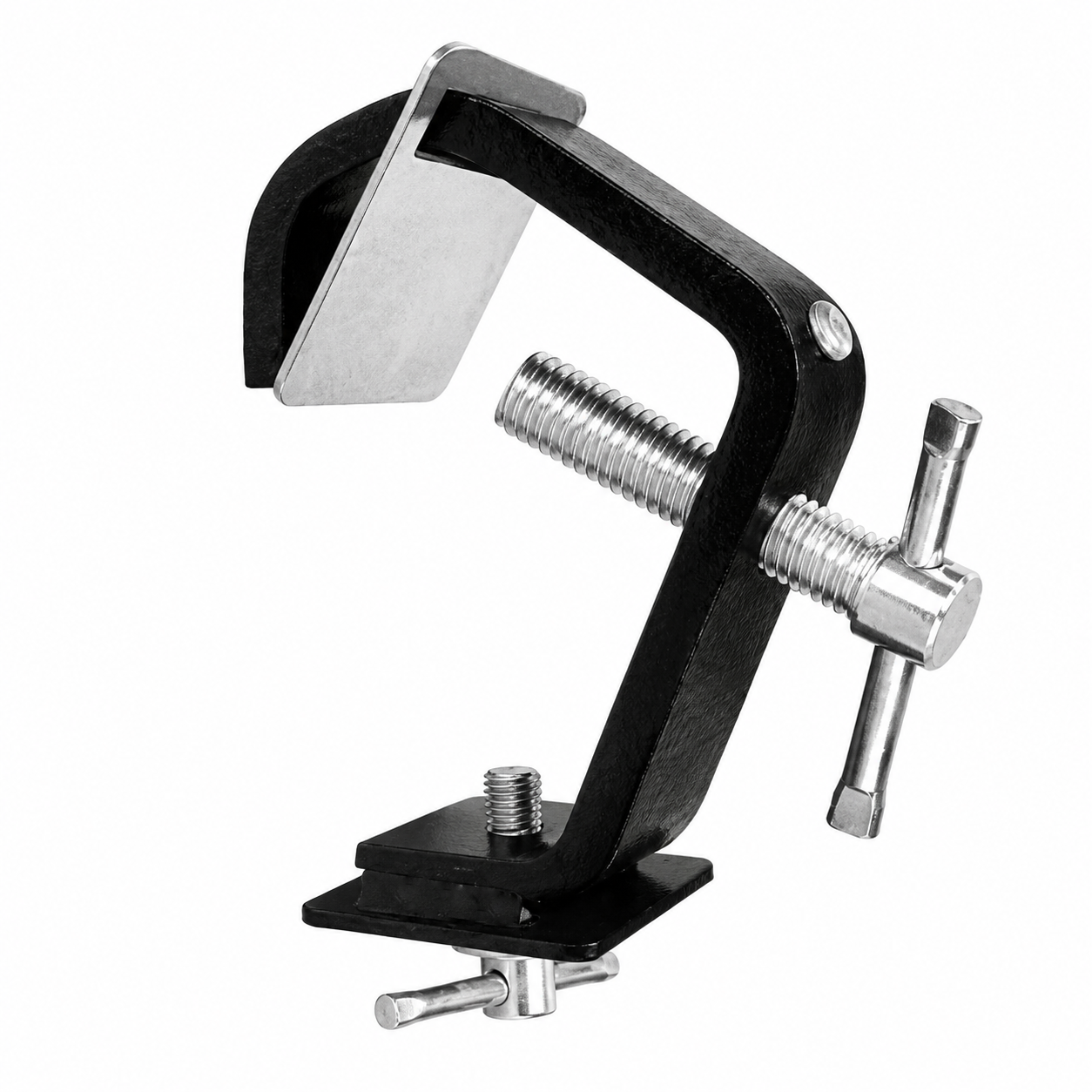

- GF-03 is an extremely strong clamp manufactured with high quality steel (40mm wide x 10 mm thick) and finished in a textured, black, anti-scratch powder coating.
- Provided with a protective steel plate (25 x 10 mm) preventing damage to tubes and trussing.
- To be used for vertical loads only.
- Pressure T-bar screw: M16 x 60 mm.
- The load is secured with T-bar screw: M10 x 30 mm.
Technical Parameters:
Maximum Load: SWL 200 kg
Net Weight: 1,05 KG
Colour: Black
For Diameters of: 30 - 60 mm
Material: Steel
Application:
