Brand: GUIL
Model: ABZ-17
Type: Clamp coupler

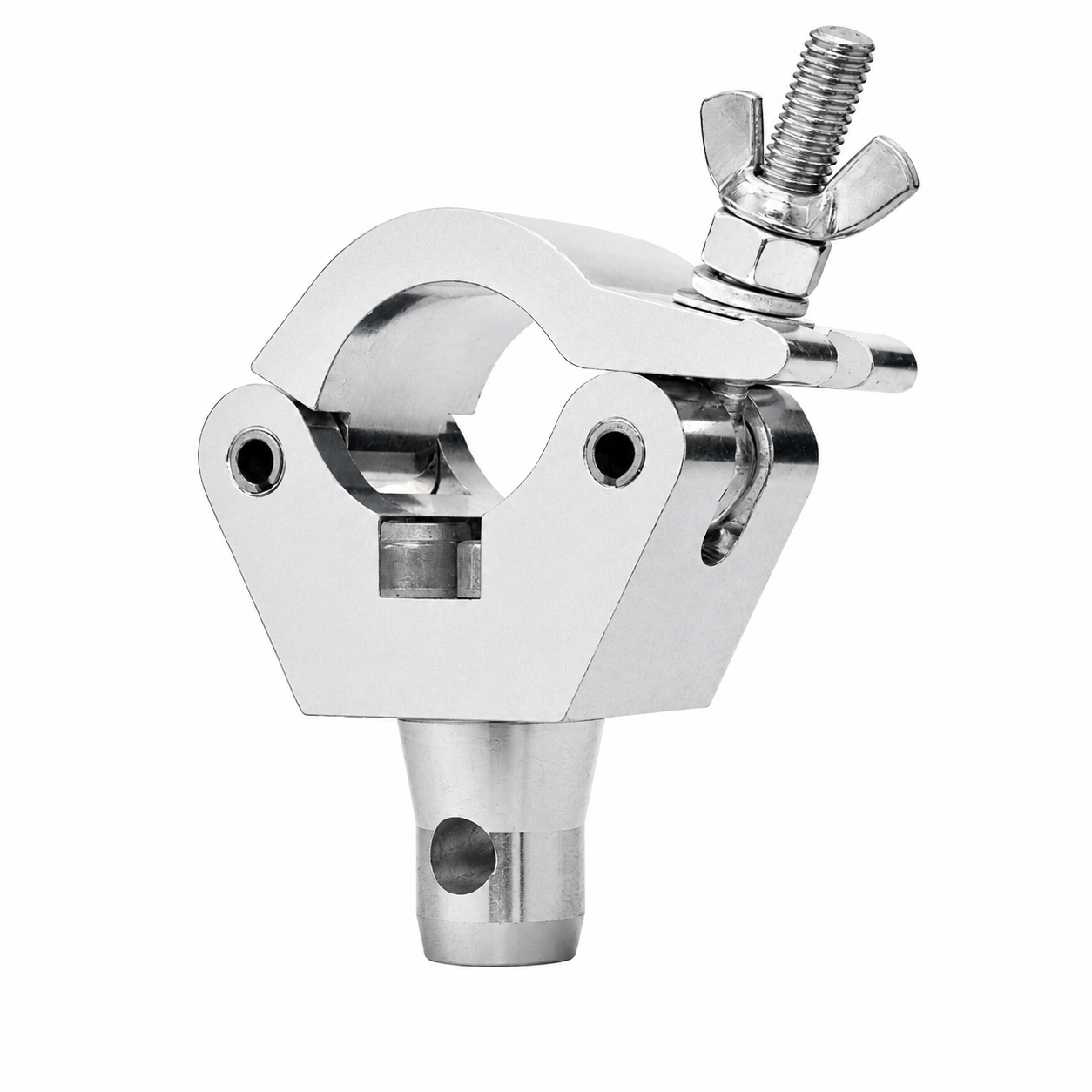

Desscription: Aluminium clamp coupler with conical adaptor (solid aluminium) to attach to truss. It is compatible with GUIL square truss (ref. TQN). The conical adaptor fits into the truss connector allowing the truss to be installed in multiple positions. Designed to be used on trusses / tubes with an external diameter from 45 mm to 52 mm. Double blocking system with nut and wing nut which makes it the right coupler to the most demanding set-ups like in theatres, live shows, events etc. where the most stringent safety requirements must be met. This coupler has the same design as the ref. ABZ-13 but thinner (30 mm), which makes it especially suitable for installations where the space on the tube where the coupler is to be fitted is limited. By removing the conical adaptor and adding a wing nut and bolt, an eye nut, a second clamp (converting it into a swivel coupler), or any other fixture, it can be used for other functions.
Technical Parameters:
Maximum Load: WLL 300 Kg
Net Weight: 0,53 kg
For Diameters of: 45-52 mm
Material: Aluminium
Application: Construction, entertainment industry, theatre etc.
