Brand: GUIL
Model: ABZ-29
Type: Clamp coupler
Desscription:
- It has a high degree of safety together with strength and a long life span.

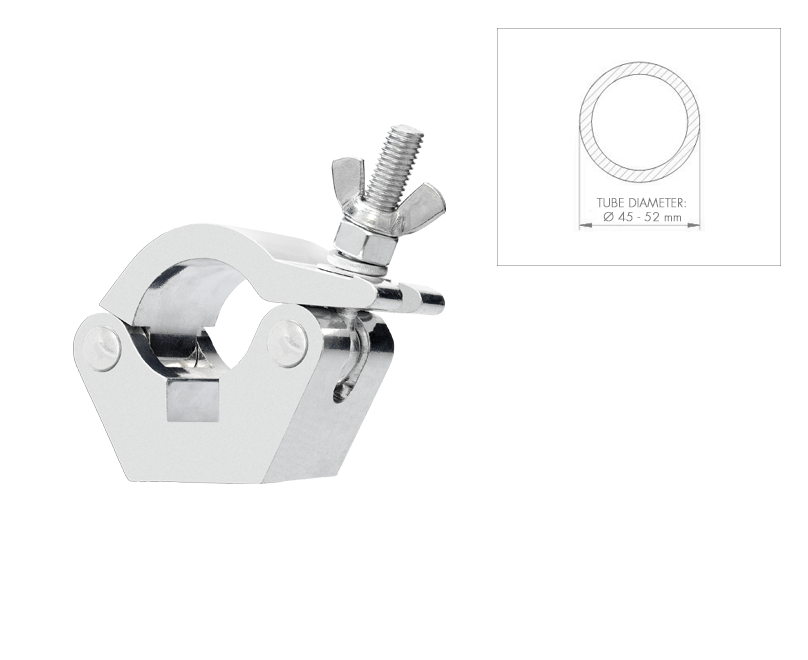

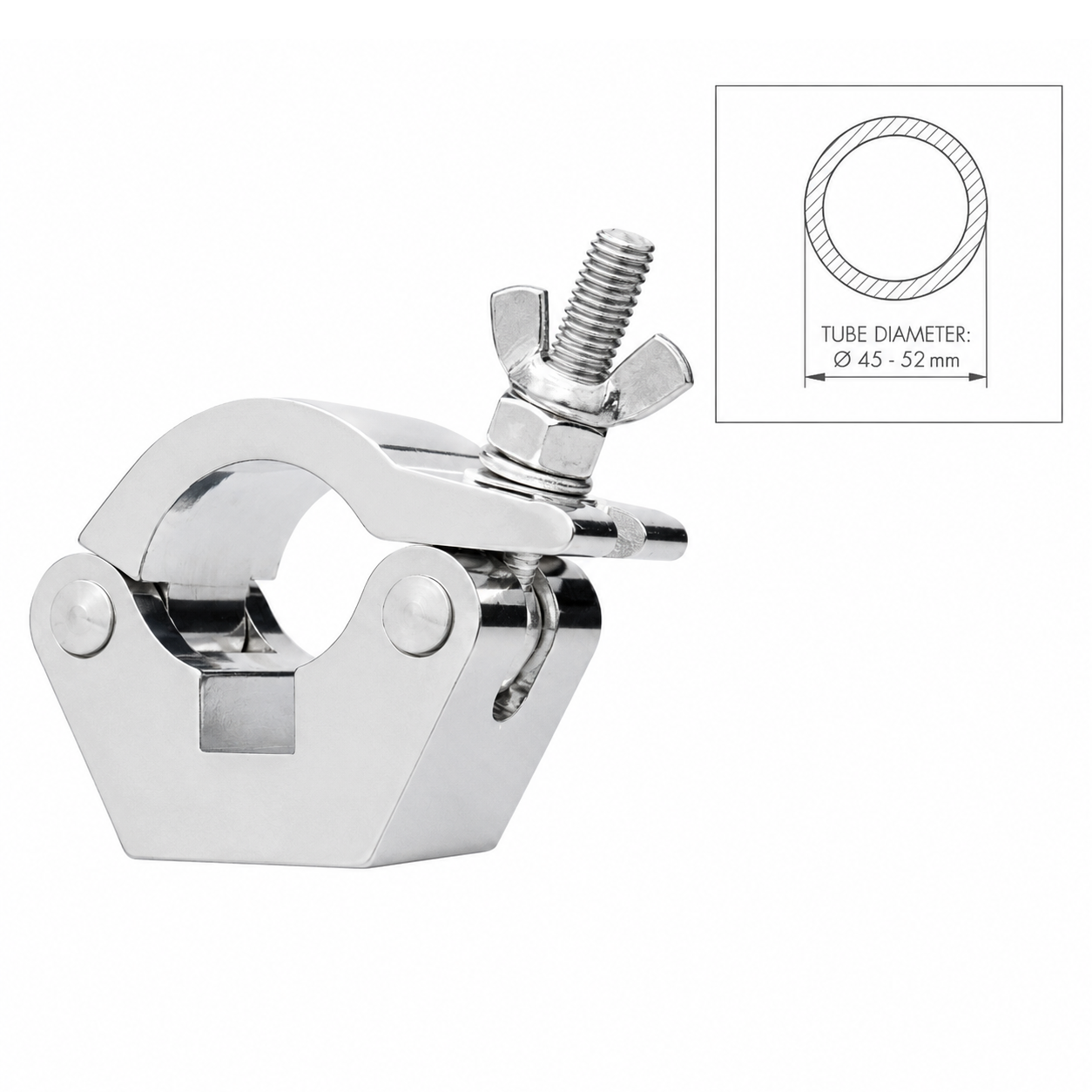

- Designed to safely attach tubes with an external diameter from 45 to 52 mm.
- Its versatility allows a strong attachment of two tubes in different positions (lateral tubes, tilting, parallel, etc).
- Multi-purpose clamp, used in different sectors (construction, performance).
- By taking away the joining screw (M12 8.8) they become independent clamps and we can add at their endings an eye-nut, a bolt and wing-nut Ref. ABZ-04 / Ref.ABZ-03.
- Manufactured with high resistance extruded aluminium.
Technical Parameters:
Maximum Load: WLL 500 Kg
Net Weight: 0.40 kg
For Diameters of: 45-52 mm
Material: Aluminium
Application: Construction, entertainment industry, theatre etc.
