Brand: LED SPEKTAR
Model: PH 1.9
Type: HD INDOOR DISPLAY

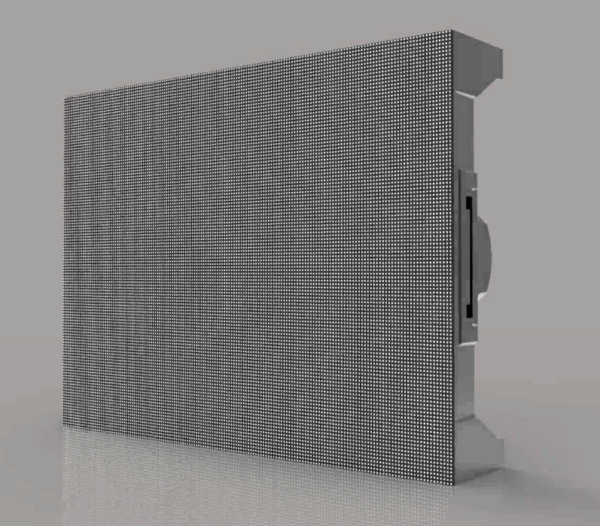

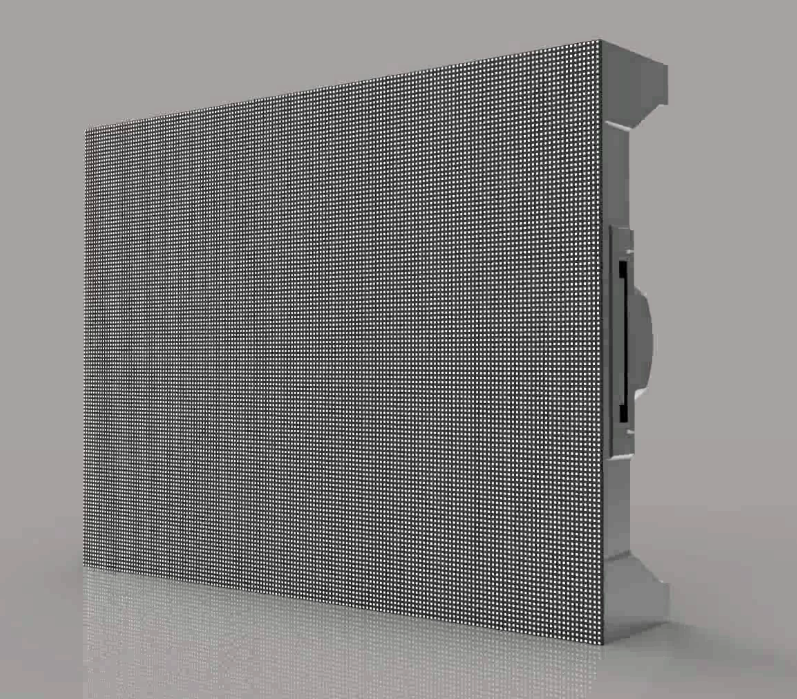

Description: HD LED display with exceptional picture quality, even when the brightness is reduced below 25%. Seamless connections, quick splice connectors, alloy super thinner body, patented cooling system (fanless, noise-free), high energy efficiency and high refresh rate are just a few of the benefits of one made with environmentally friendly and energy saving parts display. Guarantee for high quality are warning systems failures and adjustable brightness of each point of a picture. Viewing angle vertically and horizontally 160 ° / 160 °. This super display is used for installation in public institutions, subway stations, airports, display systems for many pretsizna information data, photo exhibitions, conference rooms and more.
Characteristics:
Pixel Pitch: 1.9mm
Density of pixels: 270,422 pixels / m²
LED type: SMD1010
LED wavelength (nm): R: 620-625 / G: 517.5-520 / B: 465-467.5
LED Luminous Flux (mcd): R: 100 ~ 130 / G: 120 ~ 156 / B: 20 ~ 26
Viewing Angle: 120 °
Brightness: 1000cd / m²
Drive Method: 1/26 Scan
Driving IC: SUM2032 (High refresh rate and grayscale)
Depth of the world: 16 bit
Refresh rate: 2000Hz
Frame rates: ≥60Hz
Brightness Adjustment: Automatic / Manual
Size of the unit: 200 x 150 mm
Resolution of module: 104 x 78 pixels
Size of the Cabinet: 400 x 300 mm
Resolution of the Cabinet: 208 x 156 pixels
Material: Cast aluminum
Cabinet weight: 4.5 kg
Power: 5.0V 40A
Voltage (V): AC 86 ~ 264V
Average power consumption: 550W / m²
Maximum power consumption: 1200W / m²
Service access: Rear access
Operating temperature / humidity: -20 ℃ ~ 50 ℃, 10 ~ 90% RH
Storage temperature / humidity: -40 ℃ ~ 60 ℃, 10 ~ 90% RH
Lifetime: ≥50000 Hours
Control system: NOVA / LINSN
Compatible standards: CCC, CE
Application: State institutions, systems showing data from near distance, metro stations, railway stations, banks, airports, hospitals, shopping centers, hotels and others.
