Brand: Guil
Model: ABZ - 34
Type: Connecting clamp for pipes with nut.

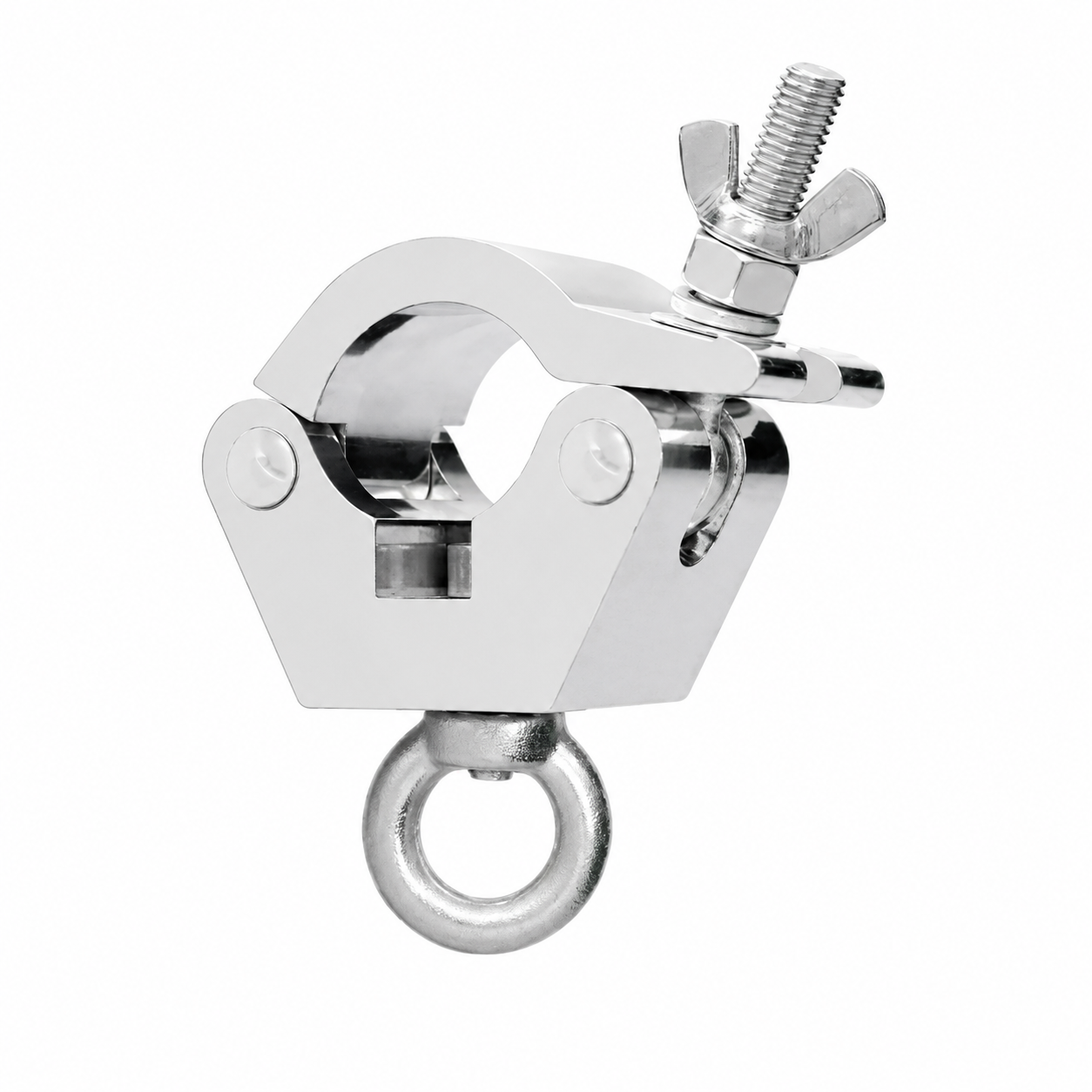

Description: Aluminium hanging coupler with eye nut. Designed to be used on trusses / tubes with an external diameter from 45 mm to 52 mm. Double blocking system with nut and wing nut which makes it the right coupler to the most demanding set-ups like in events, theatres, live shows, etc. where the most stringent safety requirements must be met. Our hanging clamp ABZ-34 comes complete with an eye nut, which makes it perfect for hanging chains, safety wire, slings, etc, on a truss / tube to support lighting, audio, video, etc. Being thinner than the ABZ-04 makes it more appropriate for larger installations but where the space required for the installation of the clamp is limited. This practical hanging clamp is used in various fields: entertainment industry, theatre, construction, etc. It combines strength and durability with a high level of safety. Substituting the eye nut for a wing nut or a second clamp (converting it into a swivel coupler), or any other fixture, it can be used for other functions.
Maximum Load: 300 kg
For tube diameters: 45 to 52 mm
Width: 30 mm
Fixings: M12 Eye nut
Material: Aluminum
Color: Aluminum
Net Weight: 0.50 kg
Application: entertainment industry, theater, construction.
