Brand: RALWPLUG
Model: R-FF1-N-10K120-M

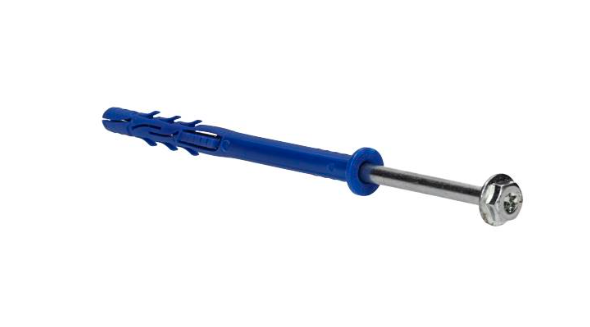

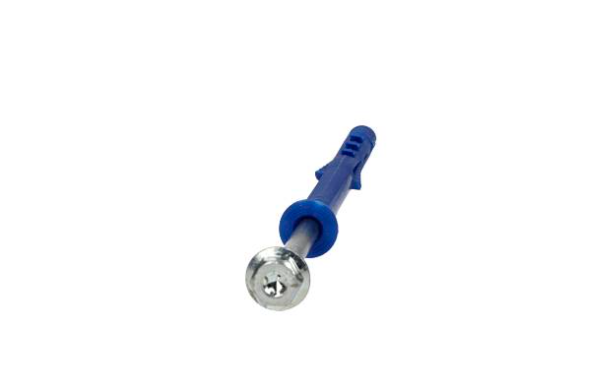

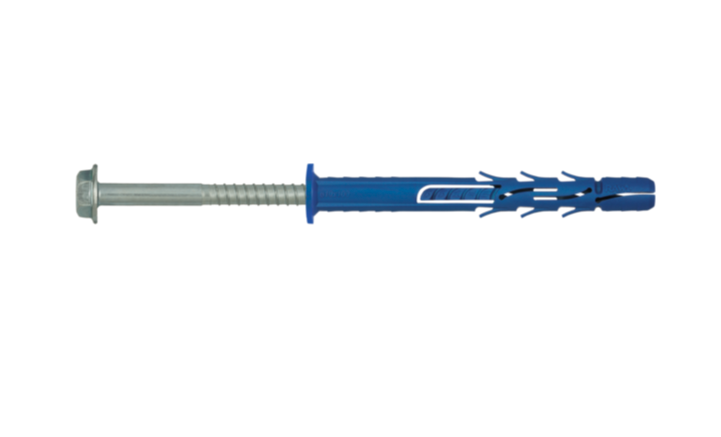

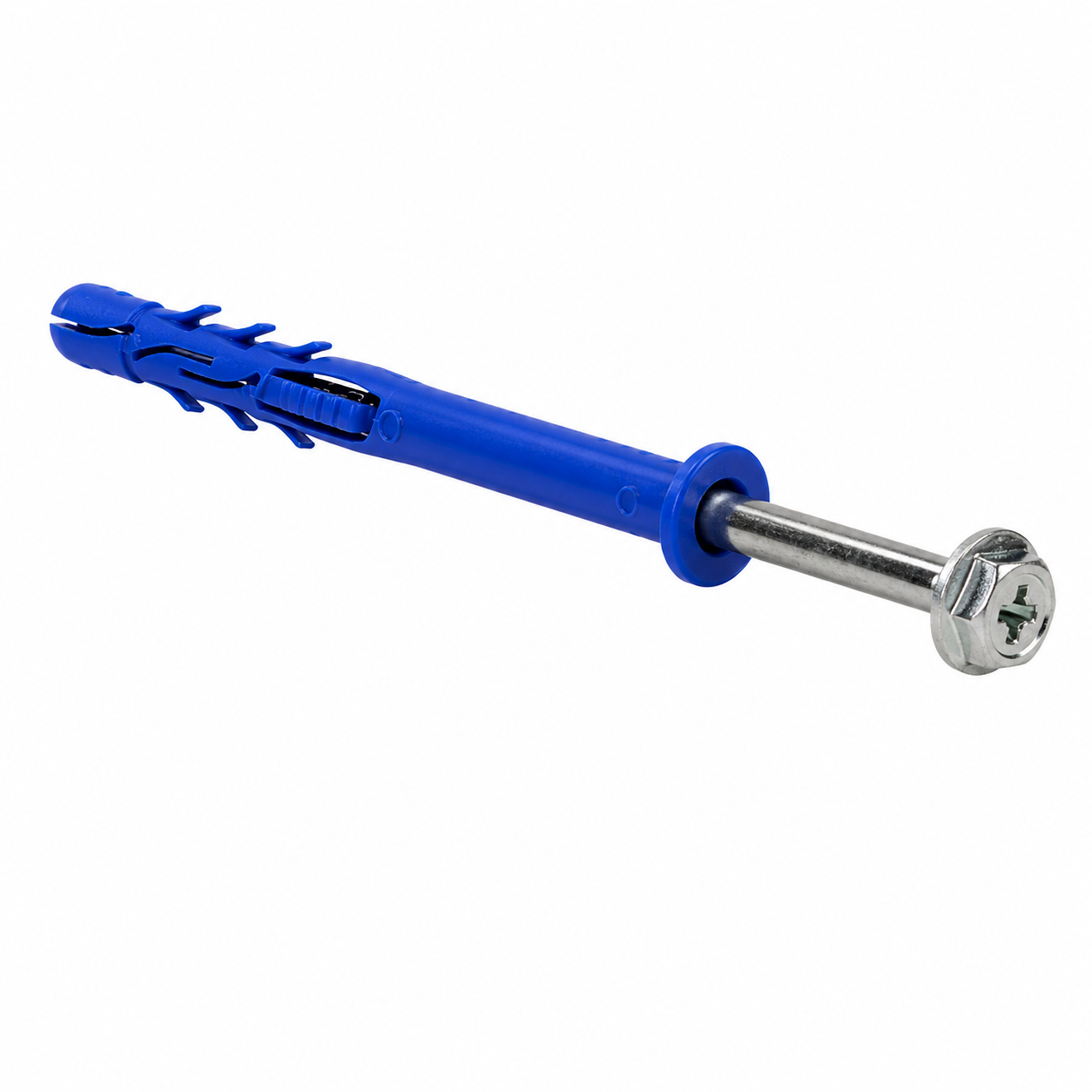

Type: Dowel with screw
Note: The indicated price is for a box of 25 pcs
Description: Dowel with fixing screw allowing installation with the best performance for use in all categories of basic materials according to ETAG 020 (A, B, C, D).
Technical characteristics:
Hole diameter: Ø10 mm
Diameter of the dowel: 9.8 mm
Dowel length: 120 mm
Screw diameter: 7 mm
Screw length: 129 mm
Maximum mounting thickness tfix 50 (mm): 70 mm
Maximum mounting thickness tfix 70 (mm): 50 mm
Box weight: 1.4 kg
Weight of dowel with screw: 0. 056 kg
Installation and technical sheet can be downloaded here!
Application:
- Concrete ≥ C12 / 15 (Use category A)
- Solid brick (Use category B)
- Sand limestone brick (Use category B)
- Hollow brick (Use category C)
- Hollow sand-lime brick (Use category C)
- Hollow lightweight concrete block (Use category D)
- Aerated concrete block (Use category D)
- Cracked concrete ≥ C12 / 15 (Use category A)
