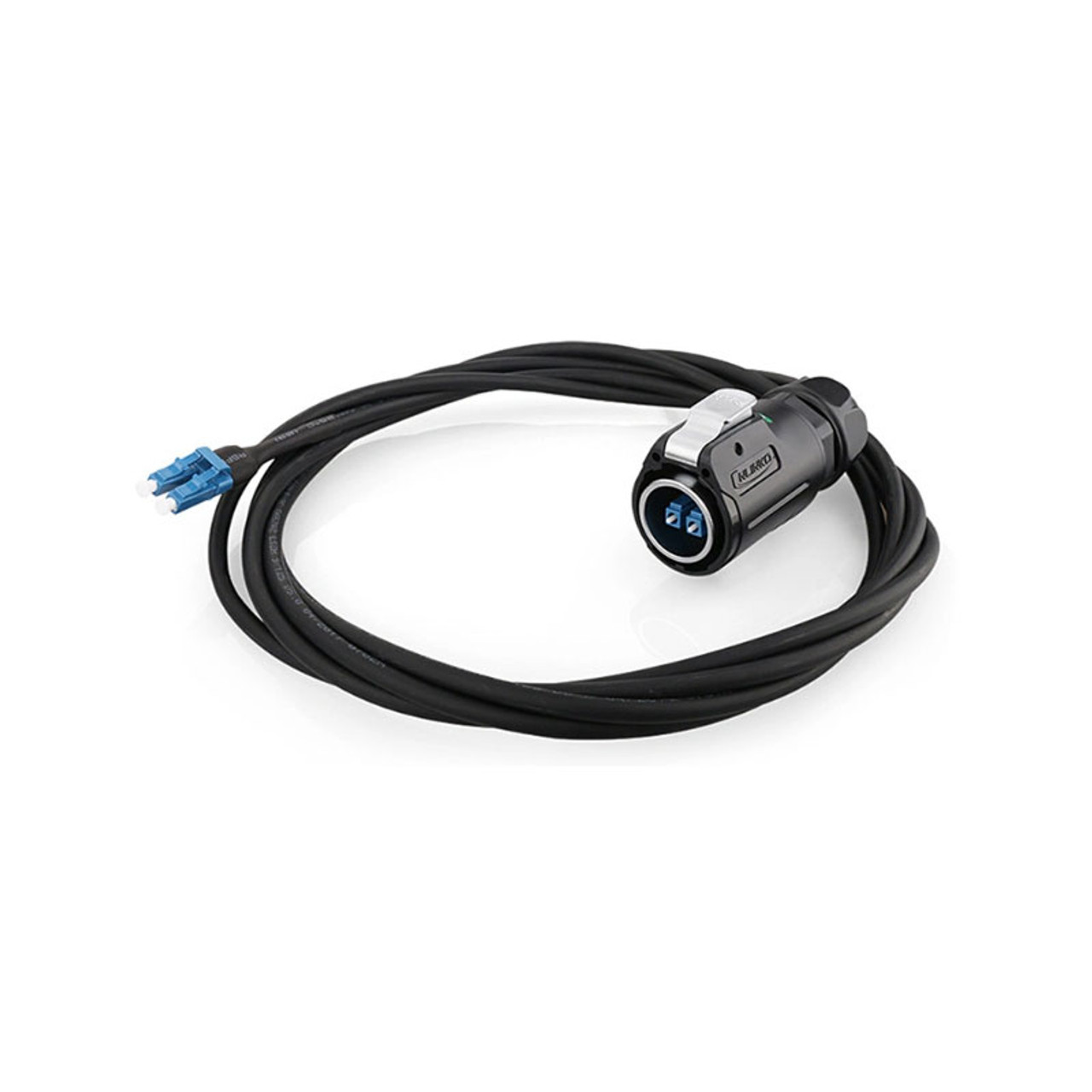

Brand: CNLINKO
Model: LP24-F0-LC-LC-3M-001
Type: LC type waterproof optical connector
Description:The LP-24 Series fiber optic connectors LC type with hole size 24mm meet different needs of industry with low and stable contact resistance and apply with International environment protection of Industrial equipment as well. These connectors feature high-frequency noise immunity and electromagnetic interference protection. The quick plug design and snap-fastener lock make it easy and simple for quick connections.
Technical characteristics:
Compatible with connector: LP-24-J/LC/213/SX-43-401
Connector type (plug/socket/connector): aviation plug
Type of optical fiber/interface: LC optical single-mode adaptor with dual fiber
Losses with plugging/placing: 0.7dB
Loss with return/reverse loss: 65dB
Plug type: male
Way of connecting the module: 3-pint screw for locking and plug soldering
Range of the cable’s diameter: Φ5.5mm ~Φ6.5mm
Durability: ≥500 cycles of connection and ejection
Moisture: ≤85%
Results from testing with salt spray against corrosion: PH 6.5-7.2,NaCL,5% 48H
Vibration: Frequency 5-200Hz,Range - 5мм, Range 10м/sec, 0.10us no momentary interception of the chain
Work Temperature: -20°C~85°C
Connection type: Weld
Level of protection: standard - IP65 & after issuing a request - IP67/68
Isolated parts: Highly effective engineer plastic
Metal part: Cinc alloy(Hard Pearl Chrome)
Contact plug : Copper alloy
Water – resistant ring: Silicyl gel
Classification of flammability (slowing of burning): UL94-V0
Specifics: IEC 61984 и UL1977/2238
Applications: Stage equipment, Communication equipment Industrial equipment, Data control communication box, Data transfer, Industrial equipment, Medical technology, Mechanical engineering, Device construction, Multimedia installation, System integrator, video technician, sound engineer, lighting technician & etc.
