Brand: KV2 Audio
Model: ESR215MkII
Type: 3-way loudspeaker system
Description:

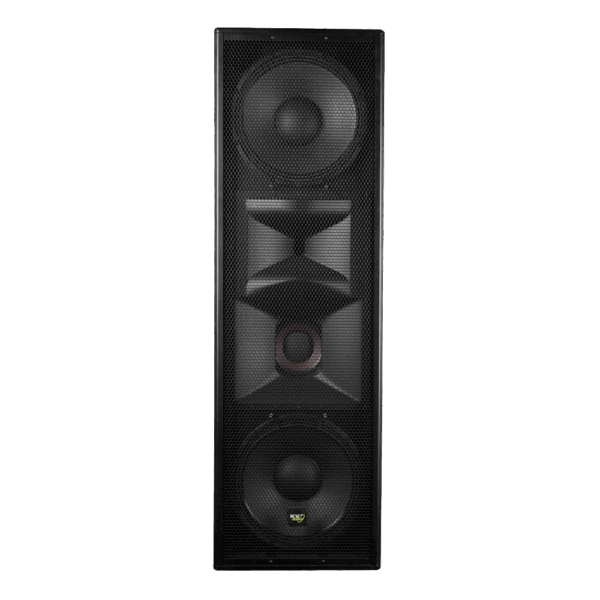

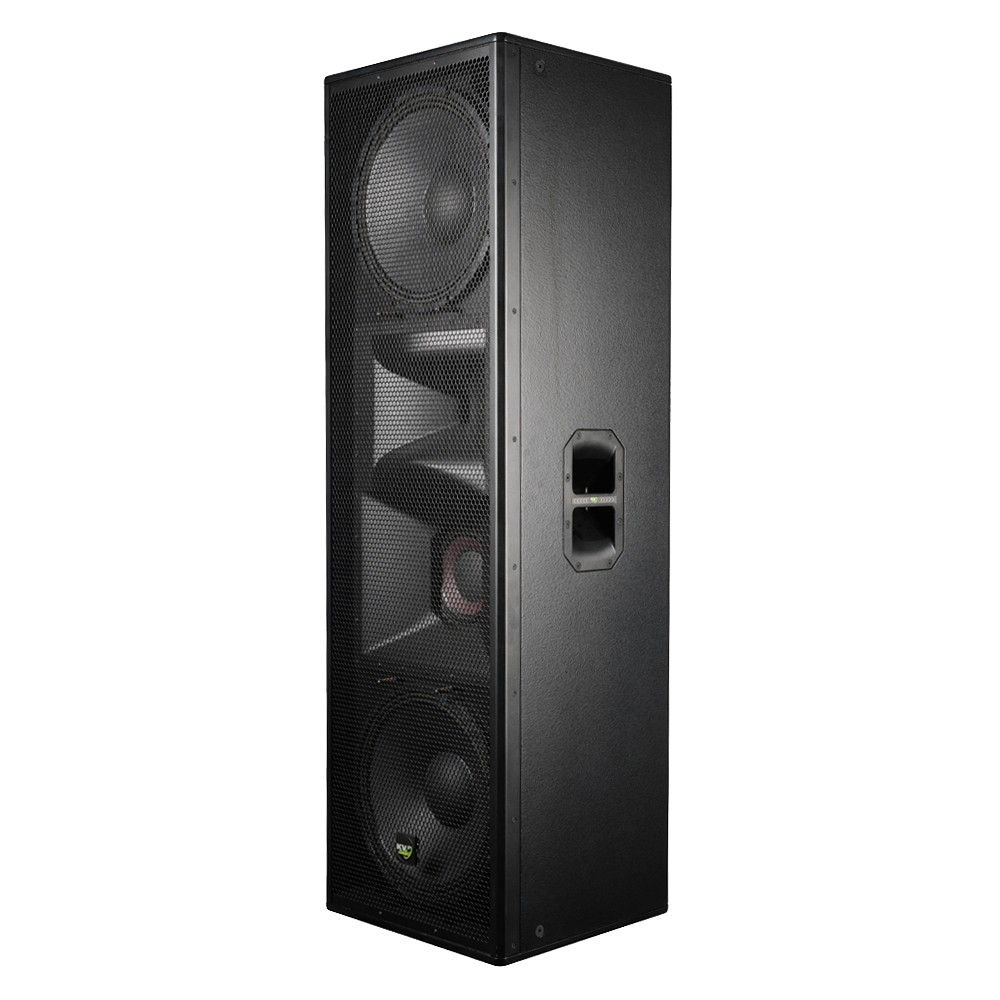

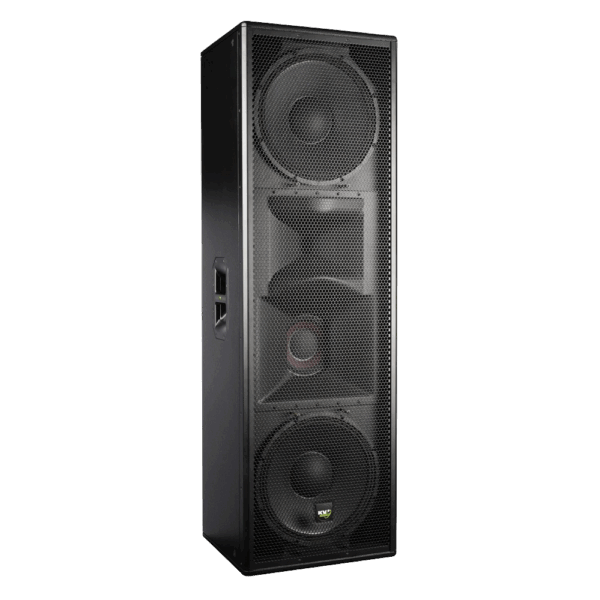

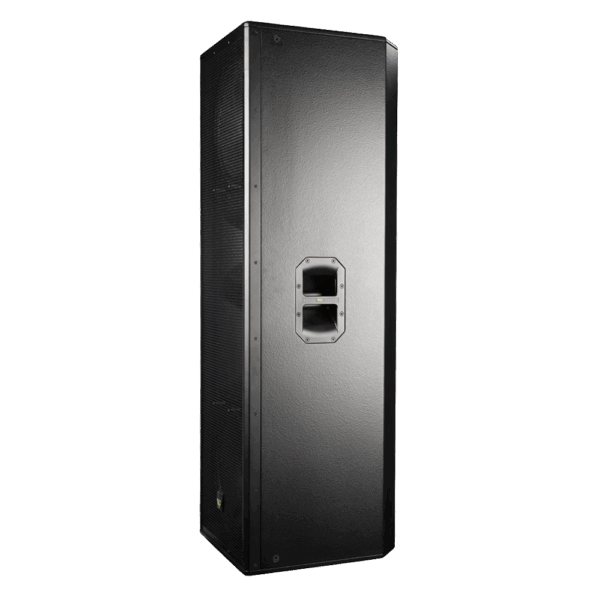

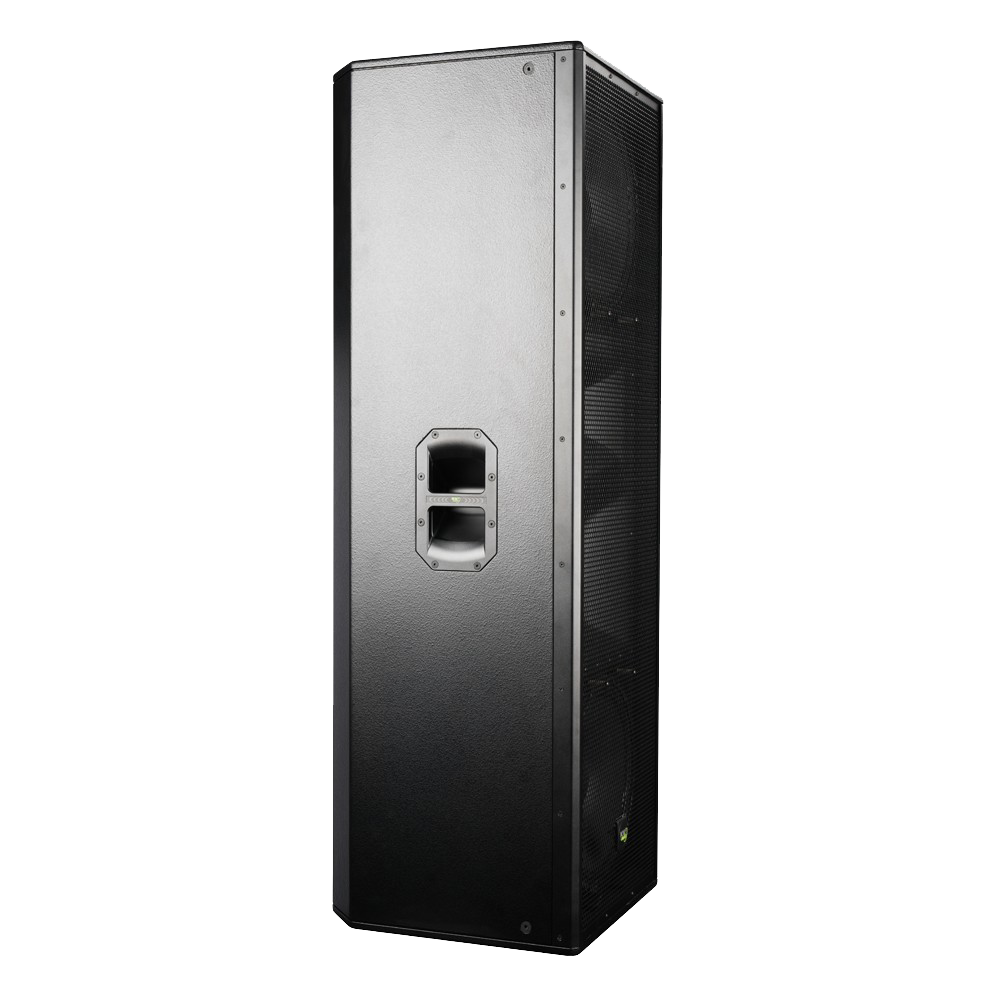

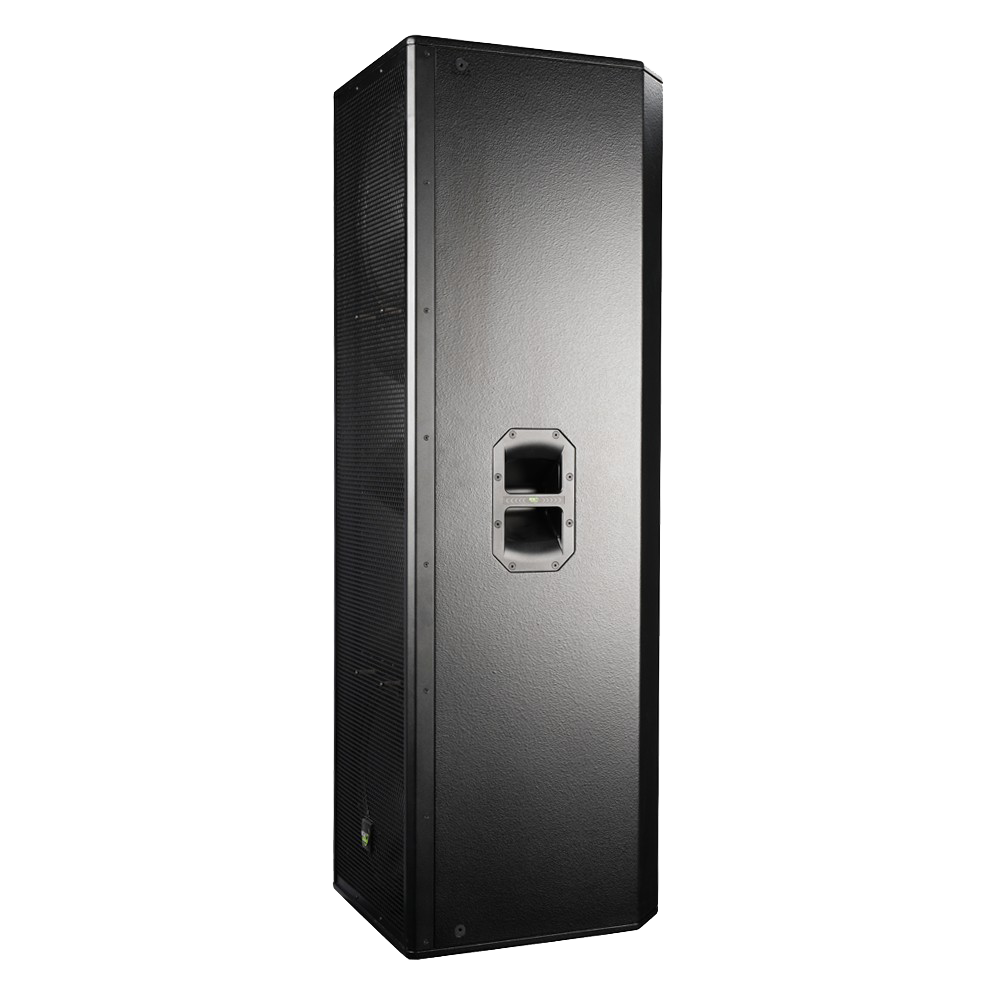

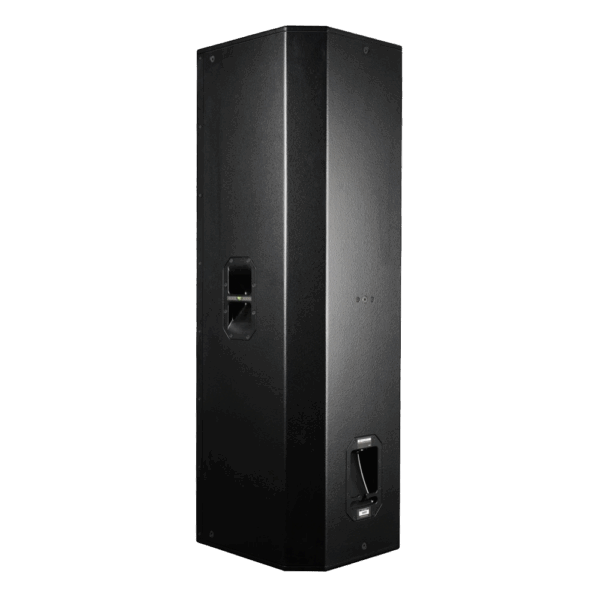

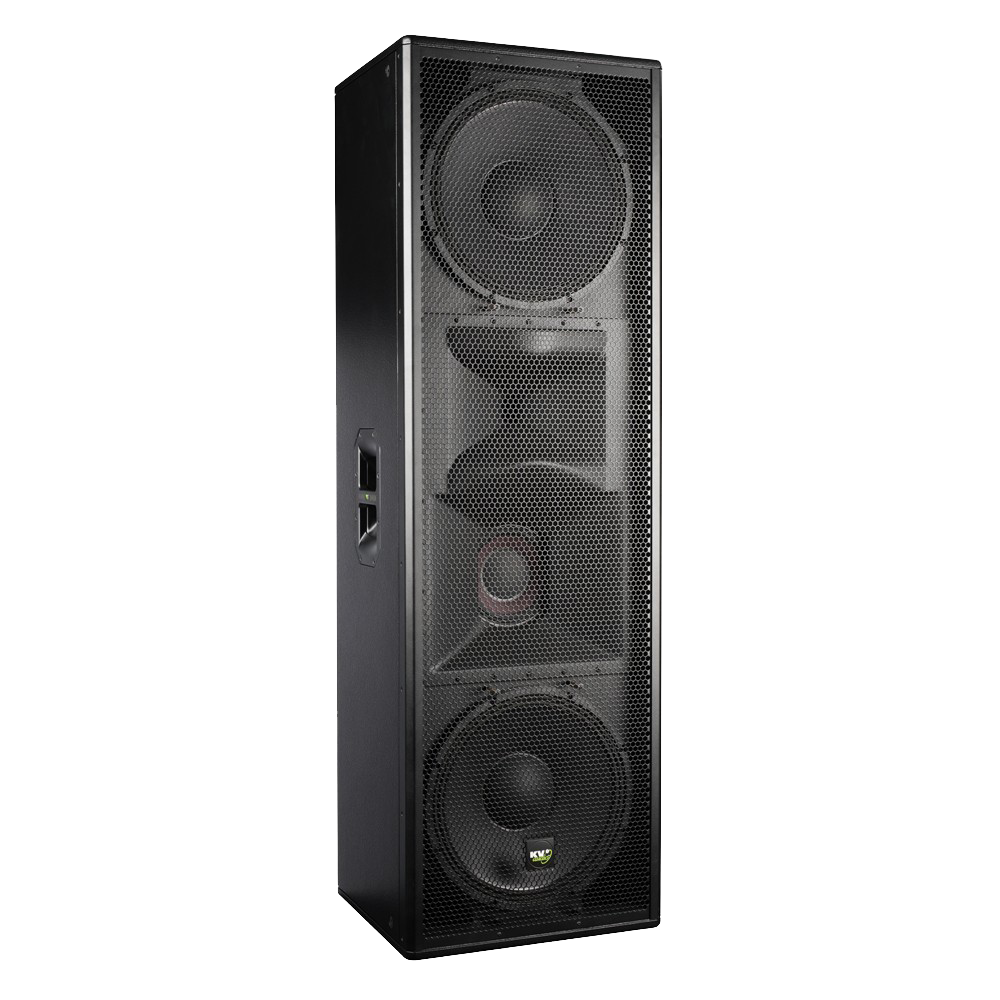

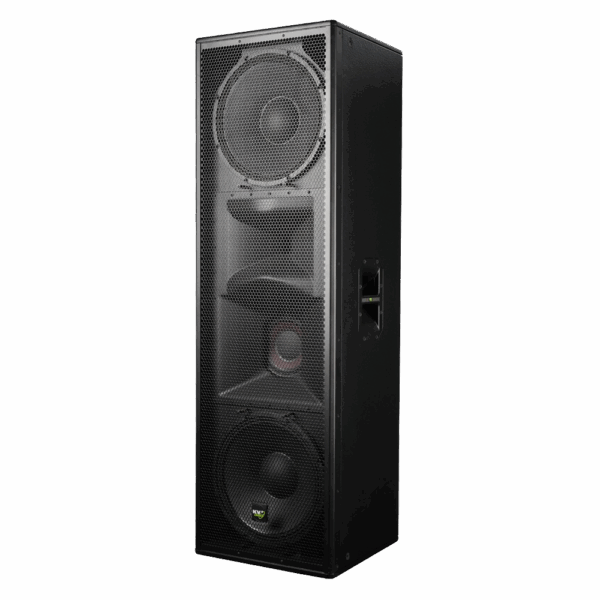

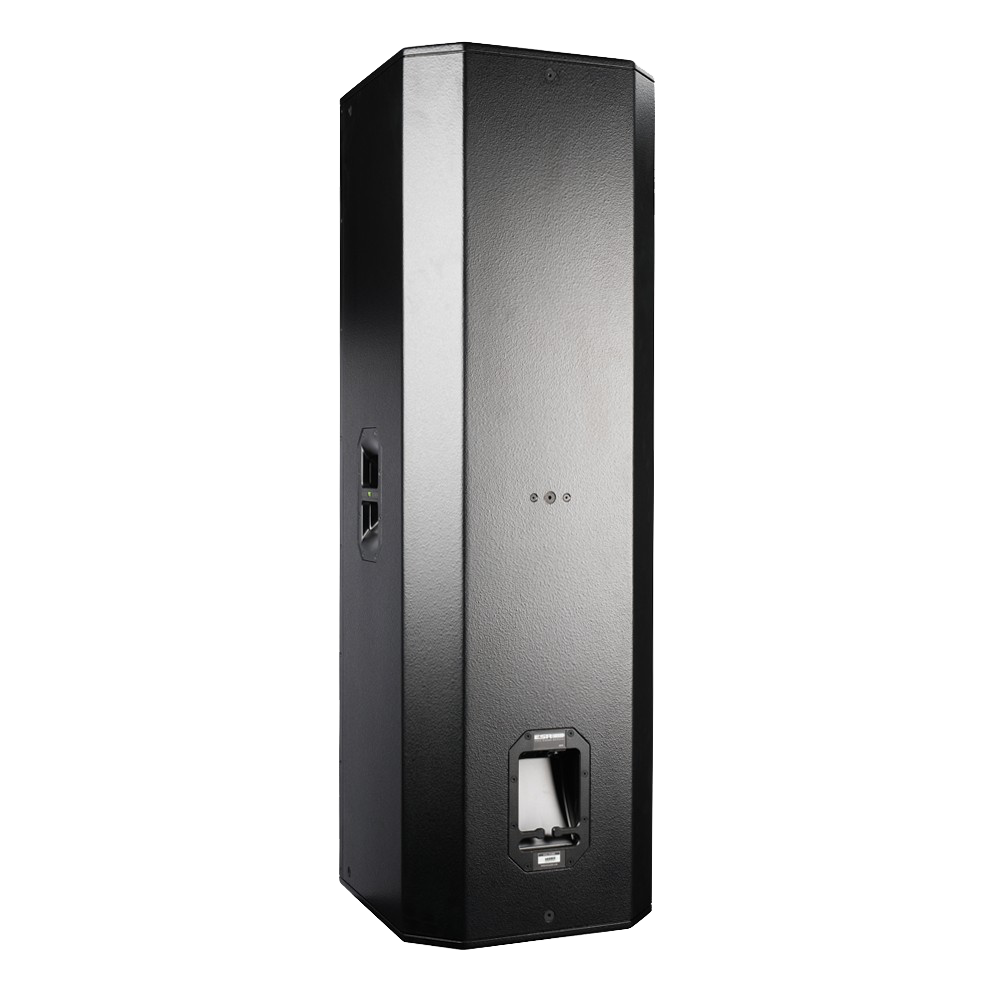

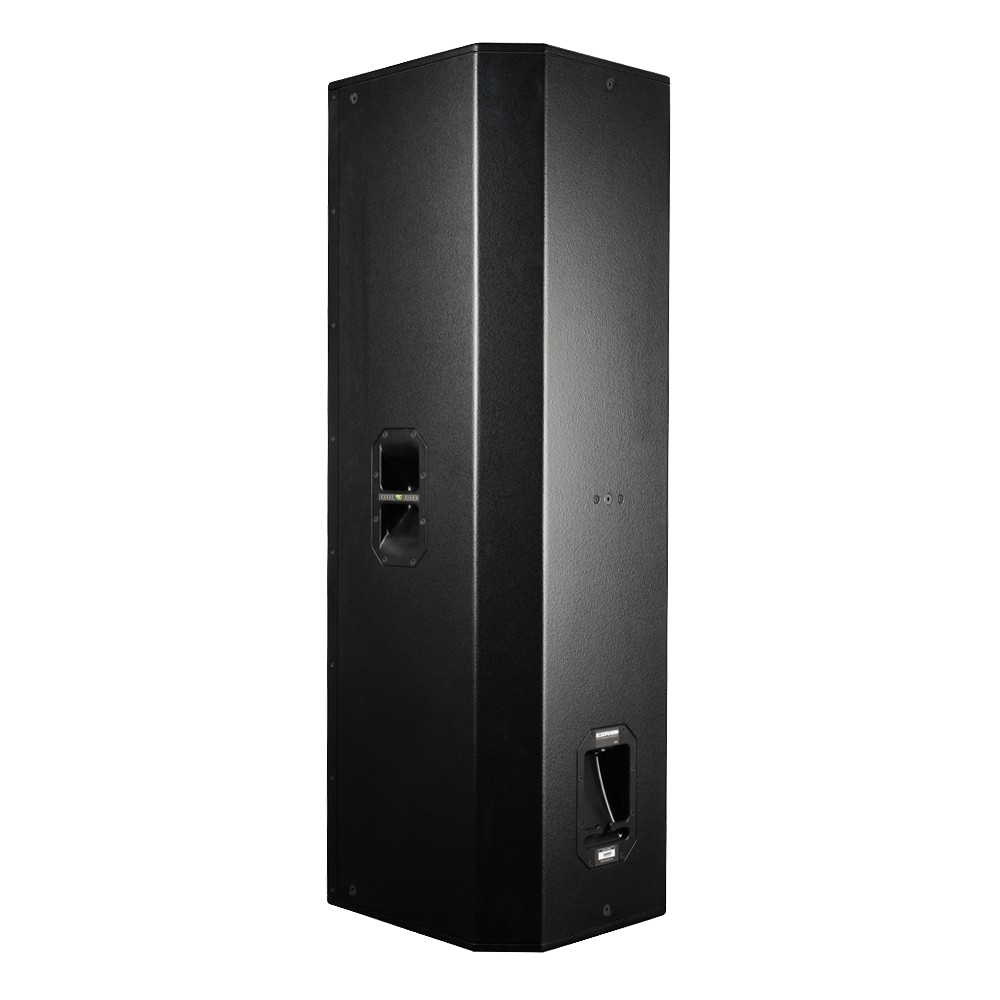

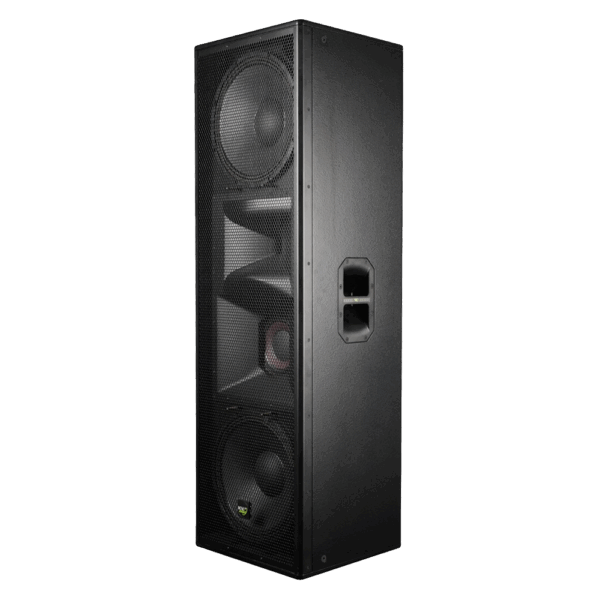

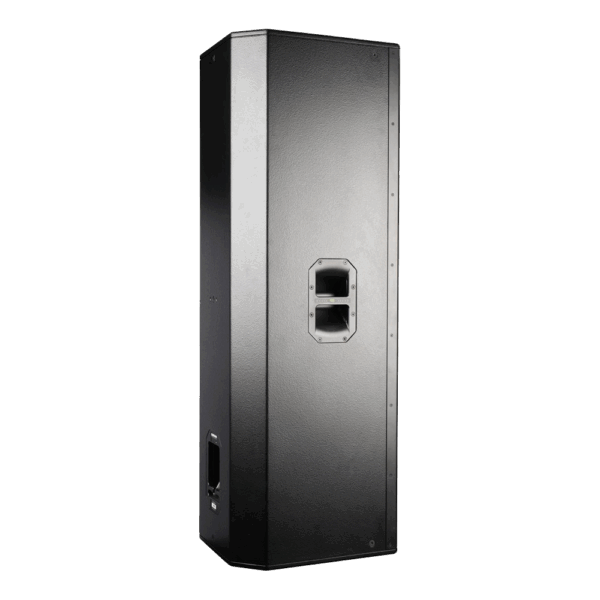

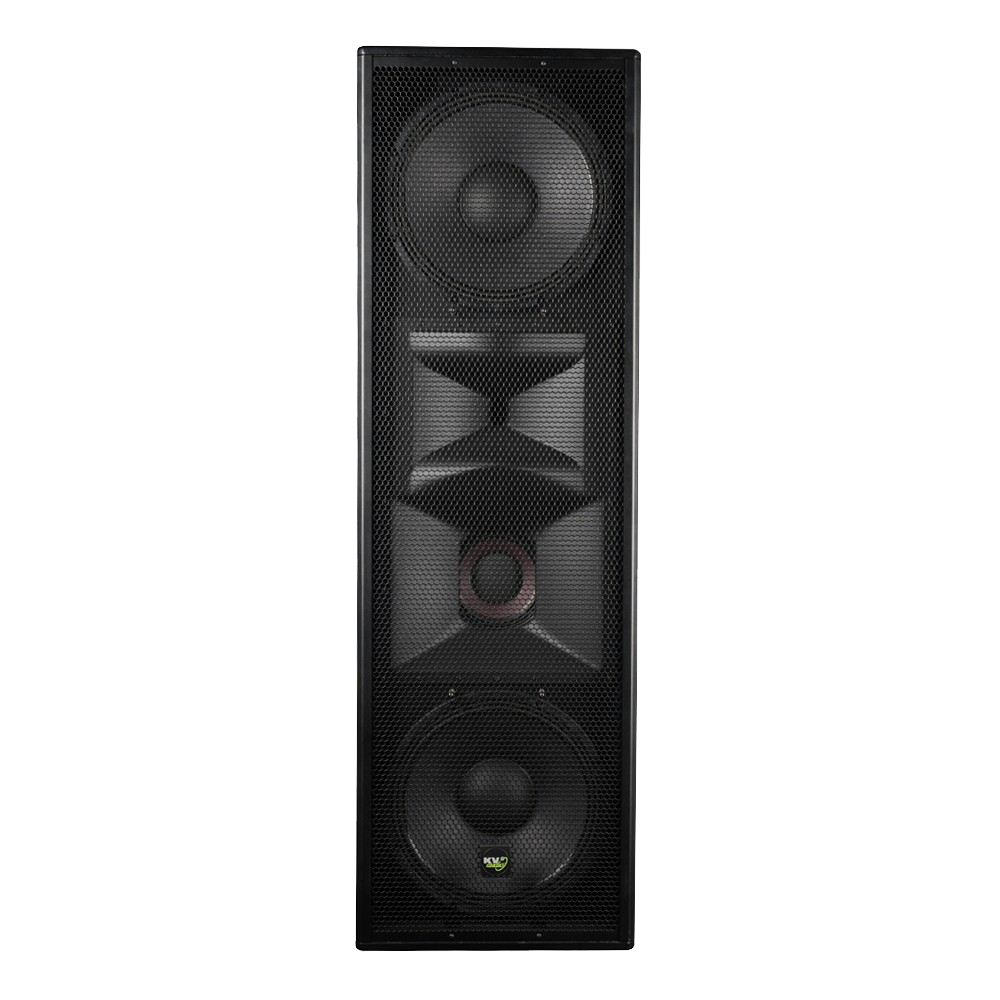

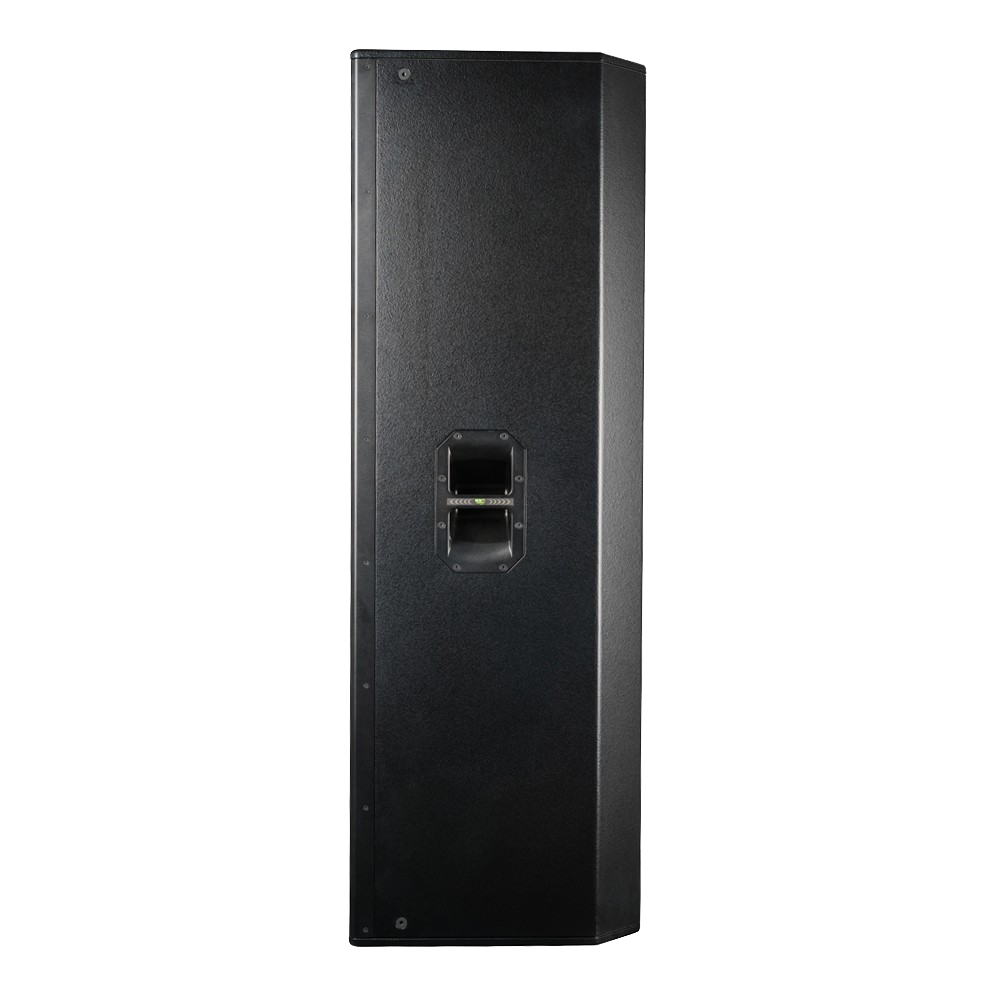

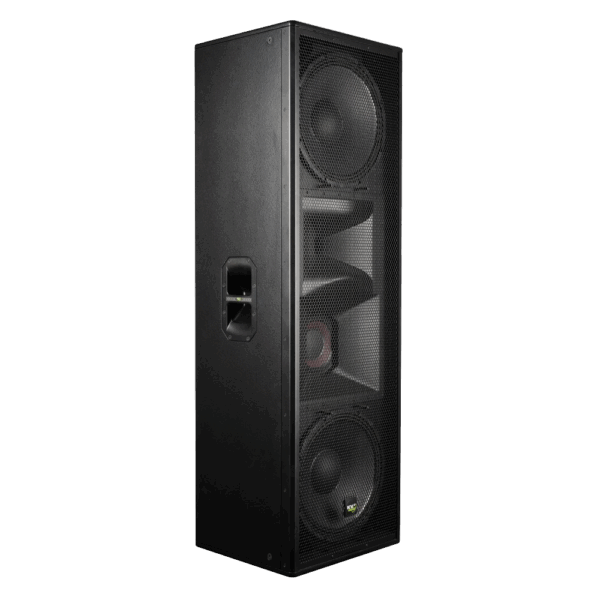

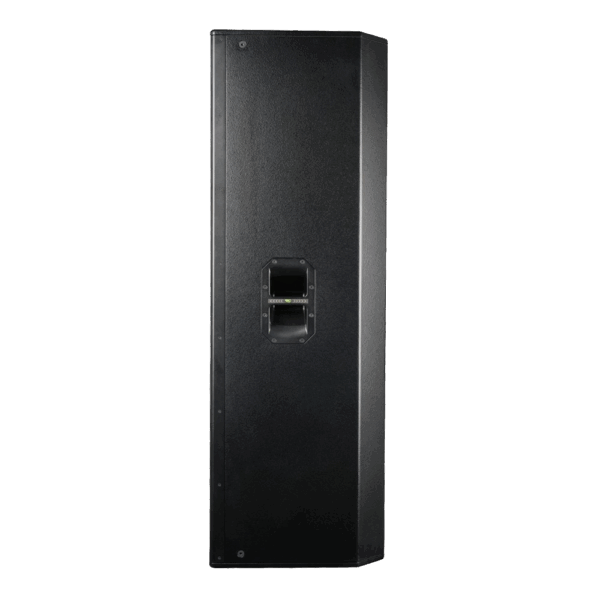

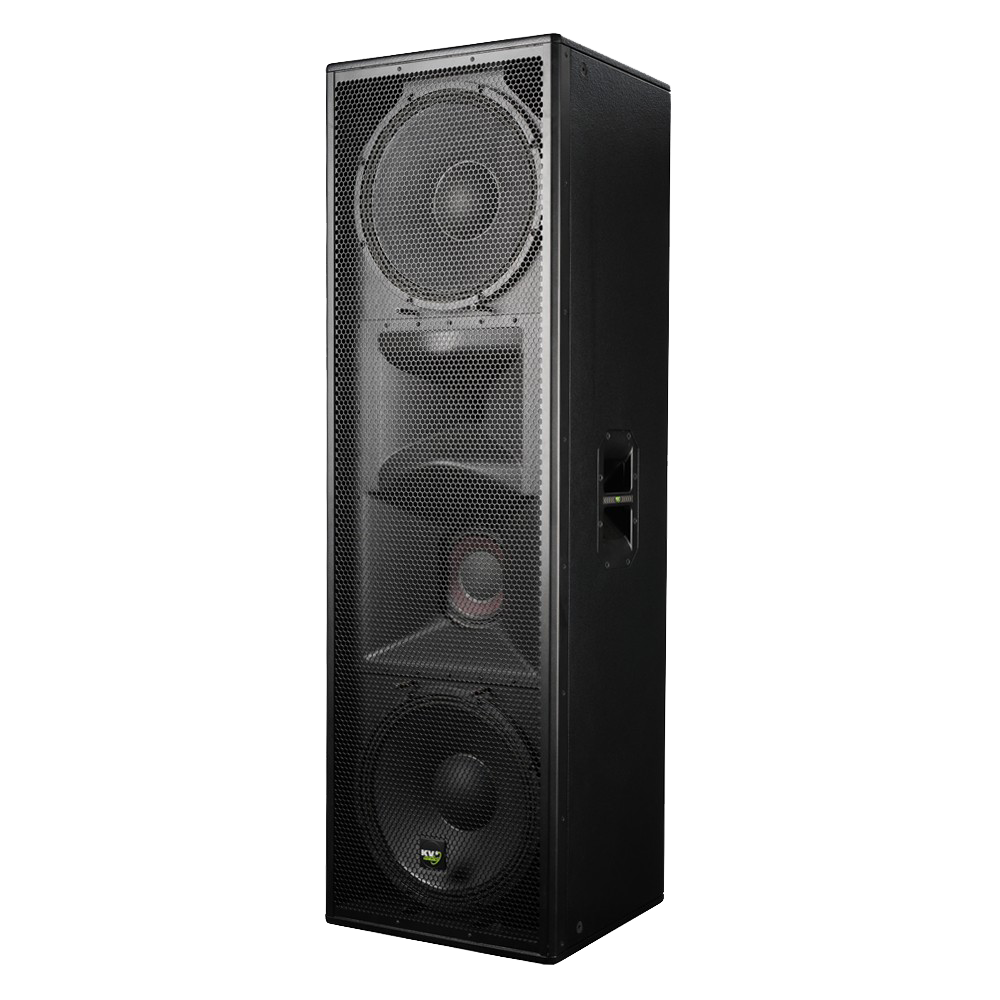

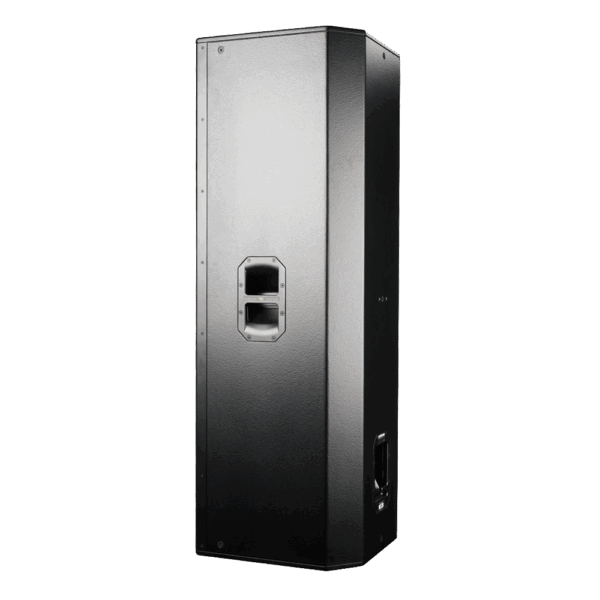

The ESR215MkII is a large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215MkII loudspeaker system features two 15" woofers, an 8" mid-range driver and the same large scale NPVD 3" compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215MkII is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.
Features:
- High-output, full-range 3-way loudspeaker system
- 132dB sustained output
- Wide dispersion at high frequencies, controlled at lowmids to reduce indoor reflections
- Mid/High horn design provides optimized transducer loading and controlled dispersion
- Patent-Pending 3" diaphragm nitride-titanium compression driver with complex geometry phase plug and neodymium magnetic motor structure for higher output and lower distortion performance
- Eight-inch midrange Transcoil driver with 3" (76 mm) neodymium magnetic motor structure for increased control and output and decreased distortion and weight
- Proprietary midrange heat dissipation system controls voice coil temperature, ensures high dynamics and extends transducer lifespans
- Front-loaded, 15-inch mid-bass driver with 3.00" (76 mm) voice coil assembly and ferrite magnetic motor structure
- Professional, exterior-grade Baltic birch construction with wear-resistant polymer coating Proprietary corner and side handle designs for simplified handling and carrying
- Acetal copolymer high impact, low friction feet allowing other cabinets lock-in and easy cabinet movement
- Six internal corner and one back brace with M10 suspension points and side and top and bottom handles with M10 suspension points. A total of 17 suspension points are available for custom installation applications
- Requires ESR3000MkII unit for control electronics and amplification
Technical characteristics:
System Acoustic Perfomance:
Max SPL Long-term: 132dB
Max SPL Peak: 138dB
-3dB Response: 35Hz to 22kHz
-10dB Response: 28Hz to 30kHz
Crossover Point: 400Hz, 2.5kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 110° x 40°
Rotatable Horn: NO
High Frequency Amplifier Requirement: 100W from ESR3000MkII Amplifier
Throat Exit Diameter / Diaphragm Size: 1.4" / 3"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Mid Range Section:
Acoustic Design: Horn Loaded
Mid Horn Coverage Horizontal / Vertical: 110° x 40°
Rotatable Horn: YES
Midrange Amplifier Requirement: 200W from ESR3000MkII Amplifier
Woofer Size / Voice Coil Diameter: 8" / 3" / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Subwoofer Amplifier Requirement 1000W from ESR3000MkII Amplifier
Woofer Size / Voice Coil Diameter/ Design: 15" / 3" / Inside Outside
Number of Drivers: 2
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Ferrite
Speaker Input:
Speaker Input: Amphenol AP-6 Male
Cabinet:
Cabinet Material: Baltic birch
Handles: 4
Color: "Orange peeled" Matt Black or any RAL

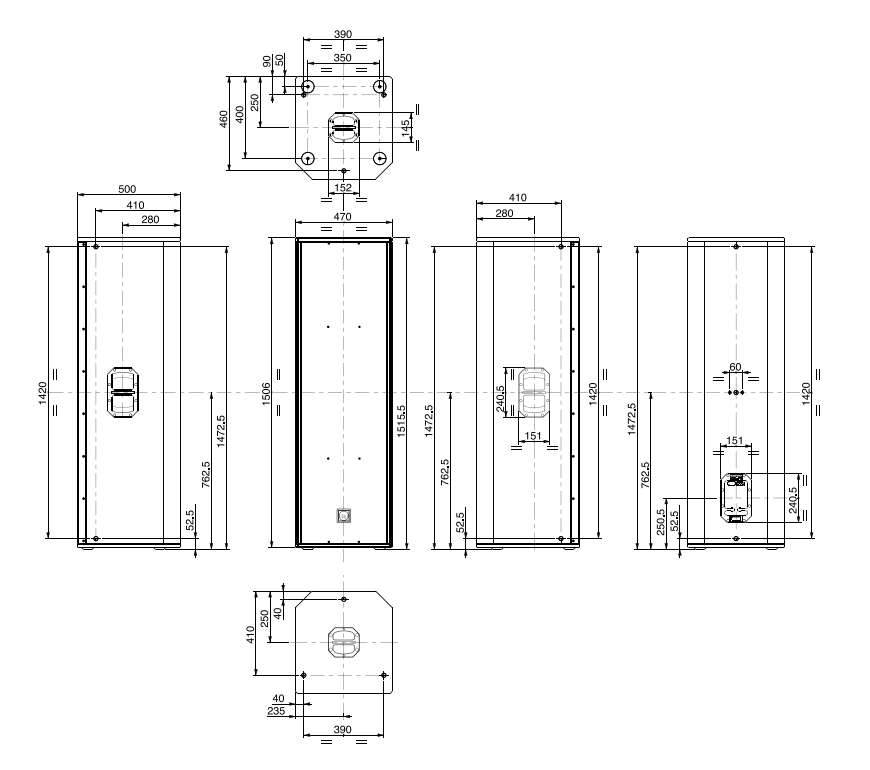

Physical Dimensions:
Height: 1515 mm (59.65")
Width: 470 mm (18.50")
Depth: 500 mm (19.69")
Weight: 71 kg (156.53lbs)
Product code:
KVV 987 245
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues
● Fixed Installations ● Music venues ● Classical and opera concerts
