Brand: KV2 Audio
Model: ESR106
Type: Active Driven 3 Way System
Description:

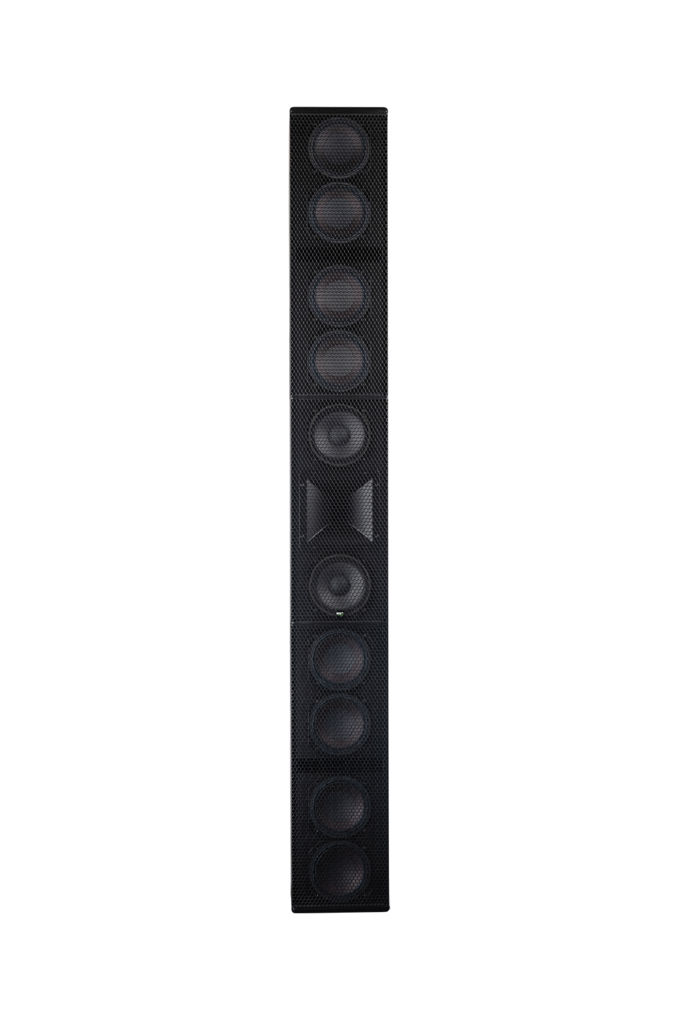

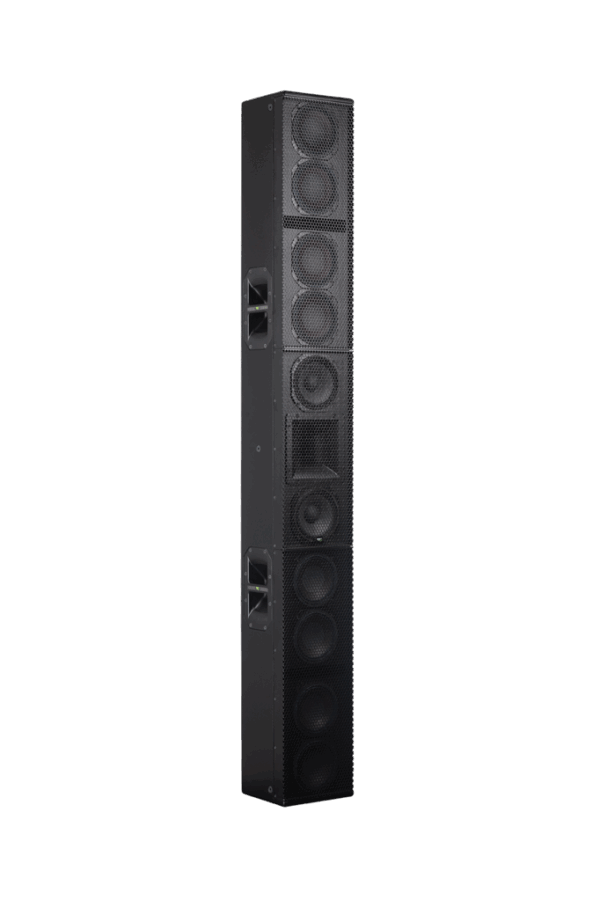

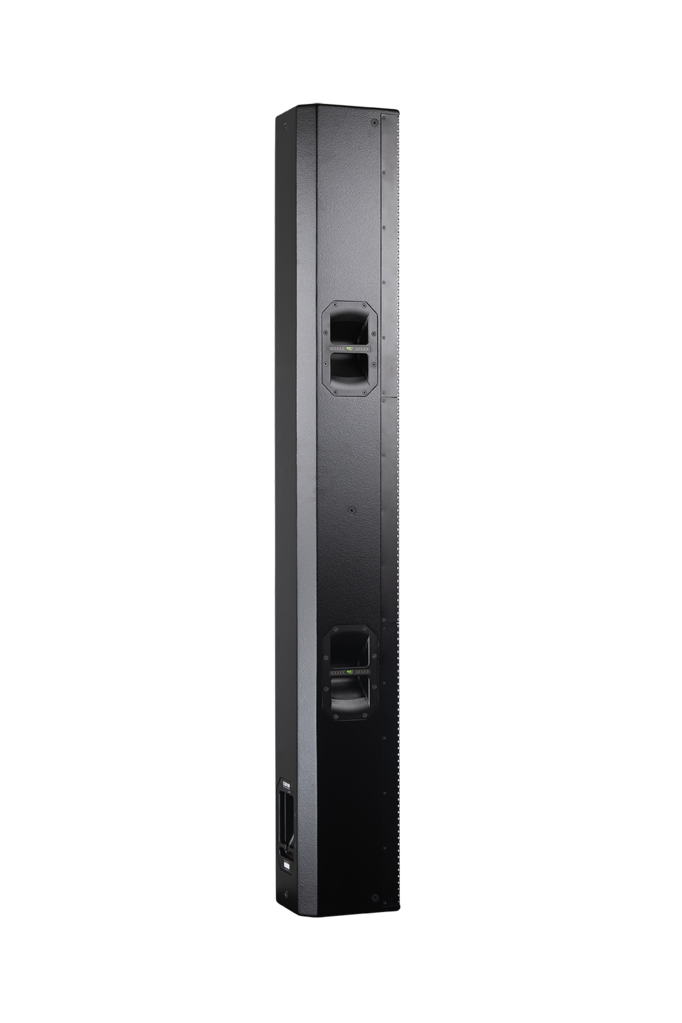

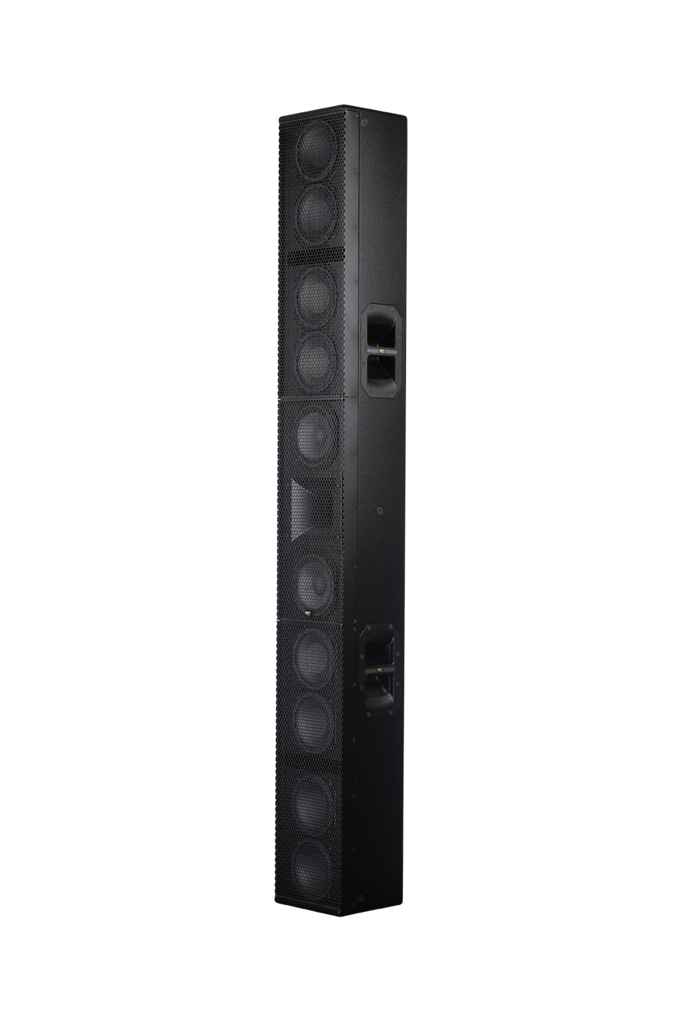

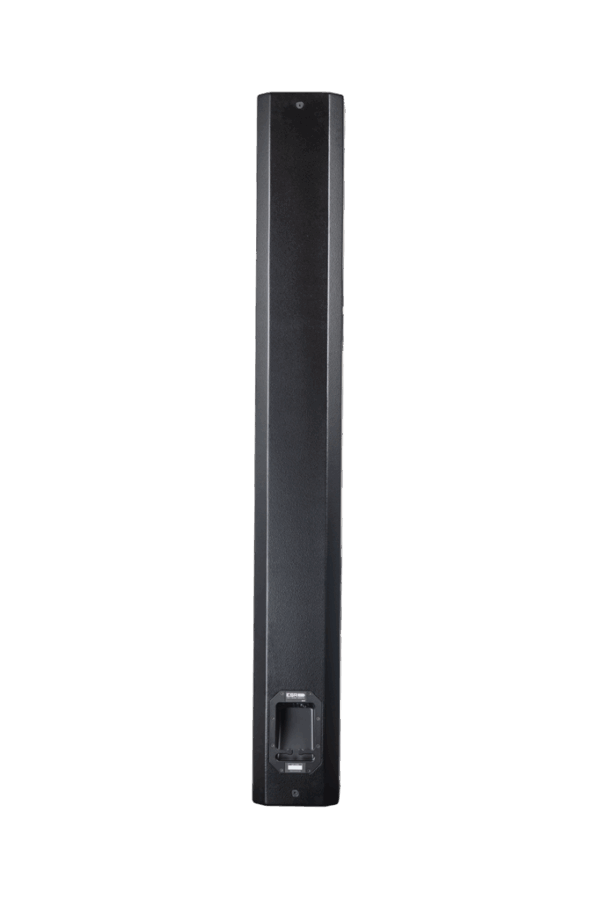

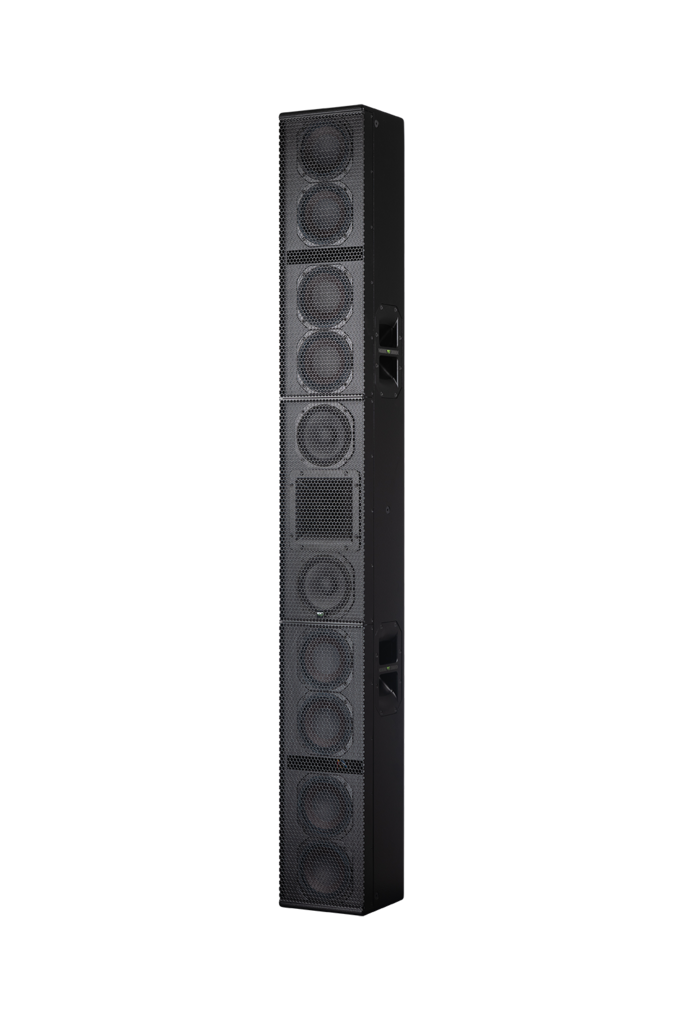

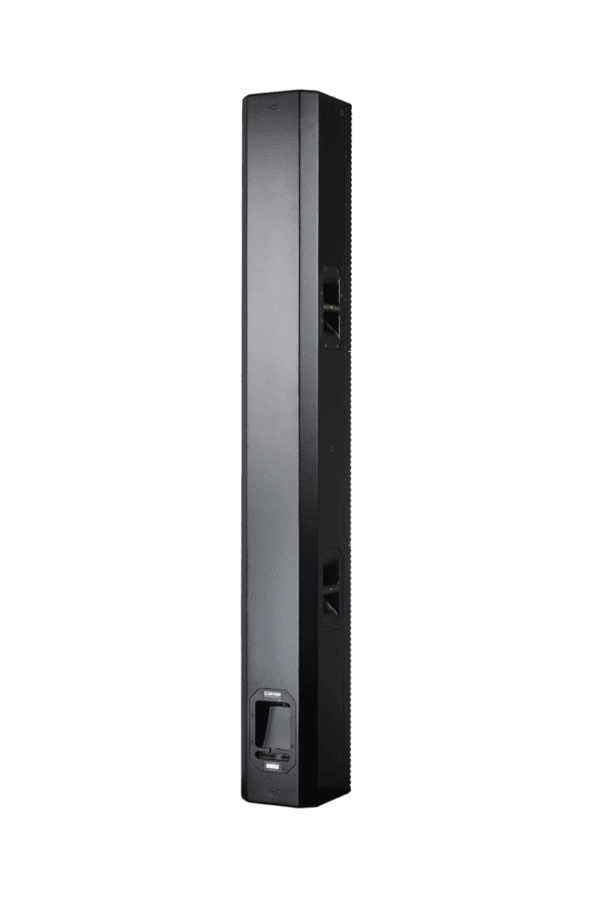

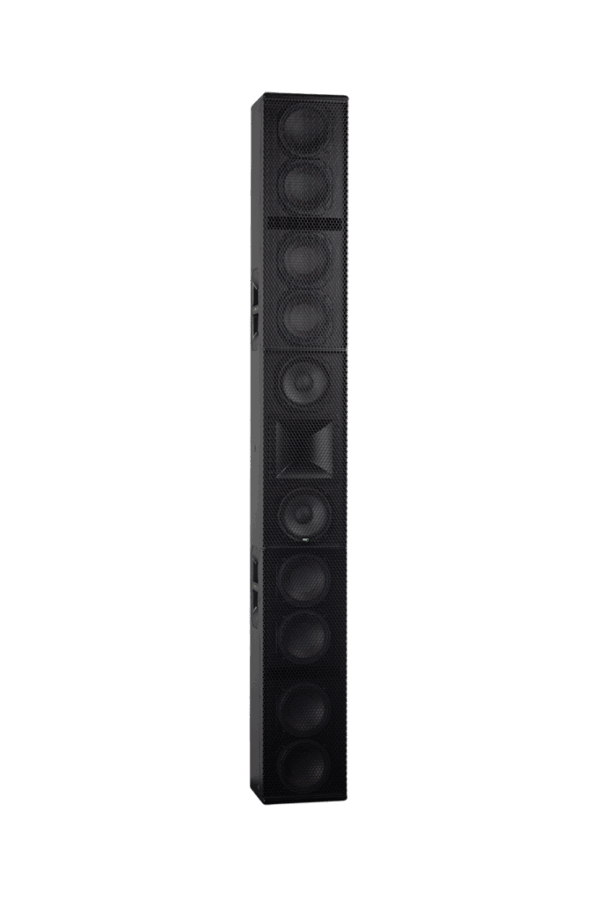

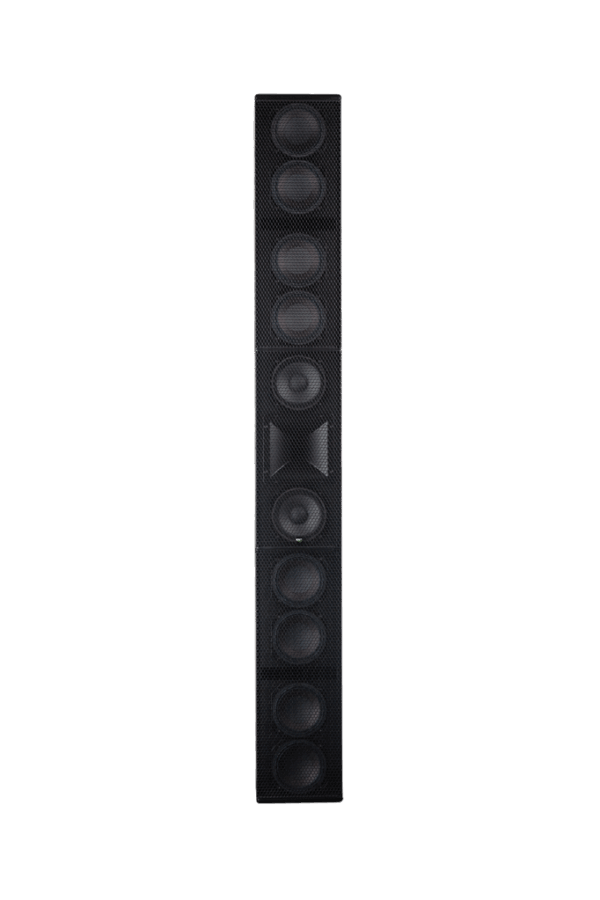

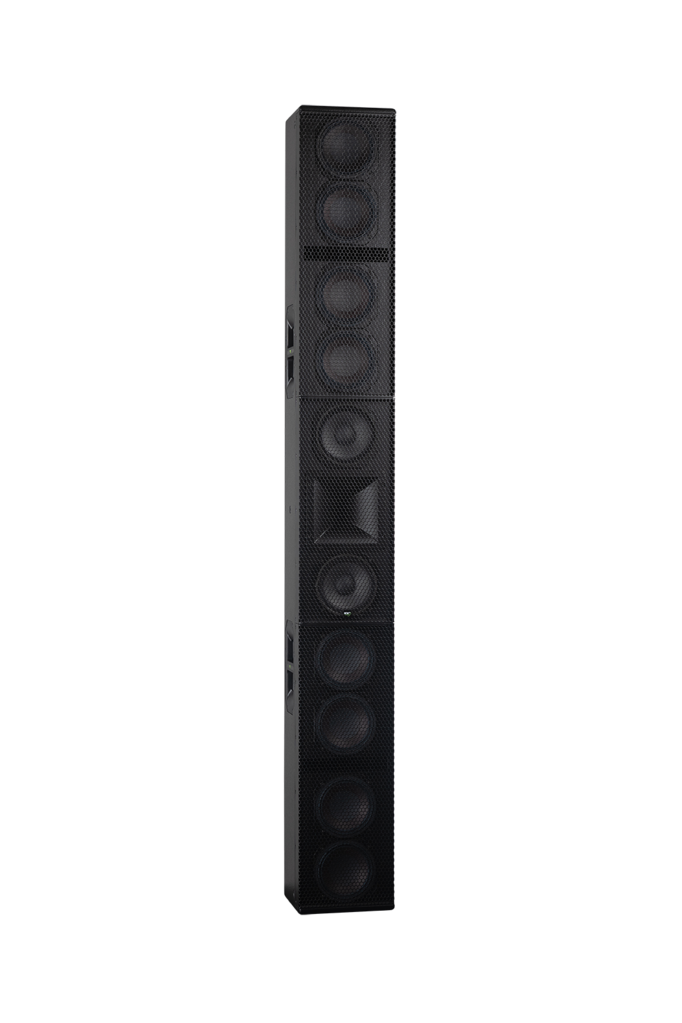

The ESR106 is an active driven 3 way system employing a unique column array of multiple 6“ woofers for unparalleled high quality vocal and music reproduction in challenging acoustical spaces and ambient environments. Utilising 8 x 6“ woofers, 2 x 6“ mid bass woofers and a single 1“ high frequency driver mounted on a wide dispersion horn, the ESR106 is constructed to represent one large point source, with each part of the system positioned so that it is proportional in size to the wavelength it produces, thus the radiated power of each band remains consistent and balanced throughout the system’s overall frequency range. The ESR106 has a controlled coverage at low and mid frequencies to reduce indoor reflections. The ESR106 is controlled and driven by a dedicated ESR2600D amplifier, using KV2 Audio proprietary SLA technology
Technical characteristics:
Features:
- Full range 3 way system incorporating state of the art multiple transducers.
- Multi point fixings for external brackets and flyware.
- True musical solution for speech, vocals and music playback in difficult acoustical environments.
System Acoustic Perfomance:
Max SPL Long-term: 131dB
Max SPL Peak: 137dB
-3dB Response: 60Hz to 20kHz
-10dB Response: 52Hz to 28kHz
Crossover Point: 450Hz; 2.4kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 80°
Power Handling: 100W from ESR2600D Amplifier
Rotatable Horn: NO
Throat Exit Diameter / Diaphragm Size: 1" / 1,75"
Diaphragm Material: Titanium
Magnet Type: Neodymium
Mid Range Section:
Acoustic Design: Sealed enclosure
Woofer Size / Voice Coil Diameter: 2x 6" / 1,75"
Power Handling: 200W from ESR2600D Amplifier
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter: 8x 6" / 1,75"
Power Handling: 1000W from ESR2600D Amplifier
Magnet Type: Neodymium
Diaphragm Material: Epoxy Reinforced Cellulose
Speaker Input:
Speaker Input 1x AMPHENOL 6
Cabinet:
Cabinet Material: Baltic birch
Handles: 4
Color: "Orange peeled" Matt Black or any RAL

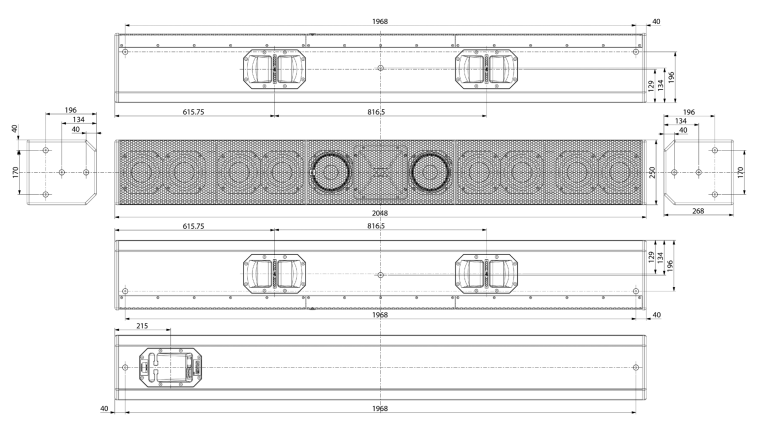

Physical Dimensions:
Height: 2048 mm (80.629")
Width: 250 mm (9.842")
Depth: 268 mm (10.551")
Weight: 42,5 kg (93.7lbs)
Product code:
KVV 987 511
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Full range 3 way system incorporating state of the art multiple transducers
● Fixed Installations ● Theatres & Auditoriums ● Concert Halls ● Houses of Worship ● ALWAYS used in a vertical orientation
