Brand: KV2 Audio
Model: ESP4000
Type: Amplifier with Control & Diagnostics Tool
Description:

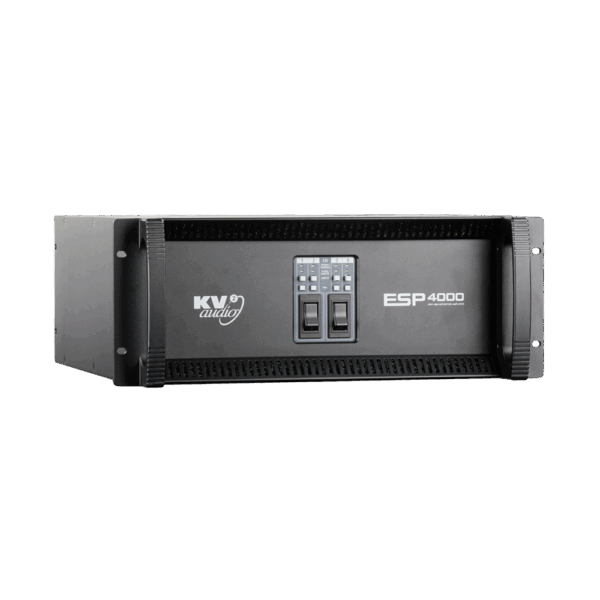

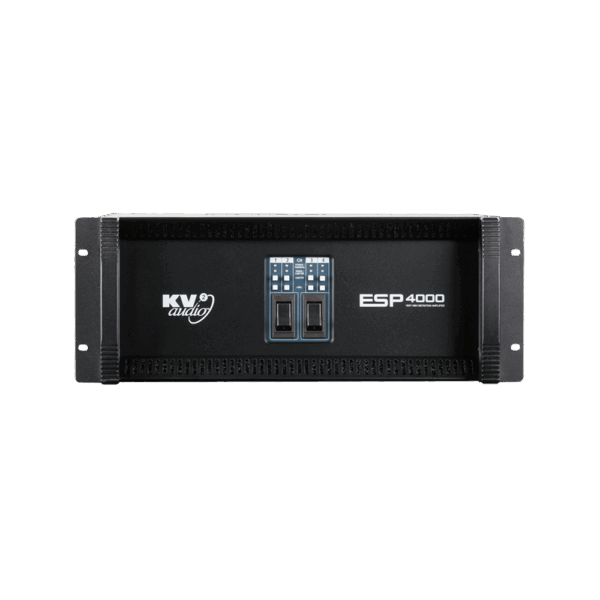

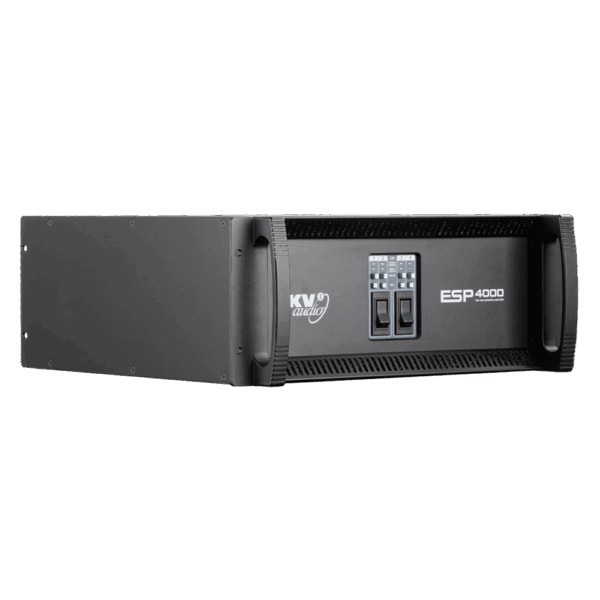

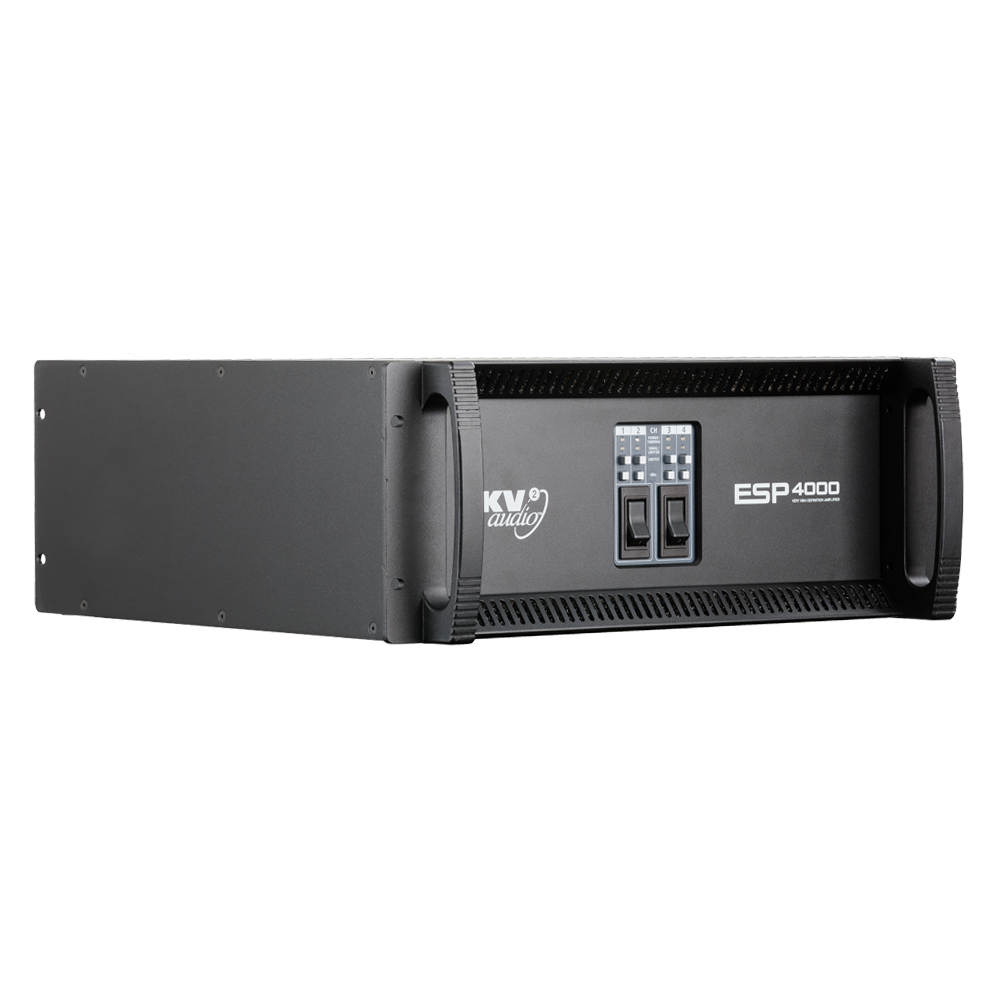

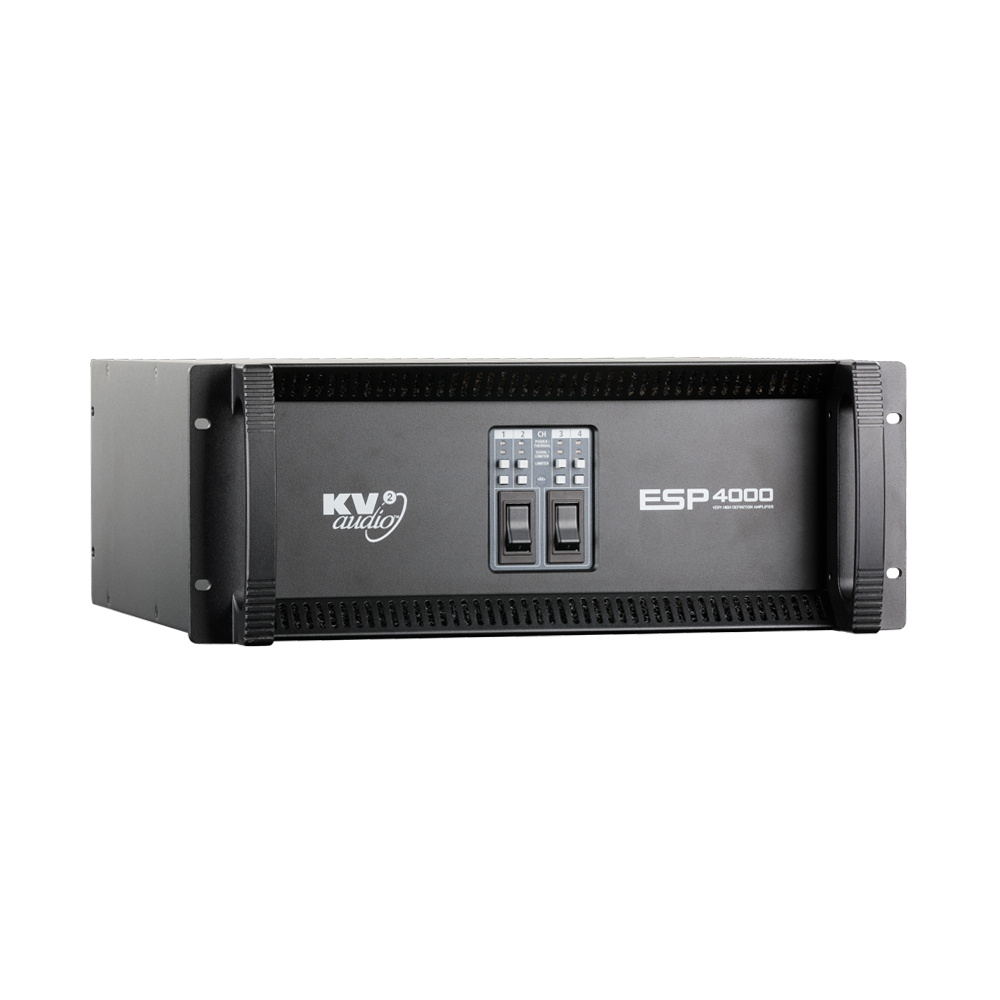

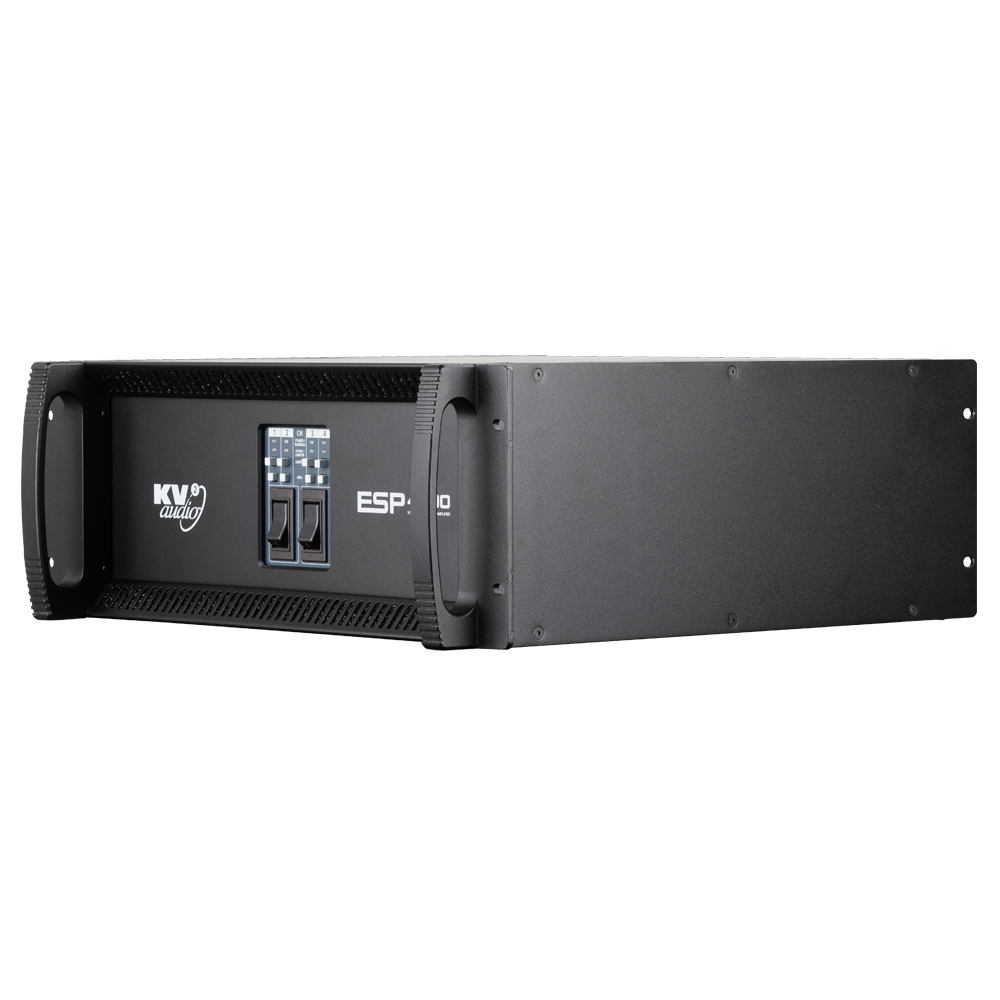

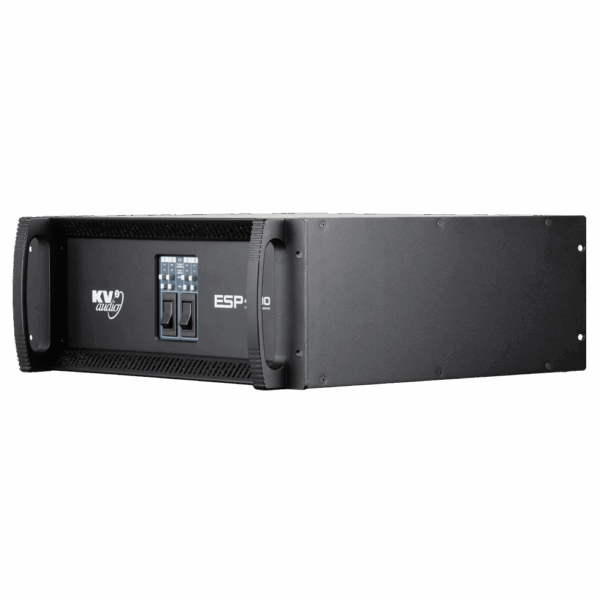

The ESP4000 is an ultra high definition 4 channel rack mountable power amplifier from KV2 Audio, specifically designed for optimised performance with ESD loudspeakers, as well as with other passive systems.
For the ESP4000 all electronic circuit boards are first mounted on individual aluminium heat sinks, then on a secondary, internally sealed chassis, this leaves only the heatsink fins exposed.
Two separate power supplies ensure increased reliability and continuous delivery of full power. Two shock mounted fans move air across the fins but never directly across the electronic components. This minimises maintenance cycles and improves the components lifespan and and reliability.

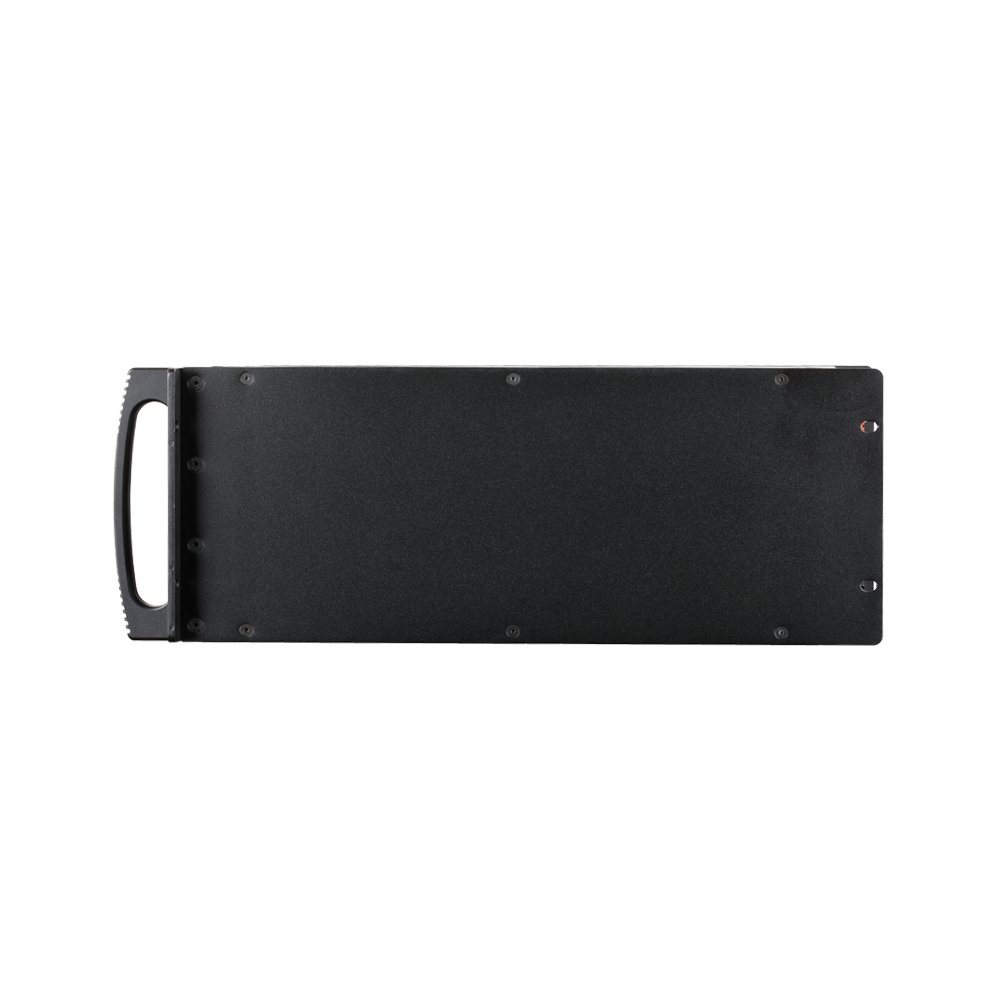

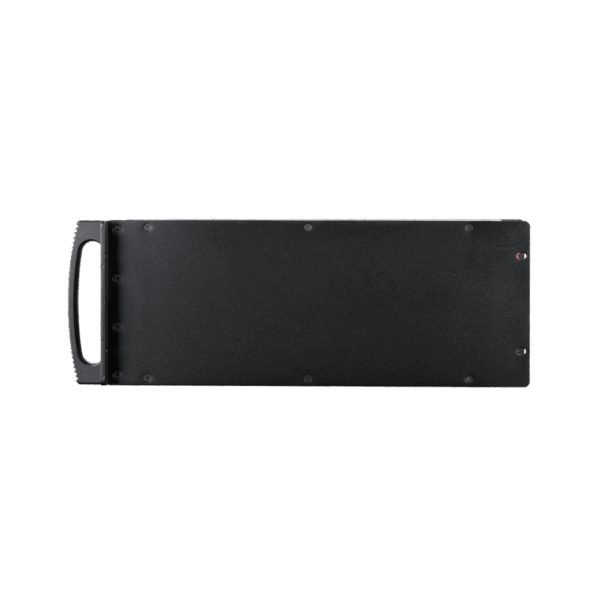

The ESP4000 is housed in a professional 4U road rugged steel metal case with aluminium handles and evenly distributed weight.
Technical characteristics:
Features:
- Ultra high definition
- 4 channel rack mountable power amplifier
- Specifically designed for optimised performance with ESD loudspeakers, as well as with other passive systems
- 4 x 1000W / 2Ω
- Two separate power supplies ensure increased reliability and continuous delivery of full power
- Two shock mounted fans move air across the fins but never directly across the electronic components. Minimises maintenance cycles and improves the components lifespan and reliability
System Acoustic Performance:
-1dB Response: 3Hz to 40kHz
Channel Crosstalk: >60dB
Signal to Noise Ratio: >115dB
Total Harmonic Distortion: <0.005% (1W) / <0.01% (clip -1dB)
Output Channels:
Amplifier Type: High efficiency, Emitter coupled
Number of Channels: 4
Total Output Power: 4000W
Max. Output Voltage: 78V (peak) per channel
Max. Output Current: 48A (peak) per channel
Minimum load impedance per channel: 2Ω
Out. Power 16Ω - 1 channel / 2 channels loaded: 175W / 160W (RMS)
Out. Power 8Ω - 1 channel / 2 channels loaded: 340W / 300W (RMS)
Out. Power 4Ω - 1 channel / 2 channels loaded: 600W / 500W (RMS)
Out. Power 2Ω - 1 channel / 2 channels loaded: 1000W / 800W (RMS)
Out. Power 16Ω - bridged: 600W (RMS)
Out. Power 8Ω - bridged: 1000W (RMS)
Out. Power 4Ω - bridged: 1600W (RMS), 2000W short term

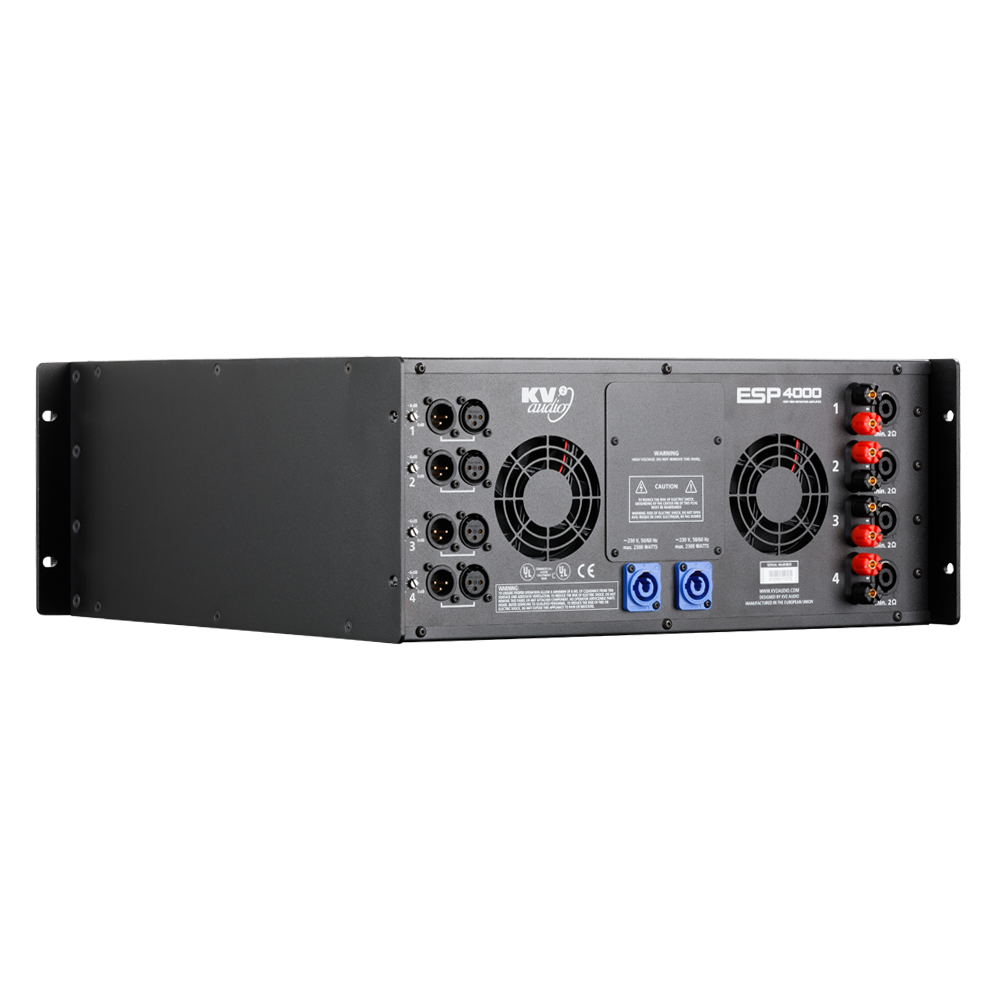

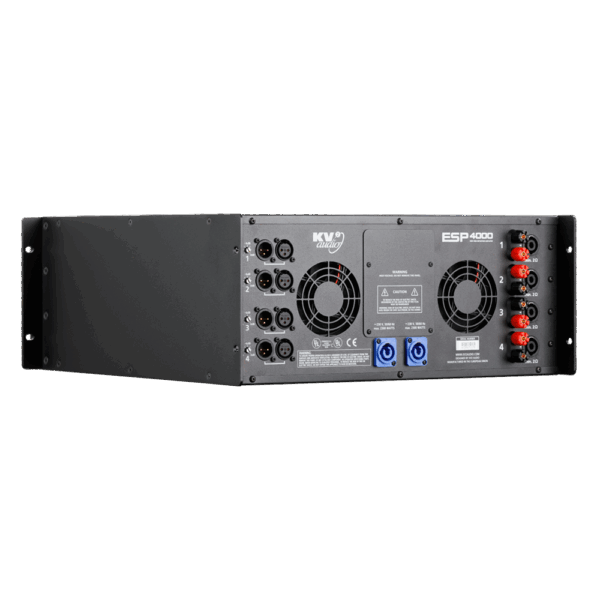

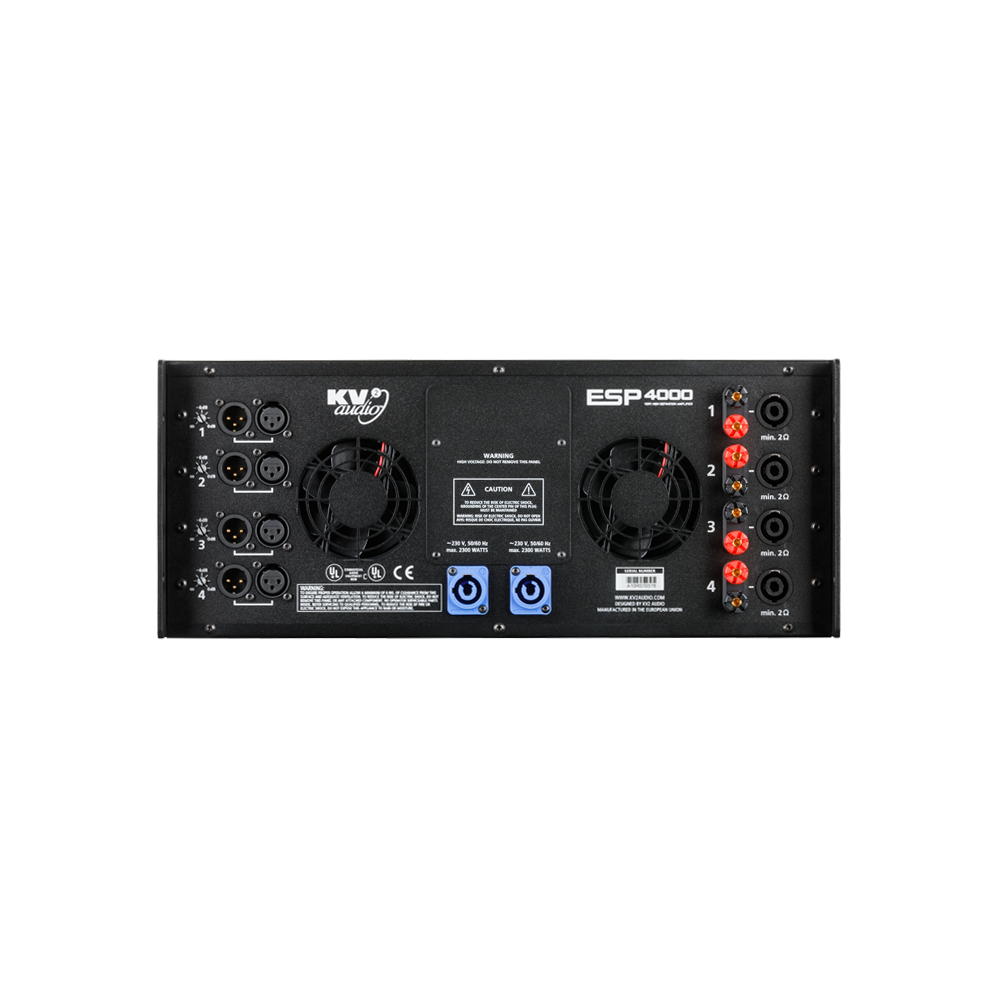

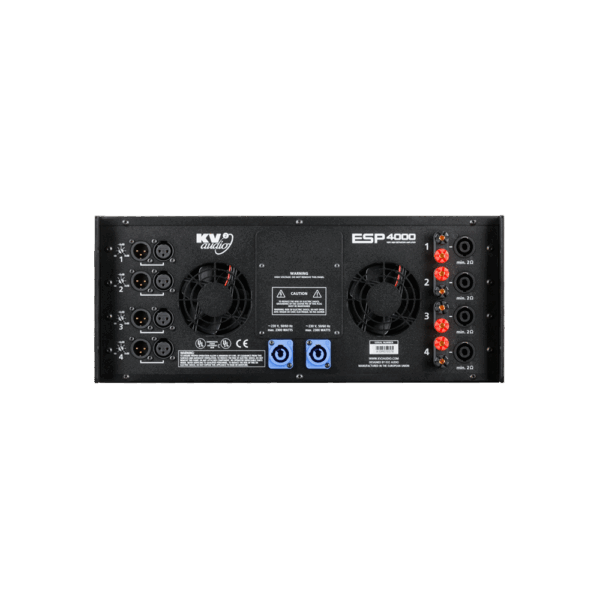

Signal Input:
Input Channels: XLR
Input Sensitivity: 2.0V
Input Impedance: 20kΩ (balanced)
Signal Output: XLR Through
Speaker Input:
Speaker Input: - / 4x Binding posts, Neutrik Speakon®

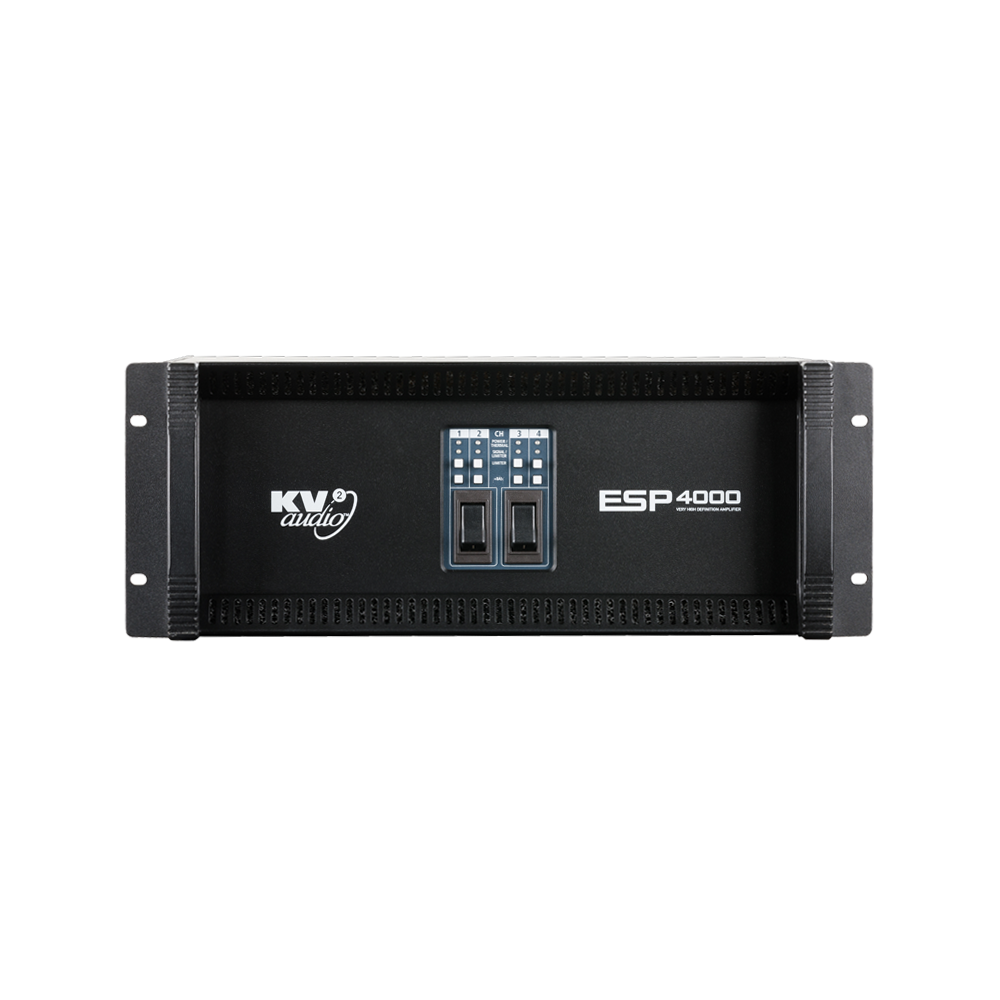

Features:
Input Level Control: -∞ to 0dB
Loudness bass enhancement: +6dB @ 60Hz
RMS Limiter: On / Off
Indicators Power: ON/Thermal, Signal/Limiter
Power Requirements:
Power Connector: 2x Neutrik PowerCon®
Operating Voltage: 115V / 230V / 250V
Operating Voltage Range: 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 2x20A 115V | 2x10A 230V | 2x10A 250V
Soft Start: YES
Protection: Thermal breaker
Cooling: 2x temperature controlled fans

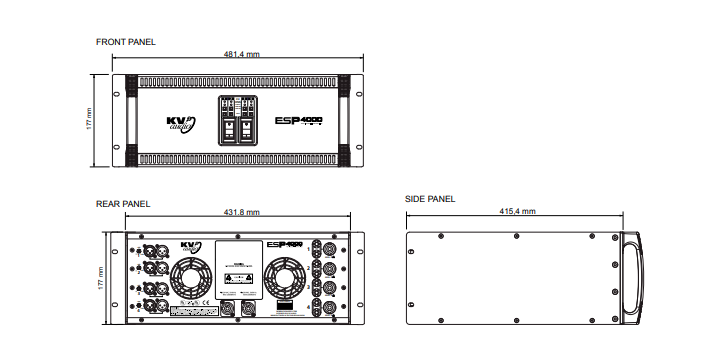

Physical Dimensions:
Height 177.8 mm (7.0"), 4RU
Width 481.4 mm (18.95")
Depth 495 mm (19.5")
Weight 37.5 kg (82.7lbs)
Product code (Options):
- KVV 987 215 - ESP4000 250V
- KVV 987 208 - ESP4000 230V
- KVV 987 214 - ESP4000 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Designed to drive the ESD and ESM range of passive loudspeaker units with superior sound quality
● Portable PA ● Fixed installations ● Monitor Amplifier
