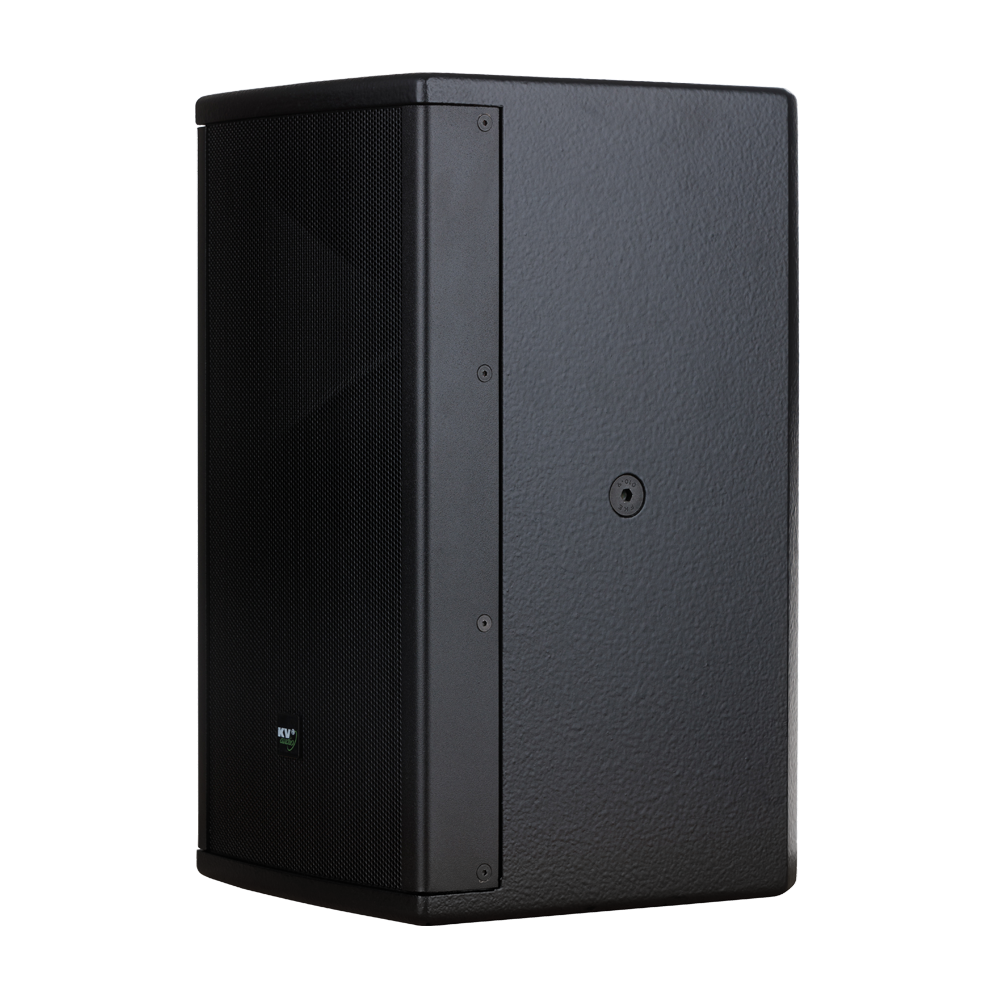

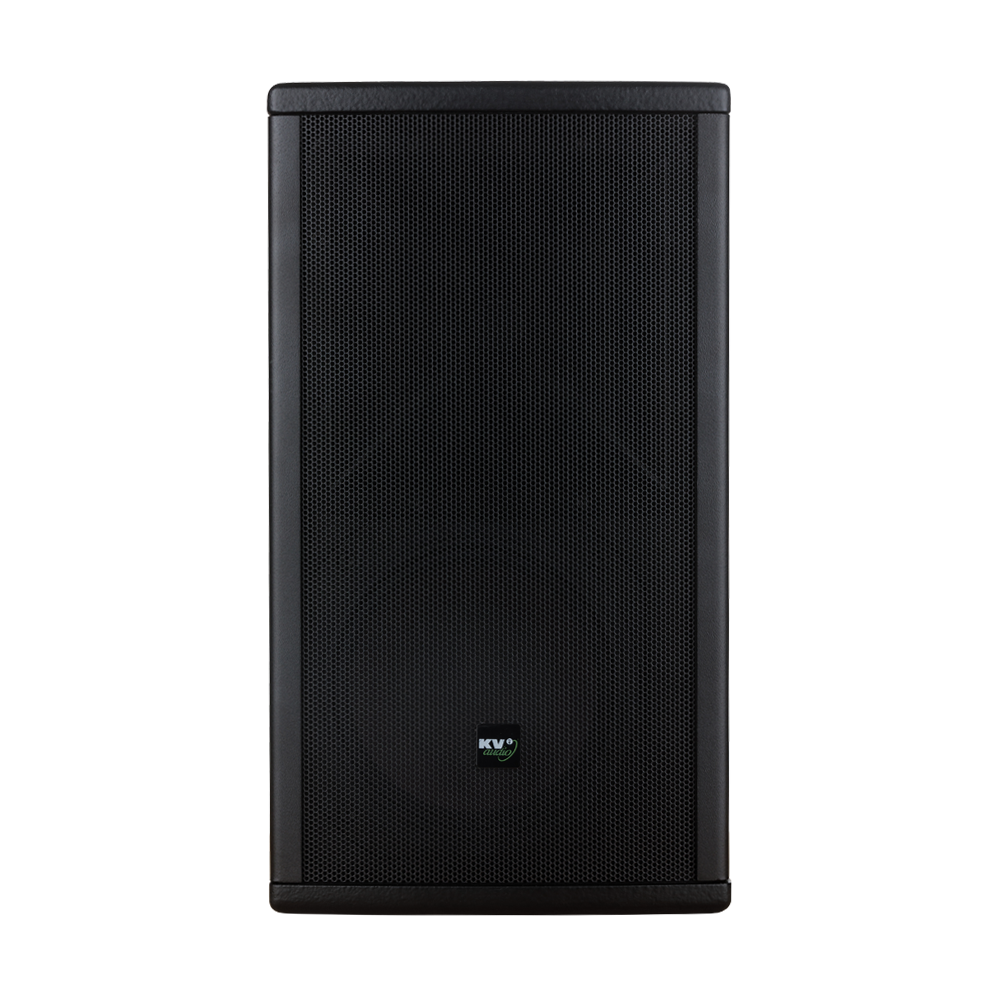

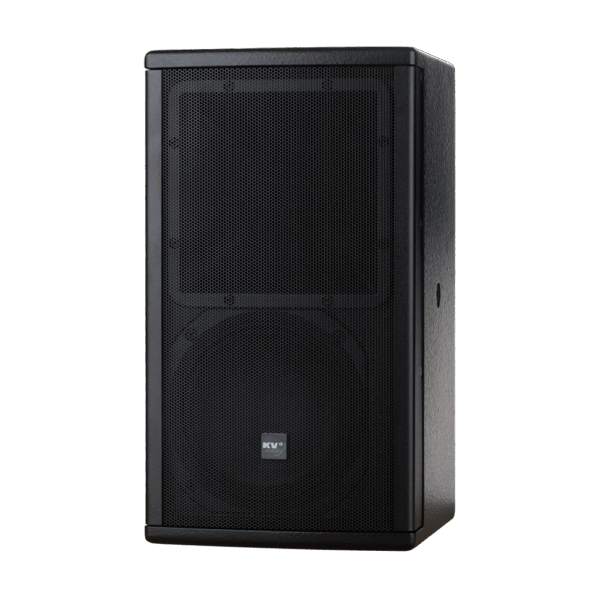

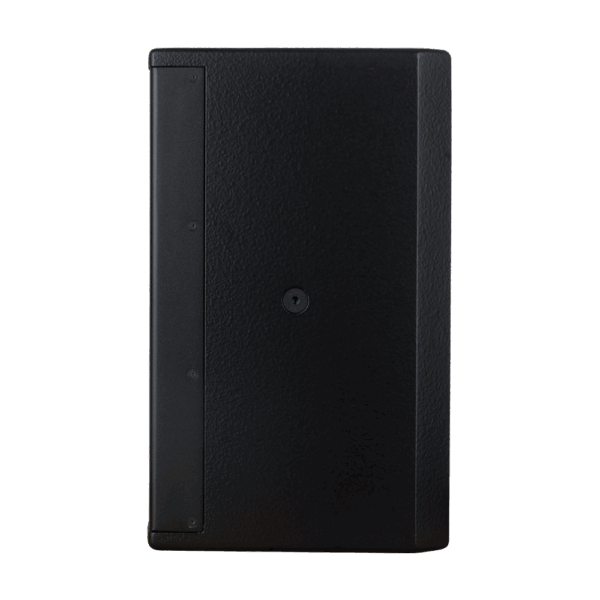

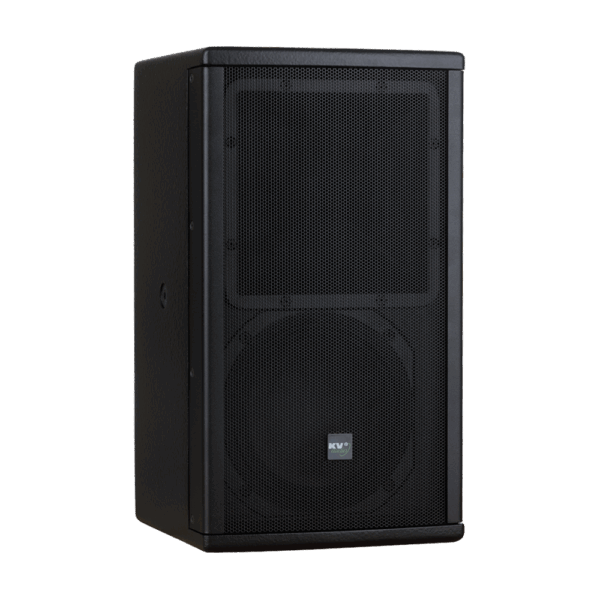

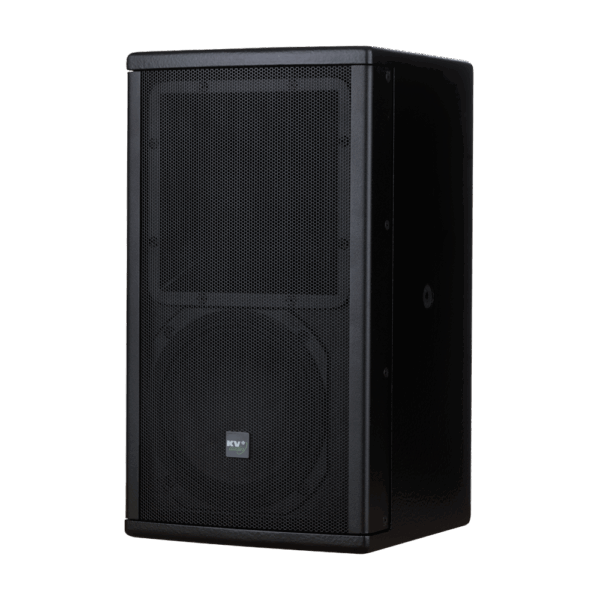

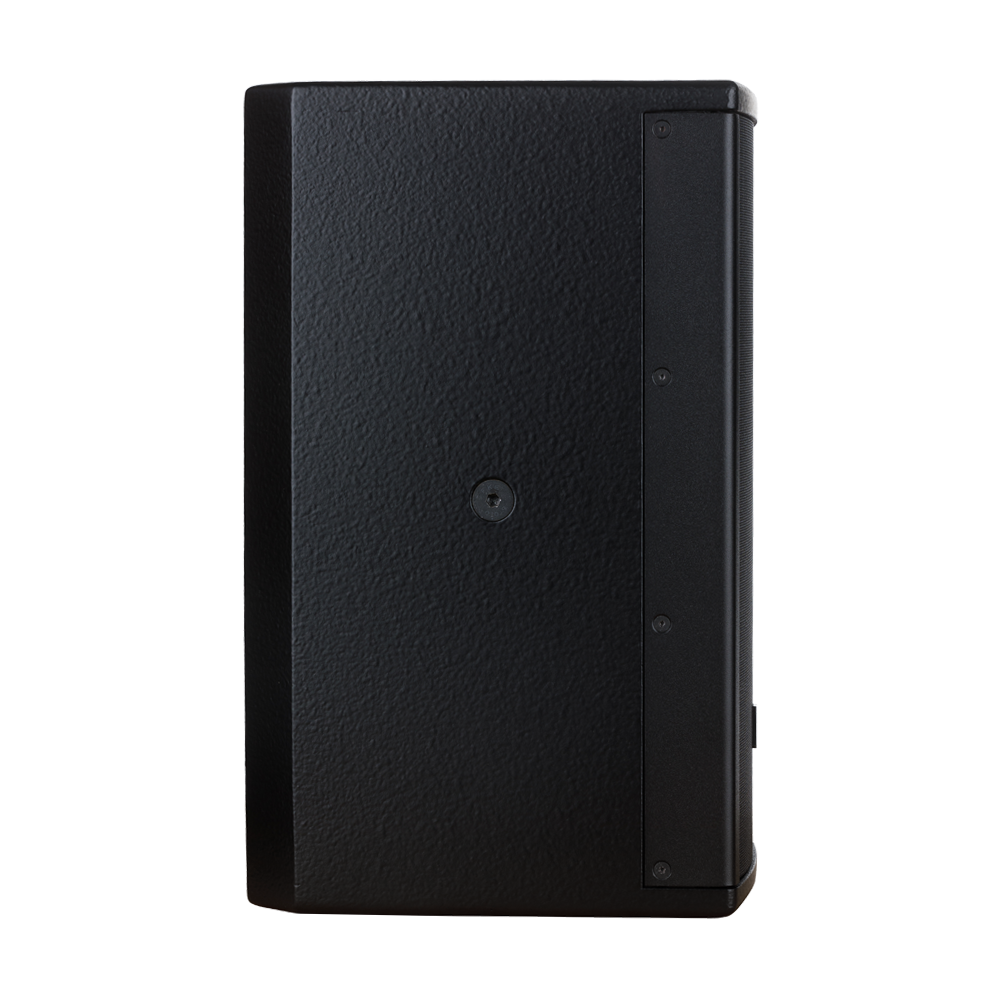

ESD6 - 2-way Passive speaker

Original price was: €1.325,49 / 2.592,43 лв..Current price is: €1.121,49 / 2.193,44 лв..

Out of stock

Free delivery over 250 EUR (NOT APPLICABLE TO SOUNDPROOFING)
Warranty included!
Експертна консултация

Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas

  • 2-way
  • 117db
  • Dispersion: 100° x 100°
SKU: Л3228 Category:

Brand: KV2 Audio

Model: ESD6

Type: Passive 2 way speaker

Description

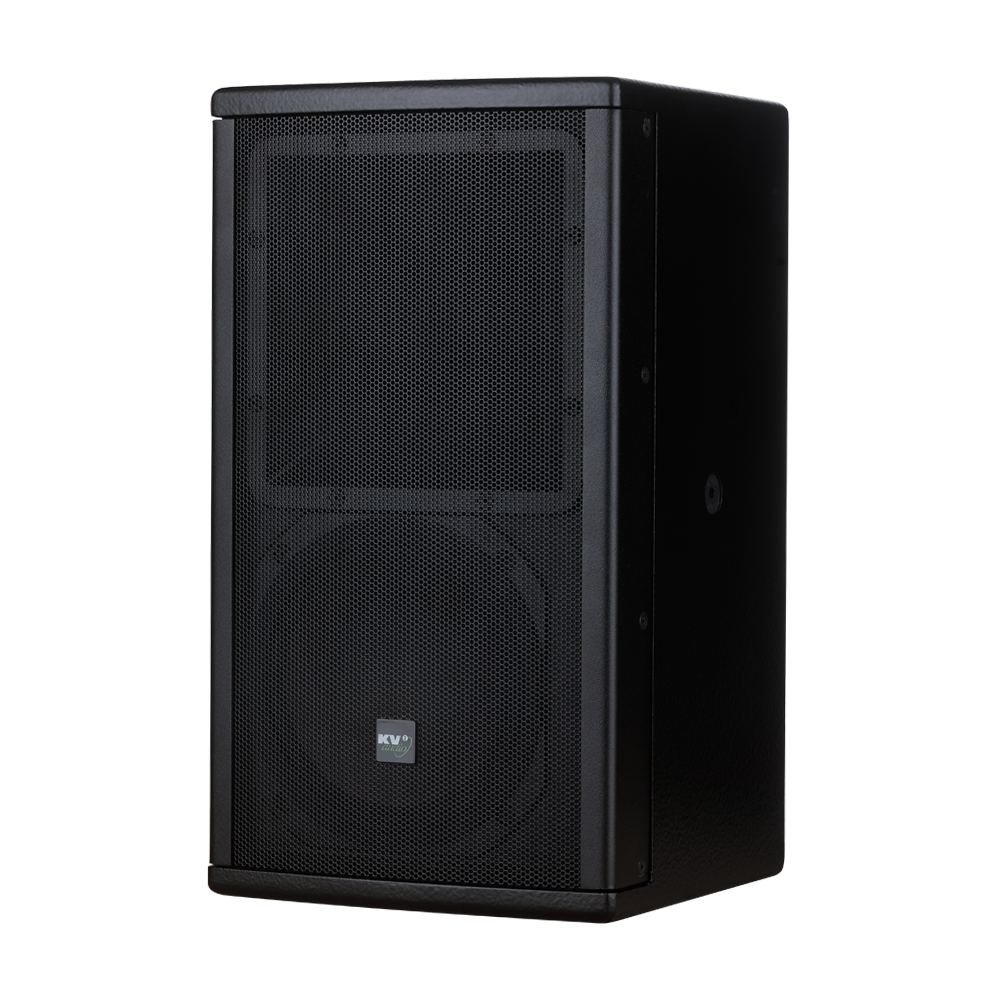

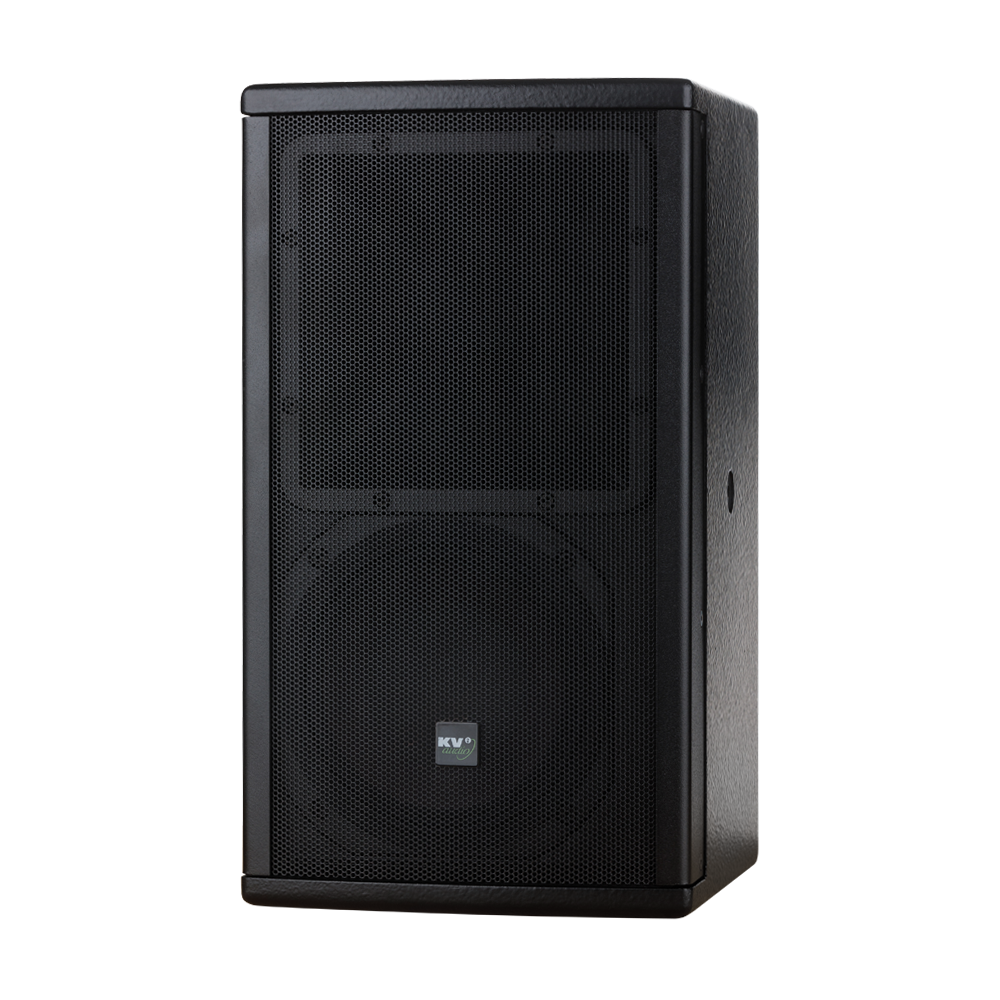

The ESD6 is a high quality 2-way full-range compact passive loudspeaker with output that defies its size. Delivering amazing clarity for speech and program reproduction, the ESD6 is perfect for discreet installations and audio visual presentations where sound quality is paramount but size also matters. The ESD6’s high impedance capability means that up to sixteen units can be run from a single suitable quality stereo amplifier to provide a high fidelity background program throughout a venue.



Technical characteristics:

Features:

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 117dB sustained output, 120dB peak with very high dynamic range
  • Compact cabinet design allows for use as front fill or under balcony applications
  • Wide dispersion 100° H x 100° V horn
  • Revolutionary new passive delay line
  • 1.75" (44 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
  • 6" woofer with Low Inductance Lightweight voice coil technology and neodymium motor structure dramatically increases force and lowers distortion

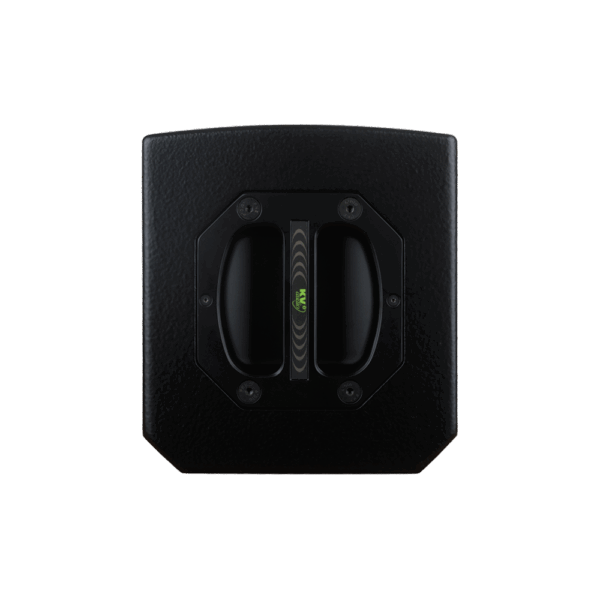

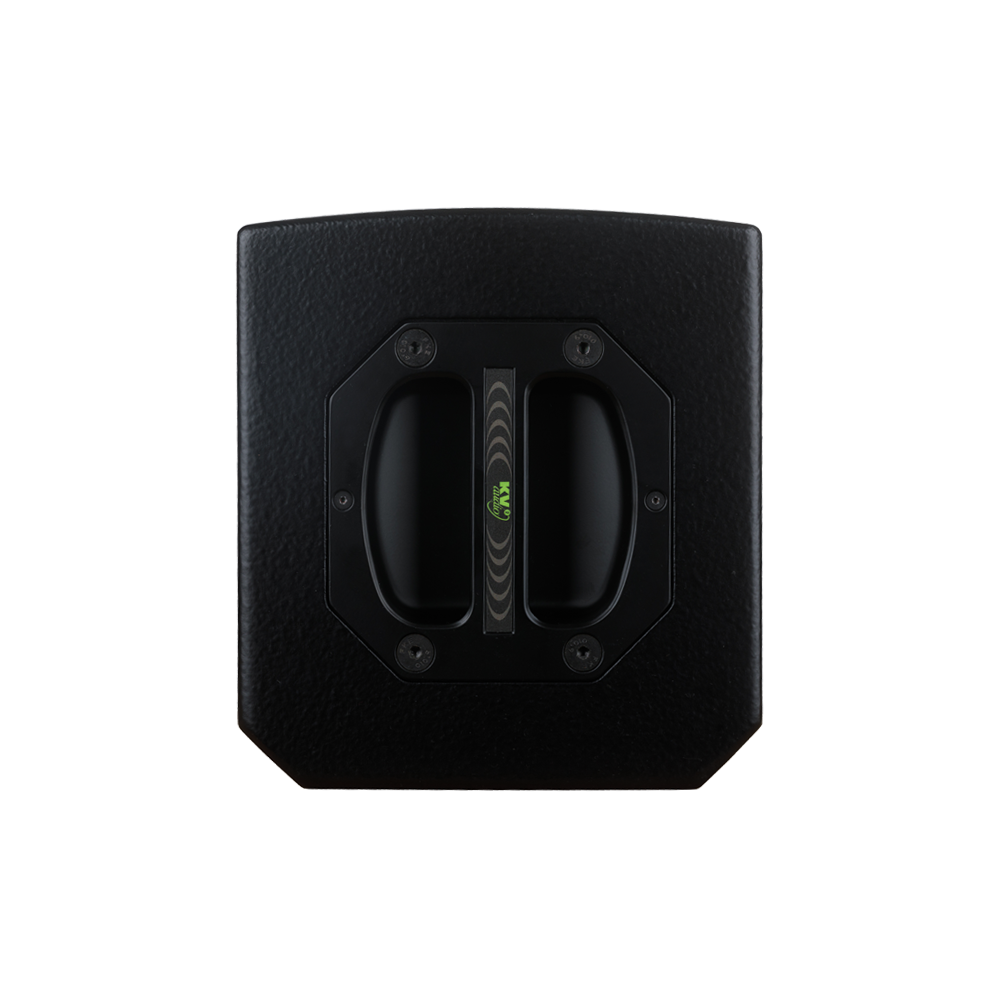

  • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points

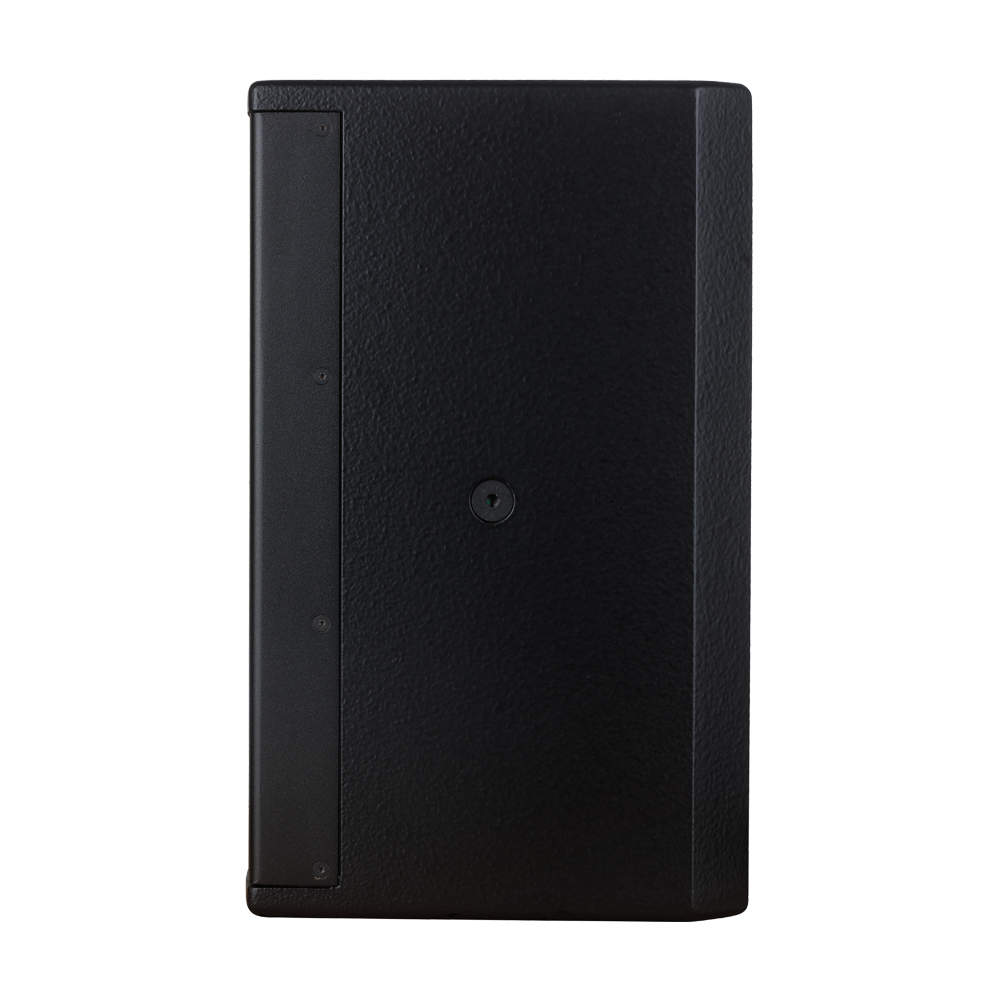

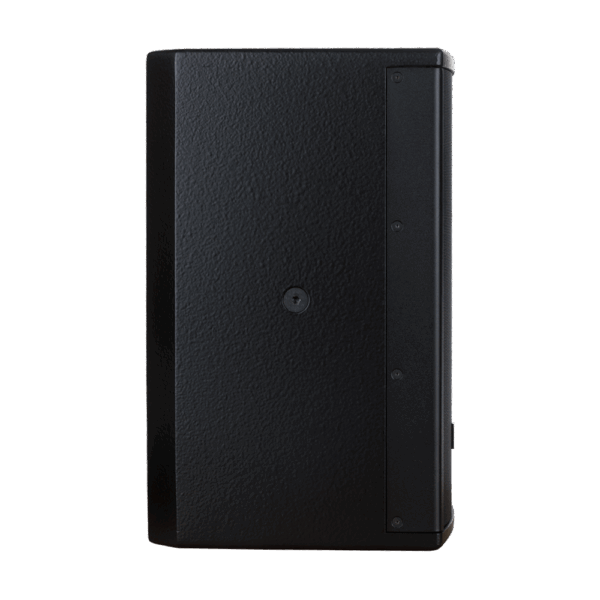

  • Additional side and bottom M10 points for flexible bracket, rigging and installation options

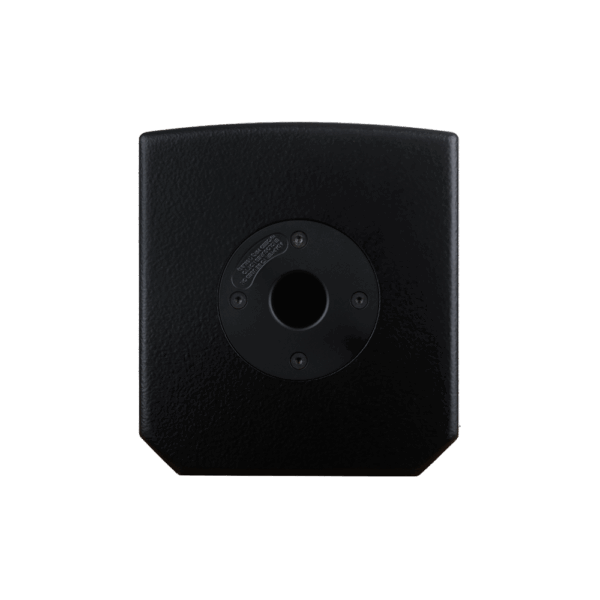

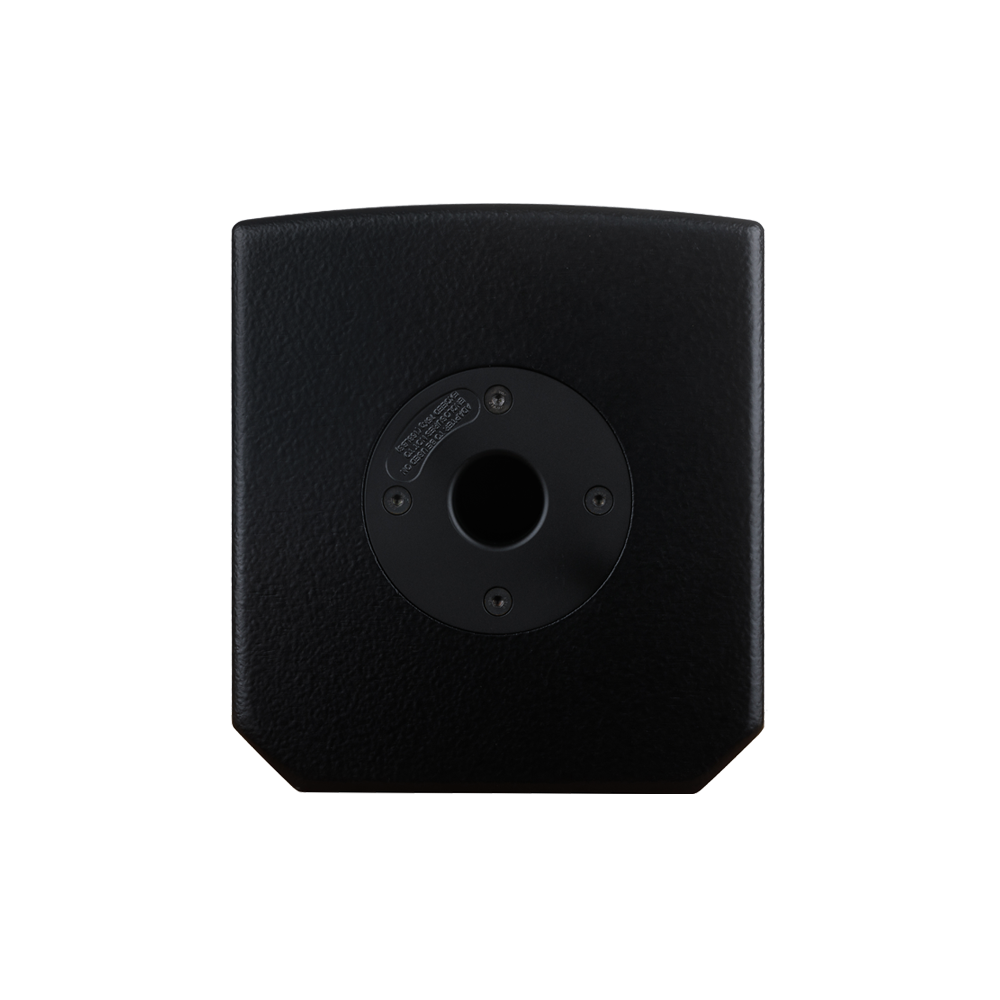

  • "Top-hat" pole mount fitted at the base of the cabinet

System Acoustic Performance:

Max SPL Long-term: 117dB
Max SPL Peak: 123dB
-3dB Response: 68Hz to 20kHz
-10dB Response: 51Hz to 28kHz
Recommended Power: 175W
Sensitivity: 92dB
Impedance: 16Ω
Crossover Point: 2.0kHz

High Frequency Section:

Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 100°
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Protection: RMS Limiter

Low Frequency Section:

Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 6" / 1.75"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter

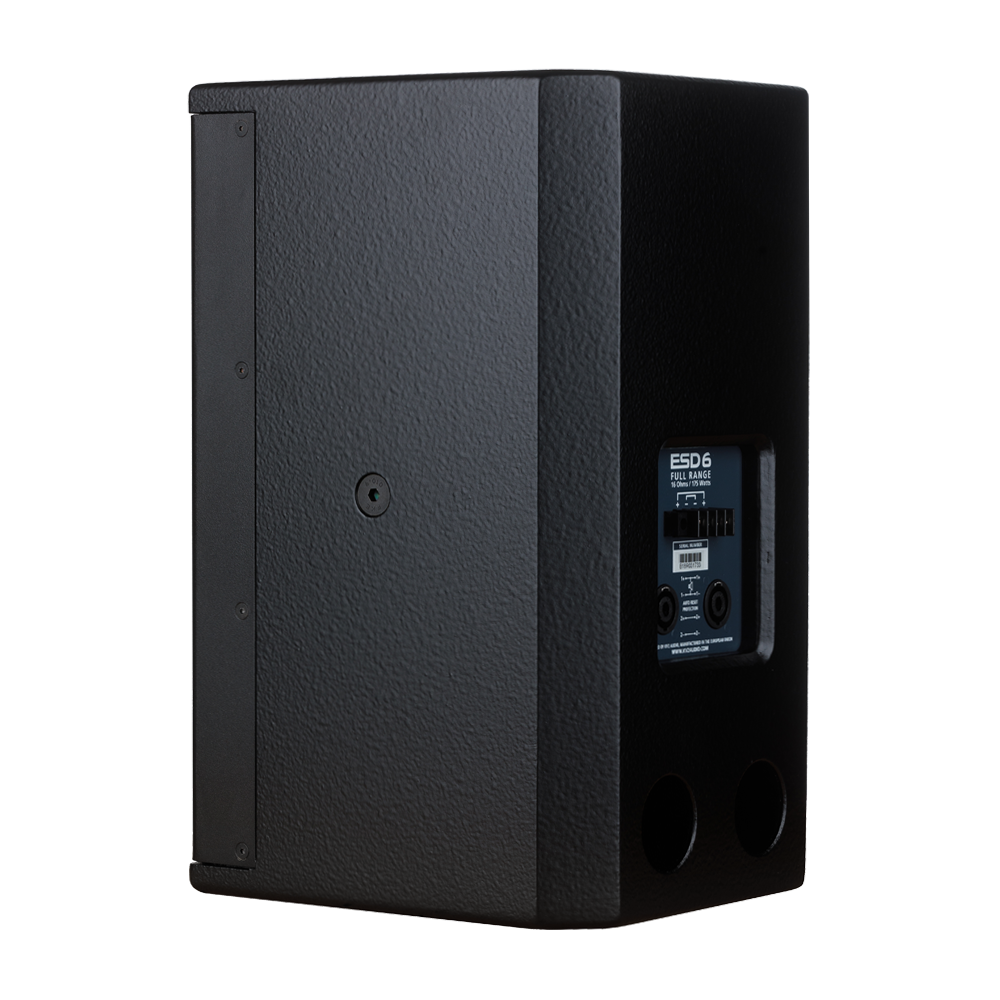

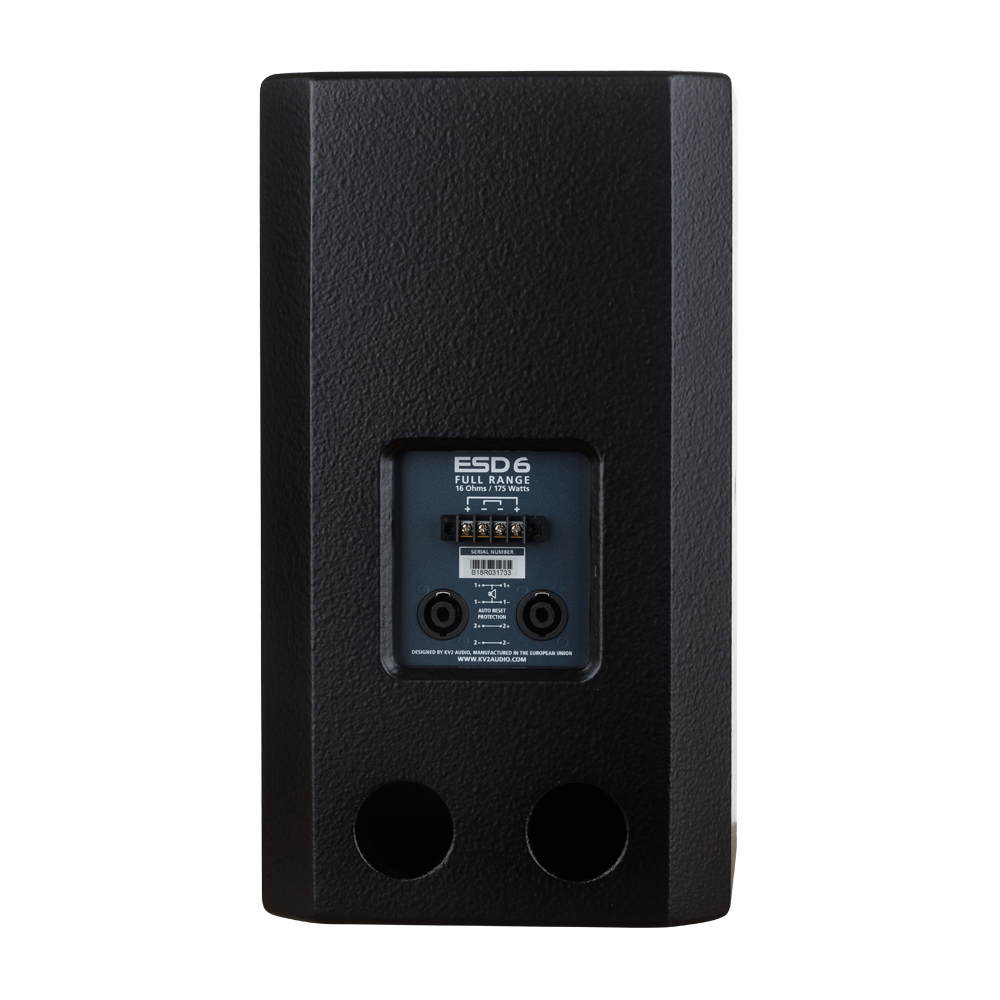

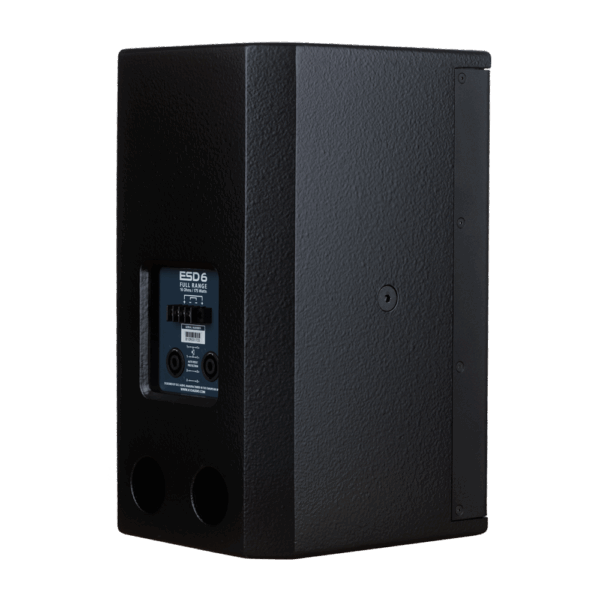

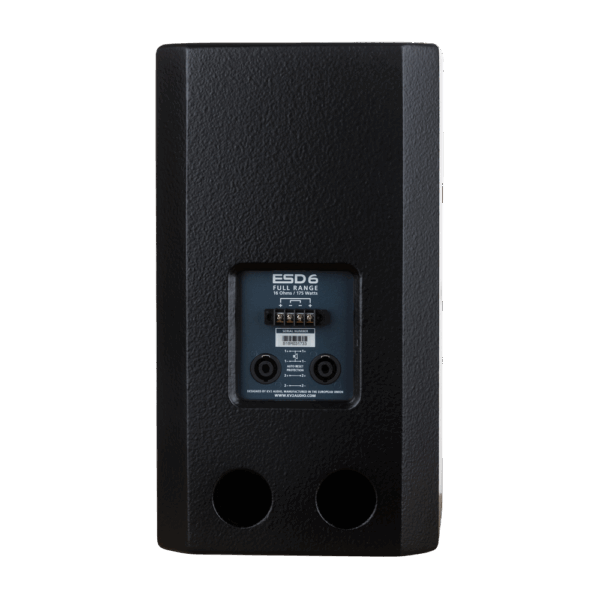

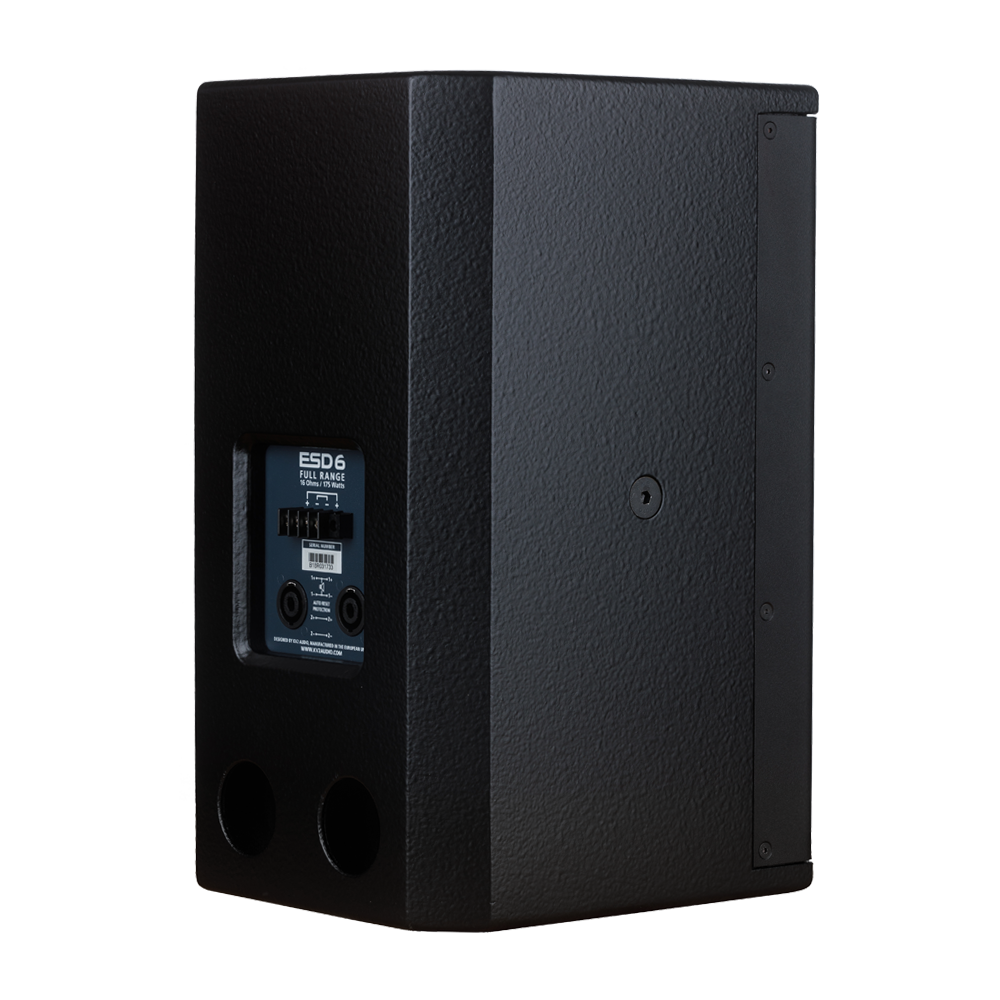

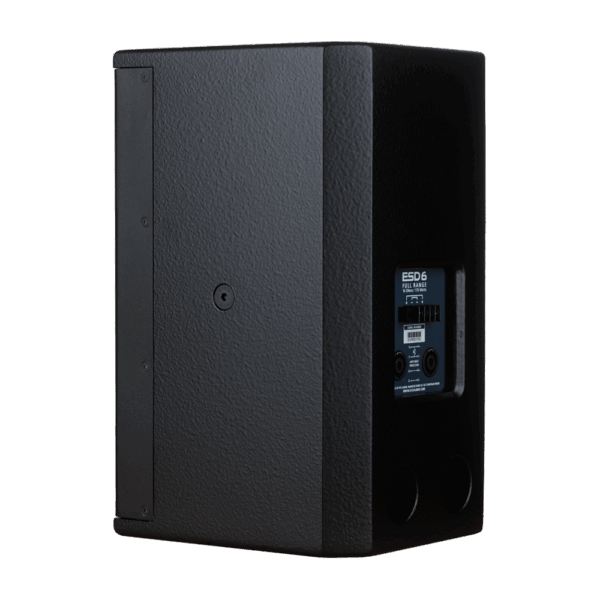

Speaker Input: 2x Neutrik Speakon®, Terminal Block

Cabinet:

Cabinet Material: Baltic birch
Handles 1
Pole Mount 35 mm
Color "Orange peeled" Matt Black or any RAL

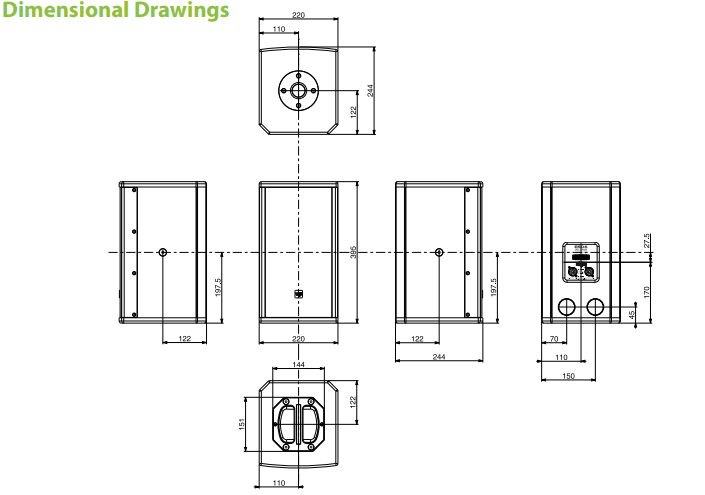

Physical Dimensions:

Height 390 mm (15.35")
Width 220 mm (8.66")
Depth 240 mm (9.45")
Weight 9.5 kg (20.9lbs)

Product code:

KVV 987 206 - ESD6



Technical Data Sheet can be viewed here
Official Product page can be viewed here

Application: Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas

● Suitable in Fixed installations as full range stand-alone or with subwoofers ● Excellent peripheral reinforcement for main KV2 systems ● Portable PA for Multi-Media applications ● Compact floor monitoring solutions ● Domestic and Professional studio monitoring
