Brand: KV2 Audio
Model: ESD36
Type: Passive 3 way speaker
Description:

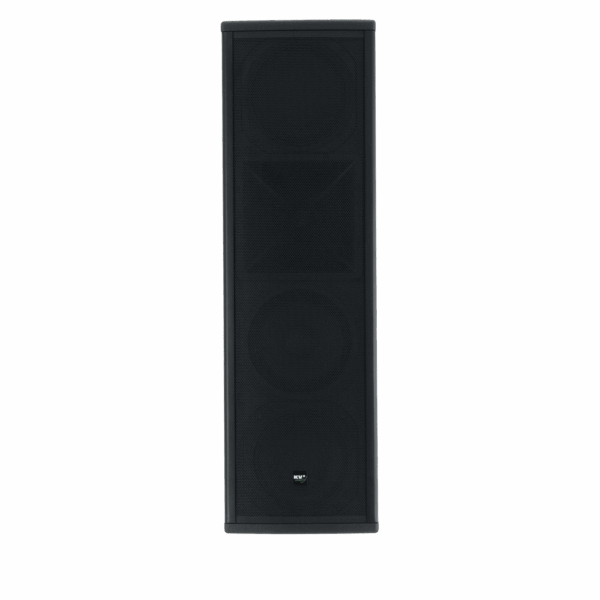

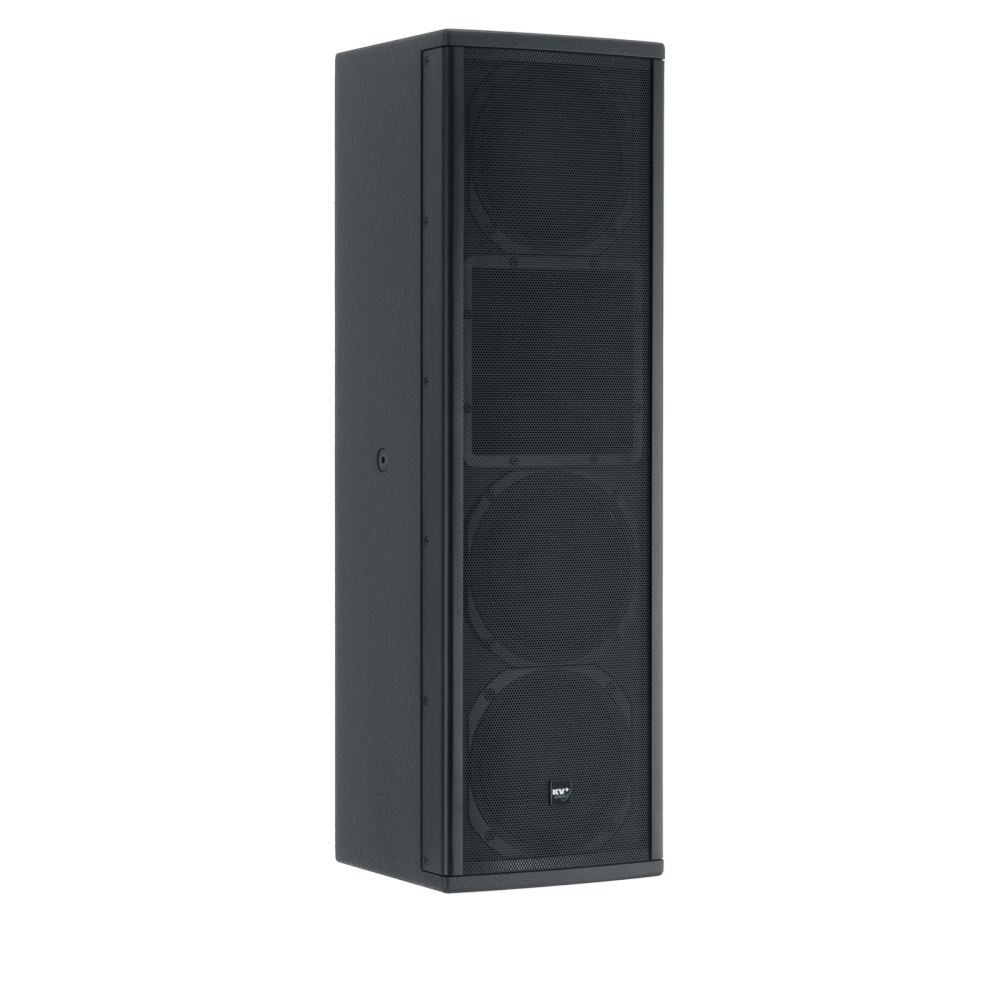

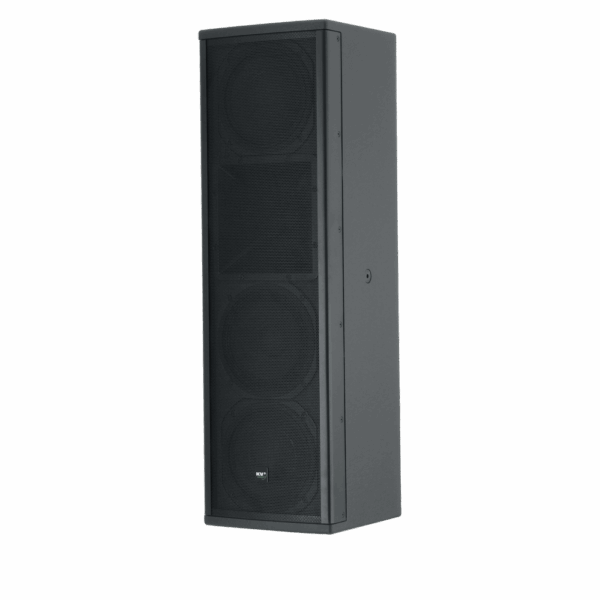

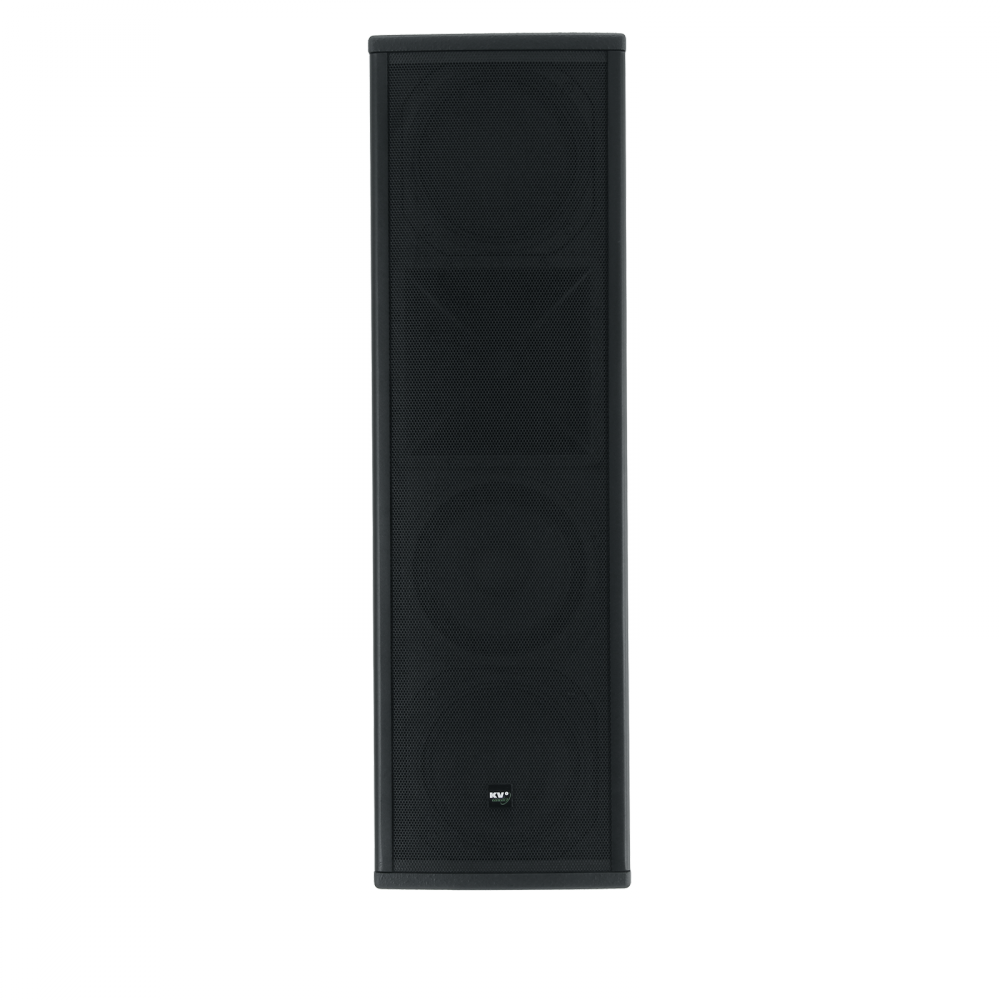

One of the more unique loudspeakers offered by KV2 Audio the ESD36 is a passive, full-range 3-way speaker system for speech and music reproduction. The ESD36 features a 6" driver dedicated to high quality mid-range reproduction and a further two low frequency 6" drivers for enhanced bass extension. Alongside the same compression driver as featured in the popular EX6, the ESD36 offers comparable performance to many 12" cabinets with an enhanced vocal performance from this 3-way design.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 122dB sustained output, 125dB peak with very high dynamic range

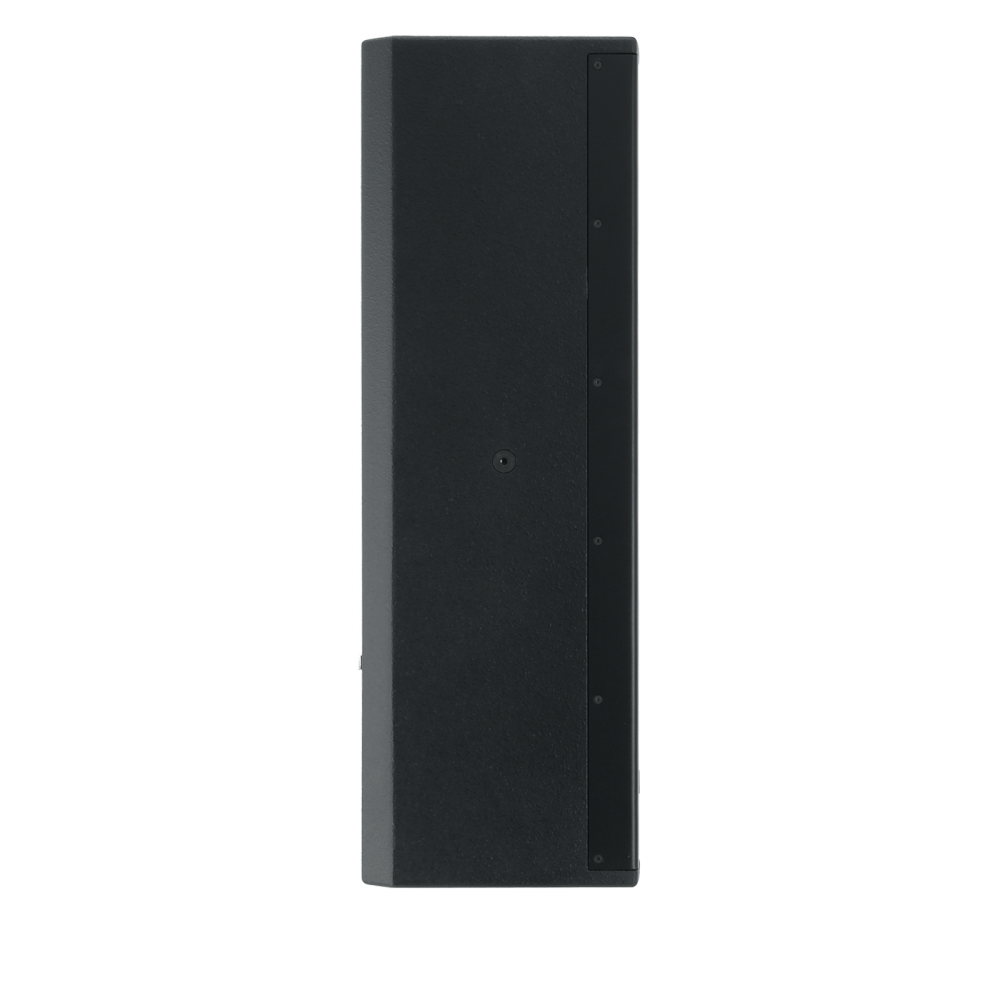

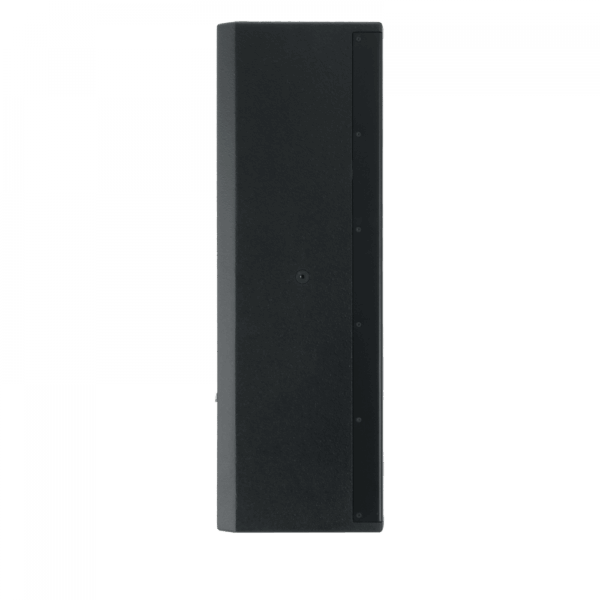

- Compact, asymmetrical cabinet design allows for use as front fill or in under balcony applications
- Wide dispersion 100° H x 100° V horn
- Revolutionary new passive delay line
- 1.75" (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
- 6" Low Inductance Lightweight mid-range dedicated to high-quality vocal reproduction
- 2 x Low Inductance Lightweight low frequency woofers offer enhanced bass performance

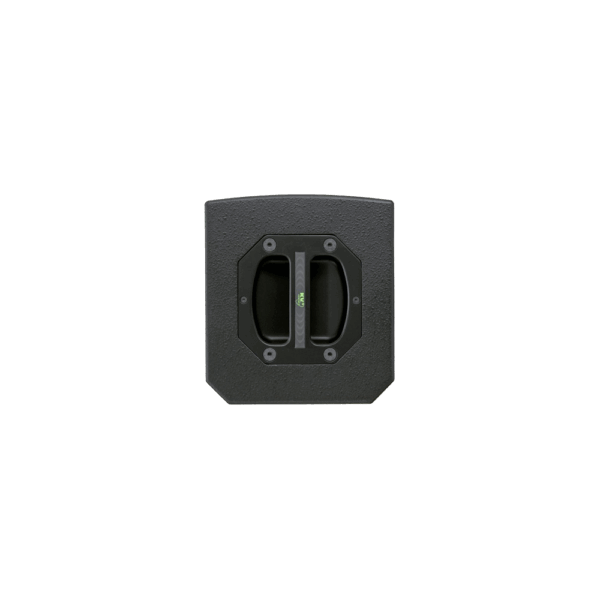

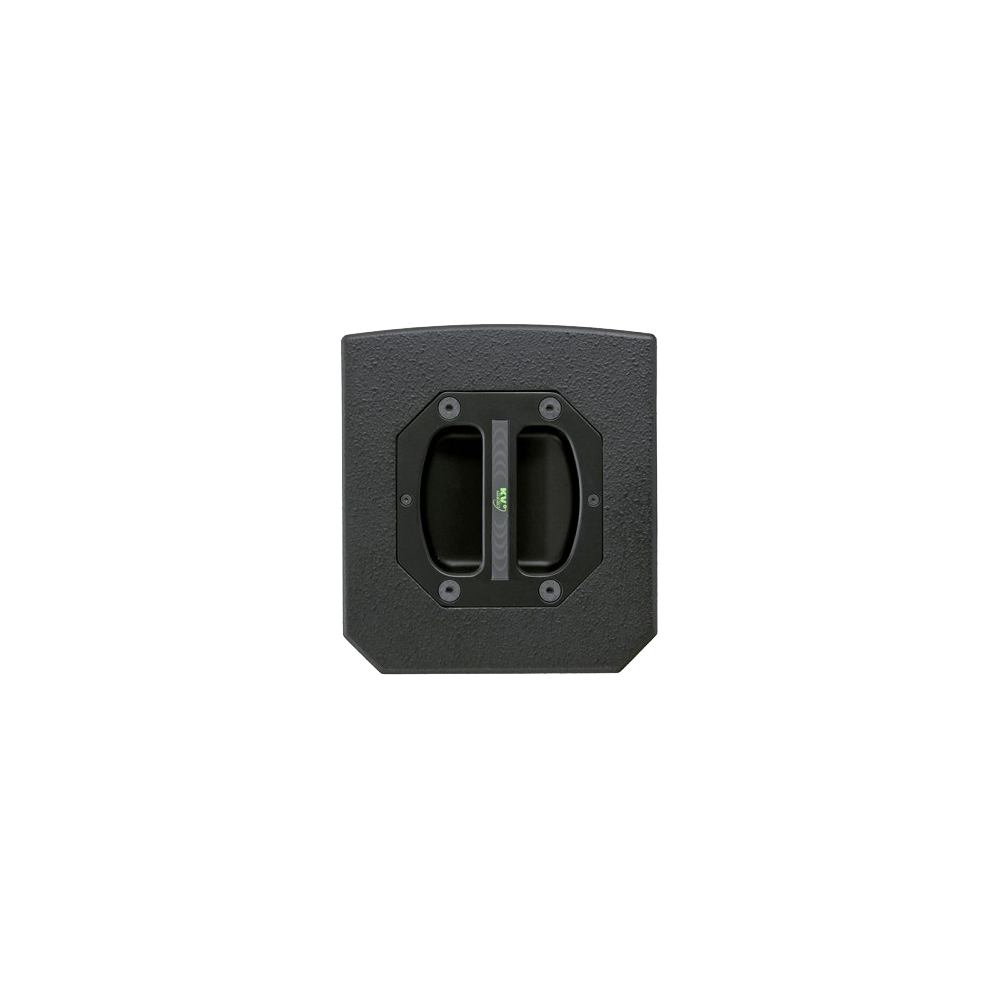

- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points

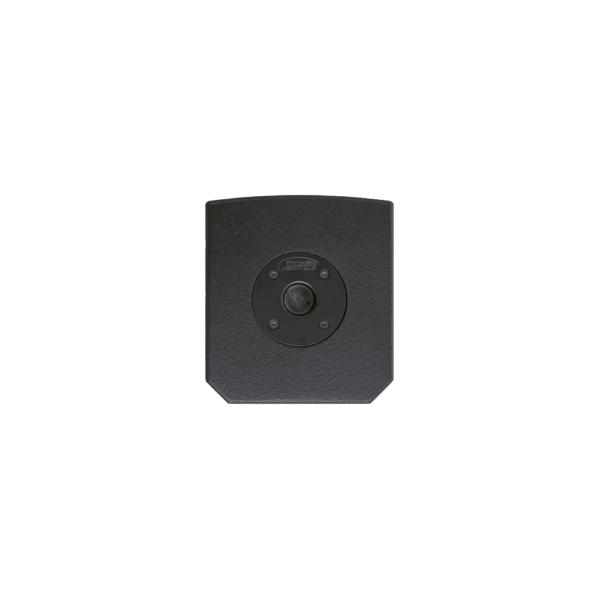

- Additional side and bottom M10 points for flexible bracket, rigging and installation options

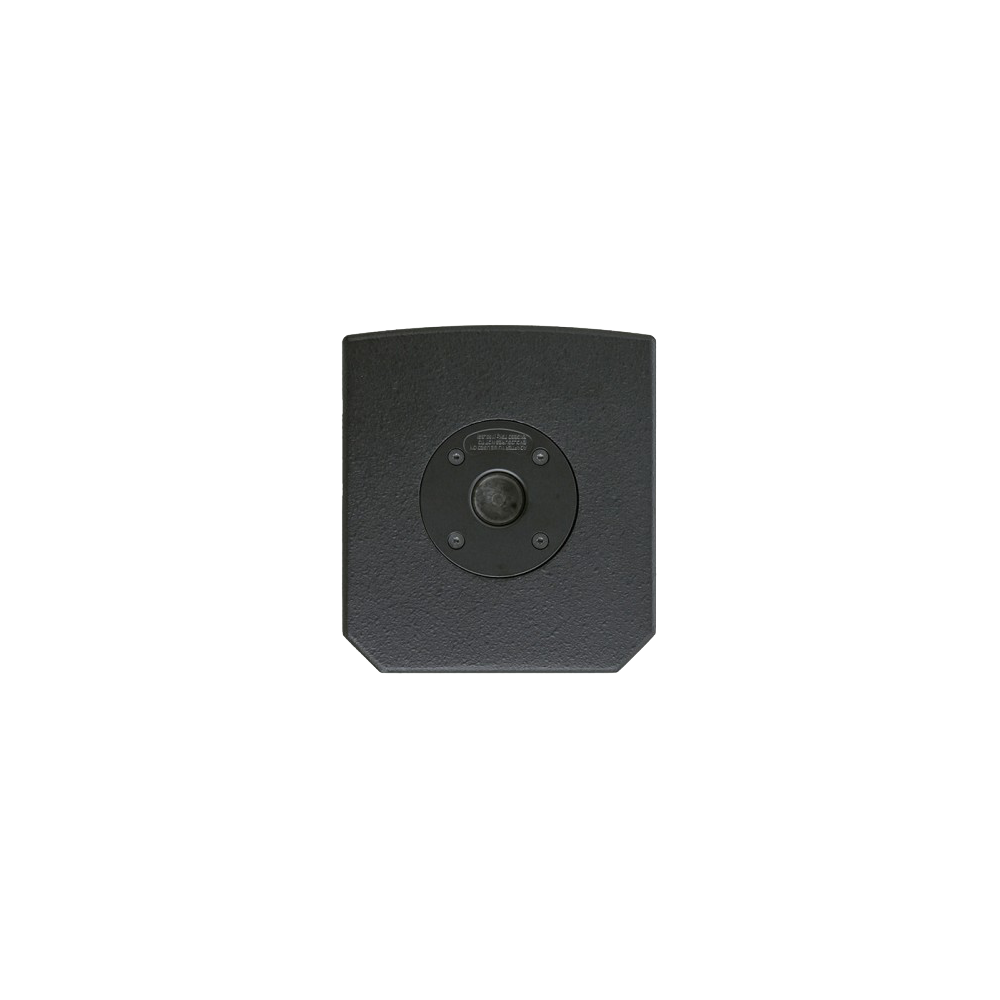

- "Top-hat" pole mount fitted at the base of the cabinet
System Acoustic Performance:
Max SPL Long-term: 122dB
Max SPL Peak: 128dB
-3dB Response: 65Hz to 25kHz
-10dB Response: 57Hz to 30kHz
Recommended Power: 350W
Sensitivity: 94dB
Impedance: 8Ω
Crossover Point: 600Hz, 2.5kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 100°
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Protection: RMS Limiter
Mid Range Section:
Acoustic Design: Sealed enclosure
Woofer Size / Voice Coil Diameter / Design: 6" / 1.75"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 2 x 6" / 1.75"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter

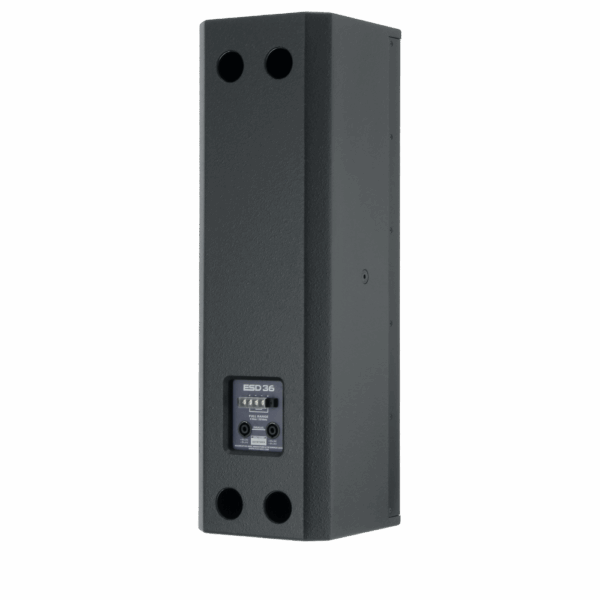

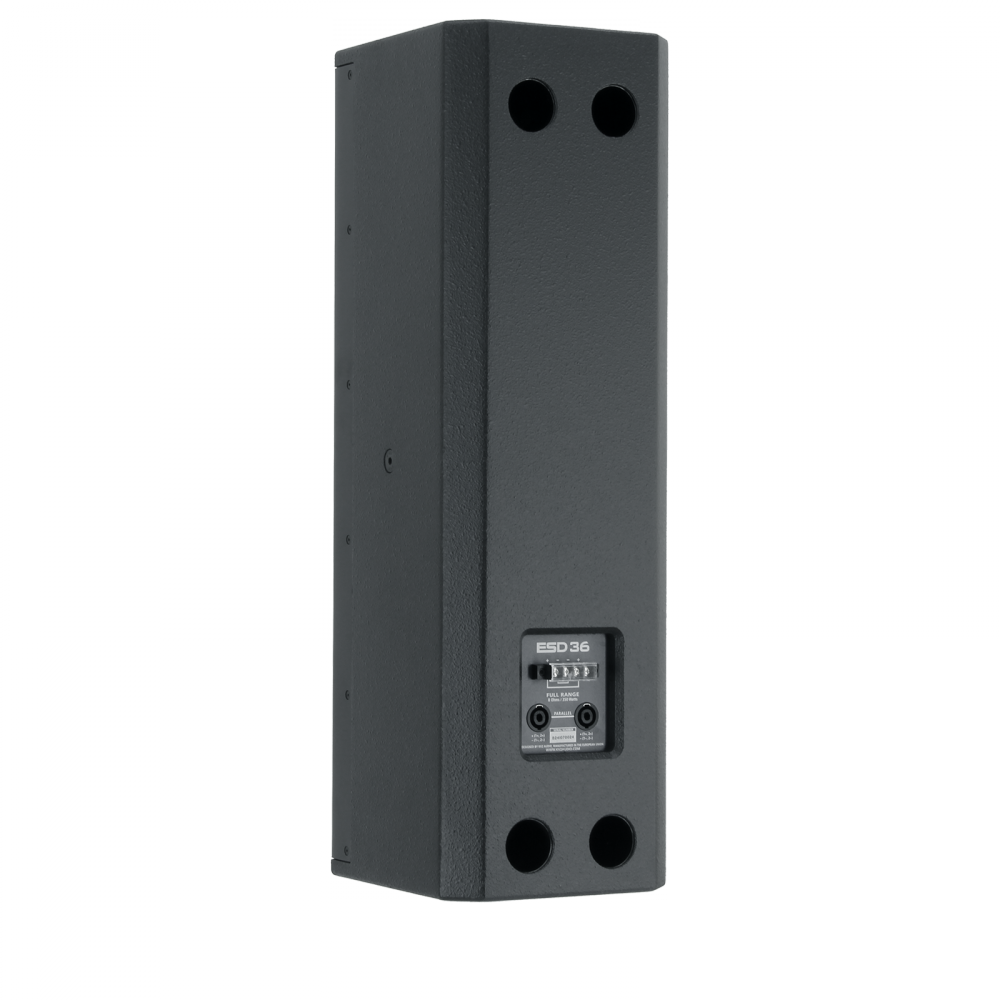

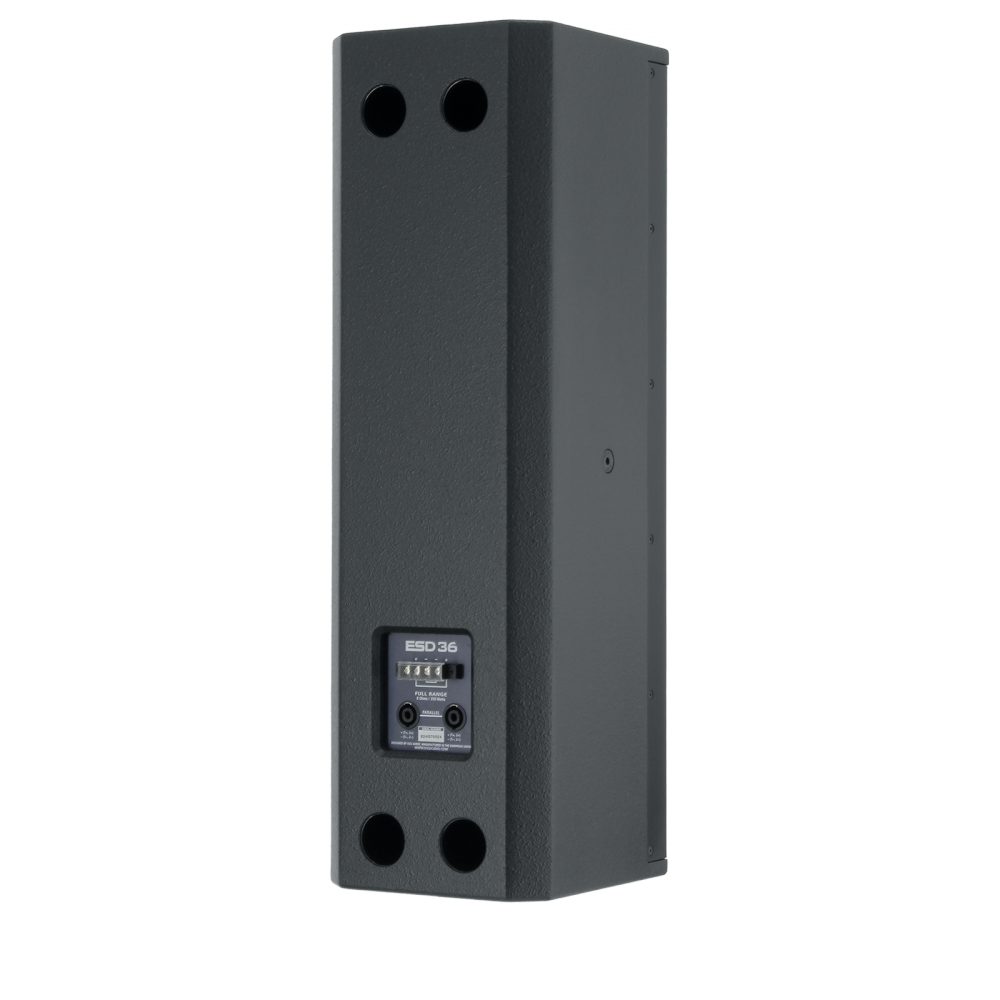

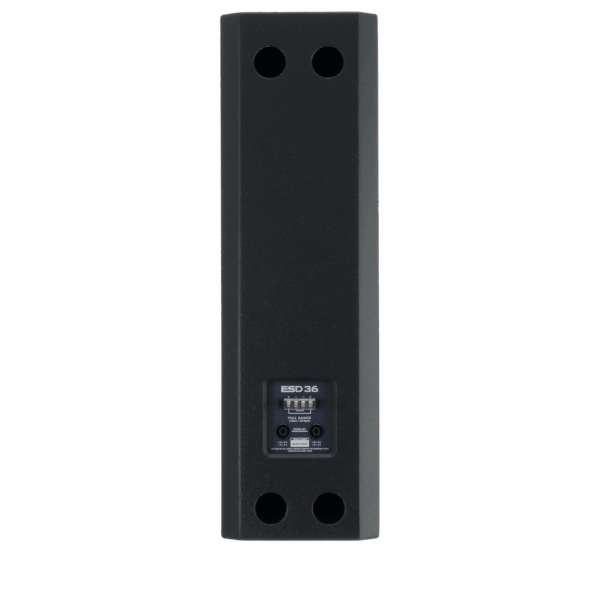

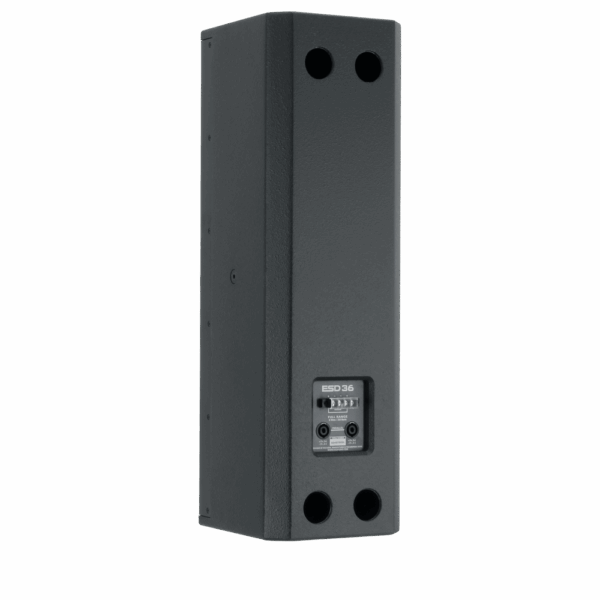

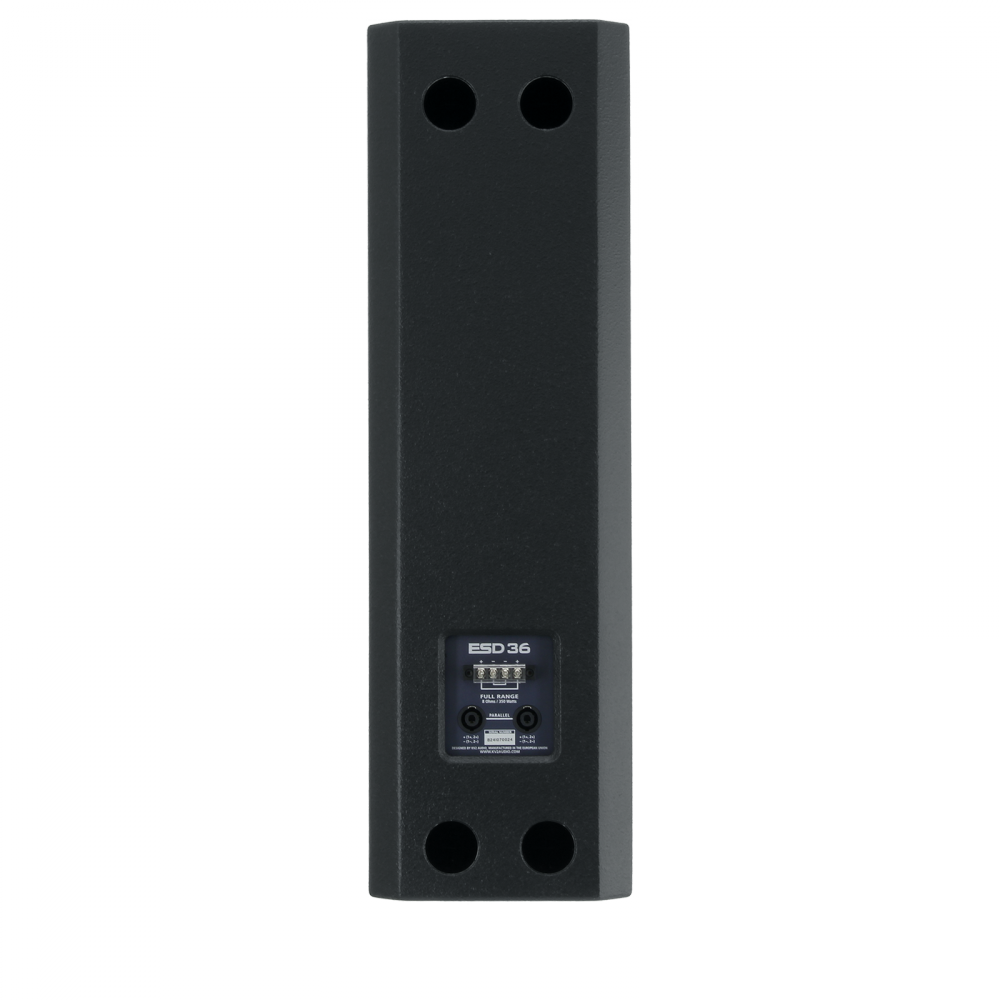

Speaker Input: 2x Neutrik Speakon®, Terminal Block
Cabinet:
Cabinet Material: Baltic birch
Handles: 1
Pole Mount: 35 mm
Color: "Orange peeled" Matt Black or any RAL

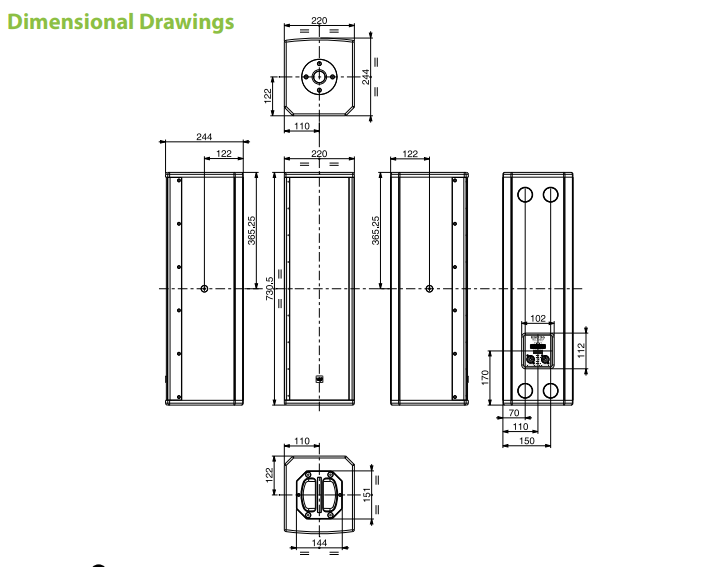

Physical Dimensions:
Height: 730.5 mm (28.76")
Width: 220 mm (8.66")
Depth: 244 mm (9.60")
Weight: 17.6 kg (38.8lbs)
Product code:
KVV 987 224 - ESD36
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas
● Suitable in Fixed installations as full range stand-alone or with subwoofers ● Multi-purpose fixed installations ● Domestic and Professional studio monitoring
