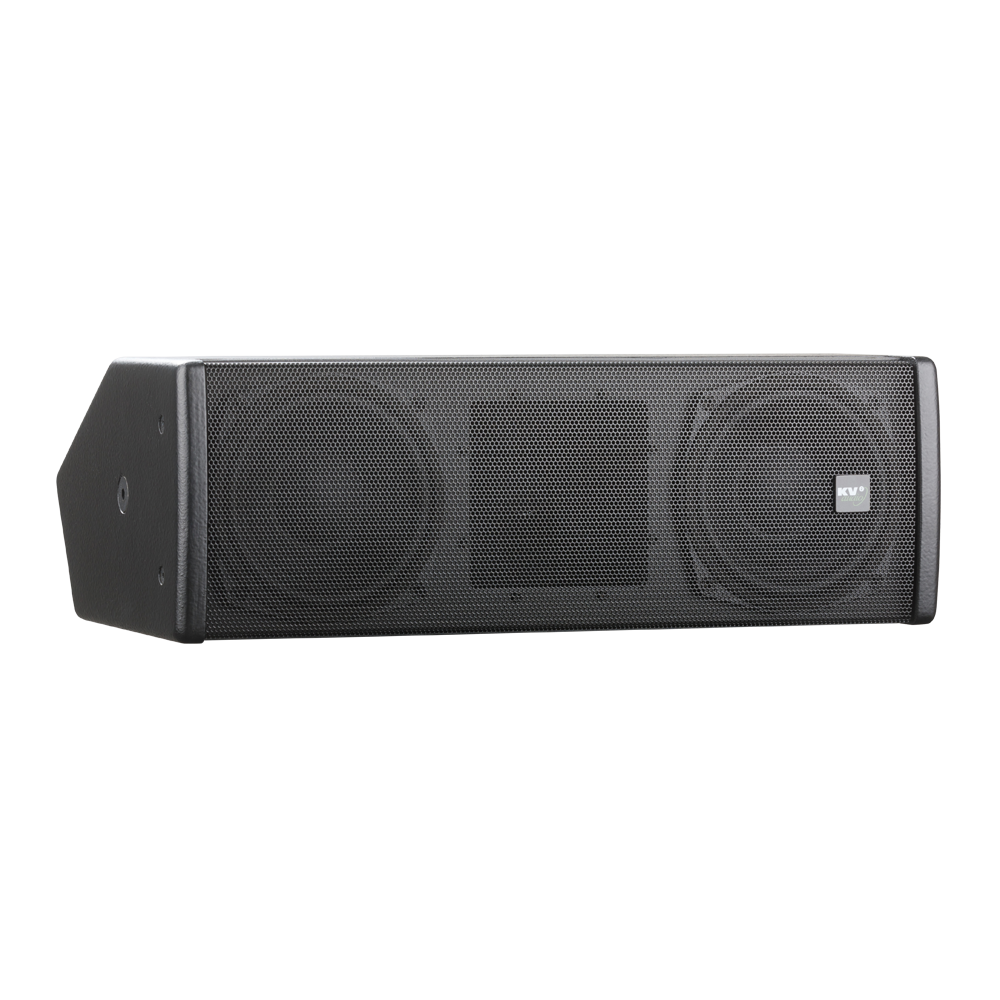

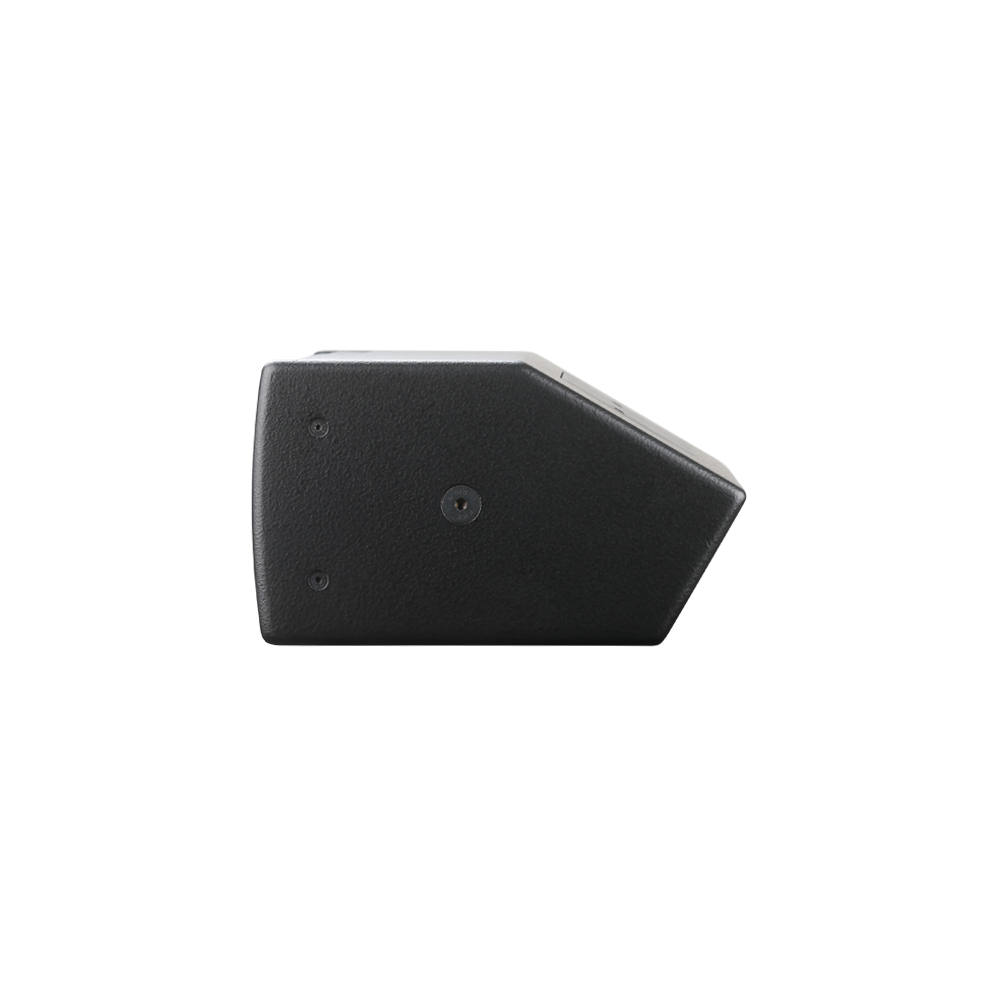

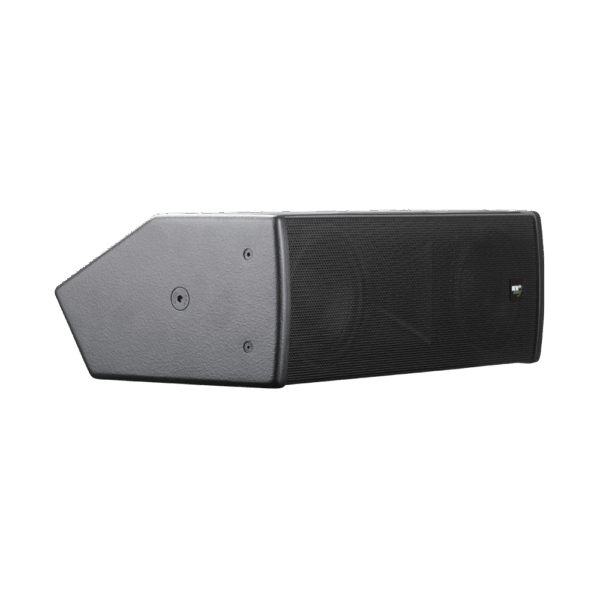

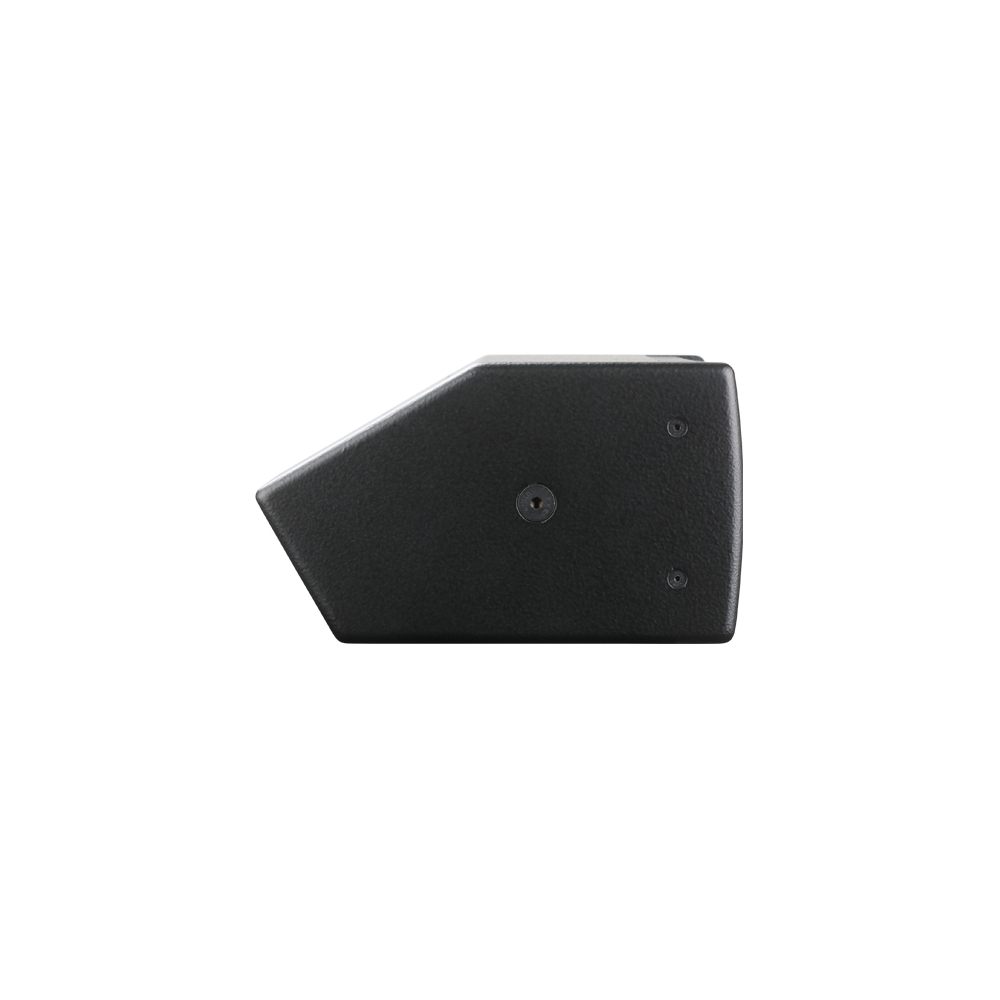

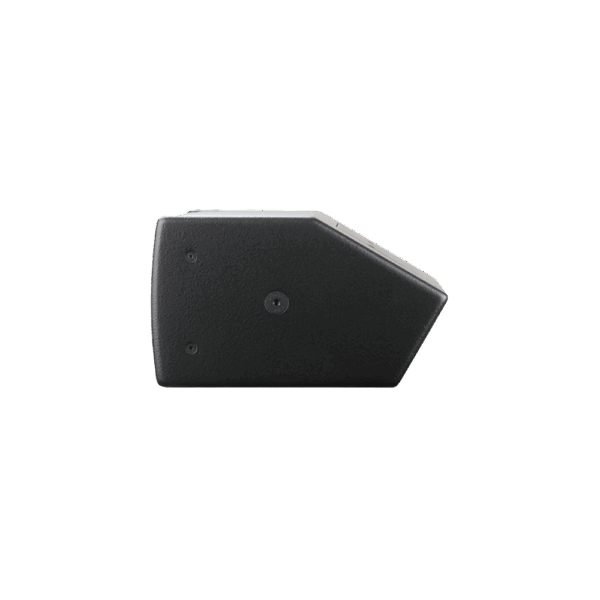

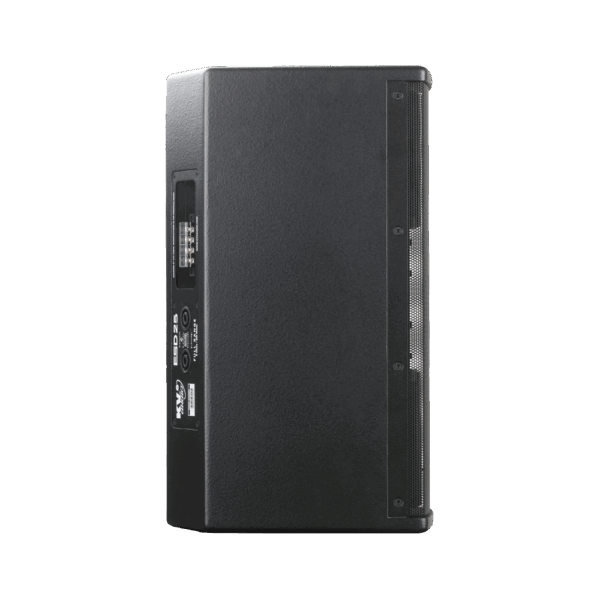

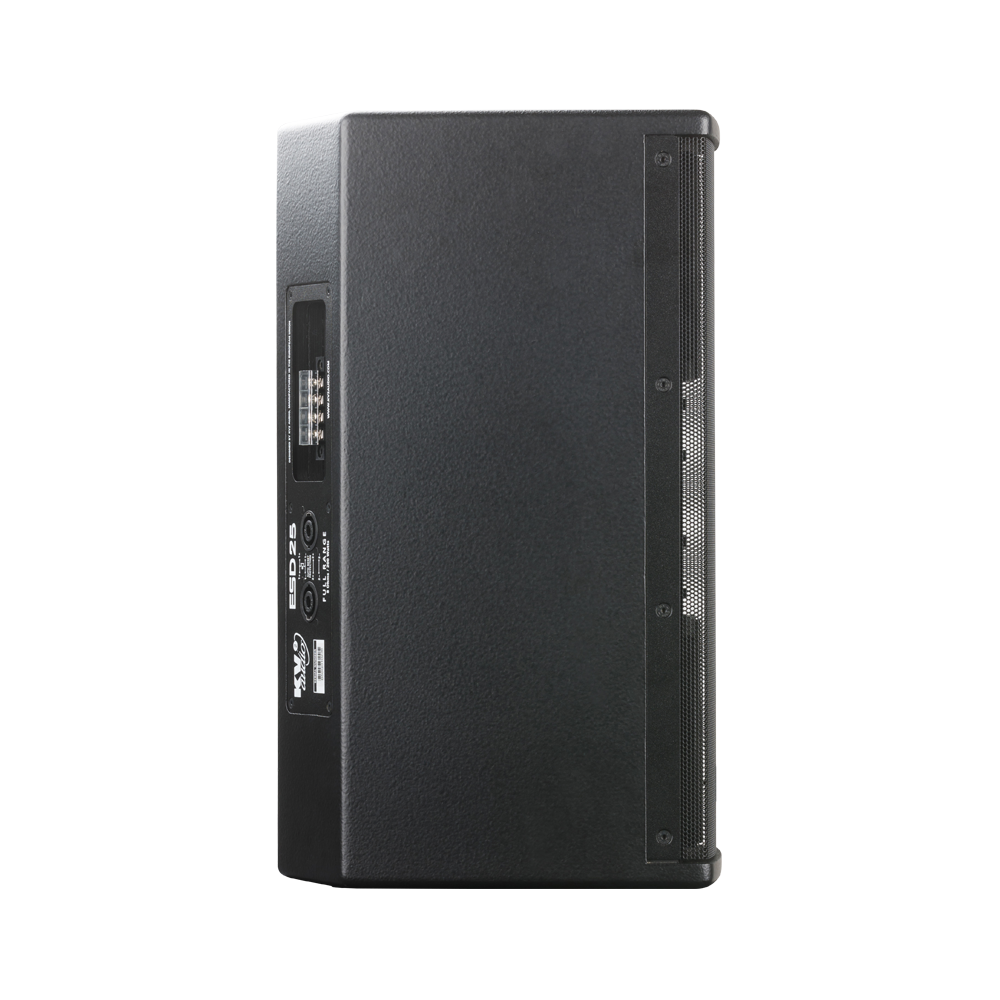

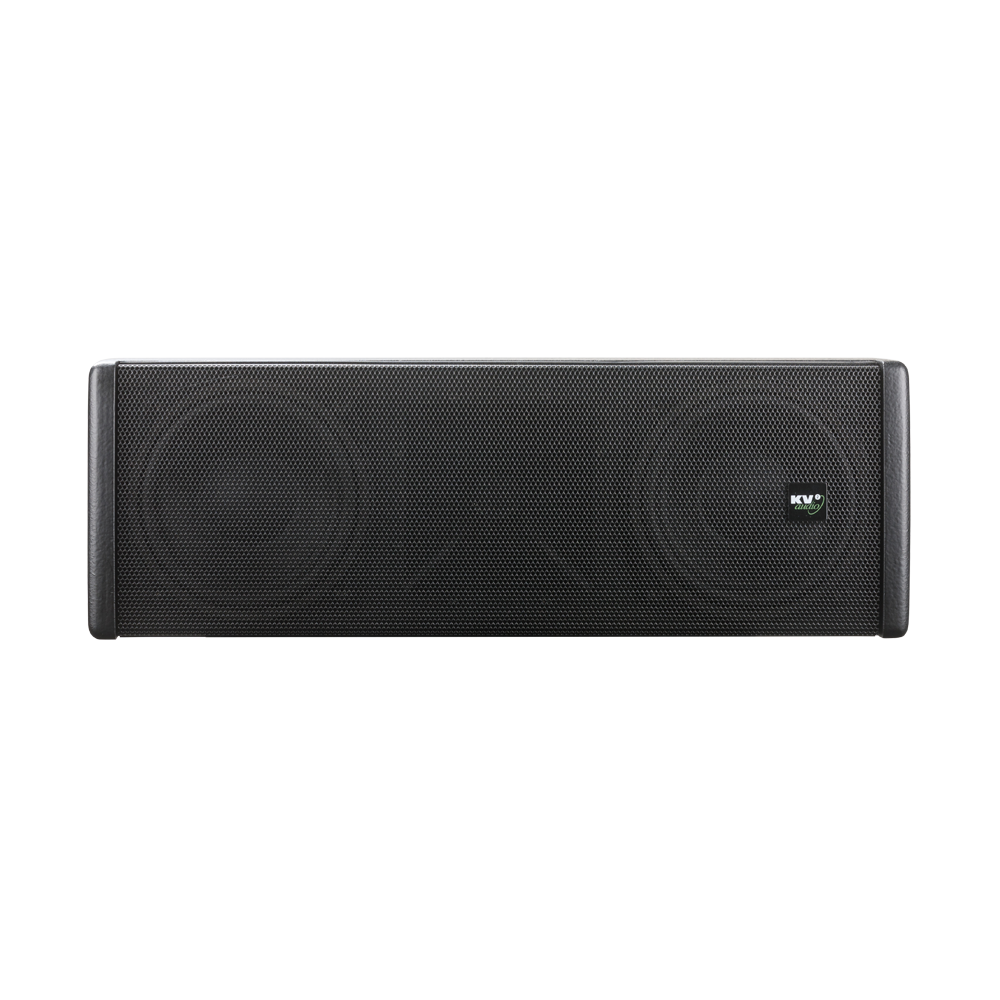

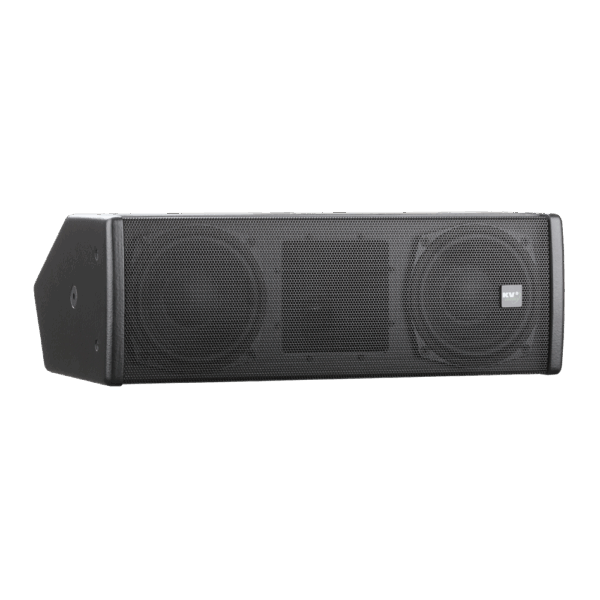

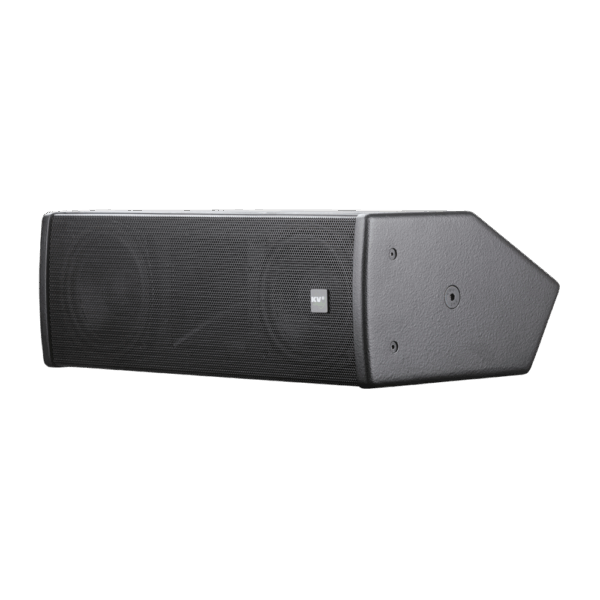

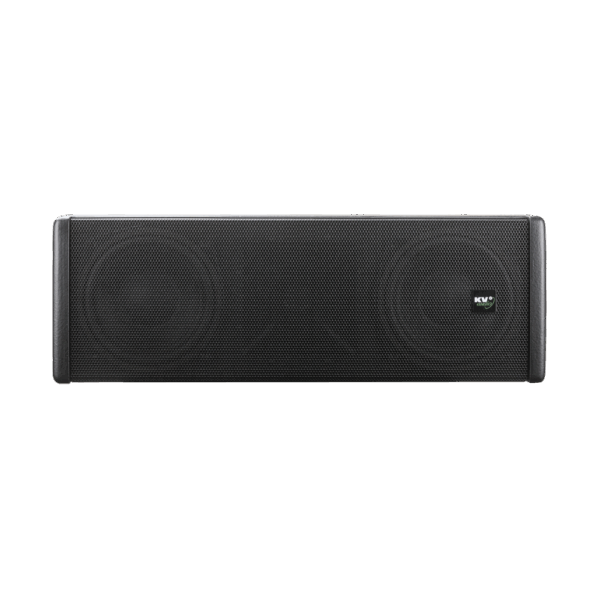

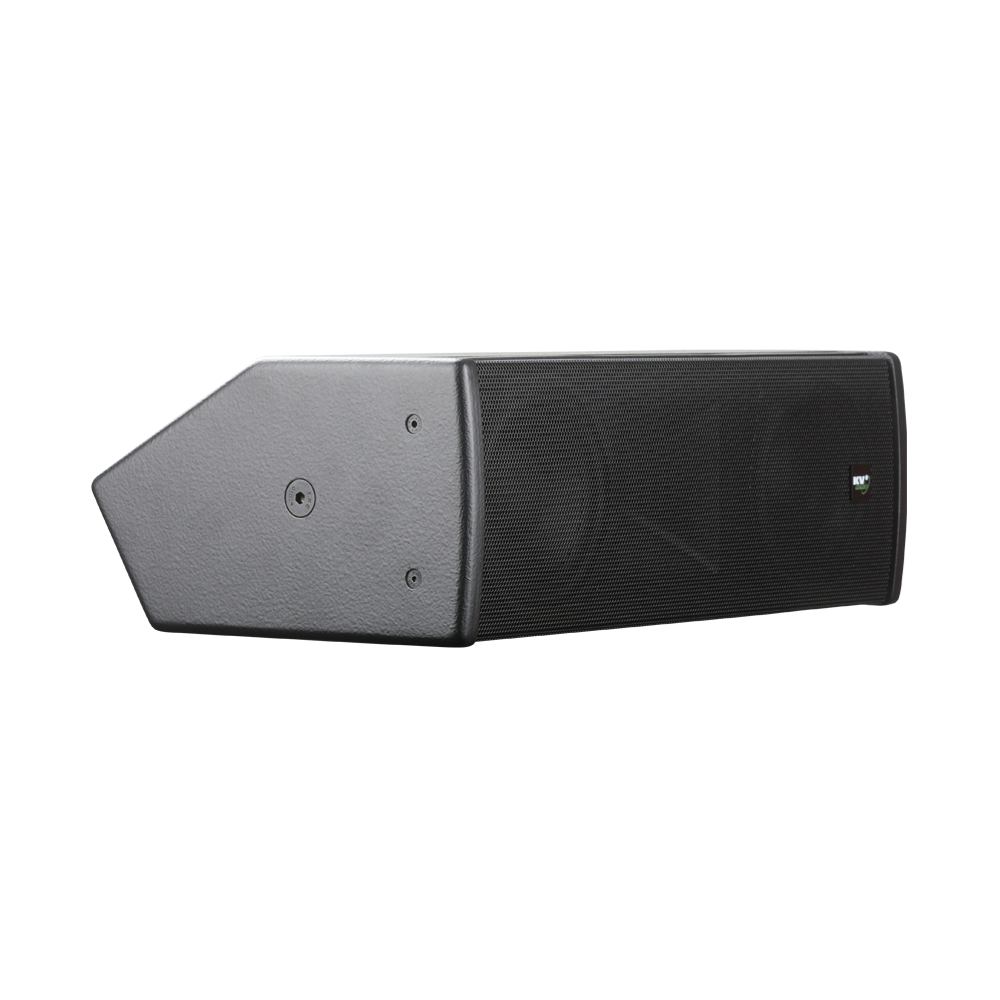

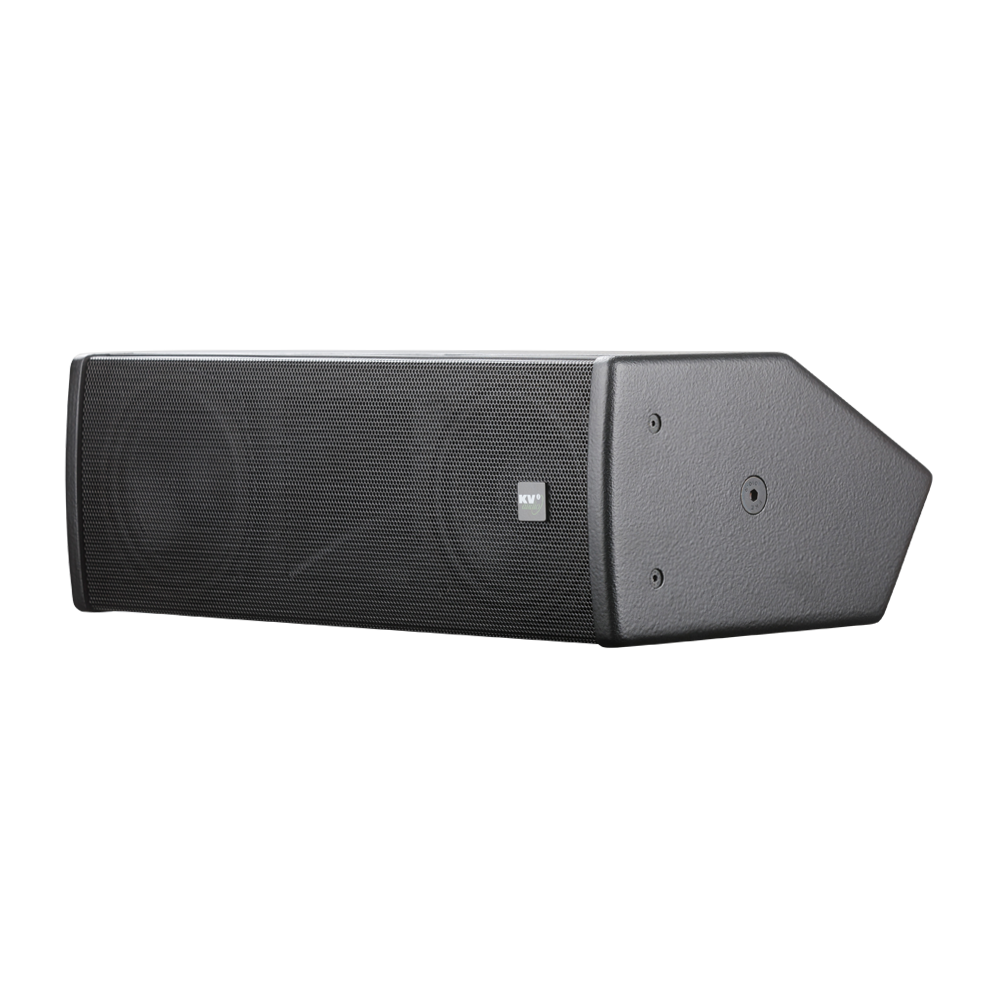

ESD25 - 2-way Passive speaker

Original price was: €1.325,49 / 2.592,43 лв..Current price is: €1.121,49 / 2.193,44 лв..

Out of stock

Free delivery over 250 EUR (NOT APPLICABLE TO SOUNDPROOFING)
Warranty included!
Експертна консултация

Specifically designed as a super- discreet passive loudspeaker for reproduction of recorded music and speech

  • 2-way
  • 120dB
  • Horn: 90° x 90°
SKU: Л3233 Categories: , ,

Brand: KV2 Audio

Model: ESD25

Type: Passive 2 way speaker

Description

The ESD25 is a very high quality 2-way full-range compact low profile passive loudspeaker with increased lower bass extension than the smaller ESD5. Its opposing driver design assists with pattern control of the low mid frequencies reducing reflections in reverberant spaces and improving intelligability. Delivering exceptional clarity for speech and program reproduction the ESD25 is ideal for under balcony or front stage fill applications in theatres and performing arts spaces where transparent supplementation of the main system is required. As with the already widely acclaimed ESD5 the ESD25 is shaped to fit discreetly into these applications and comes with its on integral bracket for quick installation.

Technical characteristics:

Features:

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 120dB sustained output, 123dB peak with very high dynamic range
  • Compact cabinet design allows for use as front fill, in-fill or under balcony applications
  • Wide dispersion 90° H x 90° V horn
  • Revolutionary new passive delay line
  • 1/1.3" (34,4 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and ferrite magnetic motor structure
  • Two 5" woofers with Low Inductance Lightweight voice coil technology and motor structure dramatically increases force and lowers distortion

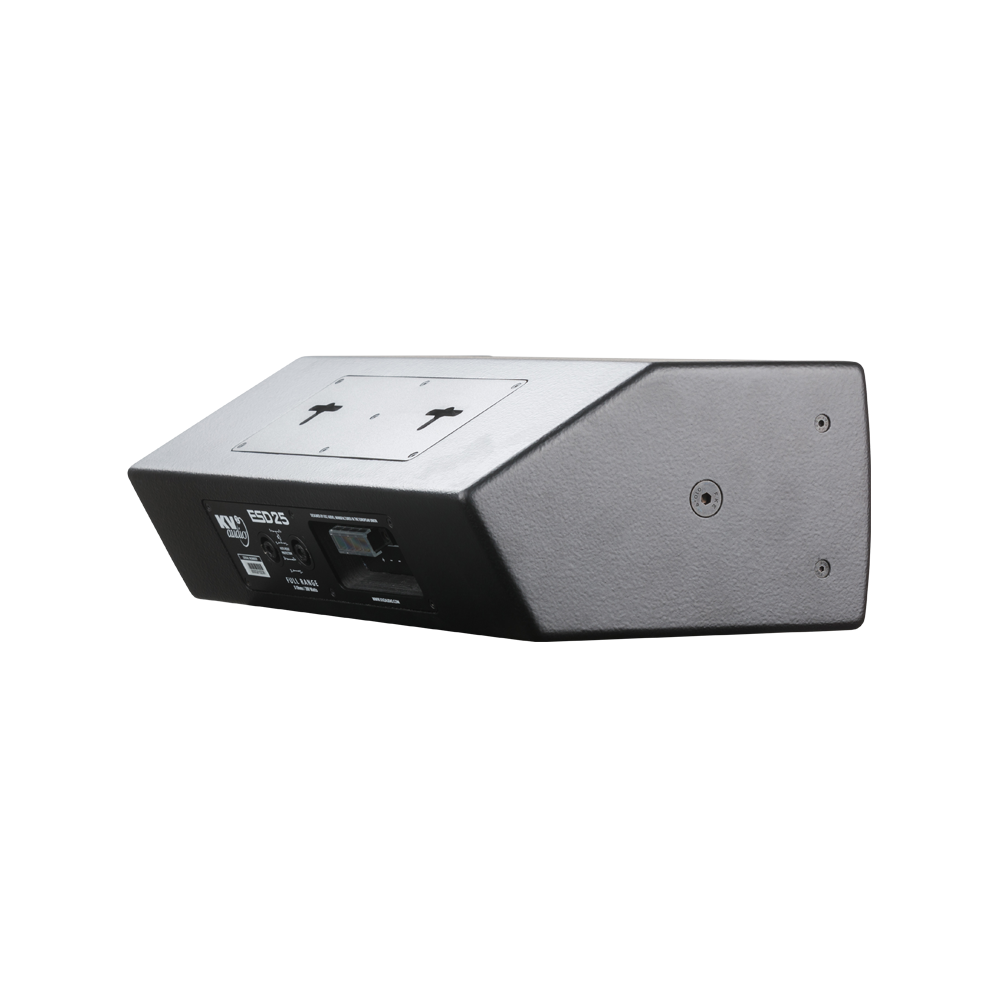

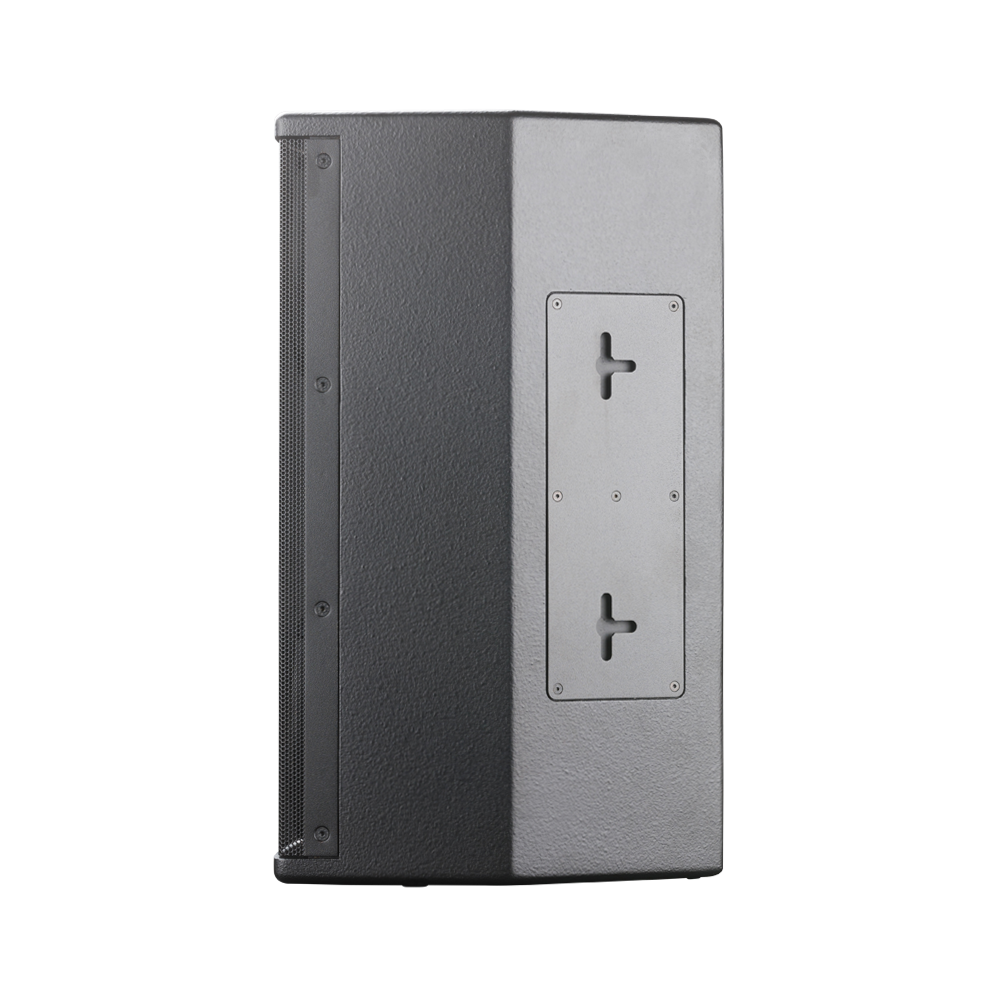

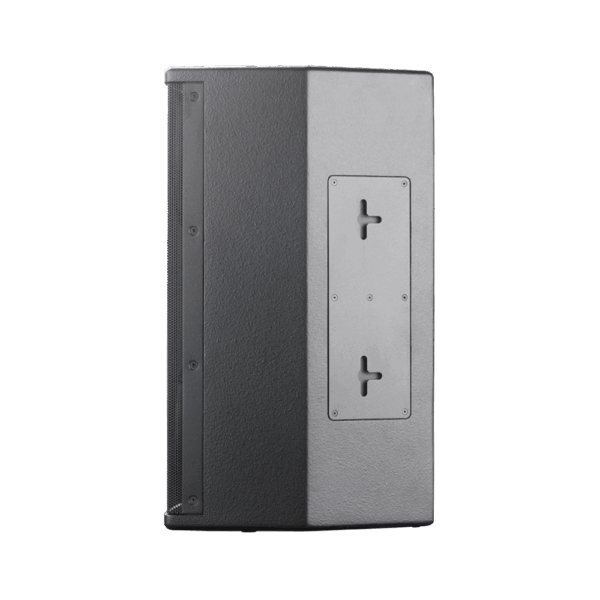

  • Proprietary design for simplified mounting integrates two M10 suspension points

System Acoustic Performance:

Max SPL Long-term: 118dB
Max SPL Peak: 124dB
-3dB Response: 120Hz to 22kHz
-10dB Response: 72Hz to 28kHz
Recommended Power: 200W
Sensitivity: 92dB
Impedance: 8Ω
Crossover Point: 3.0kHz

High Frequency Section:

Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 90° x 90°
Throat Exit Diameter / Diaphragm Size: 1 / 1.3"
Diaphragm Material: Titanium
Magnet Type: Ferrite
Protection: RMS Limiter

Low Frequency Section:

Acoustic Design: Closed box
Number of Drivers: 2
Woofer Size / Voice Coil Diameter / Design: 5" / 1.75"
Magnet Type: Ferrite
Diaphragm Material: Epoxy Reinforced Cellulose
Protection: RMS Limiter

Speaker Input:

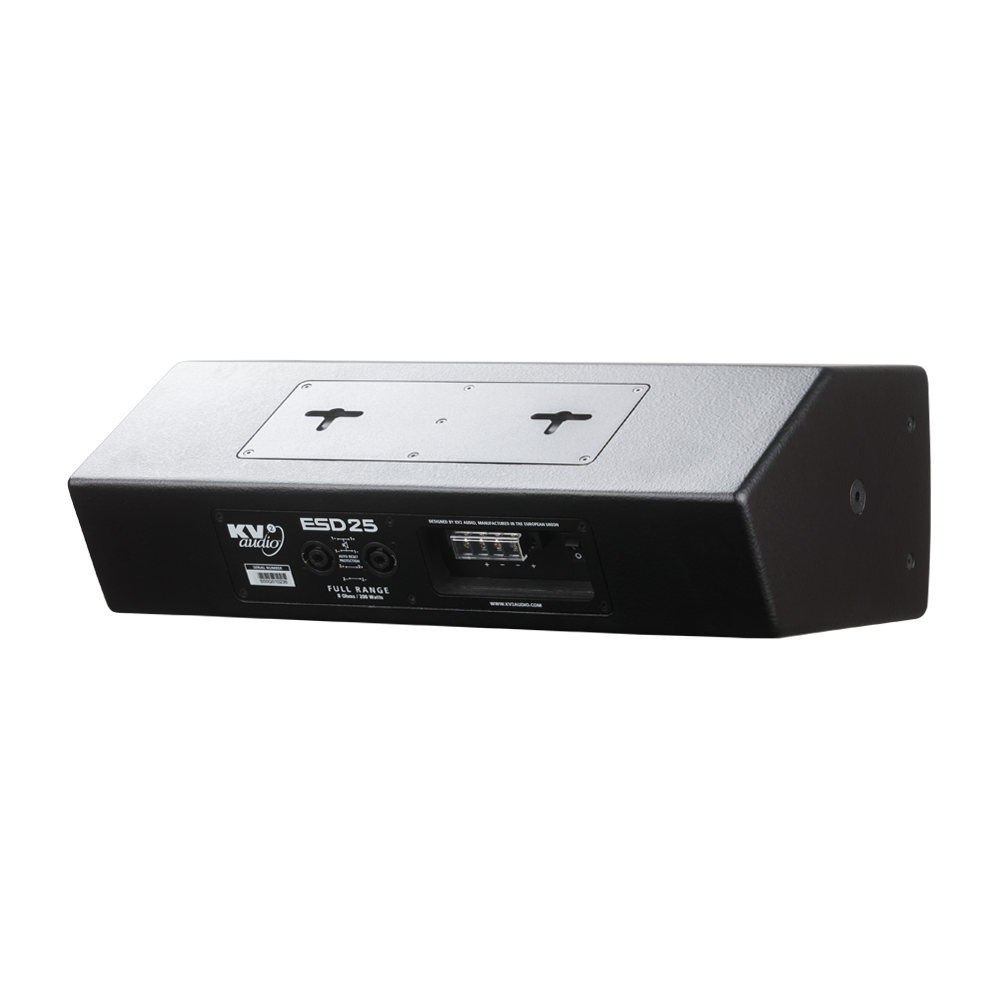

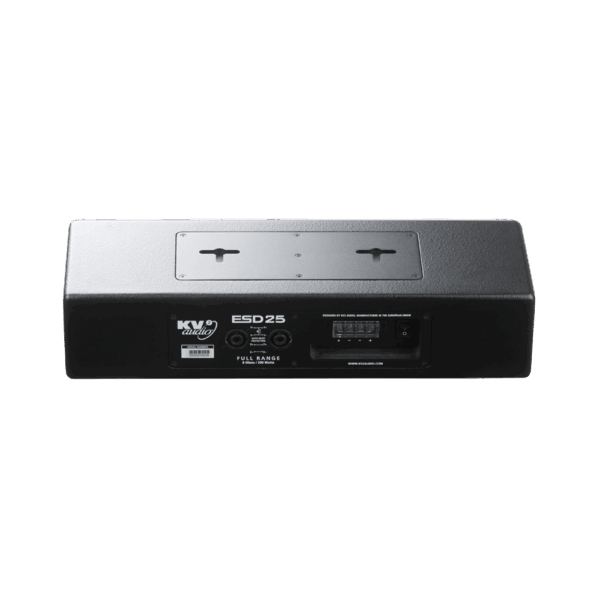

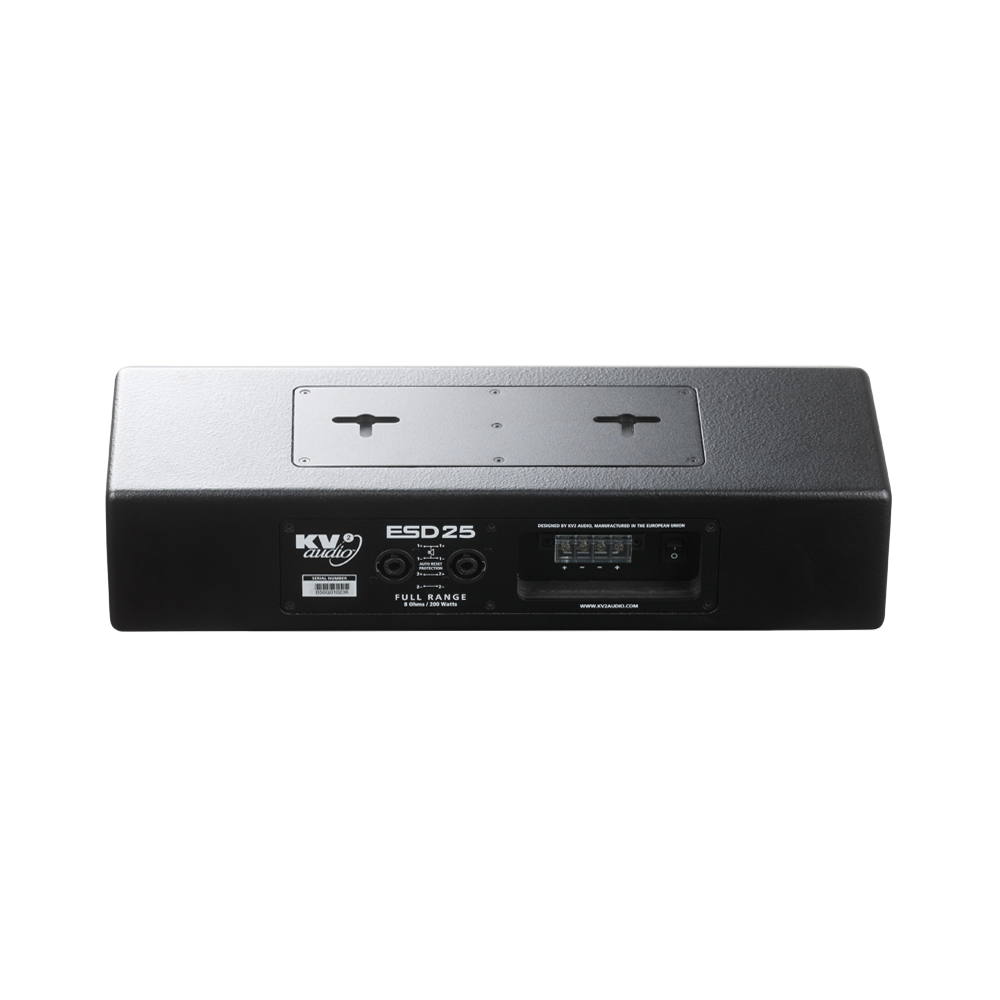

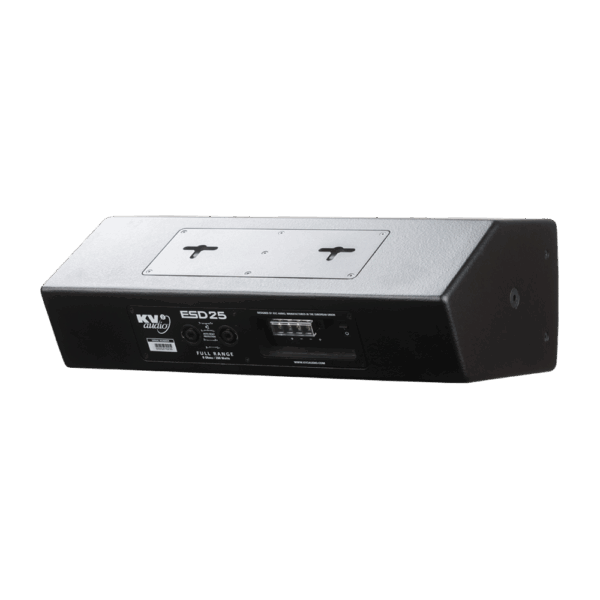

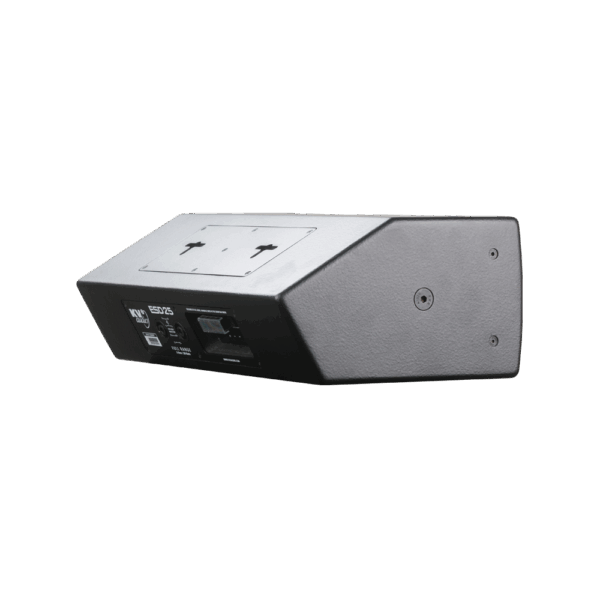

Speaker Input: 2x Neutrik Speakon®, Terminal Block

Cabinet:

Cabinet Material: Baltic birch
Color: Orange peeled Matt Black or any RAL

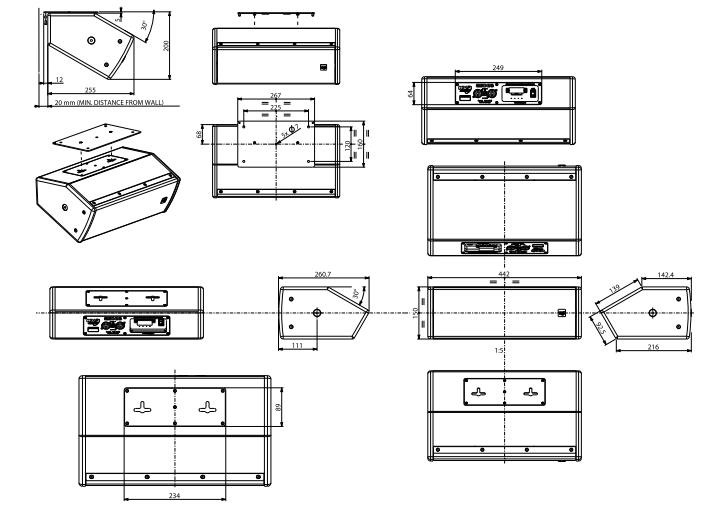

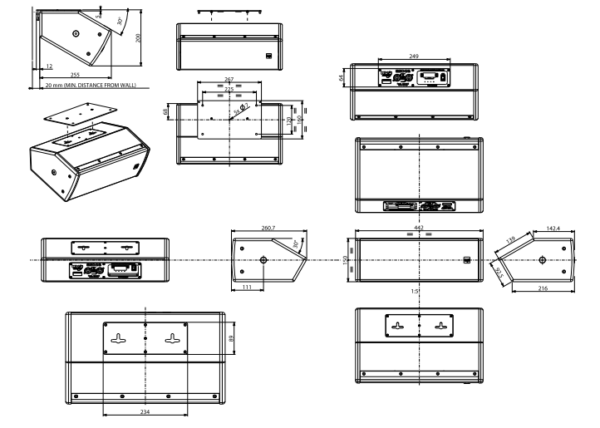

Physical Dimensions:

Height 150 mm (5,9")
Width 442 mm (17.4”)
Depth 260 mm (10.24”)
Weight 9.6 kg (21.2lbs)

Product code:

KVV 987 368 ESD25

Technical Data Sheet can be viewed here
Official Product page can be viewed here

Application: Specifically designed as a super- discreet passive loudspeaker for reproduction of recorded music and speech

● Suitable in fixed installations as a full range speaker or as a system with accompanying subwoofers ● Excellent peripheral reinforcement for main KV2 systems ● Fill-in speaker ● Monitoring ● Ceiling or under balcony mounting
