Brand: KV2 Audio
Model: ES2.6
Type: High Output Subwoofer
Description:
Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

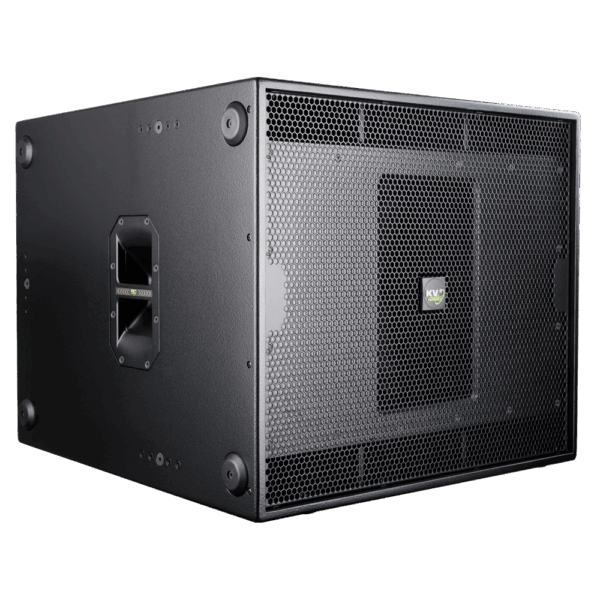

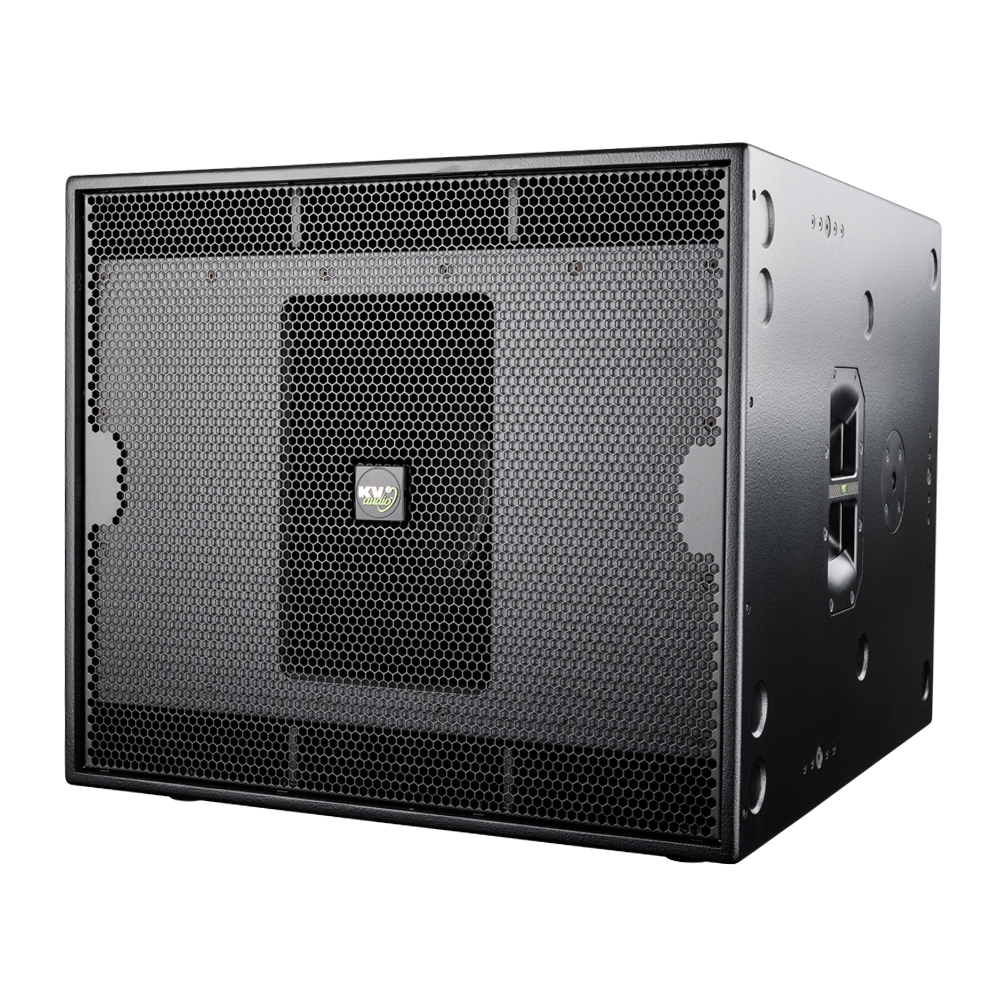

The ES2.6 (8 ohms) is a double 15", high output subwoofer designed for the ES Series speaker system. Using new concepts in twin asymmetrical acoustic chambers they deliver very high speaker loading and intense output from a relatively small cabinet footprint. Reproducing low frequencies with very high transient content, they are ideal for use in live applications or as part of a five way ES system utilising VHD1.21 and 2.21 subwoofers. Together with the ES1.0 and EPAK2500/R, the ES2.5/2.6 delivers the highest dynamic range of any other comparable system providing new levels of clarity, depth and resolution.
Technical characteristics:
Features:
- Professional, Baltic birch construction with highly resistant polymer coating
- 137dB sustained output 140dB peak (when using 2 units of ES2.6)
- High acoustic loading via twin asymmetrical chambers
- Two 15" low frequency drivers with 4" (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly

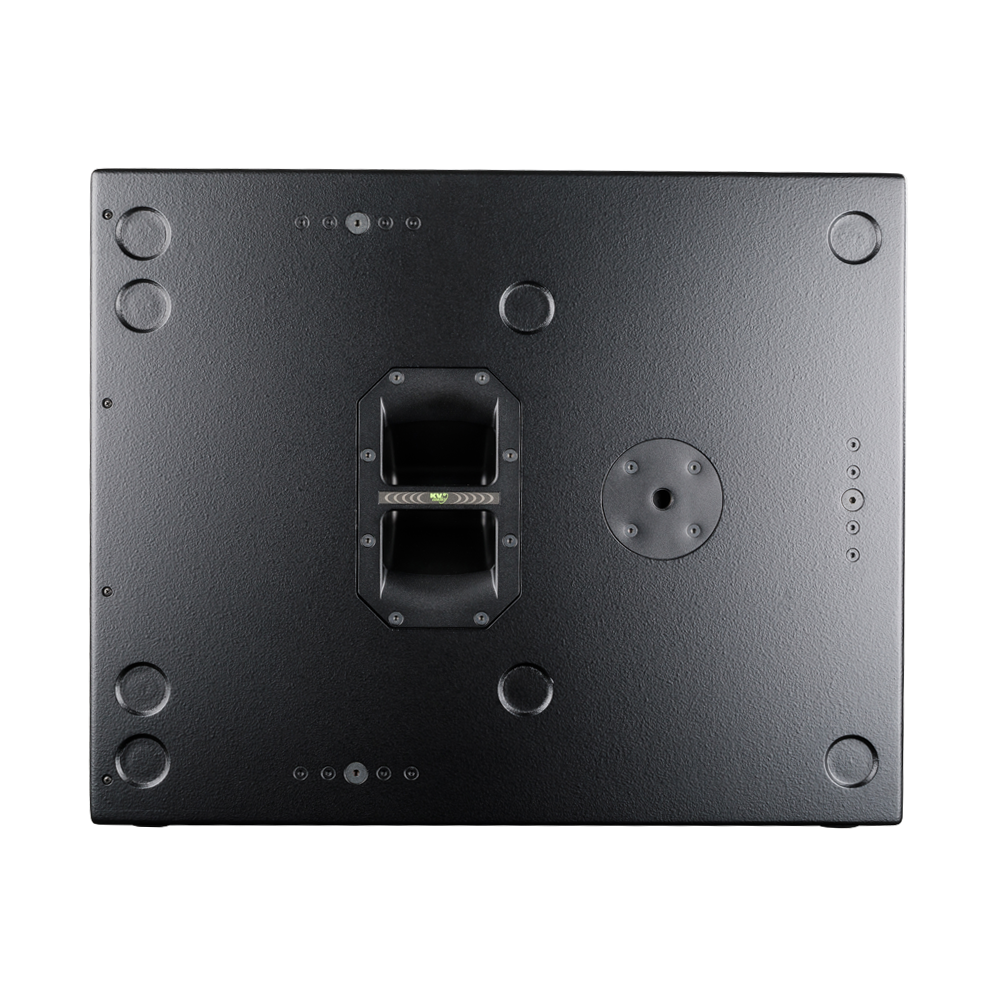

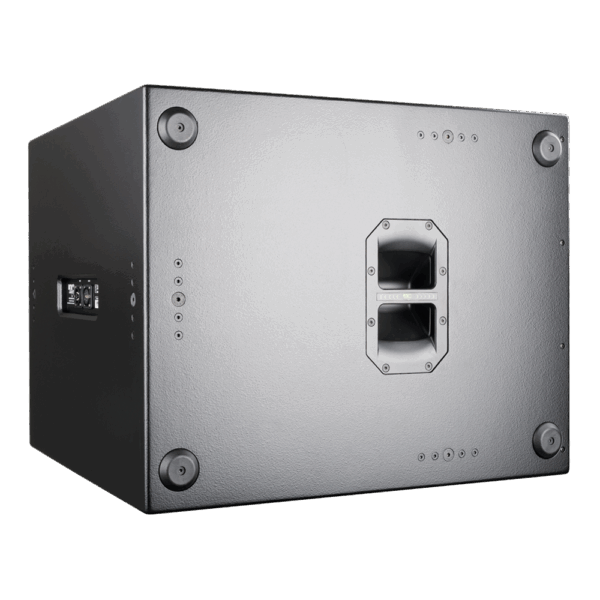

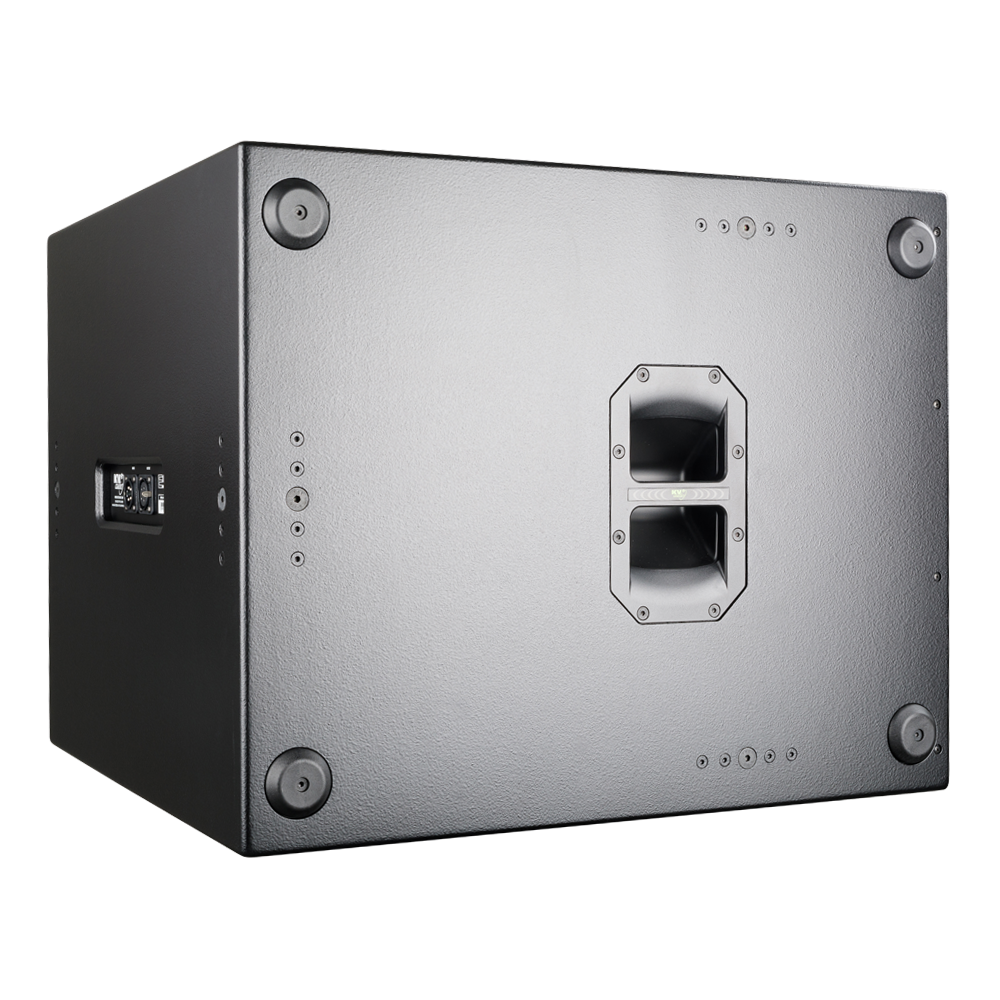

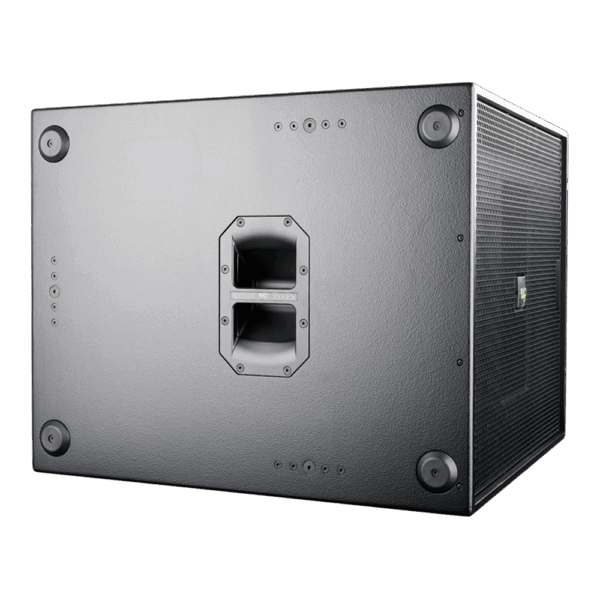

- Four proprietary side handles for simlified handling and carrying

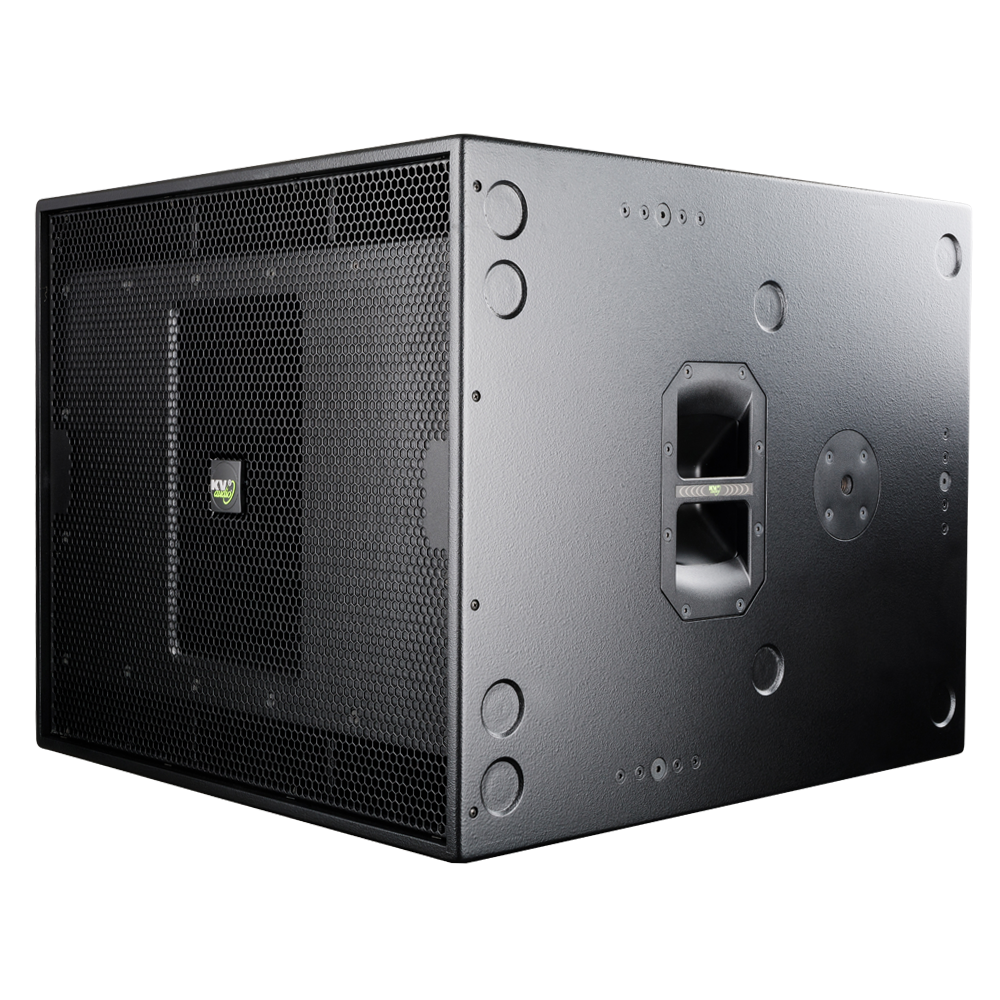

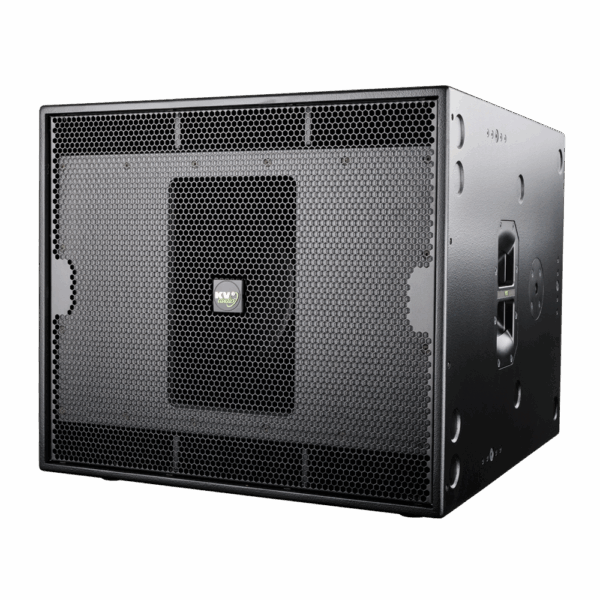

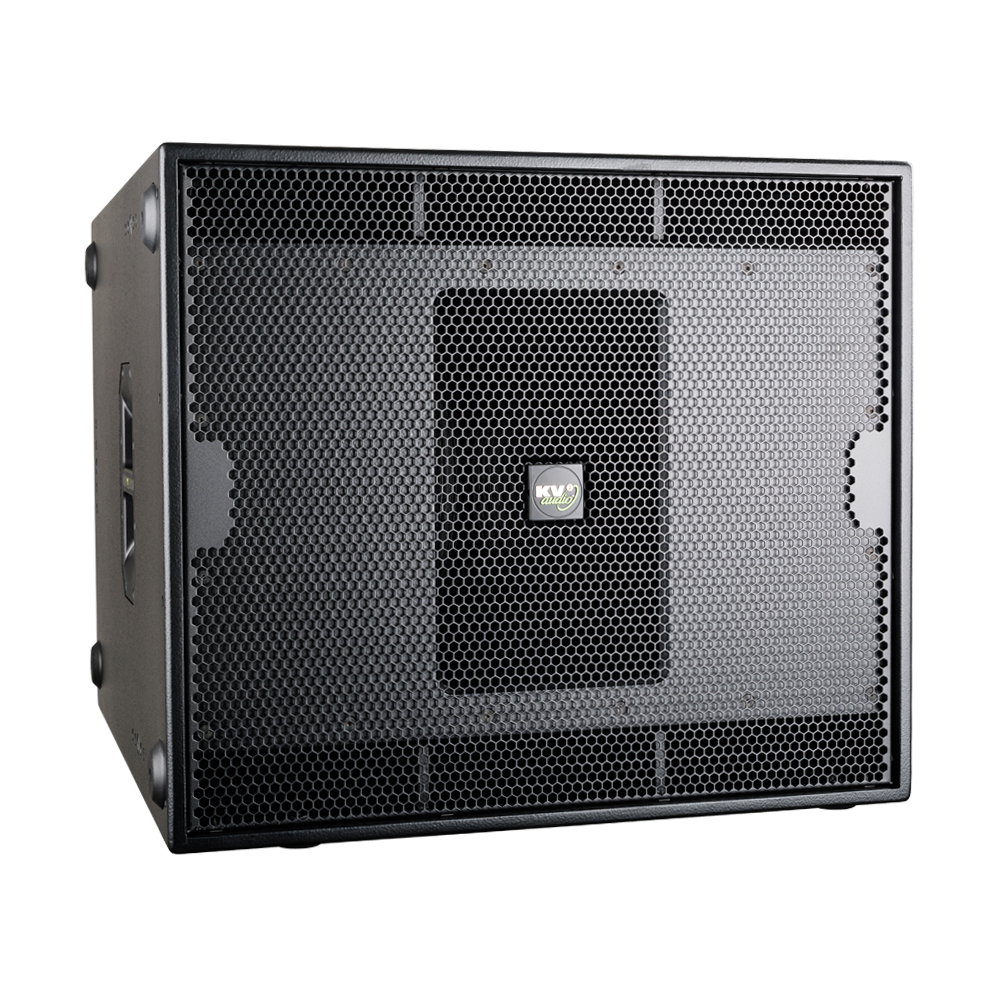

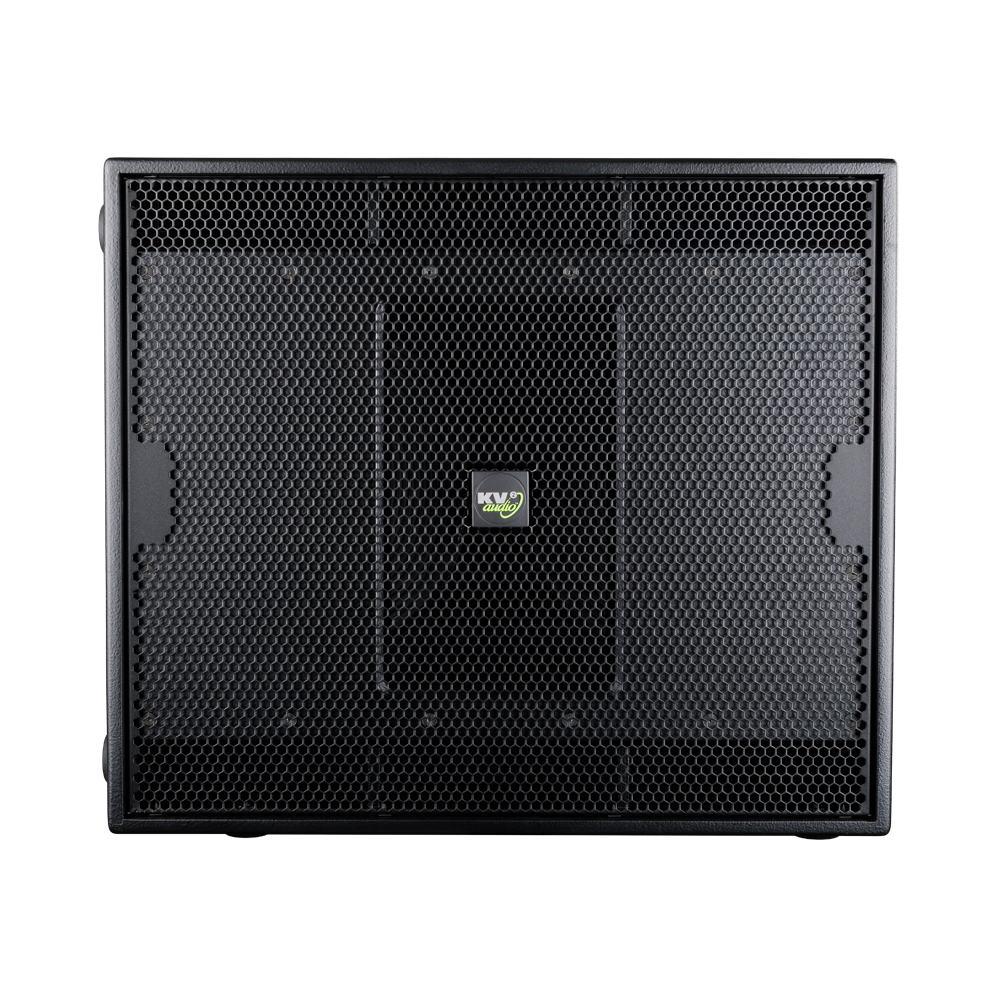

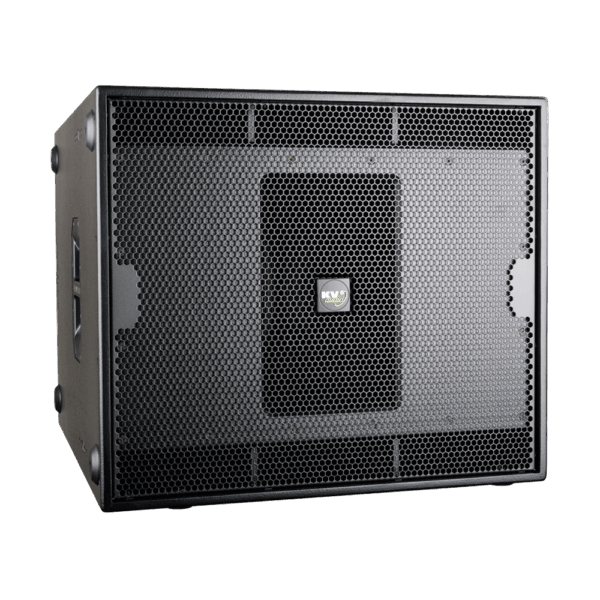

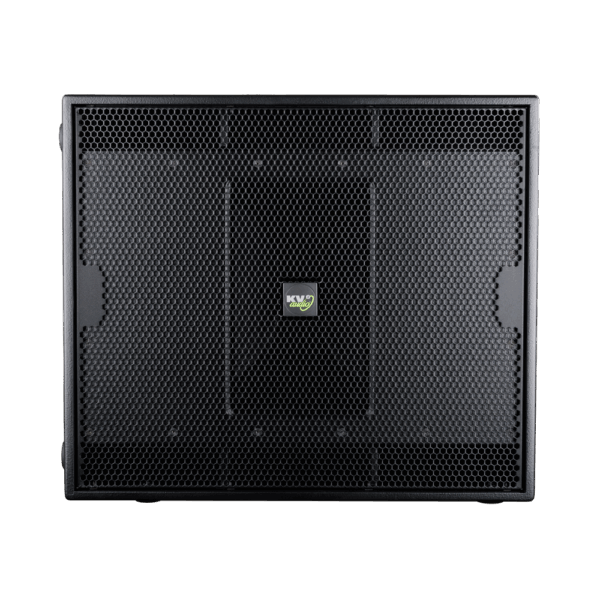

- Heavy duty front grille to work with the innovative new ES series magnetic carts

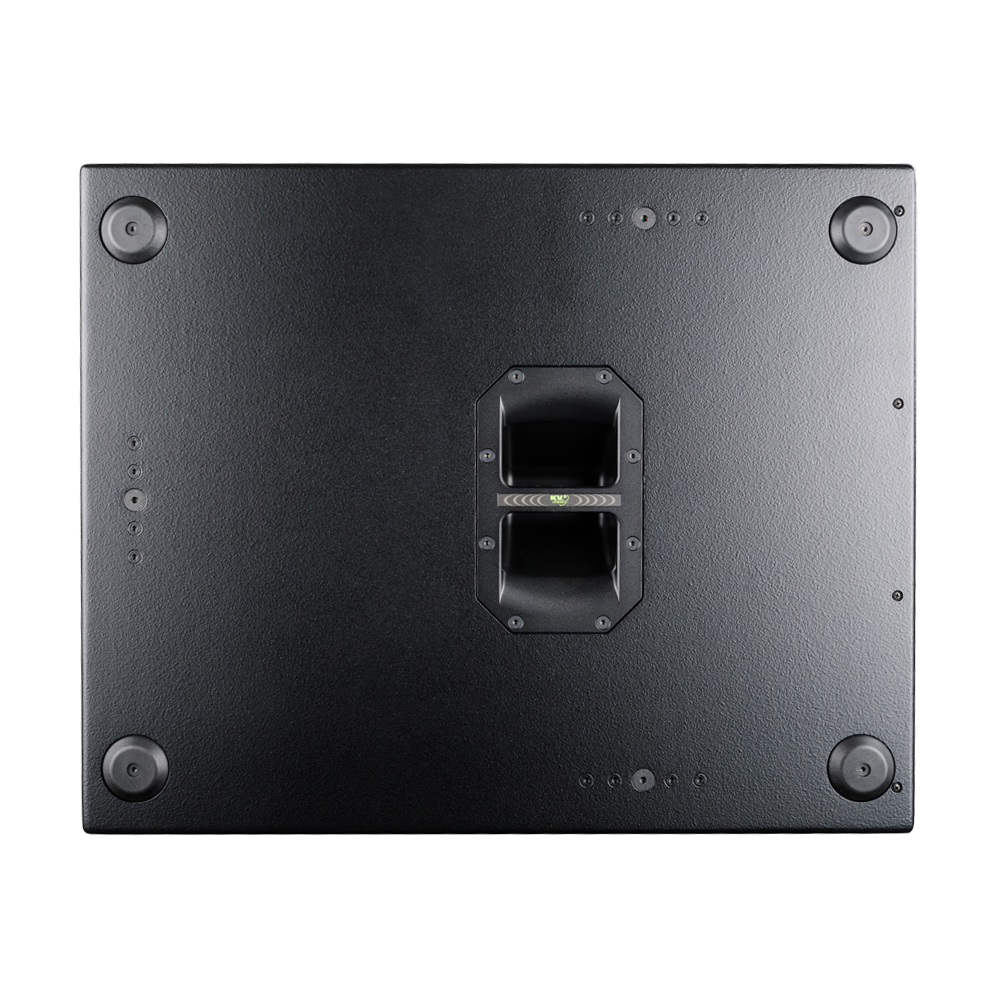

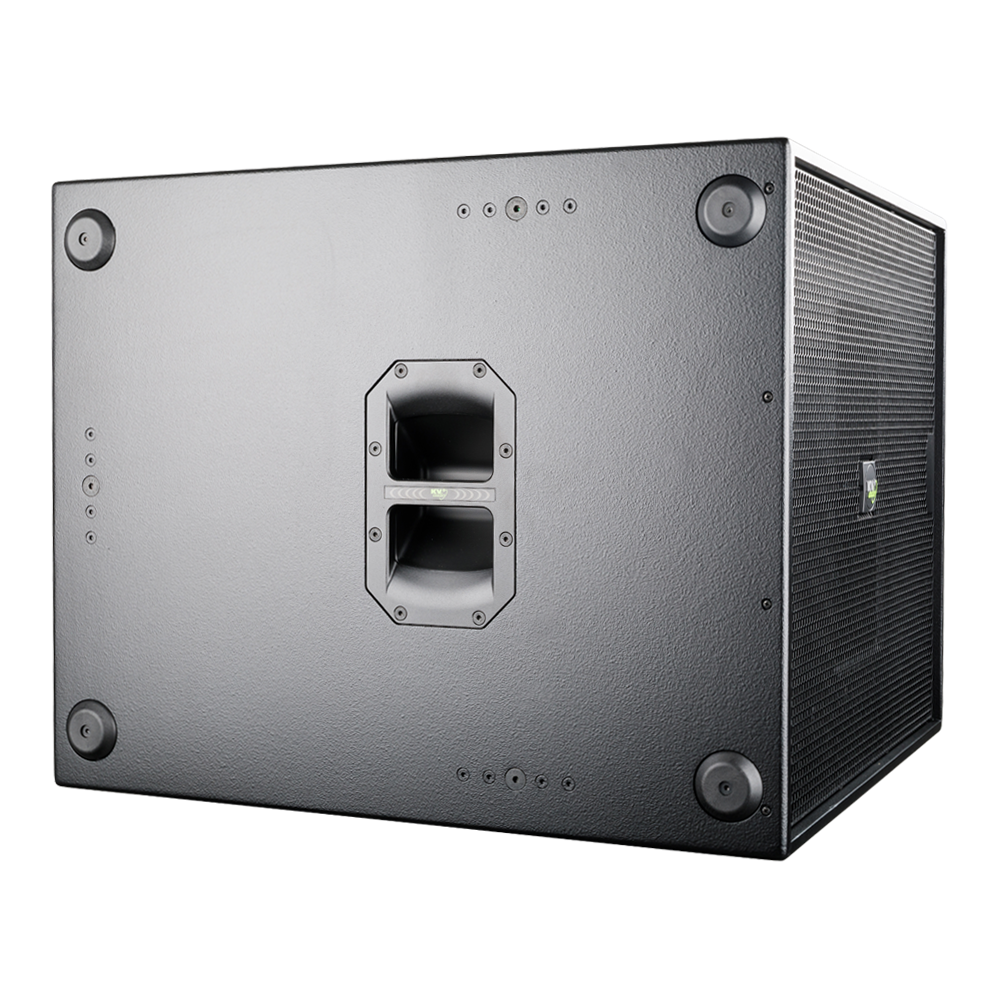

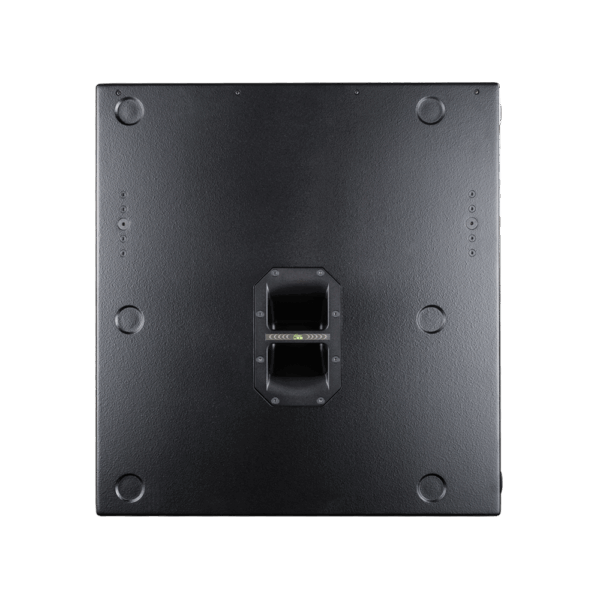

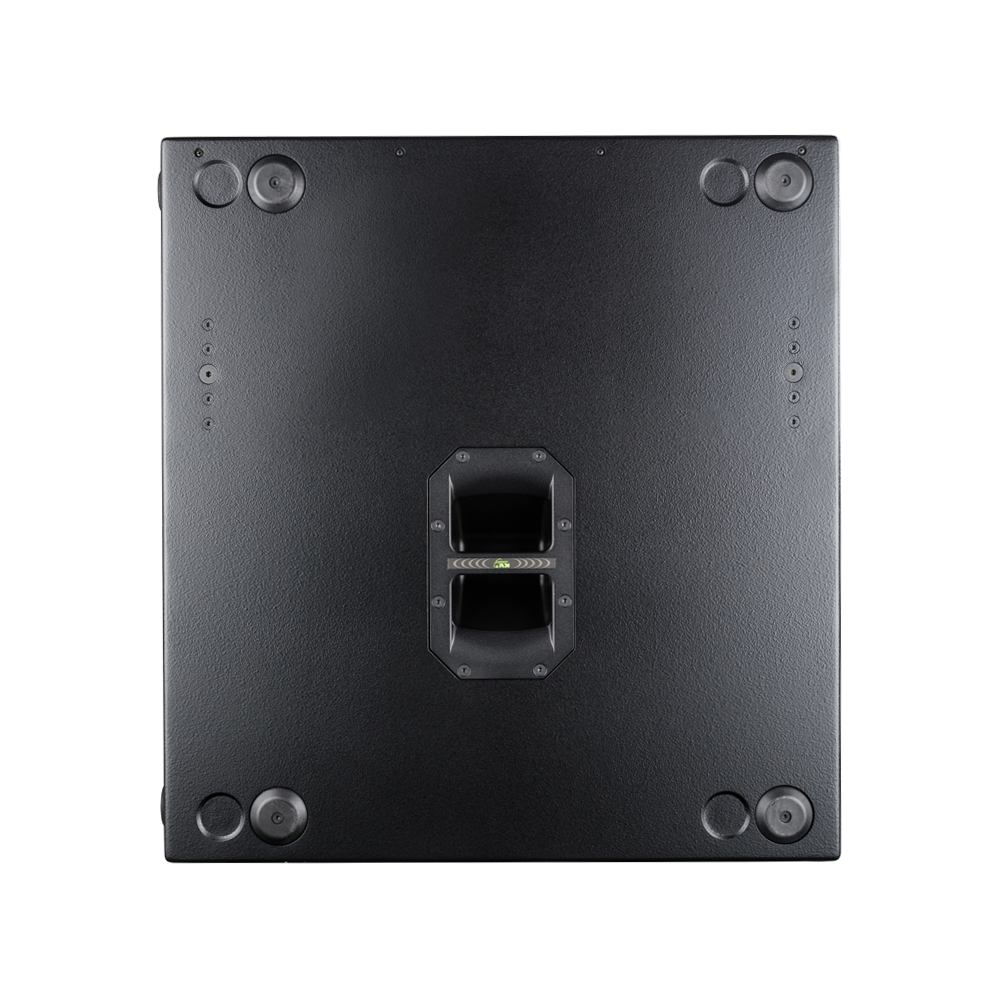

- High-impact, low friction feet are asymmetrically located on two sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
- Six industrial grade internal corner braces with twelve M10 suspension points

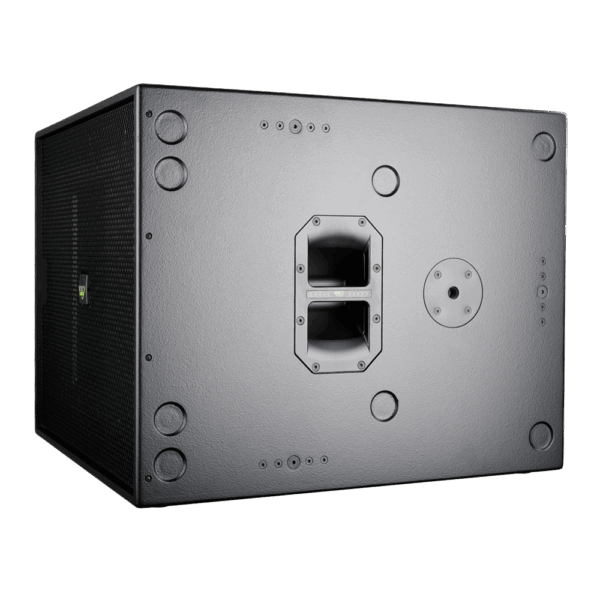

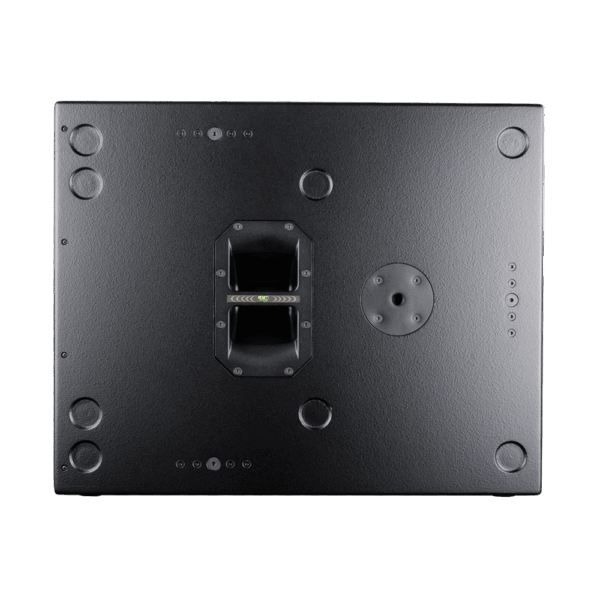

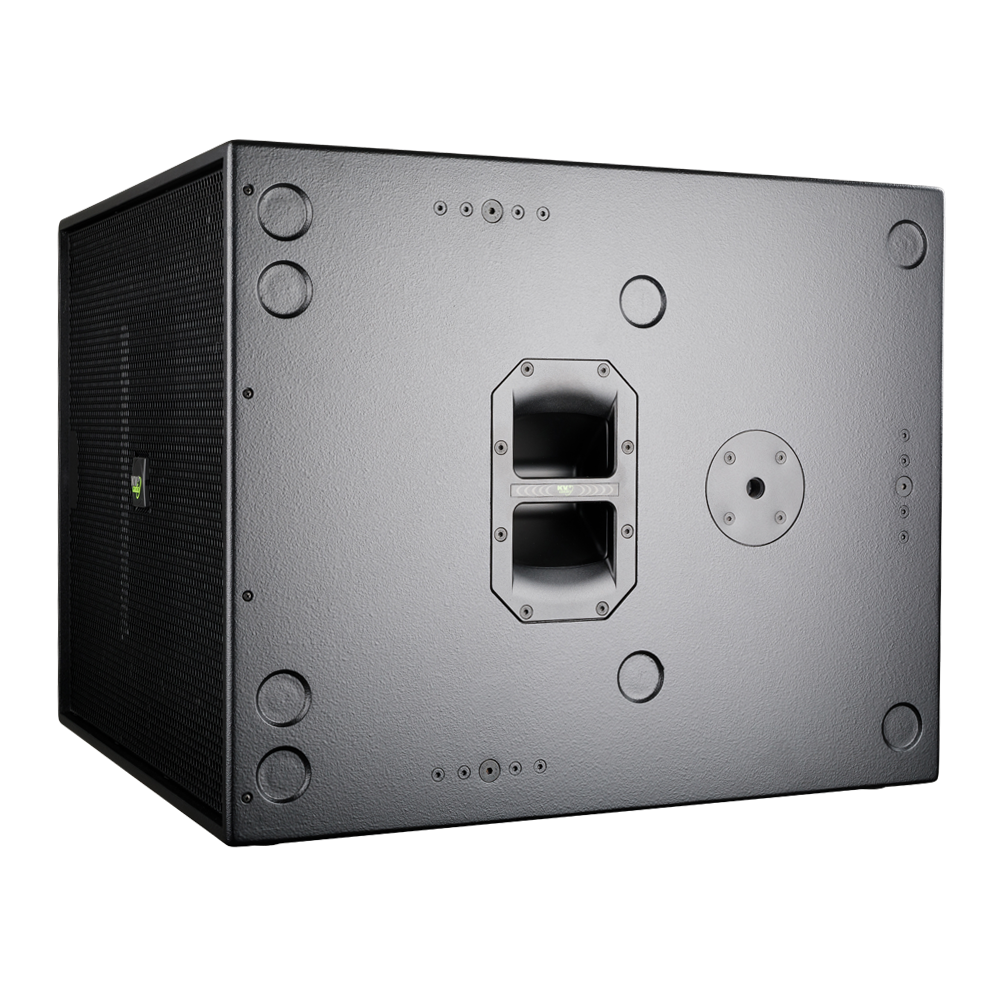

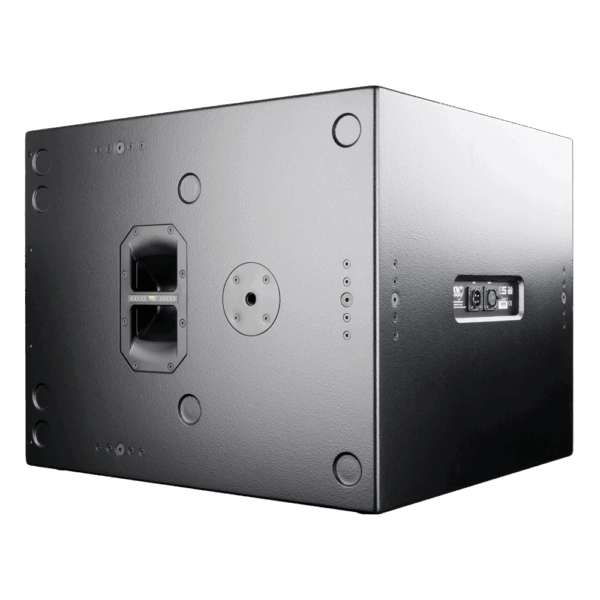

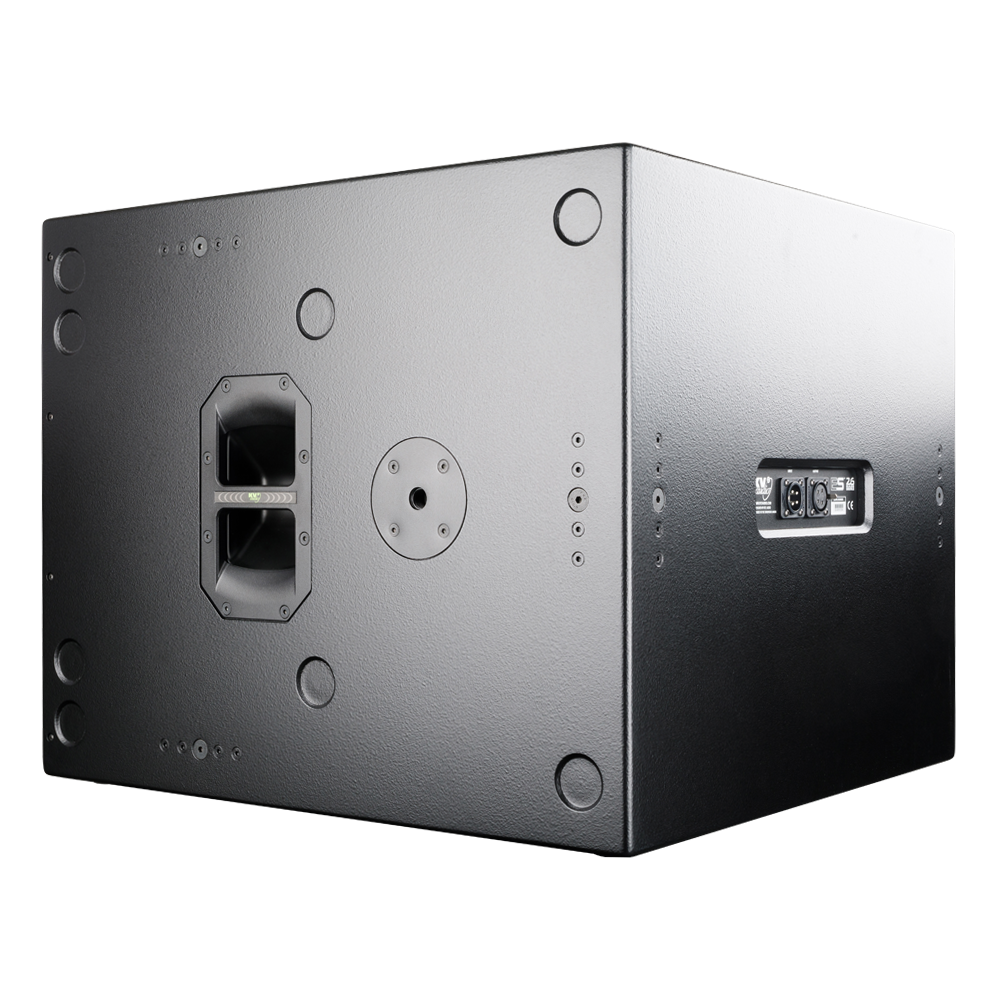

- M20 top hat for pole mounting applications
- Weather proofing option and special paint finishes available on request
System Acoustic Performance:
Max SPL Long-term: 132dB (137dB - 2x ES2.6)
Max SPL Peak: 135dB (140dB - 2x ES2.6)
-3dB Response: 38Hz to 130Hz
-10dB Response: 34Hz to 130Hz
Impedance: 8Ω
Crossover Point: 130Hz
Low Frequency Section:
Acoustic Design: Twin Asymmetrical loading
Number of drivers: 2
Subwoofer Amplifier Requirement: 800W / ES2.6 from EPAK2500/R
Woofer Size / Voice Coil Diameter / Design: 15" / 4" / Inside Outside
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Ferrite

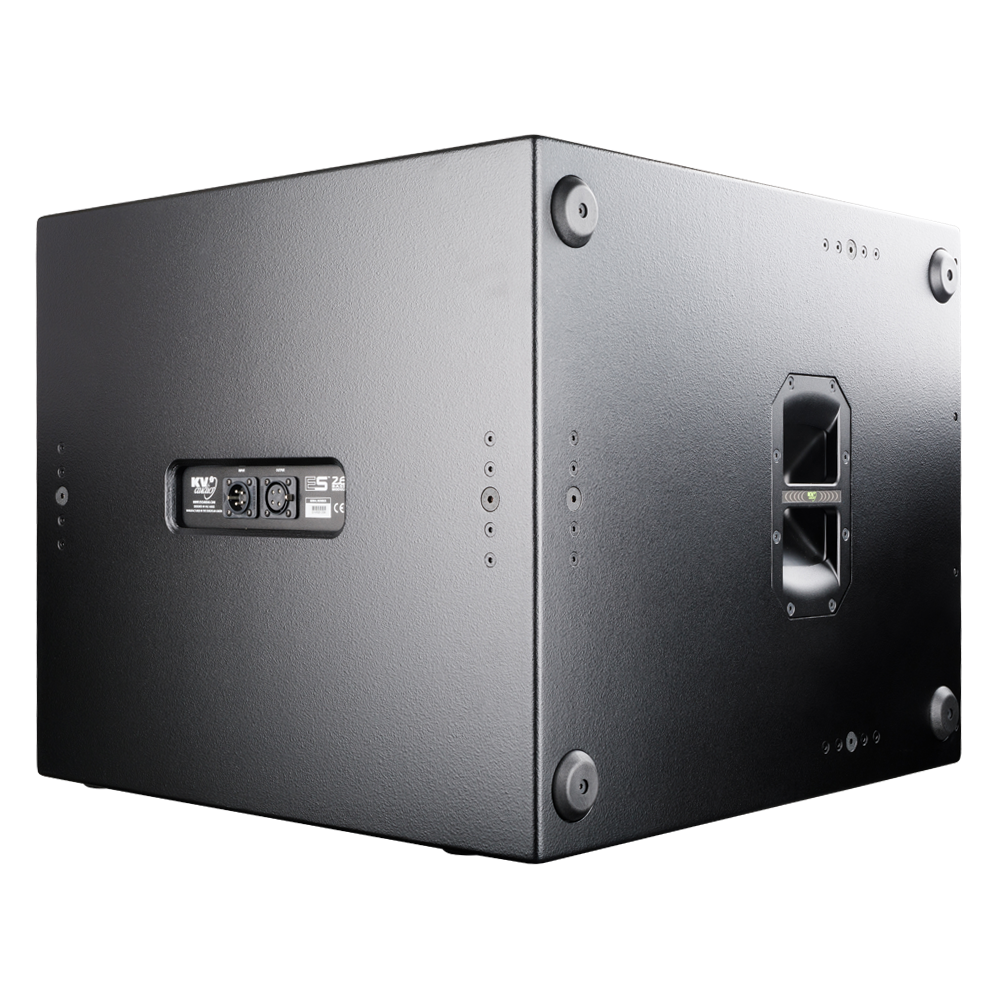

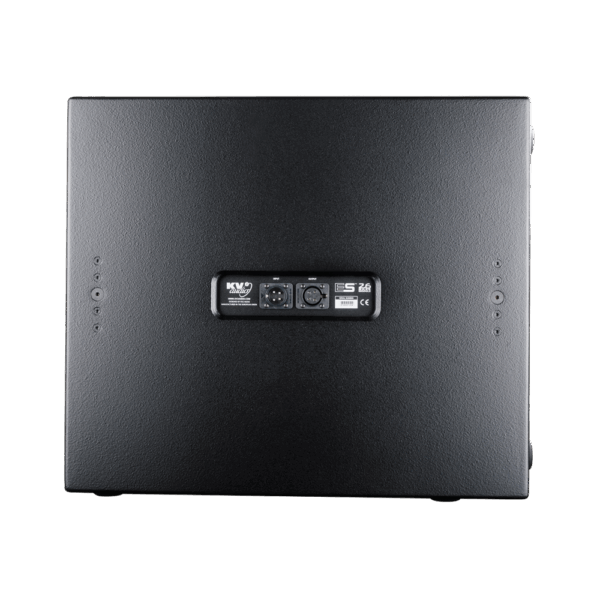

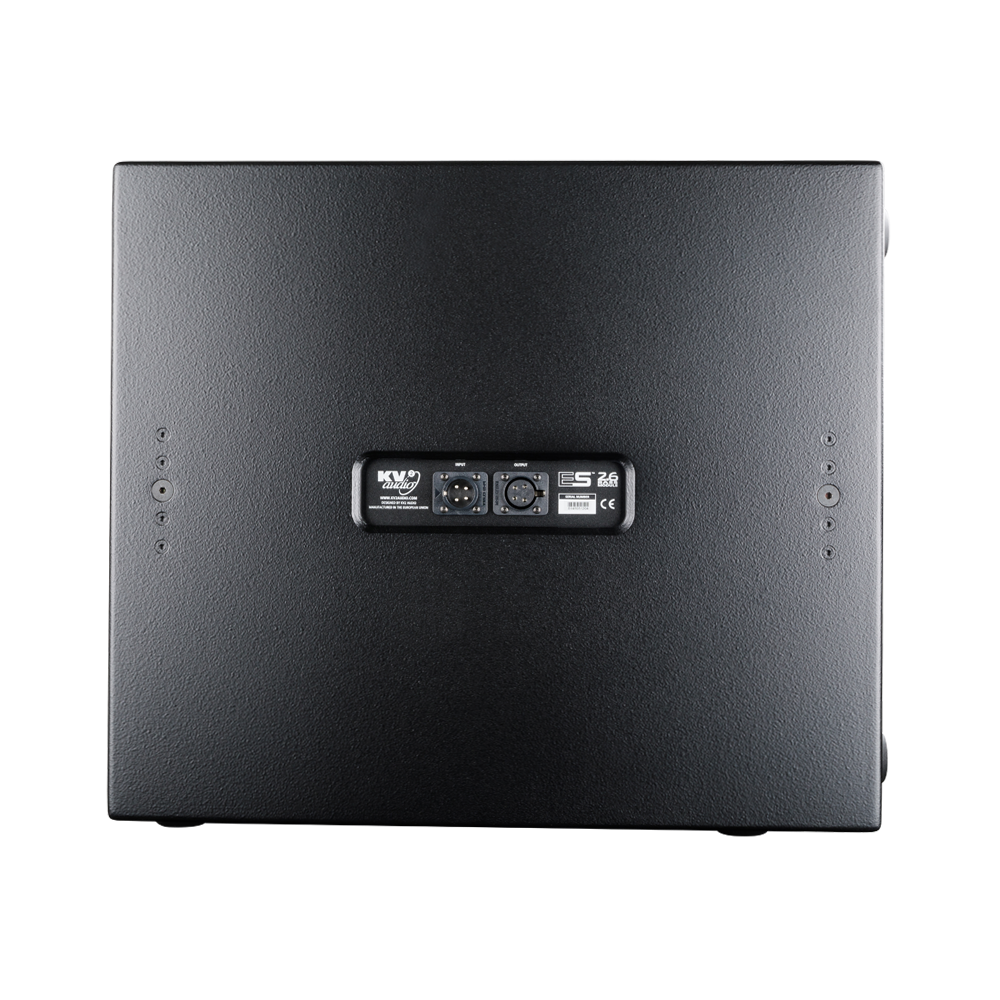

Speaker Input:

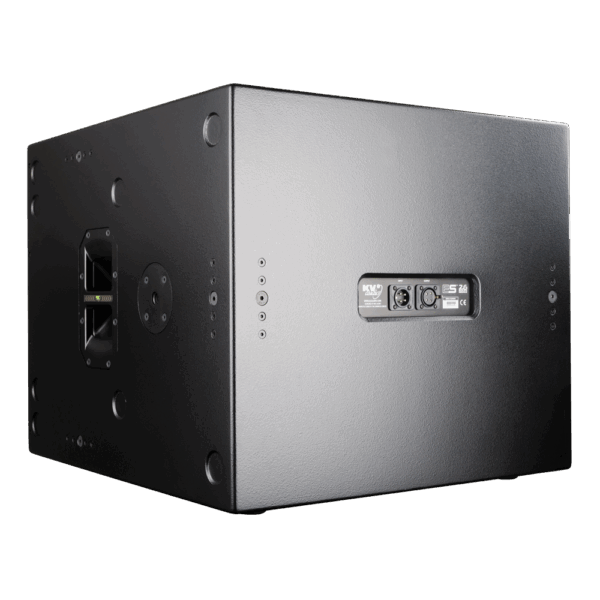

Speaker Input: AP4
Speaker Output:
Speaker Output: AP4
Cabinet:
Cabinet Material: Baltic birch
Handles: 4
Pole Mount: M20
Color: "Orange peeled" Matt Black or any RAL

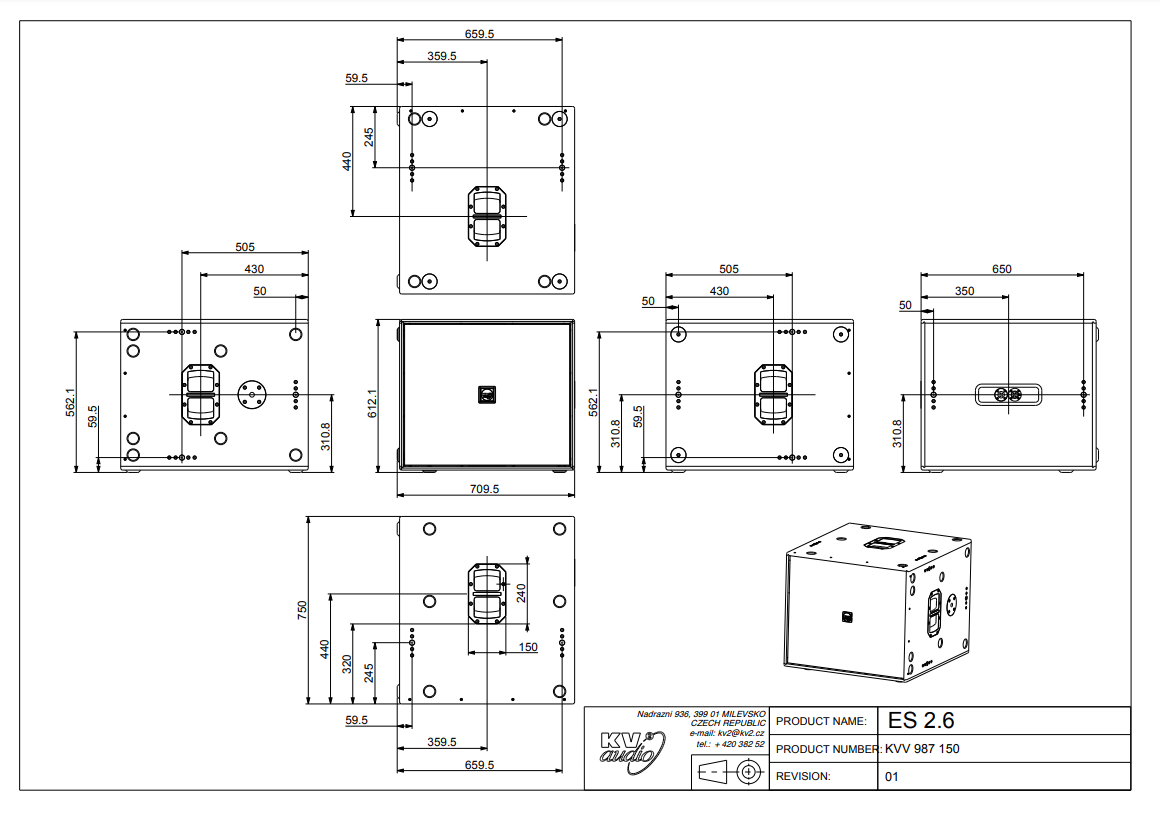

Physical Dimensions:
Height: 600 mm (23.62")
Width: 700 mm (27.55"))
Depth: 750 mm (29.52")
Weight: 74,7 kg (163.1lbs)
Product code:
KVV 987 150 - ES2.6
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed to accompany the ES1.0 as a true full range high output system for live performance and music
● Theatres ● Houses of worship ● Portable PA ● Scalable into larger systems ● Can be integrated with other ES subwoofers
