Brand: ISOLGOMMA
Model: MEGAMAT ME 10/650
Type: Anti-vibration pad
THE PRICE IS FOR 1.00 m²

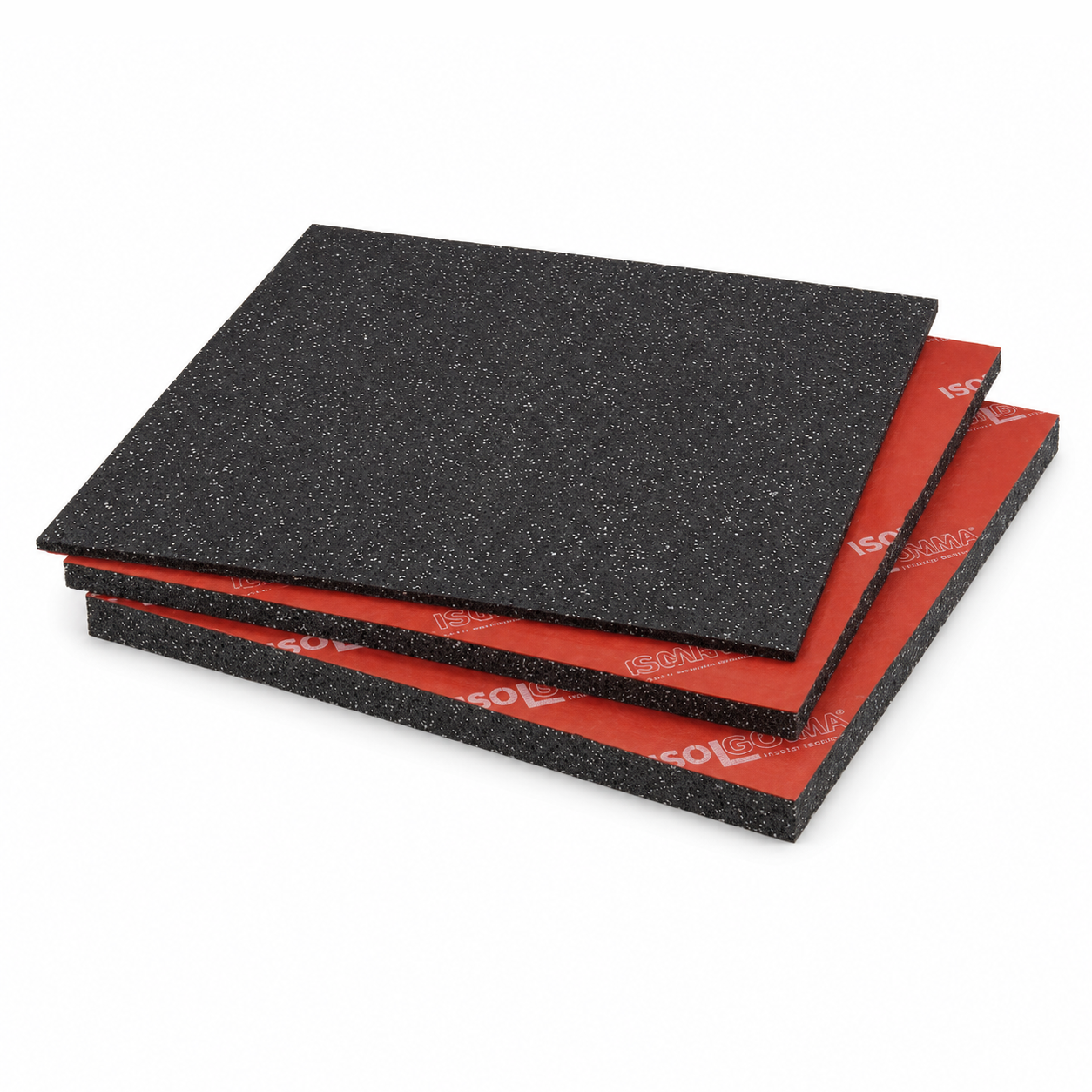

Description: Elastomeric vibration panels made of EPDM and SBR rubber fibers and granules joined by poly-urethane binder, covered with a red waterproof stretchable protective material.
In the industry and construction, the series Megamat is an effective solution against noise pollution caused by the echoing vibrations and noise coming from the working machines, presses and / or systems for air treatment. Megamat is suitable for lying under tiles and / or floating floors, which provide partial or complete isolation of vibration caused by heavy or lighter - machinery and precision instruments. This series is extremely effective against low frequency and high vibration.
Technical parameteres:
Thickness: 10 mm
Panel size: 1.00 meters x 1.00 meters
Density - 650 kg / m³
Operating range of mass (constant and dynamic) - 0,07 - 0,7 N / mm2
A constant elasticity coefficient (Es) - 10% compression - 1,23 N / mm2
Dynamic elasticity coefficient (Ed) - 10% kopresiya - 3,60 N / mm2
Fire resistance: B2
