Brand: Studio Due

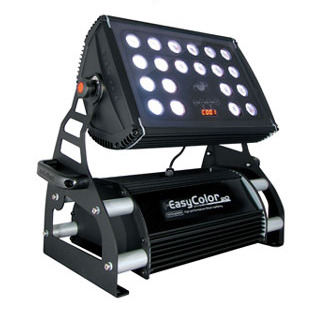

Model: EasyColor 20
Type: Architectural LED body without the need for cable
Description:
Rechargeable
Wireless
IP66
Full-color RGBW
Highly efficient battery
Source:
20x6W: 60 LEDs - a total of 7800 lumens
Power:
Switching Power Supply
(Universal voltage)
Rated Voltage: 100-240V, 50-60Hz
Total nominal power: 150W (250W at load)
Rated current: 1.1A @ 230V - fuse T4A
Correction of the active power
51.2V 12Ah LiFePO4 battery
Time to charge the battery 7:00
Battery operate autonomously:
10:00 2-3 colors in operation
14 hours in power saving mode
Size:
(WxDxH): 540x270x515 mm
Weight: 25 kg
Easy Color Line common characteristics:
Optics
35 mm standard lens beam 20 ° (± 10 °)
Tilt
Manual 220 °
Control
Standard interfaces: RS-485, opto-couplet return
Protocol: USITT DMX 512
COURSE IP 66
DMX channels
9 CH mode, 5 CH, 4 channel mode
Installation and Setup:
Control Panel Control Sensor Technology
LED display with flip function
Specialized channel DMX white balance
DMX or automatic function for master / slave
Built-in wireless receiver
Intelligent temperature control
Oscillation function
Halogen simulation
CYM emulation
Application: Outdoor lighting on buildings, monuments, architectural sites and other
